Set Charge Controller BlueSolar MPPT 75/15 75VOC 15A + Display MPPT Control
  • Pack
Set Charge Controller BlueSolar MPPT 75/15 75VOC 15A + Display MPPT Control

Set Charge Controller BlueSolar MPPT 75/15 75VOC 15A + Display MPPT Control

SET-SCC010015050R
Últimas unidades en stock
131,14 €
Impuestos incluidos 10 %

112,26 € Vat excl.

This set consists of a MPPT Charge Controller of Victron Energy, with the VE.Direct output as for data communication port, the control device MPPT Control suitable for the regulator and the VE.Direct cable.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]



Set Charge Controller BlueSolar MPPT 75/15 75VOC 15A
+ controll Display MPPT Control

This set consists of a MPPT Charge Controller of Victron Energy, with the VE.Direct output as for data communication port, the control device MPPT Control suitable for the regulator and the VE.Direct cable.

Components of the Set

  N. Component Product Code Product Description Data Sheet

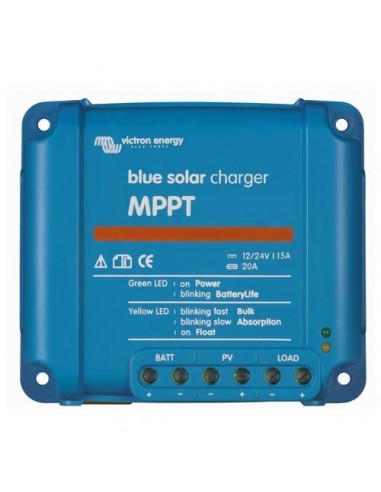

1 Charge Controller SCC010015050R Charge Controller Victron Energy

Model: BlueSolar MPPT - 75/15 75VOC 15A
[link]

1 Controll Display SCC900500000 Monitoring System Victron Energy

Model: MPPT Control
[link]

1 Connecting Cable ASS030530218 Connection Cable Victron Energy

Model: VE.Direct - Lenght: 1,8mt
[link]



Manual, Datasheet and Certifications

Data Sheet EN [LINK]

For all other documents to download, please visit the web site:
www.victronenergy.com

Assistance

  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
Código de Producto
SET-SCC010015050R
Tecnología (MPPT - PWM)
MPPT
Nominal system voltage (VDC)
12 / 24 VDC Auto work
Rated Battery Current
15A
Max. PV input power
12V (200W)24V (400W)
Self-consumption
10 mA
Terminal
6 mm²
Working temperature
-30°C - +60°C
Overall dimension
100x113x40 mm
Net weight
0.5kg
