928,98 € Vat excl.

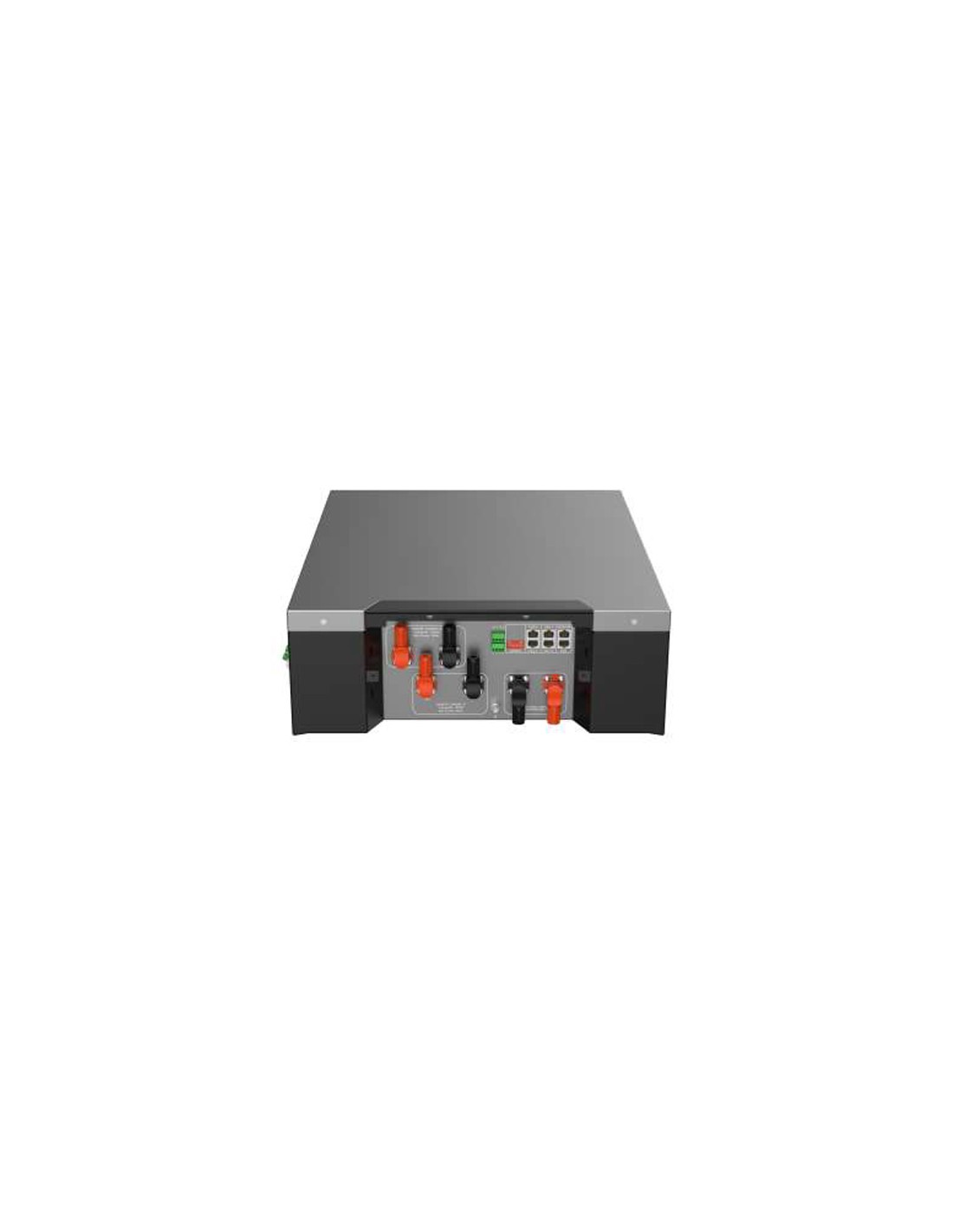

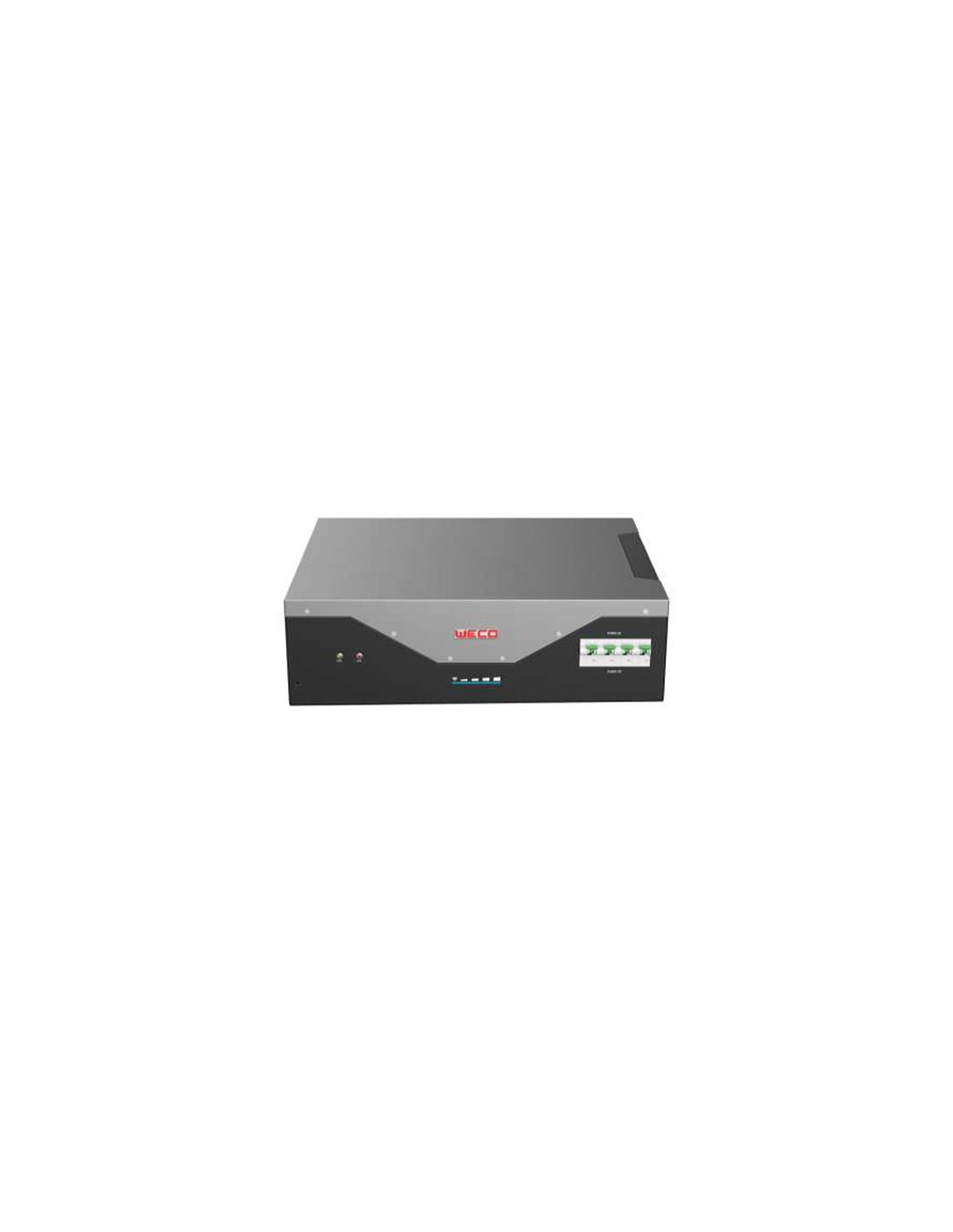

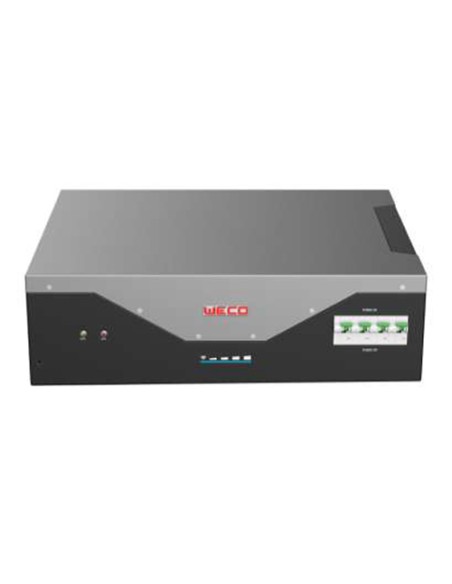

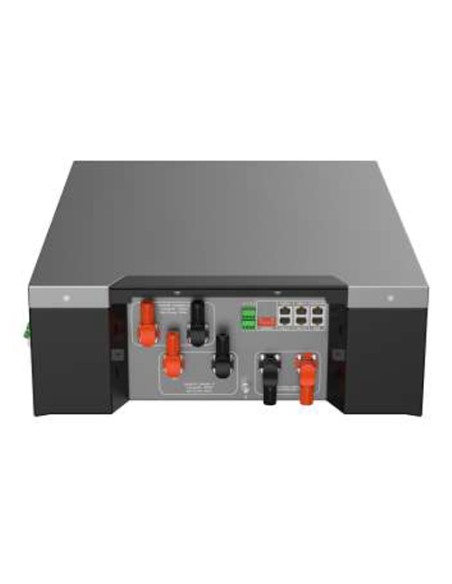

Batteriemanagementsystem WECO 5k3 XP Hochspannung.
| General data | |
| Technology | HV Battery Management System |
| Dimensions (H*L*W) | 560 x 470 x 160mm |
| Weight | 19Kg |
| Protection Class | IP20 |
| Mounting | Stackable on Weco batteries |
| Operating temperature | -10°C - +55°C |
| Allowable relative humidity range | 0….95% non-condensing |
| Maximum operating altitude | 2000m |
| Maximum input channel | 2 channels |
| Certifications | CE, IEC 61000-3-1: 2007, 61000-3-2:2014, 61000-6-3:2013, IEC62619 |
| Warranty | 10 years in standard conditions |
| Communication | RS232, RS485, CAN bus, wifi (optional) |
| Operating Data | |
| Allowable operating voltage | 150-1000 Vdc |
| Maximum current for each input channel | 50 Adc |
| Total charging/discharging current | 100 Adc |
| Protection systems | Automatic contactor 200A, Fuse 200A, 750Vdc |
| Manageable batteries by a single unit | From 4 to 11 batteries in series |
