| DC Input (PV Side) |
| Max. recommended PV field size |
100 kW |
| Max. recommended PV input power |
96 kW |
| Max. absolute voltage |
1000 V |
| Rated voltage |
600 V |
| Startup voltage |
180 V |
| MPPT voltage range |
150 - 850 V |
| Max. input current |
4 × 40 A |
| Max. short circuit current |
4 × 60 A |
| MPPT number / Max. number of strings |
4 / 8 |
| Battery |
| Battery type |
Lithium-ion |
| Allowed voltage range |
150 - 800 V |
| Max. charge / discharge power |
55 kW |
| Max. charge / discharge current |
70 A × 2 |
| No. of battery inputs |
2 |
| Max. charge / discharge power per input |
35 kW |
| Communication |
CAN / RS485 |
| AC Output (Grid Side) |
| Rated output power |
50 kW |
| Max. apparent output power |
50 kVA |
| Nominal grid voltage |
3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Nominal grid frequency |
50 Hz / 60 Hz |
| Nominal grid output current |
76 A / 72.2 A |
| Max. output current |
76 A / 72.2 A |
| Power factor |
> 0.99 (0.8 leading - 0.8 lagging) |
| THDi |
< 3% |
| AC Input (Grid Side) |
| Max. AC transmission current |
152 A / 144.4 A |
| Nominal input voltage |
3/N/PE, 220 V / 380 V, 230 V / 400 V |
| Nominal input frequency |
50 Hz / 60 Hz |
| AC Output (Backup) |
| Rated output power |
50 kW |
| Max. apparent output power |
1.6 times the nominal power, 2 s |
| Backup switch-over time |
< 10 ms |
| Nominal output current |
76 A / 72.2 A |
| THDv (@linear load) |
< 2% |
| Efficiency |
| Max. efficiency |
97.8% |
| European efficiency |
97.4% |
| Max. efficiency with battery charged by PV |
98.5% |
| Max. efficiency with battery charged/discharged in AC |
97.5% |
| Protection |
| Anti-islanding system |
Yes |
| Output overcurrent protection |
Yes |
| Short circuit protection |
Yes |
| Integrated DC switch |
Yes |
| DC reverse polarity protection |
Yes |
| DC Type II / AC Type II overvoltage protection |
Yes |
| Integrated AFCI 2.0 |
Optional |
| General Data |
| Dimensions (W × H × D) |
530 × 880 × 290 mm |
| Weight |
73 kg |
| Topology |
Transformerless |
| Self consumption (night) |
< 35 W |
| Operating temperature range |
-25 ~ +60°C |
| Relative humidity |
0 - 95% |
| Ingress protection |
IP66 |
| Cooling method |
Intelligent fan cooling |
| Max. operating altitude |
4000 m |
| Grid connection standards |
| Grid connection standards |
G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, PORTARIA Nº 140, DE 21 DE MARÇO DE 2022 |
| Safety / EMC standards |
| Safety / EMC standards |
IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011 |
| Features |

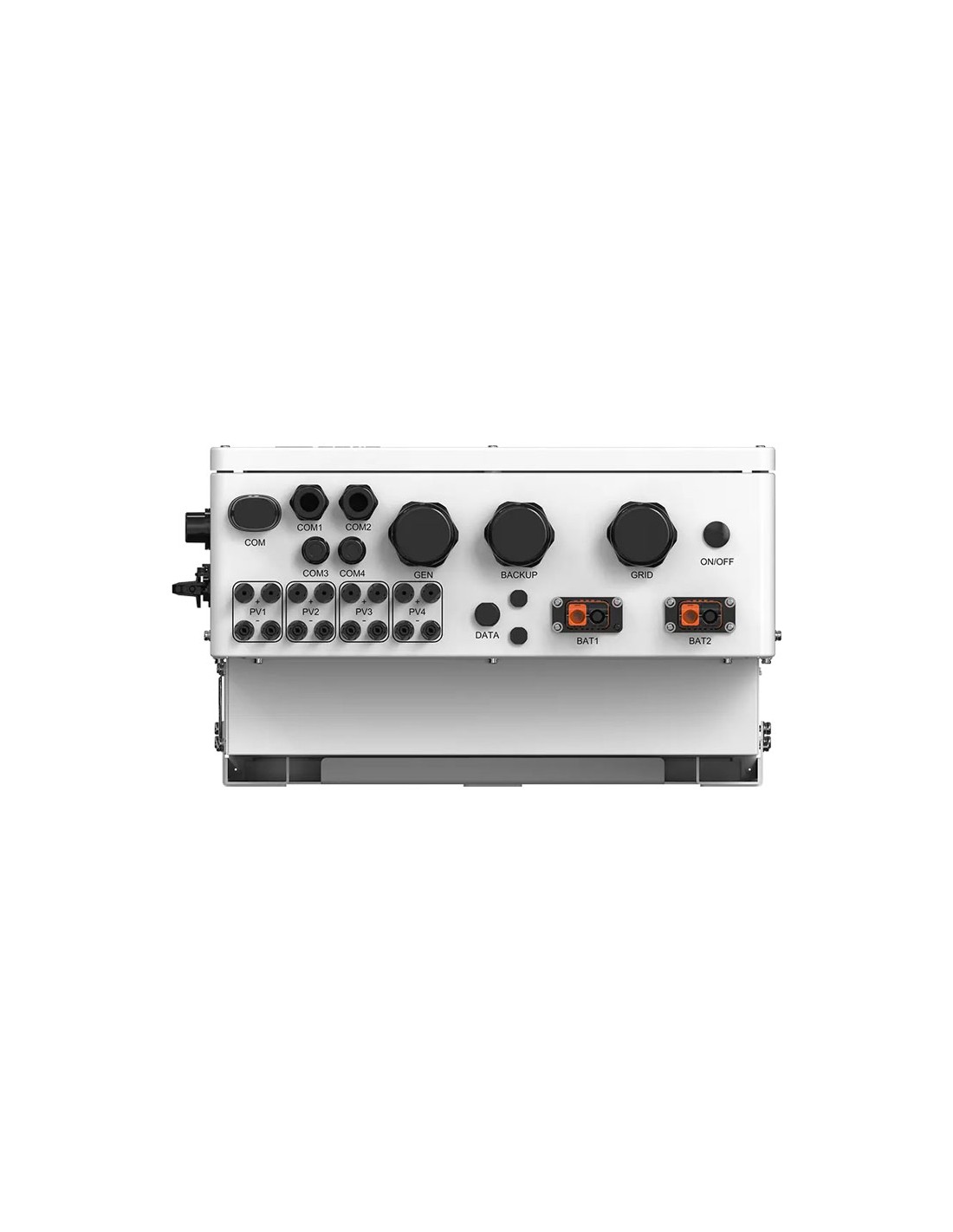

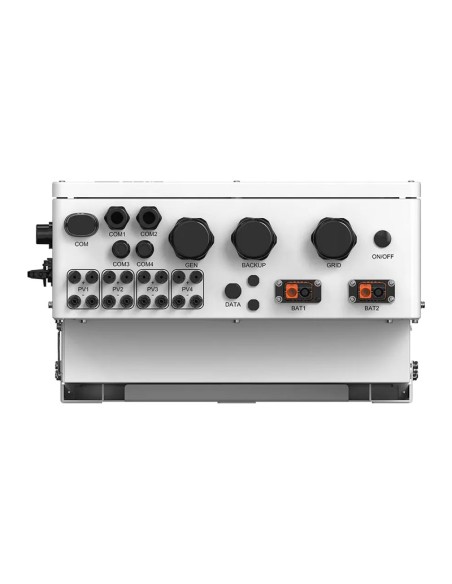

PV connection: MC4 connector; Battery connection: Terminal connectors; AC connection: Terminal block; Display: 7.0" LCD display and Bluetooth + APP; Communication: CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN |
