Set Charge Controller BlueSolar MPPT 75/10 75VOC 10A + Display MPPT Control
SET-SCC010010050R
Nur noch wenige Teile verfügbar
154,62 €
Bruttopreis
10 %
133,61 € Vat excl.
This set consists of a MPPT Charge Controller of Victron Energy, with the VE.Direct output as for data communication port, the control device MPPT Control suitable for the regulator and the VE.Direct cable.
Are you a dealer or installer?
For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]
Set Charge Controller BlueSolar MPPT 75/10 75VOC 10A
|
||
This set consists of a MPPT Charge Controller of Victron Energy, with the VE.Direct output as for data communication port, the control device MPPT Control suitable for the regulator and the VE.Direct cable.
Components of the Set
N. | Component | Product Code | Product Description | Data Sheet | |

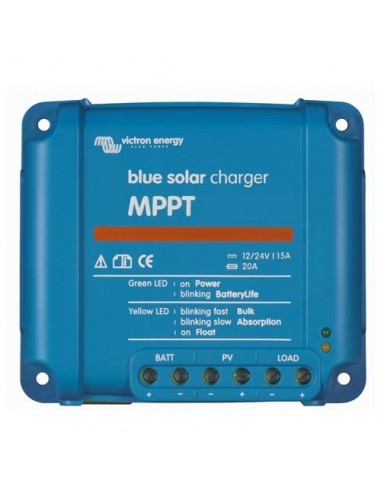

1 | Charge Controller | SCC010010050R | Charge Controller Victron Energy Model: BlueSolar MPPT -75/10 75VOC 10A |
[link] | |

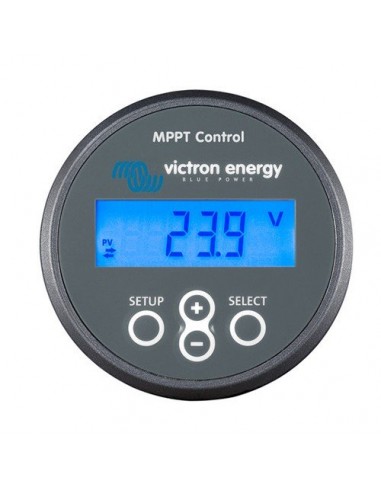

1 | Controll Display | SCC900500000 | Monitoring System Victron Energy Model: MPPT Control |
[link] | |
1 | Connecting Cable | ASS030530218 | Connection Cable Victron Energy Model: VE.Direct - Lenght: 1,8mt |
[link] | |
Manual, Datasheet and Certifications |
||||||||
|
Assistance |
|||||||||||
|
- Produkt-Code
- SET-SCC010010050R
- Technologie (MPPT - PWM)
- MPPT
- Nominal system voltage (VDC)
- 12 / 24 VDC Auto work
- Rated Battery Current
- 10A
- Max. PV input power
- 12V (135W)24V (270W)
- Self-consumption
- 10 mA
- Terminal
- 6 mm²
- Working temperature
- -30°C - +60°C
- Overall dimension
- 100x113x40 mm
- Net weight
- 0.5kg
