Set Charge Controller BlueSolar MPPT 150/70-MC4 150VOC 70A + Display MPPT Control
  • Artikelbündel
Set Charge Controller BlueSolar MPPT 150/70-MC4 150VOC 70A + Display MPPT Control

Set Charge Controller BlueSolar MPPT 150/70- 150VOC 70A+Display MPPT Control

SET-SCC010070300
Nur noch wenige Teile verfügbar
418,90 €
Bruttopreis 10 %

373,86 € Vat excl.

This set consists of a MPPT Charge Controller of Victron Energy, with the VE.Direct output as for data communication port, the control device MPPT Control suitable for the regulator and the VE.Direct cable.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]



Set Charge Controller BlueSolar MPPT 150/70- 150VOC 70A
+ controll Display MPPT Control

This set consists of a MPPT Charge Controller of Victron Energy, with the VE.Direct output as for data communication port, the control device MPPT Control suitable for the regulator and the VE.Direct cable.

Components of the Set

  N. Component Product Code Product Description Data Sheet

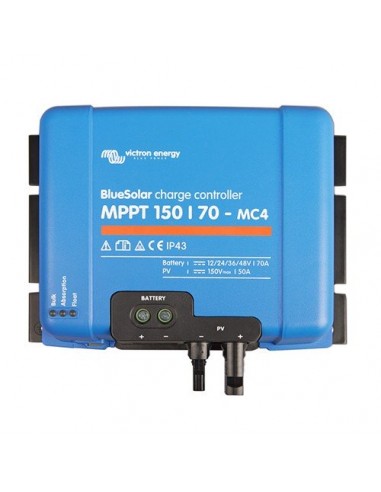

1 Charge Controller SCC010070300 Charge Controller Victron Energy

Model: BlueSolar MPPT - 150/70- 150VOC 70A
[link]

1 Controll Display SCC900500000 Monitoring System Victron Energy

Model: MPPT Control
[link]

1 Connecting Cable ASS030530218 Connection Cable Victron Energy

Model: VE.Direct - Lenght: 1,8mt
[link]



Manual, Datasheet and Certifications

Data Sheet EN [LINK]

For all other documents to download, please visit the web site:
www.victronenergy.com

Assistance

  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
Produkt-Code
SET-SCC010070300
Technologie (MPPT - PWM)
MPPT
Nominal system voltage (VDC)
12 / 24 / 48 VDC Auto work
Rated Battery Current
70A
Max. PV input power
12V (1000W)24V (2000W)48V (4000W)
Self-consumption
10 mA
Terminal
35mm²
Working temperature
-30°C - +60°C
Overall dimension
215x250x95 mm
Net weight
3kg
8380000003020
