2.675,81 € Vat excl.

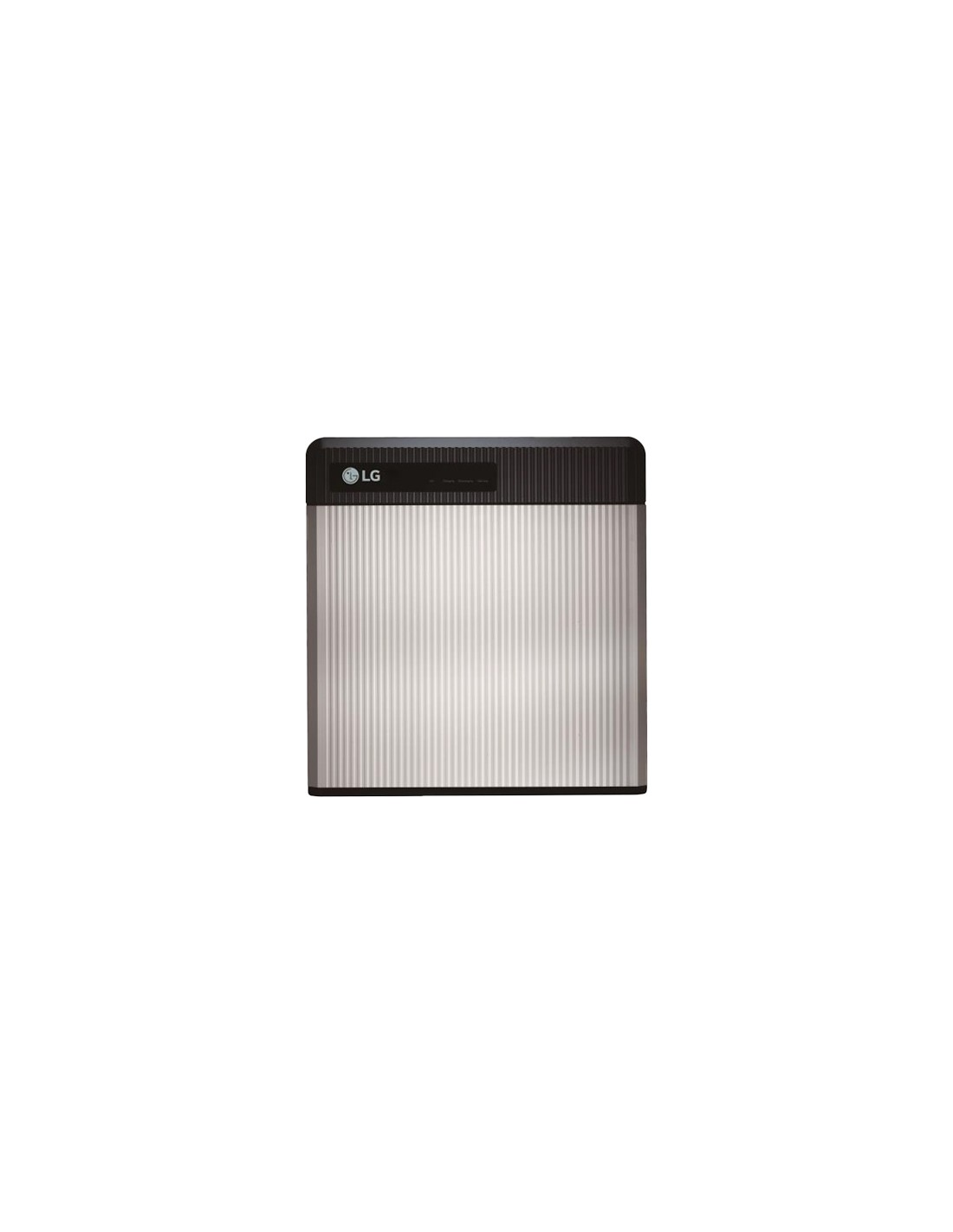

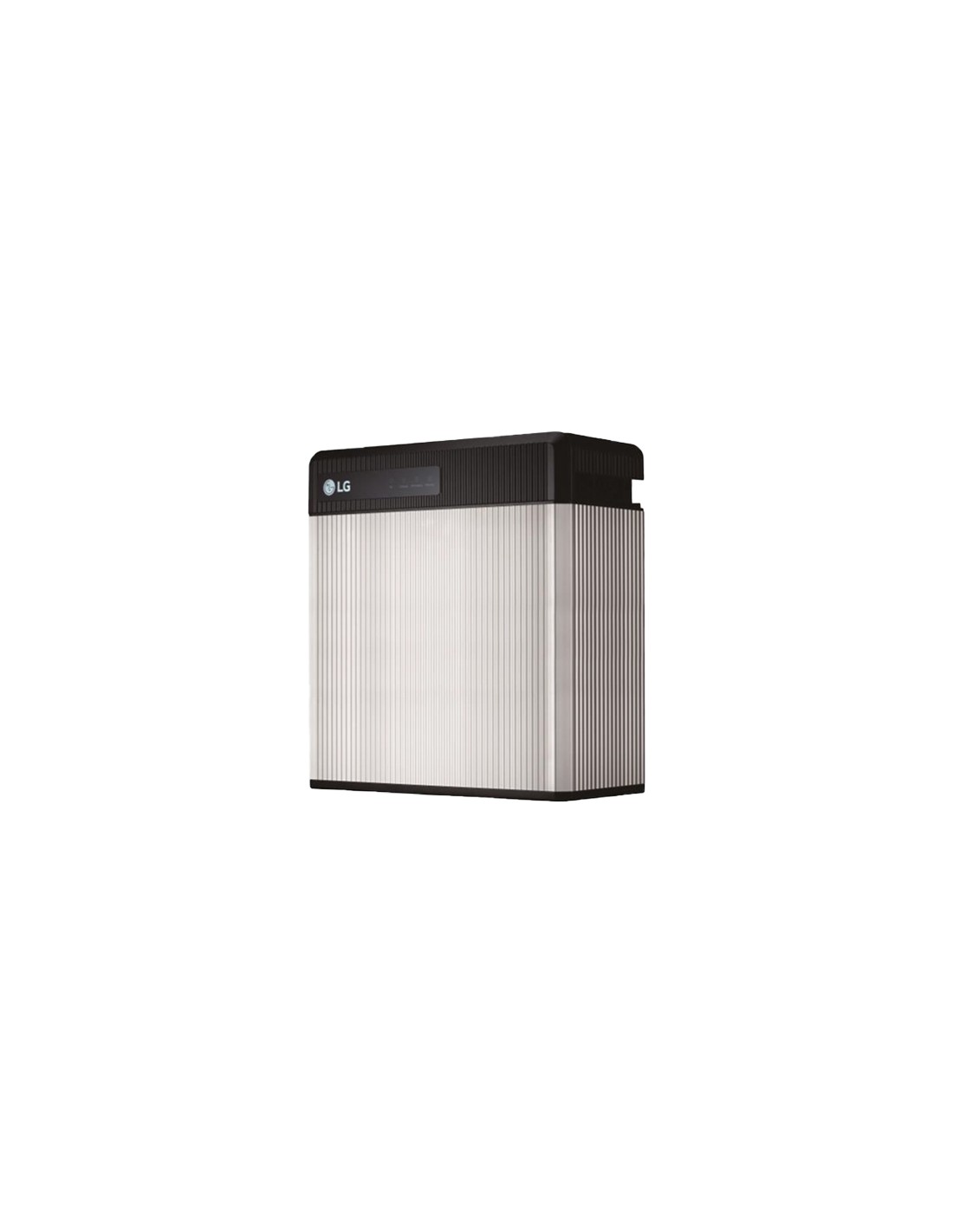

Das für Photovoltaikanlagen konzipierte Batteriepaket RESU10 ist eine einfach anpassbare Energiespeicherlösung.
Das für Photovoltaikanlagen konzipierte Batteriepaket RESU10 ist eine einfach anpassbare Energiespeicherlösung.
| Electrical Characteristics | |||
| Model | RESU10 | ||
| Total Energy Capacity | 9.8 kWh | ||
| Usable Energy Capacity | 8.8 kWh | ||
| Battery Capacity | 189 Ah | ||
| Nominal Voltage | 51.8 V | ||
| Voltage Range | 42.0~58.8 V | ||
| Max . Charge/Discharge Current | 119 A | ||
| Peak current | 166.7 A for 3 sec. | ||
| Max. Charge/Discharge Power | 5.0 kW | ||
| Peak power | 7.0 kWfor 3 sec. | ||
| Battery Pack Round Trip Efficiency | >95% under specific conditions | ||
| Communication Interface | CAN 2.0B | ||
| DC Disconnect | Circuit Breaker, Contactor, Fuse | ||
| Operating and mechanical condition | |||
| Installation Location | Indoor / Outdoor (Stand / Wall Mounted) | ||
| Ingress Rating | IP55 | ||
| Operating Temperature | - 10 to 45 C | ||
| Operating Temperature (Recommended) | 15 to 30 C | ||
| Storage Temperature | From 30 to 60 C: : ~ 7 days From 20 to 45 C: ~ 6 moths |
||
| Humidity | 5% to 95% | ||
| Altitude | Max. 2,000m | ||
| Cooling Strategy | Natural Convection | ||
| Dimensions (W x H x D) | 452x 484 x 227mm | ||
| Weight | 75kg | ||
| Certifications | |||
| Safety | UL1642 CE/ RCM / FCC TUV (IEC 62619 ) / UL1973 |
||
| Emissions | IEC61000 6 1, IEC61000 6 3 | ||
| Transport | Class 9 | ||
