674,12 € Vat excl.

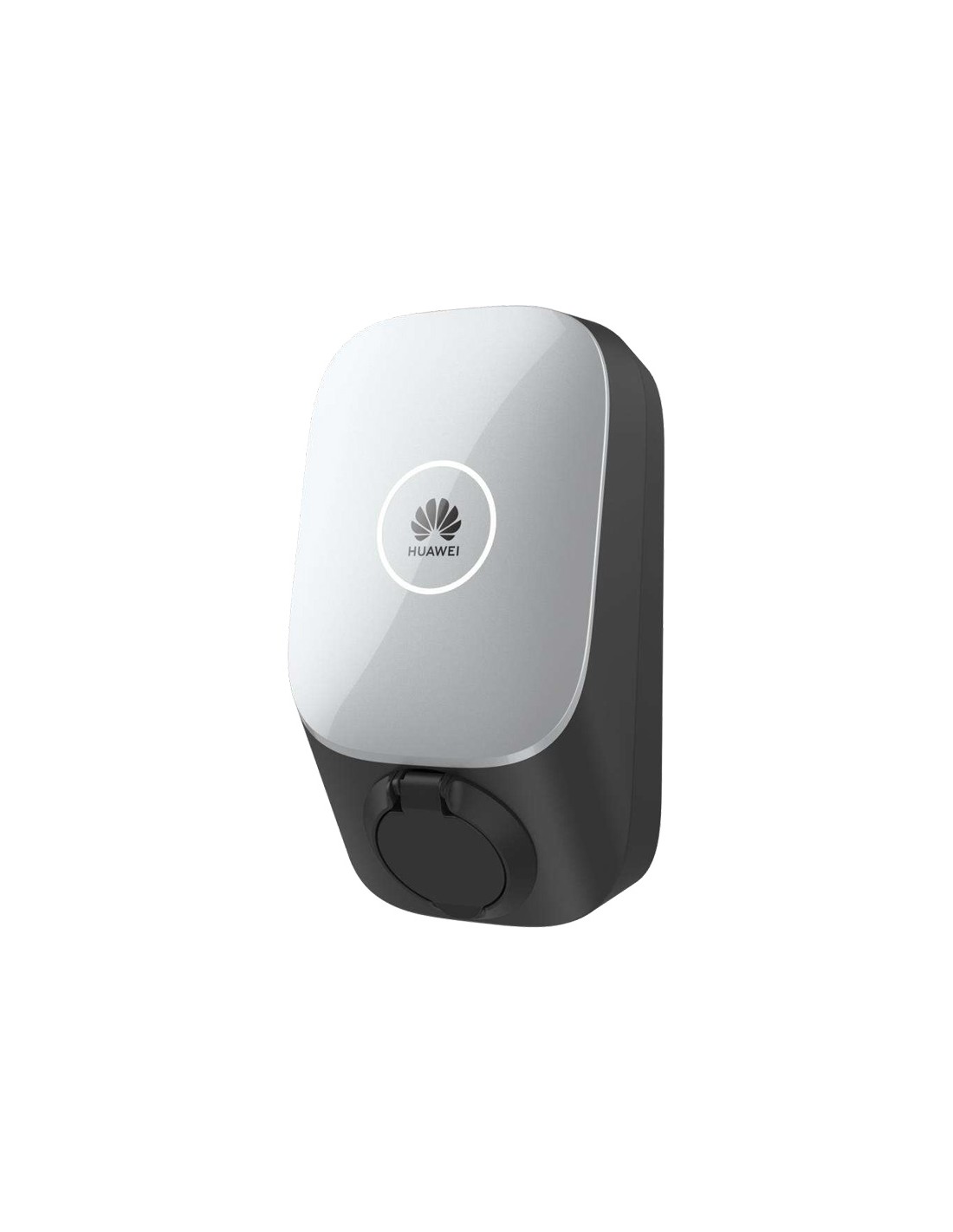

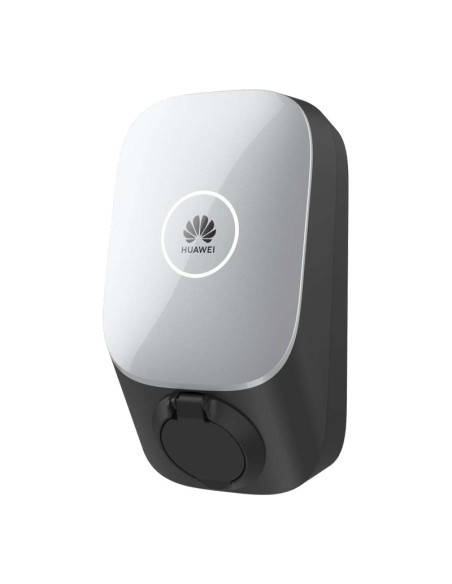

Ladesäule mit 7.4kW Leistung ideal für Elektrofahrzeuge.
| Inputs and Outputs | |
| Charge power (configurable) | 1.4 kW to 7.4 kW |
| Voltaggio nominale | 230V (three-phase) ± 20% |
| Nominal current (configurable) | 6–32A (single-phase) |
| Nominal frequency | 50/60Hz |
| Vehicle connection | Type 2 socket |
| Cable width | Up to 10 mm2 |
| Network types | TN, TT, IT |
| User Interface & Communications | |
| Protocol | Modbus TCP |
| Communication | Wi-Fi/Ethernet |
| Charger status information | WRGB LED, App |
| Authentication | RFID (ISO-14443-A), Bluetooth, App |
| Remote control & monitoring | App |
| Working mode | Normal Charge Scheduled Charge PV Power Preferred |
| Protection | |
| Cable protection | Cable E-Lock via App |
| Residual current protection (RCD) | Type A + DC 6 mA integrated (IEC 62955 & IEC 61008-1) |
| Fire Class | UL94 |
| Overcurrent protection | IEC 61851-1 |
| Over-temperature protection | Yes |
| Surge protection | CAT II |
| General Specifications | |
| Operating temperature range | –35°C to +45°C |
| Application environment | Outdoor/Indoor |
| Storage temperature | –40°C a +70°C |
| Relative humidity | 5% RH–95% RH |
| Dimensions (H x W x D) | 335 x 180 x 145 mm |
| Weight | 3 kg |
| Installation mode | Wall-mounted |
| IP rating | IP54 |
| Impact protection level | IK10 |
| Standby self-consumption | < 6 W |
| Standards Compliance | |
| Standard | EN 61851-1 2019, IEC 62955:2018, IEC 61008-1 2010, IEC/EN 62196-1 |
