1.719,90 € Vat excl.
Neue Batterie für die Photovoltaik mit Lithium-Eisen-Phosphat-Technologie und modularem Aufbau, skalierbar von 5 bis 30 kWh

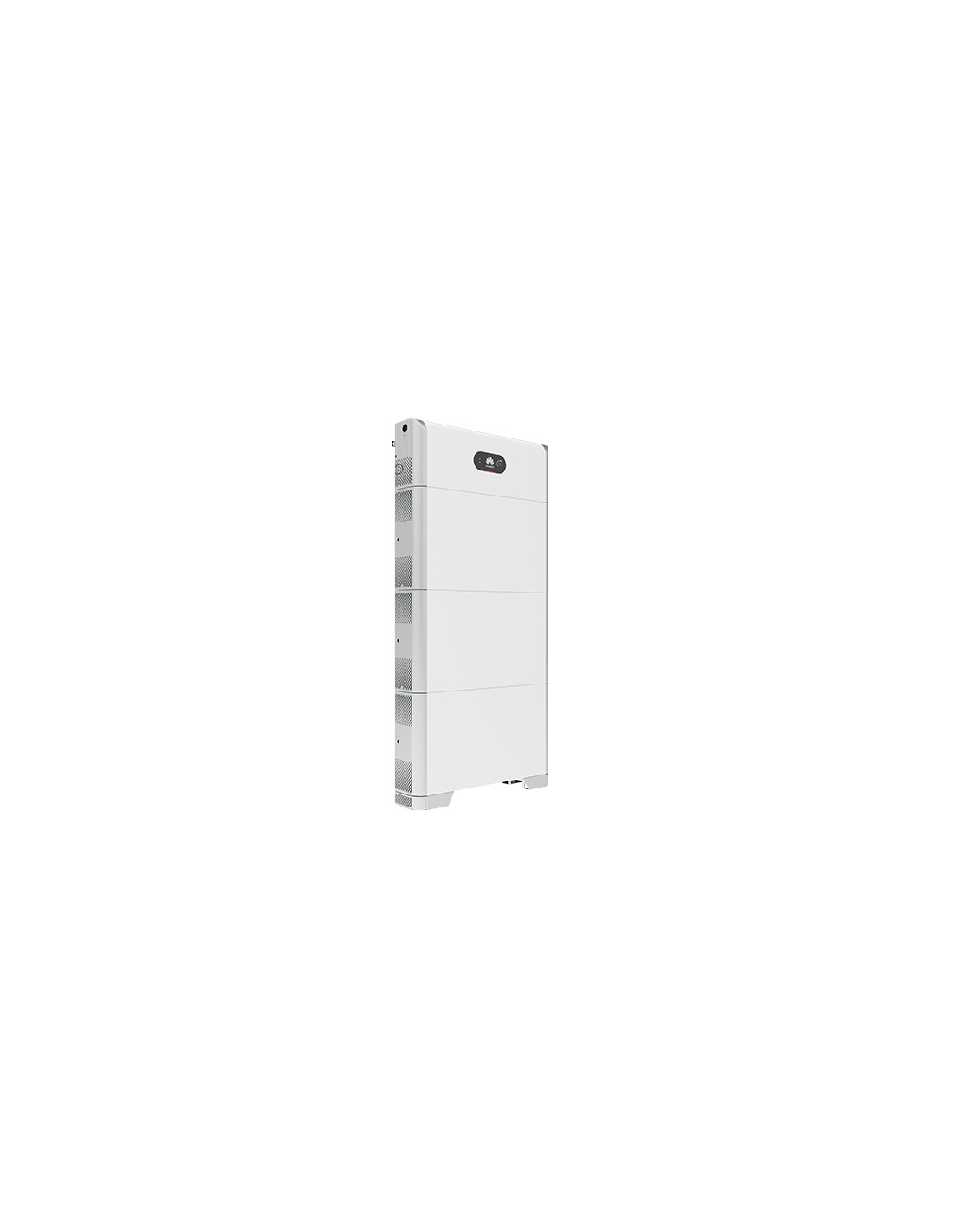

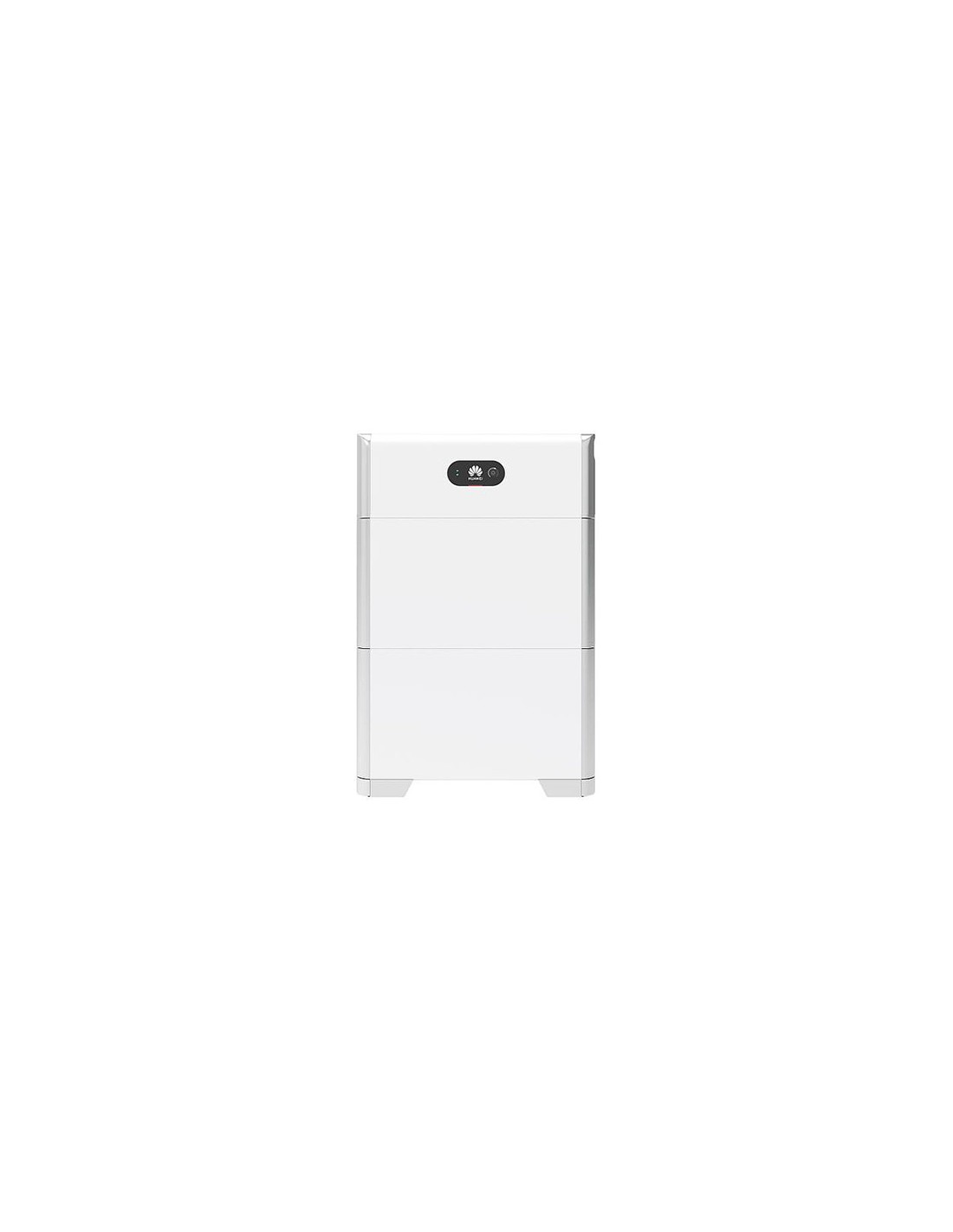

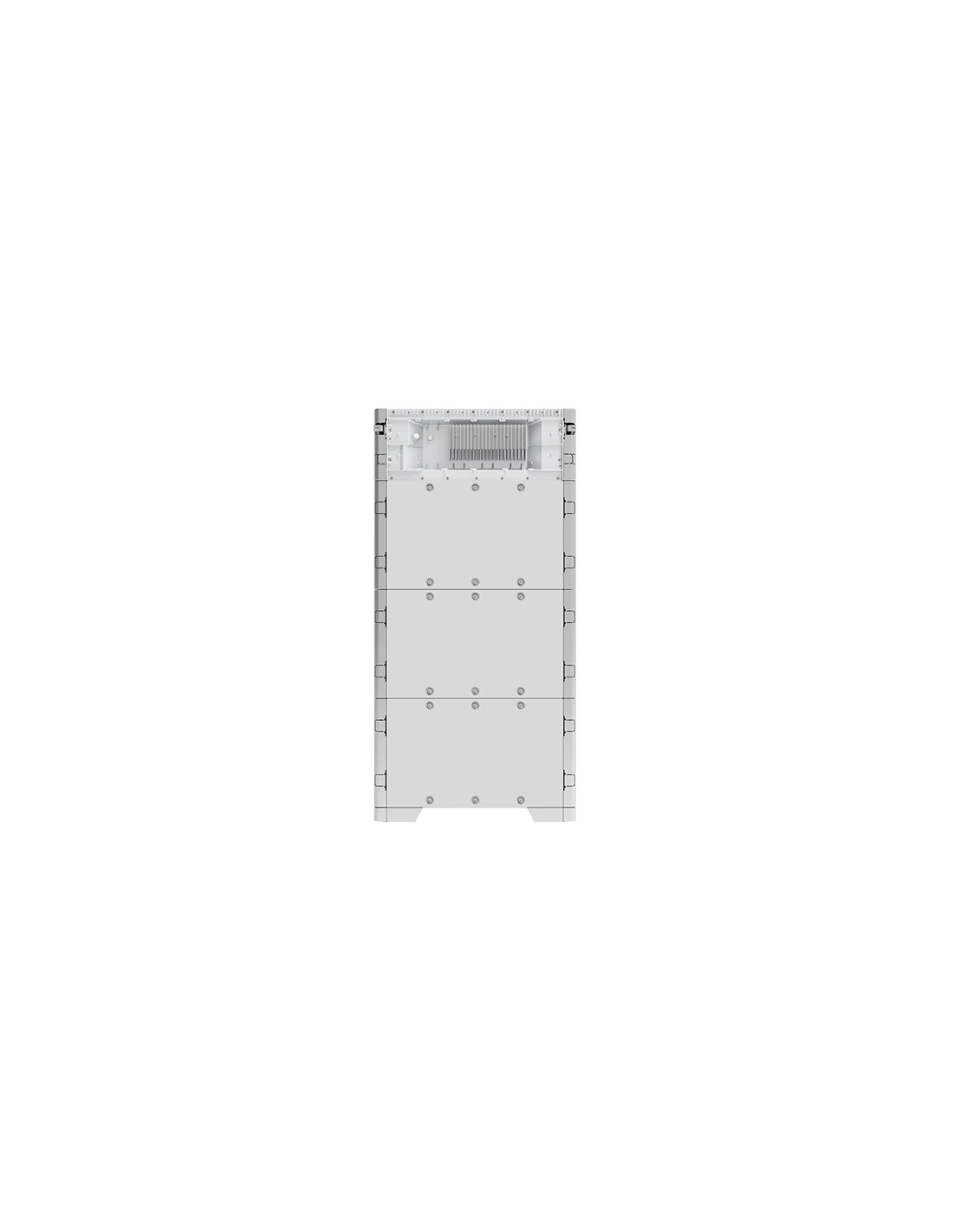

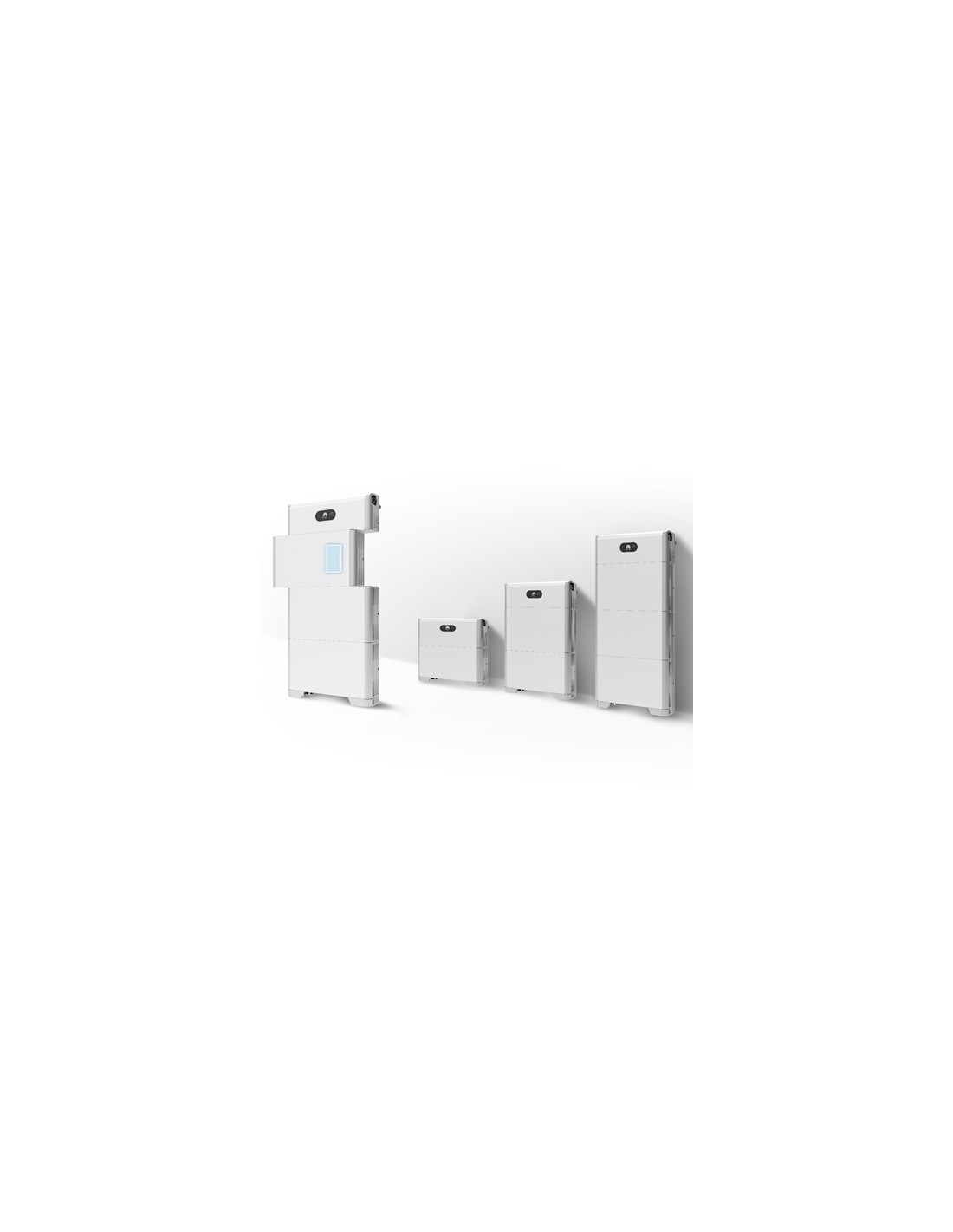

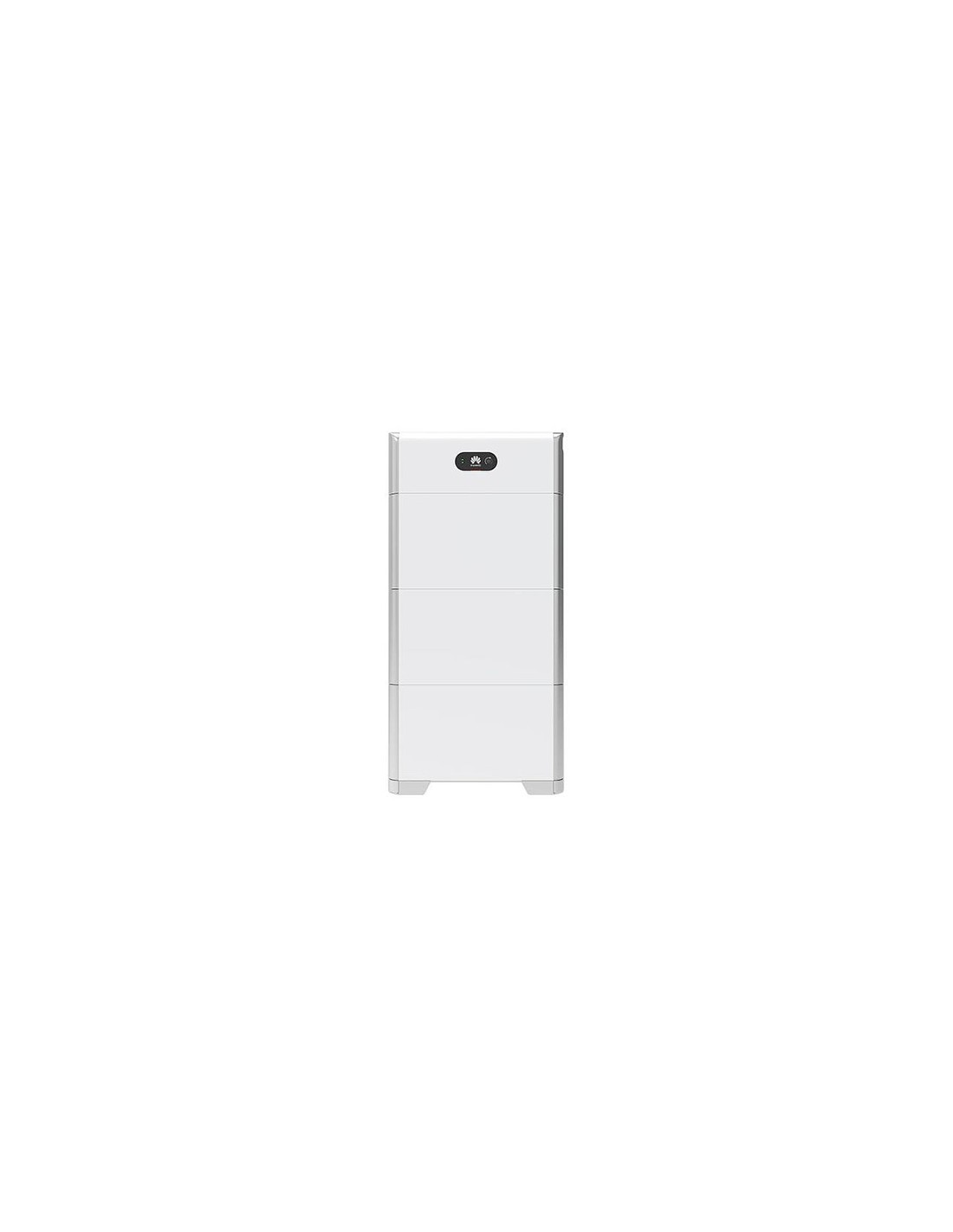

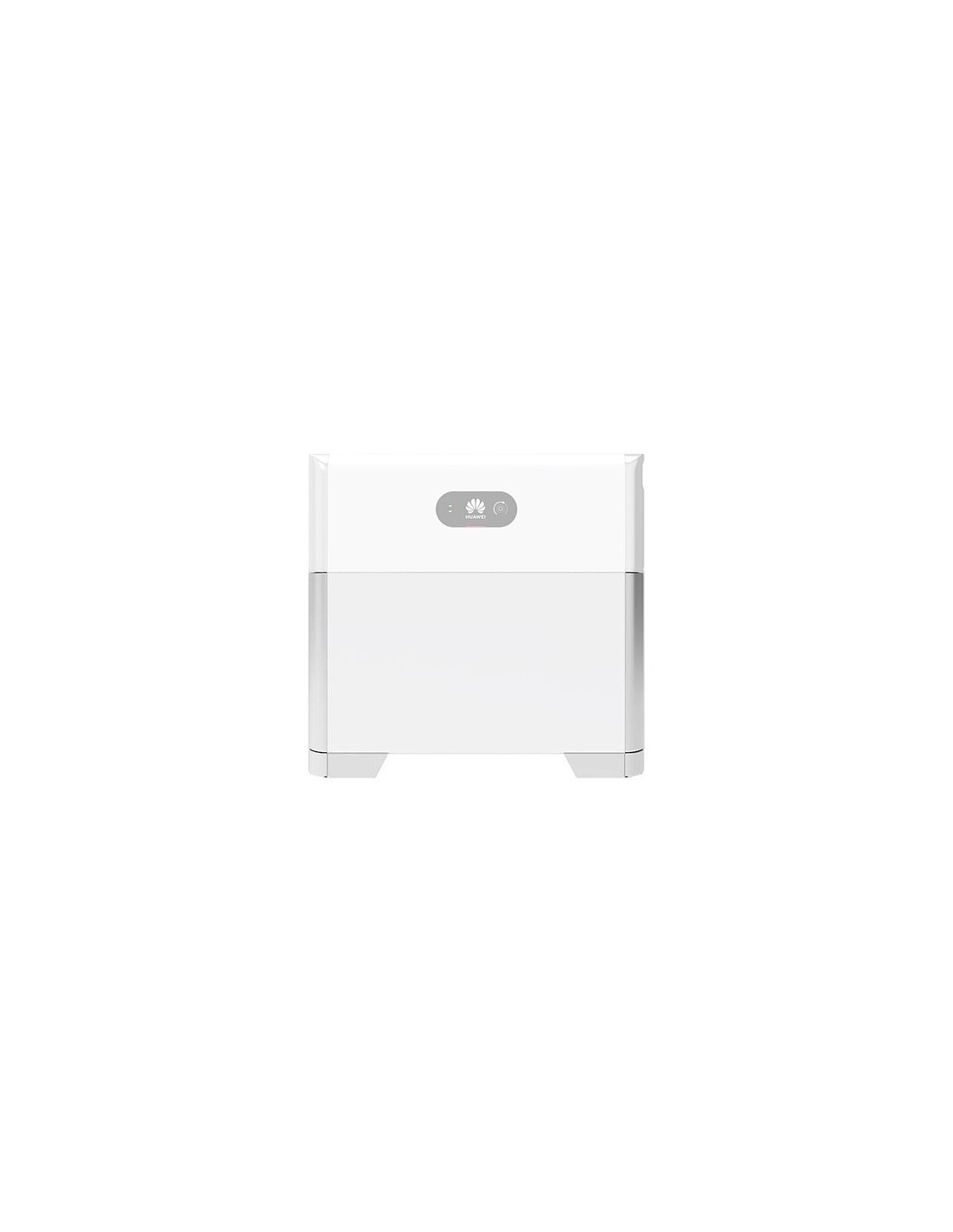

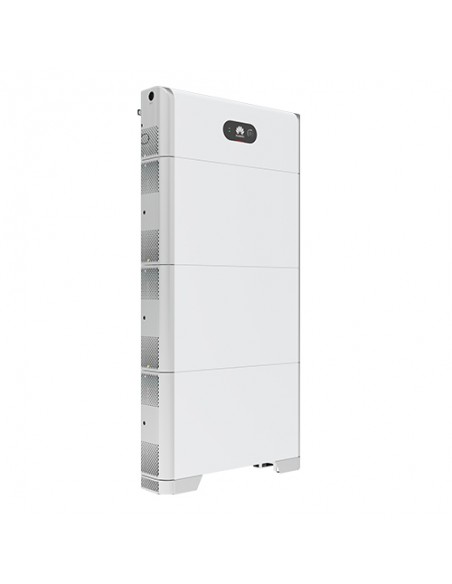

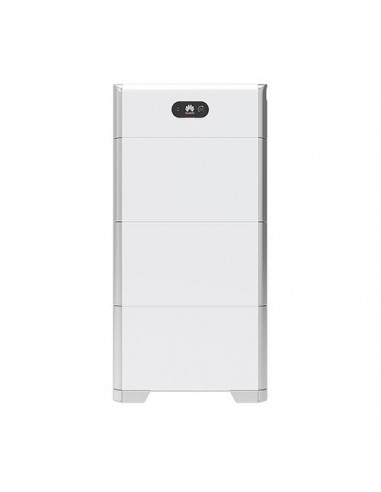

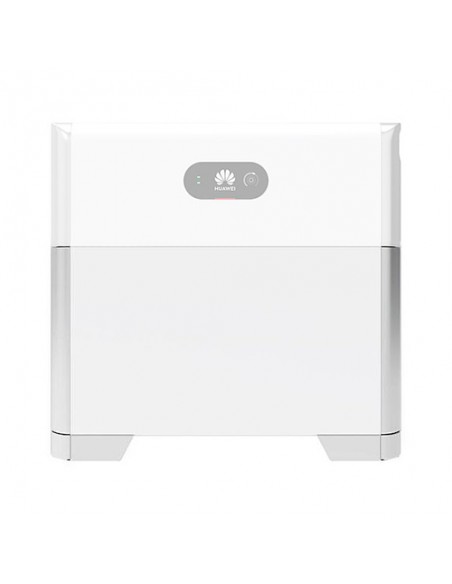

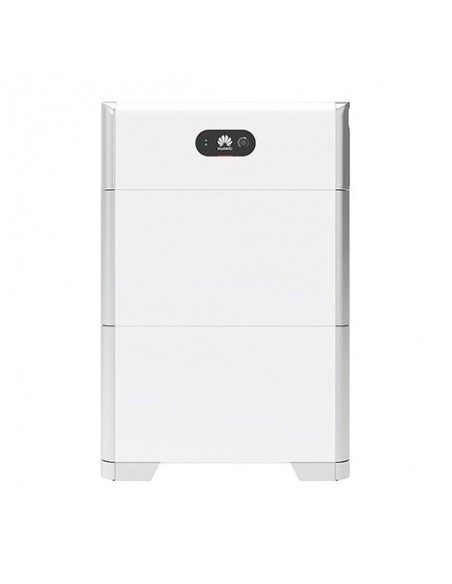

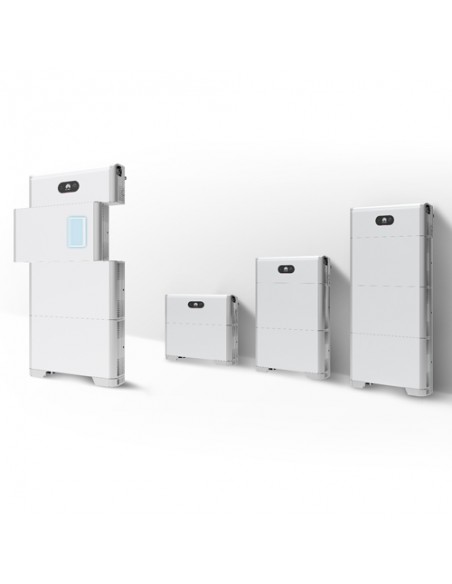

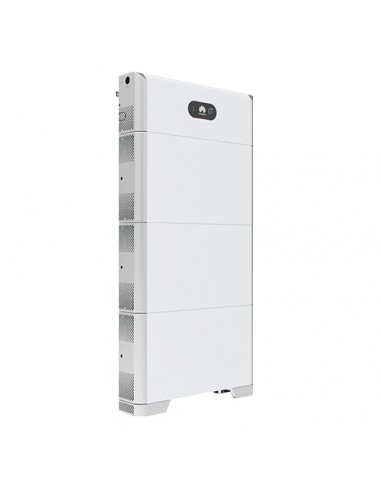

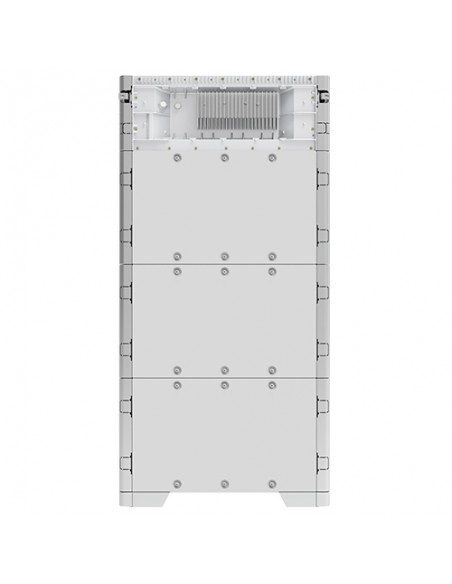

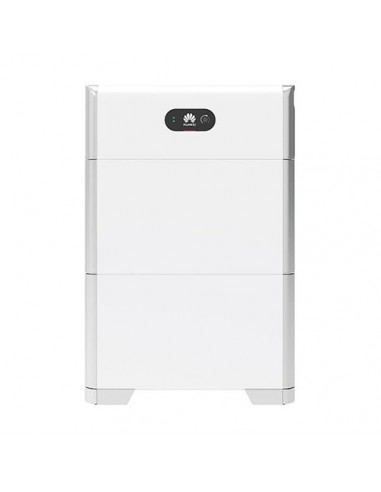

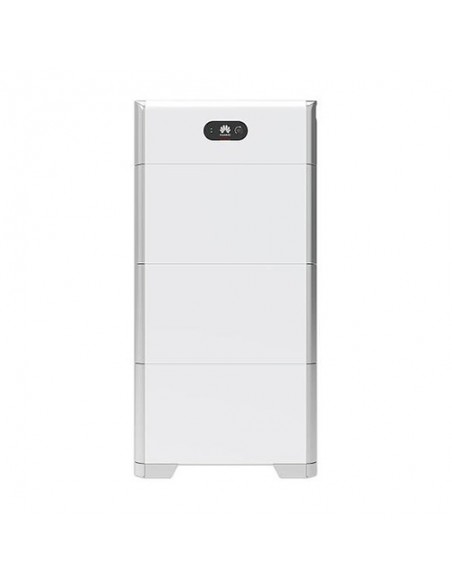

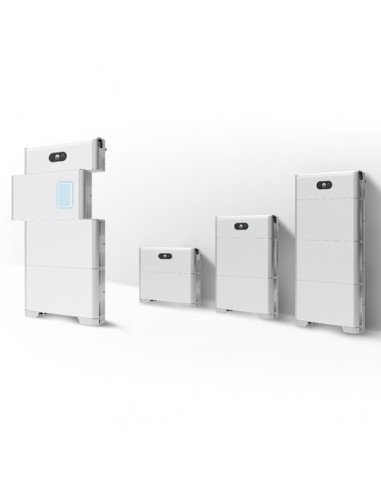

Modulares Speichersystem LUNA2000
Neue Batterie für die Photovoltaik mit Lithium-Eisen-Phosphat-Technologie und modularem Aufbau, skalierbar von 5 bis 30 kWh
Stärkepunkte:
Technical Features
| Performance | |
| Battery module energy | 5 kWh |
| Battery usable energy | 5 kWh |
| Max. output power | 2.5 kW |
| Peak output power | 3.5 kW, 10 s |
| Nominal voltage (single phase system) | 360 V |
| Operating voltage range (single phase system) | 350 – 560 V |
| Nominal voltage (three phase system) | 600 V |
| Operating voltage range (three phase system) | 600 – 980 V |
| Communication | |
| Display | SOC status indicator, LED indicator |
| Communication | RS485 / CAN (only for parallel operation) |
| General Specification | |
| Battery module dimension | 670 x 150 x 360 mm |
| Battery module weight | 50 kg (110.2 lb) |
| Installation | Floor stand (standard), Wall mount (optional) |
| Cooling | Natural convection |
| Protection rating | IP 65 |
| Noise emission | <29dB |
| Cell technology | Lithium-iron phosphate (LiFePO4) |
| Scalability | Max. 2 systems in parallel operation |
| Standard Compliance | |
| Certificates | CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3 |
