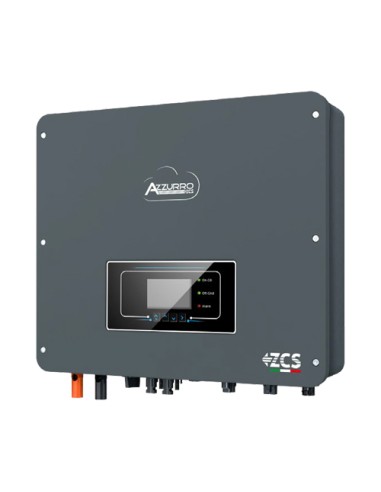

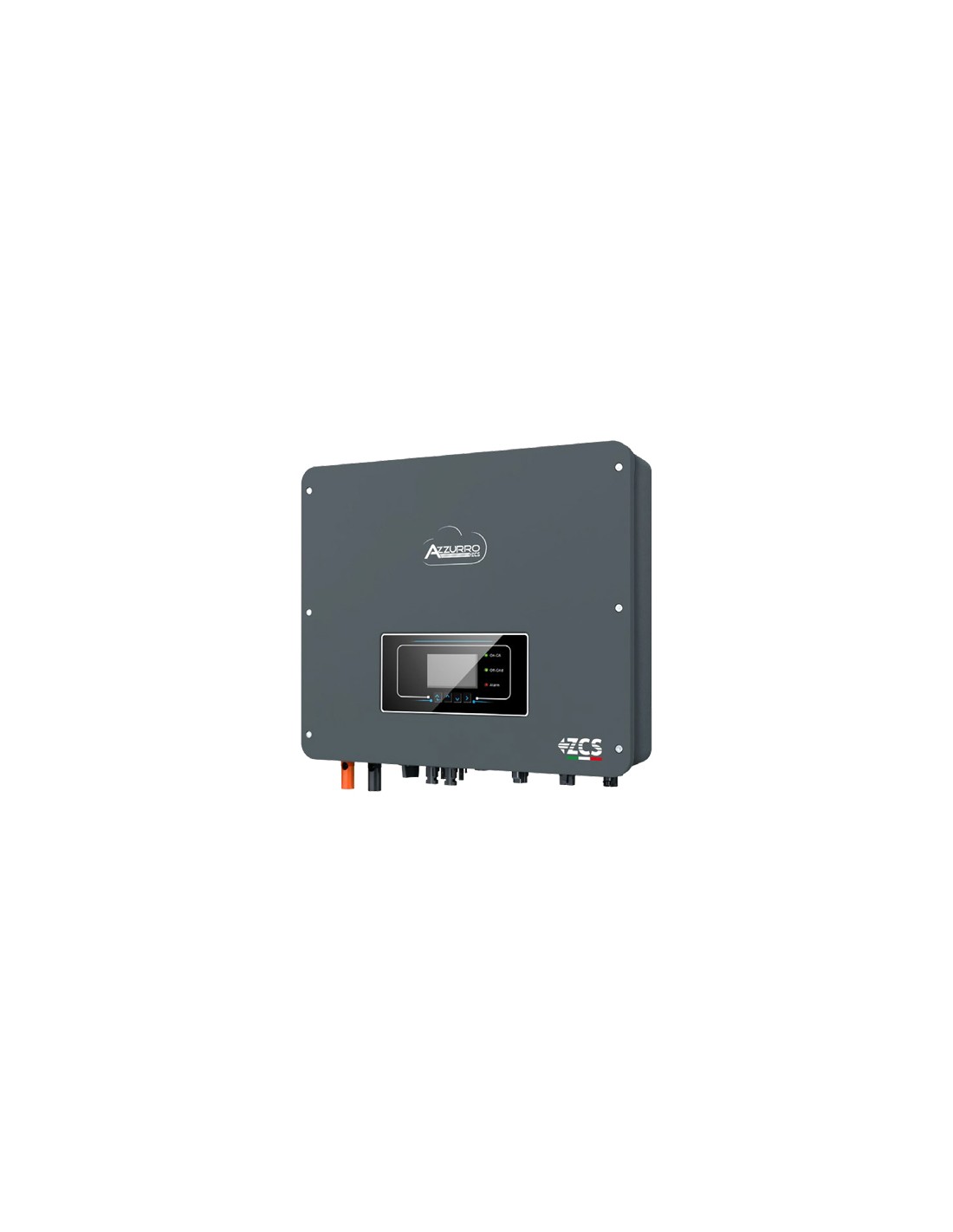

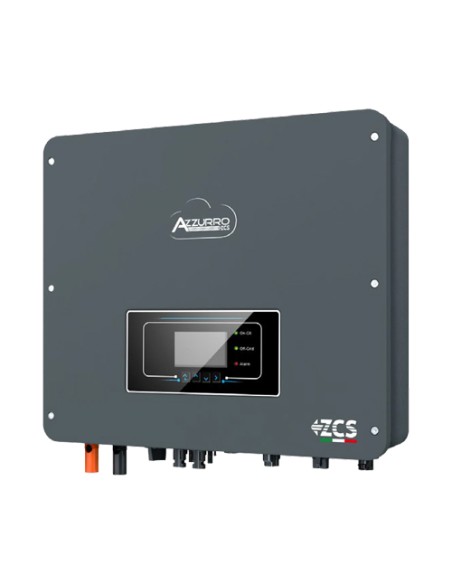

Single-phase hybrid inverter HYD 5kW ZSS HP Zucchetti Photovoltaic storage
ZZT-HYD5.0K-HP
€2,123.15
VAT included
10 %
€1,930.14 Vat excl.
ZCS Azzurro Hybrid storage inverter is the ideal solution for optimising energy independence in residential applications.
Single-phase hybrid inverter HYD 5kW ZSS HP Zucchetti
ZCS Azzurro Hybrid storage inverter is the ideal solution for optimising energy independence in residential applications.
- Efficient: Thanks to the counter-current probe, it guarantees maximum self-consumption;
- Sure: Ensures the continuity of power even in the event of a blackout;
- Configurable: Scalable battery capacity between 2,4 to 25Kwh and parallelable for high power installations;
- Sturdy: IP65 protection degree and high quality components.
Key Benefits
- Automatic management of the energy flows from the photovoltaic system, battery and grid;
- On-board Energy Meter;
- Parallelable in AC up to 6 units;
- Possibility of operation in zero grid feed-in mode;
- Unit compatible with 48V lithium batteries;
- Stand-Alone support mode guarantees continuity of operation and “island” operation, both from the photovoltaic source and battery in the event of power failure.
For more details, download the following documents:
- Datasheet inverter: [Download]
- User Manual inverter: [Download]
Techical features
| DC input data (photovoltaic) | |||
| Typical DC power | 7500W | ||
| Maximum DC power for each MPPT | 3500W (270V-520V) | ||
| Independent MPPTs/Strings each MPPT | 2/1 | ||
| Maximum input voltage | 600V | ||
| Start-up voltage | 100V | ||
| Rated Input voltage | 360V | ||
| MPPT DC votage range | 90V-580V | ||
| DC voltage range at full load | 250V-520V | ||
| Maximum input current for each MPPT | 13A/13A | ||
| Maximum absolute DC input current each MPPT | 18A/18A | ||
| Battery input data | |||
| Type of batteries | Lithium Ion (supplied by Zucchetti) | ||
| Nominal voltage | 48V | ||
| Allowable voltage range | 42V-58V | ||
| Maximum charge/discharge power | 5000W/5000W | ||
| Maximum charge current | 100A (programmable) | ||
| Maximum discharge current | 100A (programmable) | ||
| Depth of Discharge (DoD) | 0%-90% (programmable) | ||
| AC output | |||
| Nominal AC Power | 5000W | ||
| Maximum AC Power | 5500VA | ||
| Maximum AC current each phase | 25A | ||
| Type of connection/Nominal AC grid voltage | Single-phase L/N/PE 220, 230, 240V | ||
| EPS Output (Emergency Power Supply) | |||
| Maximum Power in EPS | 5000VA (6000VA for 60s) | ||
| Voltage and frequency in EPS | Single Phase 230V 50Hz/60Hz | ||
| Current supplied in EPS mode | 22.7A | ||
| Efficiency | |||
| Maximum efficiency | 97.8% | ||
| Efficiency MPPT | >99.9% | ||
| Maximum charge/discharge efficiency | 94.6% | ||
| Standby consumption | < 10W | ||
| Standard | |||
| EMC | EN 61000-3-2/3/11/12, EN 61000-6-2/3 | ||
| Safety standard | IEC 62116, IEC 61727, IEC 61683, IEC 60068-1/2/14/30, IEC 62109-1/2 | ||
| Communication | |||
| Communication interfaces | Wi-Fi/4G/Ethernet (optional), RS485 (proprietary protocol), USB, CAN 2.0 (for battery connection) | ||
| Additional inputs or connections | Input for current sensor connection or meter | ||
| General information | |||
| Environmental protection degree | IP65 | ||
| Noise level | < 25dB @ 1mt | ||
| Weight | 22.5Kg | ||
| Cooling system | Natural convection | ||
| Dimensions (H*W*L) | 482mm x 503mm x 183mm | ||
| Display | LED display and APP | ||
- MPPT number
- 2
- Typology
- Single-phase
- Inverter power
- 5kW
- Manufacturer Inverter
- ZCS Azzurro
8370000019268
