Three-phase storage system 10kW inverter Zucchetti HV ZBT 5K lithium storage 5.12kWh
With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.
The use of the Zucchetti storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.
The system gives priority to the power supply of the loads and the storage of energy in the
ZCS Azzurro HV ZBT 5K lithium battery over the transfer to the network. In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.

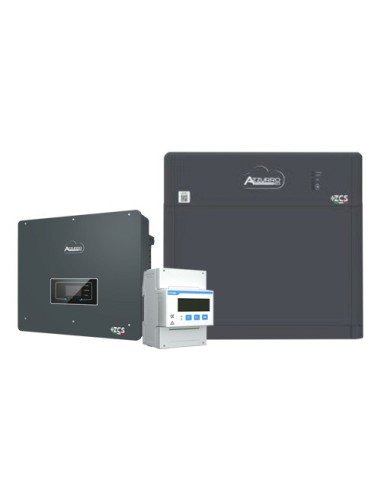

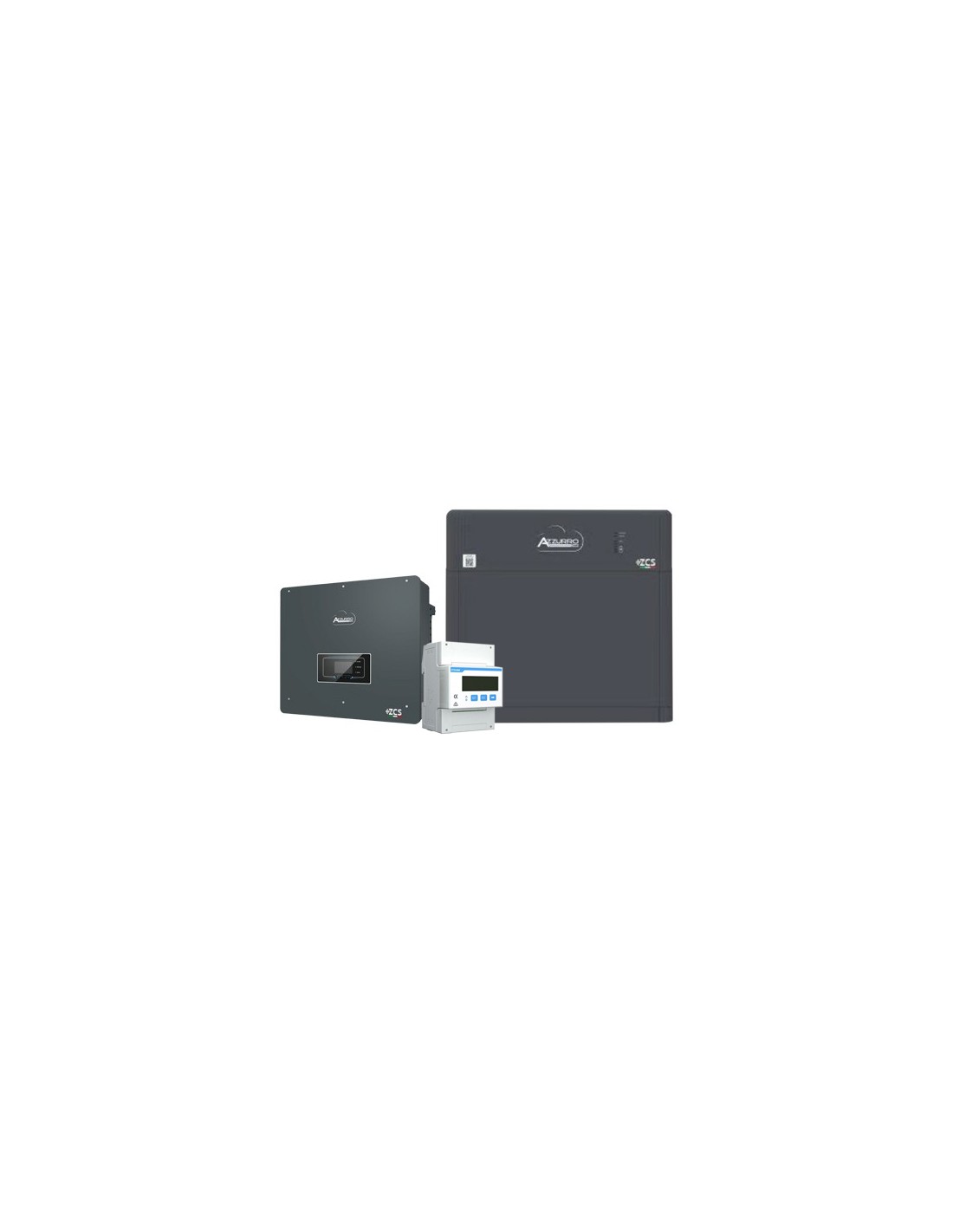

COMPONENTS OF THE KIT
|
 |
1 |

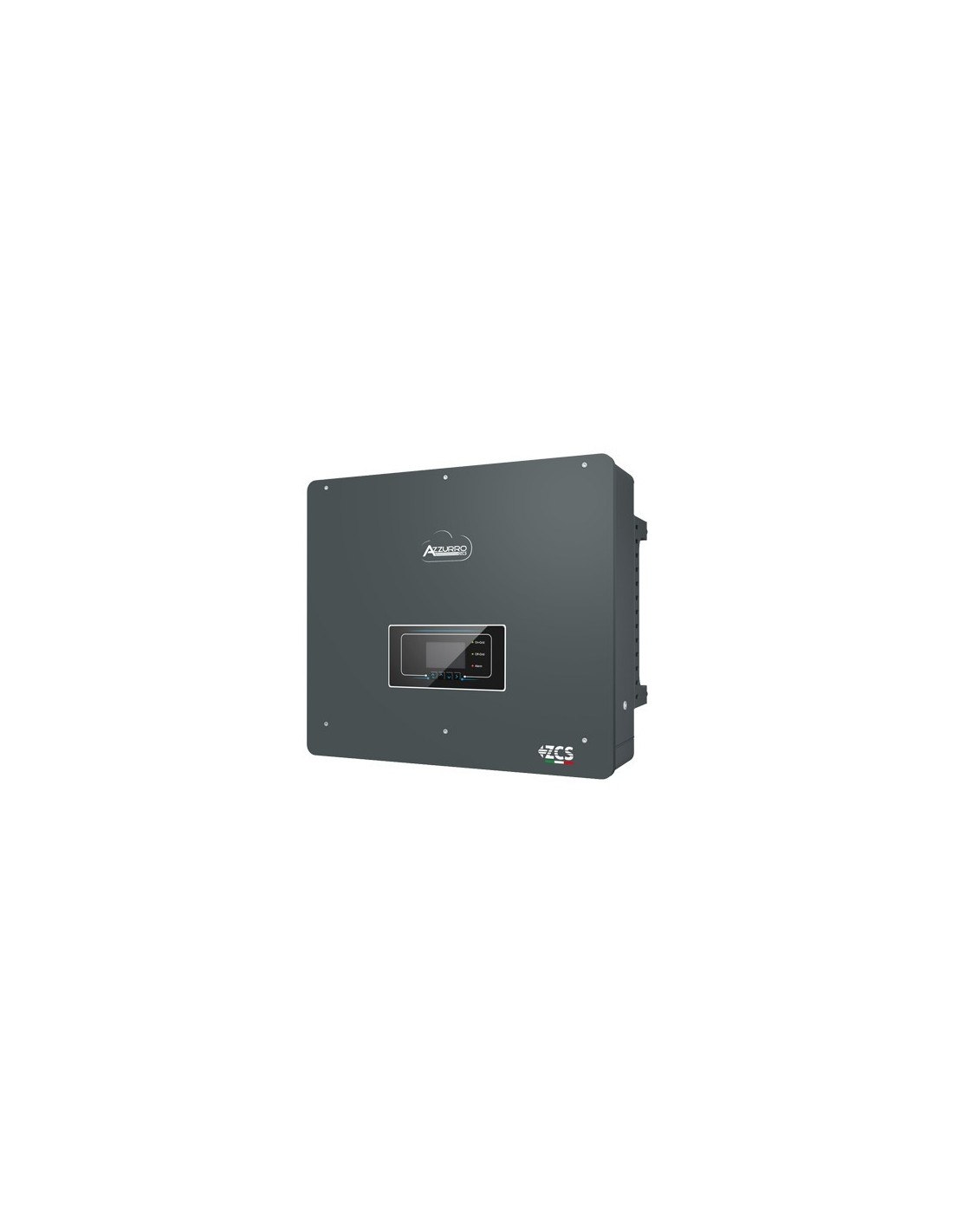

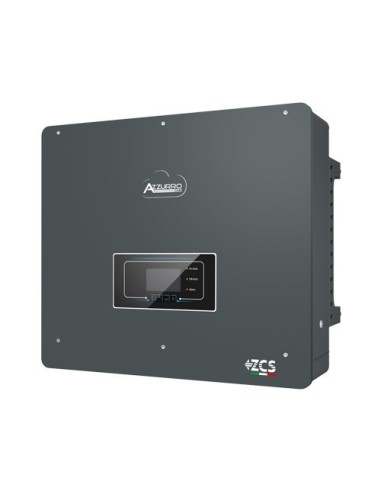

Hybrid Inverter |
Three phase Hybrid Inverter 10kW Photovoltaic System with Lithium storage |
Download |
|
 |
1 |

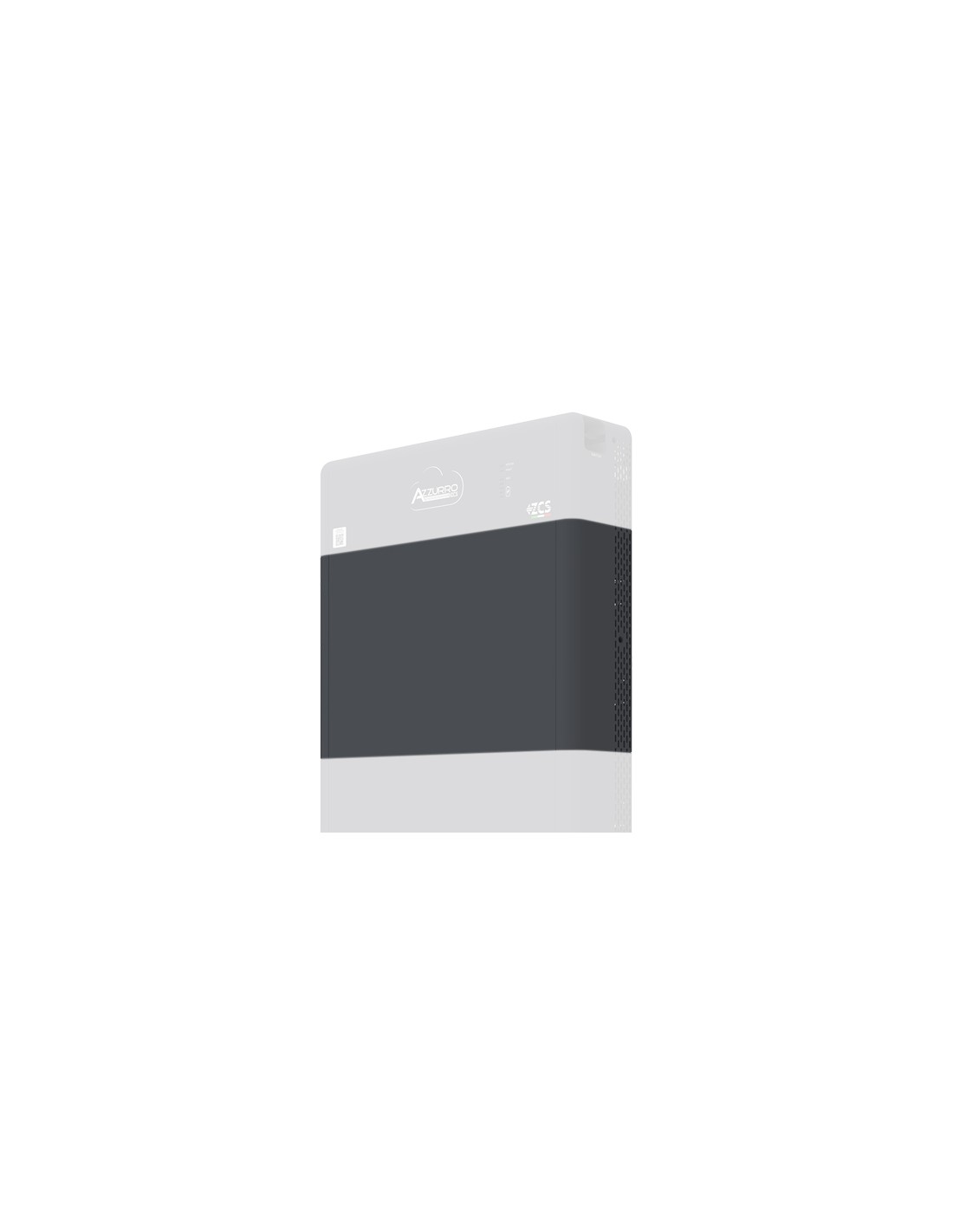

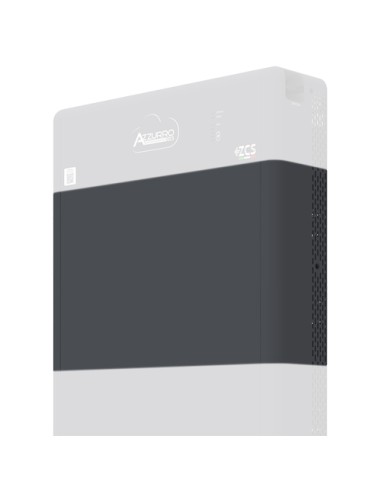

Lithium Battery |
Lithium Battery 5.12kWh ZCS Azzurro HV ZBT 5K |
Download |
|
|
1 |
Bdu module |
Control module for ZCS Azzurro HV ZBT 5K batteries |
|
 |
1 |

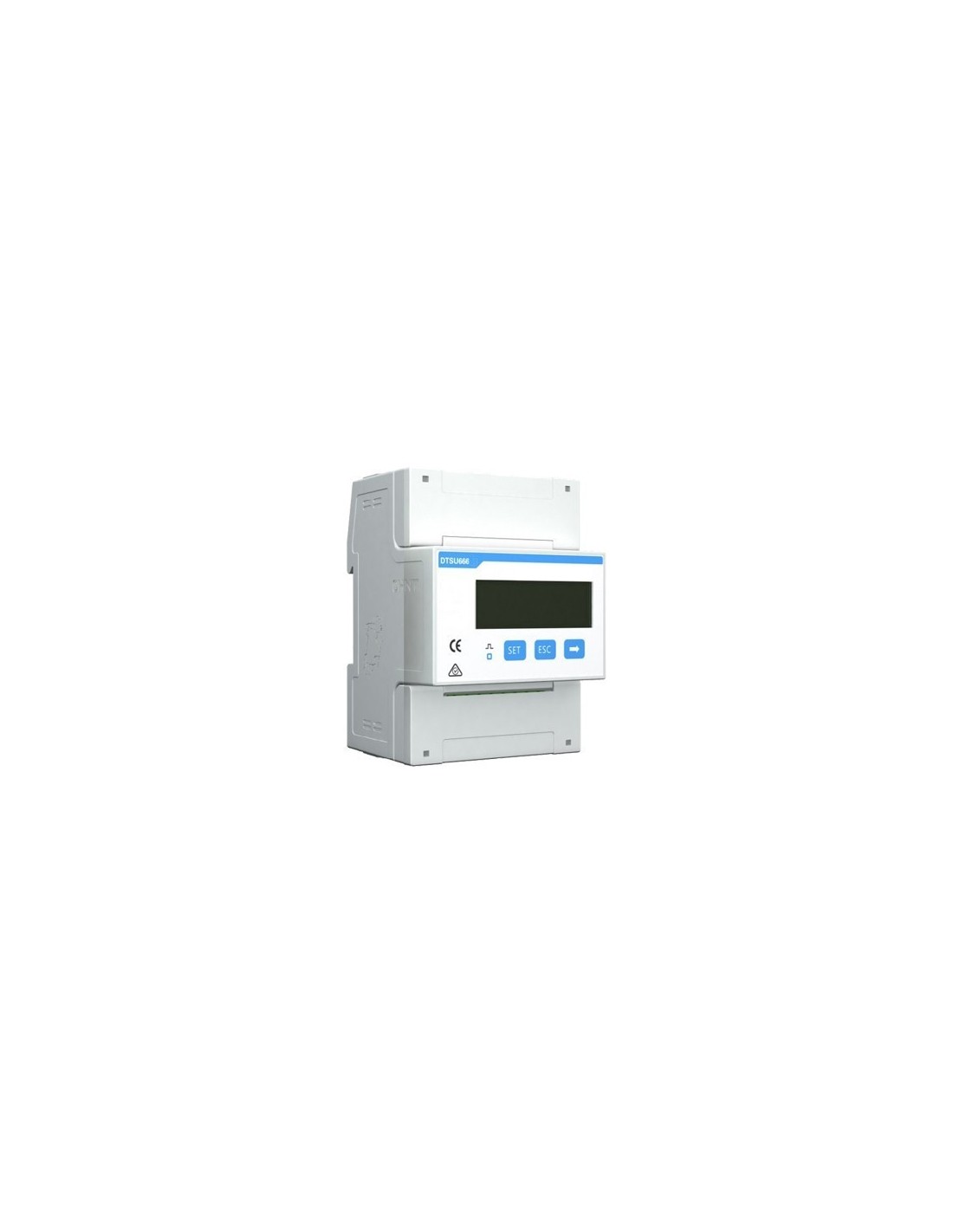

Meter |
Three-phase meter ZCS Azzurro |
|
Main features of the inverter:
- Automatic management of the energy flows from the photovoltaic system, battery and grid;
- On-board Energy Metre;
- Parallel-ready;
- Possibility of operation in zero grid feed-in mode;
- Unit compatible with high voltage lithium battery (200-750V);
- Stand-Alone support mode guarantees continuity of operation and “island” operation, both from the photovoltaic source and battery in the event of power failure.
Main features Battery:
- Easy installation;
- Possibility of installing additional batteries at any time during the life of the system.
