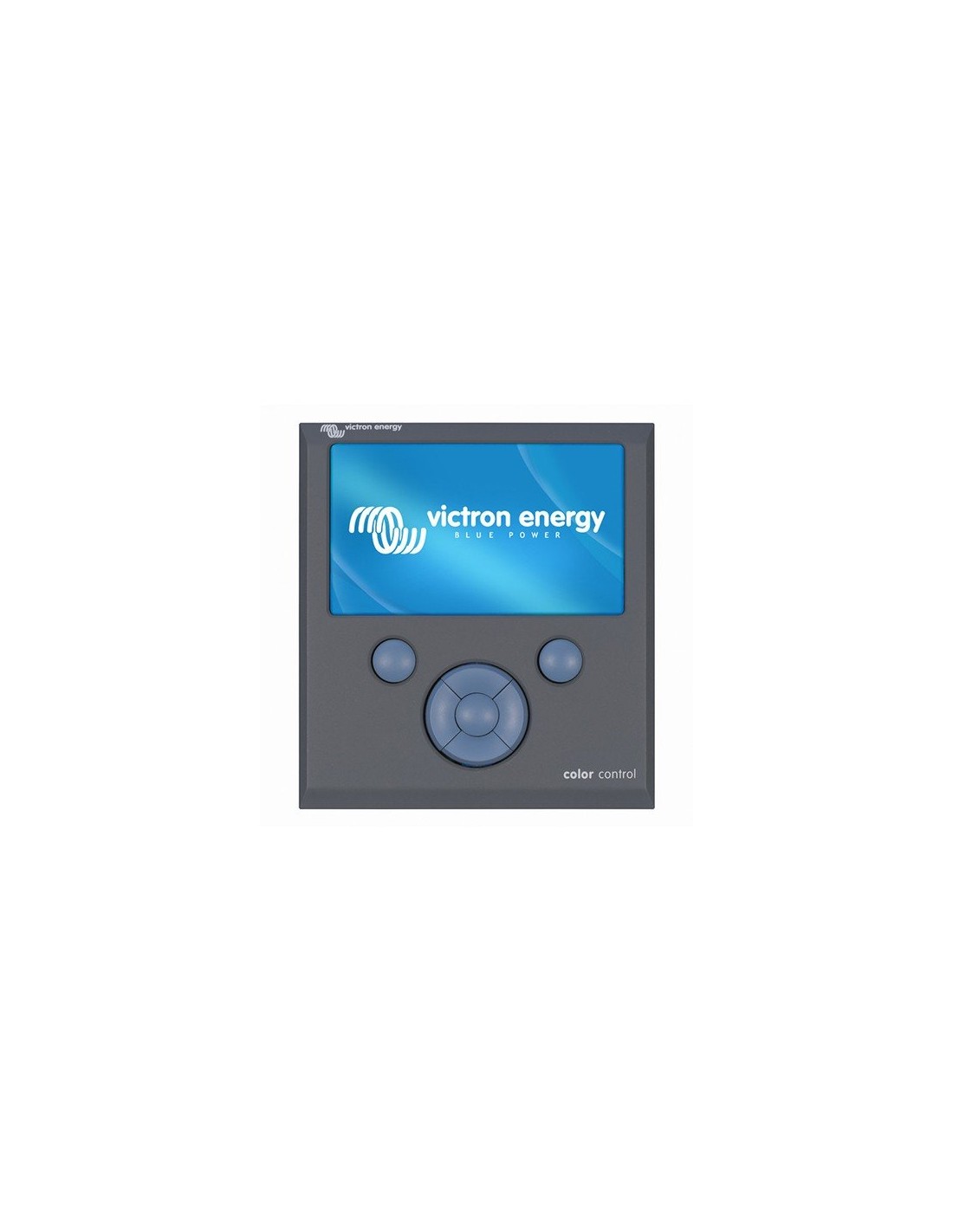

Color Control GX Victron Energy

Color Control GX Victron Energy

Display to Control and Monitoring Color Control GX Victron Energy

Reference BPP010300100R

€517.84

VAT included 22 %

€424.46 Vat excl.

The Color Control GX (CCGX) provides intuitive control and monitoring for all products connected to it. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT 150/70, BMV-600 series, BMV-700 series, Skylla-i, Lynx Ion and even more.

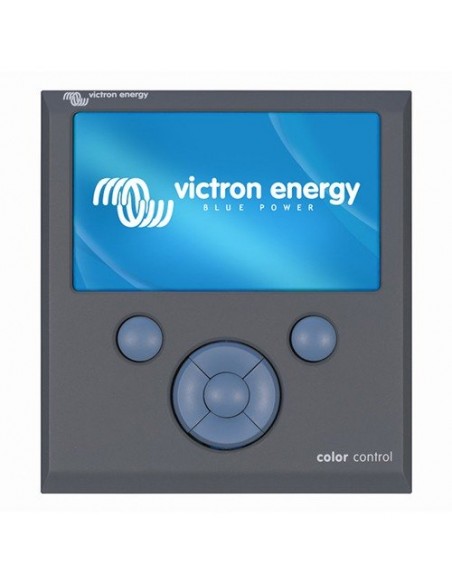

Color Control GX Victron Energy

Model: BPP010300100R

The Color Control GX (CCGX) provides intuitive control and monitoring for all products connected to it. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT 150/70, BMV-600 series, BMV-700 series, Skylla-i, Lynx Ion and even more.

Features

Model: BPP010300100R

Electrical Features

Power supply voltage range: 9 - 70V DC

Current draw: 12V -24V- 48V DC

Absorptions

Display off: 140mA -80mA -40mA

Display at minimum intensity: 160mA -90mA -45mA

Display at maximum intensity: 245mA- 125mA- 65mA

Potential free contact: 3A / 30V DC / 250V AC (Normally open)

Warranty

2 Years Guaranteed

Certifications

Communication Ports

Porte

2 x VE.Direct

2 x VE.Can RJ45 sockets

2 x VE.Bus RJ45 sockets

2 x USB Host ports

1 x Ethernet 10/100/1000MB RJ45

1 x USB device

Dimensions

Dimensions (H x W x D): 130 x 120 x 28mm

Connection Diagram

Download

		Datasheet EN [LINK]
		Declaration of Conformity CE EN [LINK]
		Declaration of Conformity IEC EN [LINK]

Assistance

		For service or plant configuration call 0882 22 82 47

		For technical assistance, write to [email protected]

Product Code: BPP010300100R

EAN13 8380000001156
