€1,548.08 Vat excl.

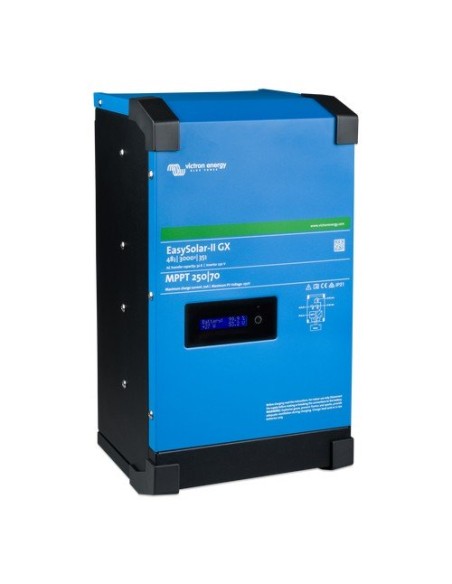

All-in-one solution for solar energy

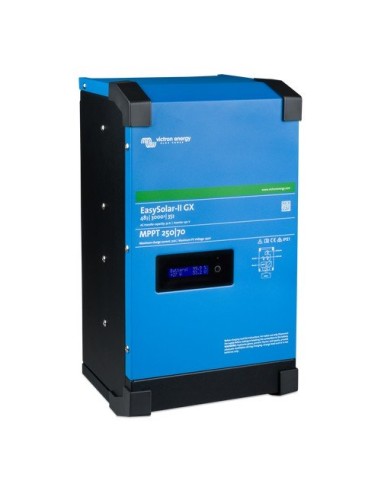

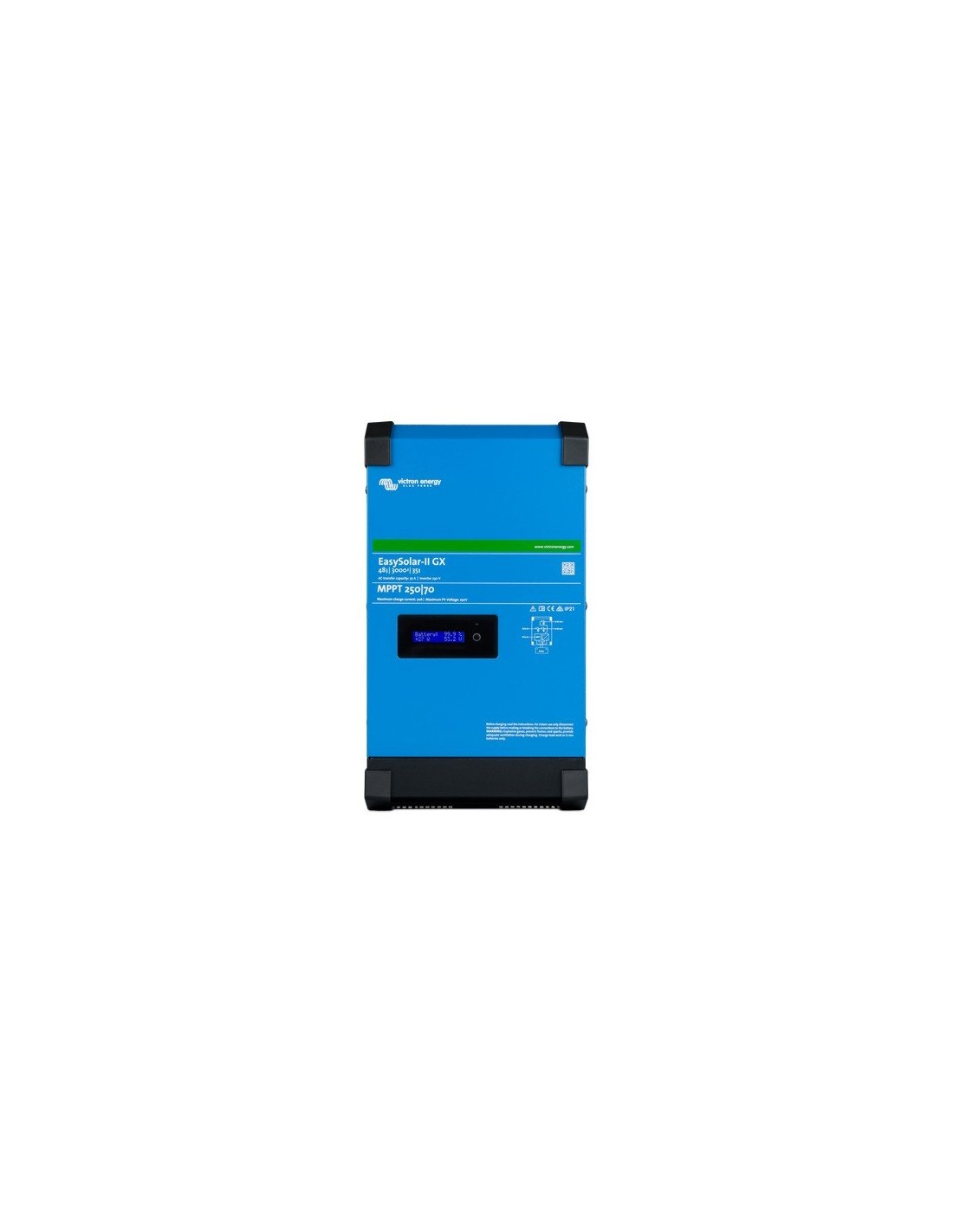

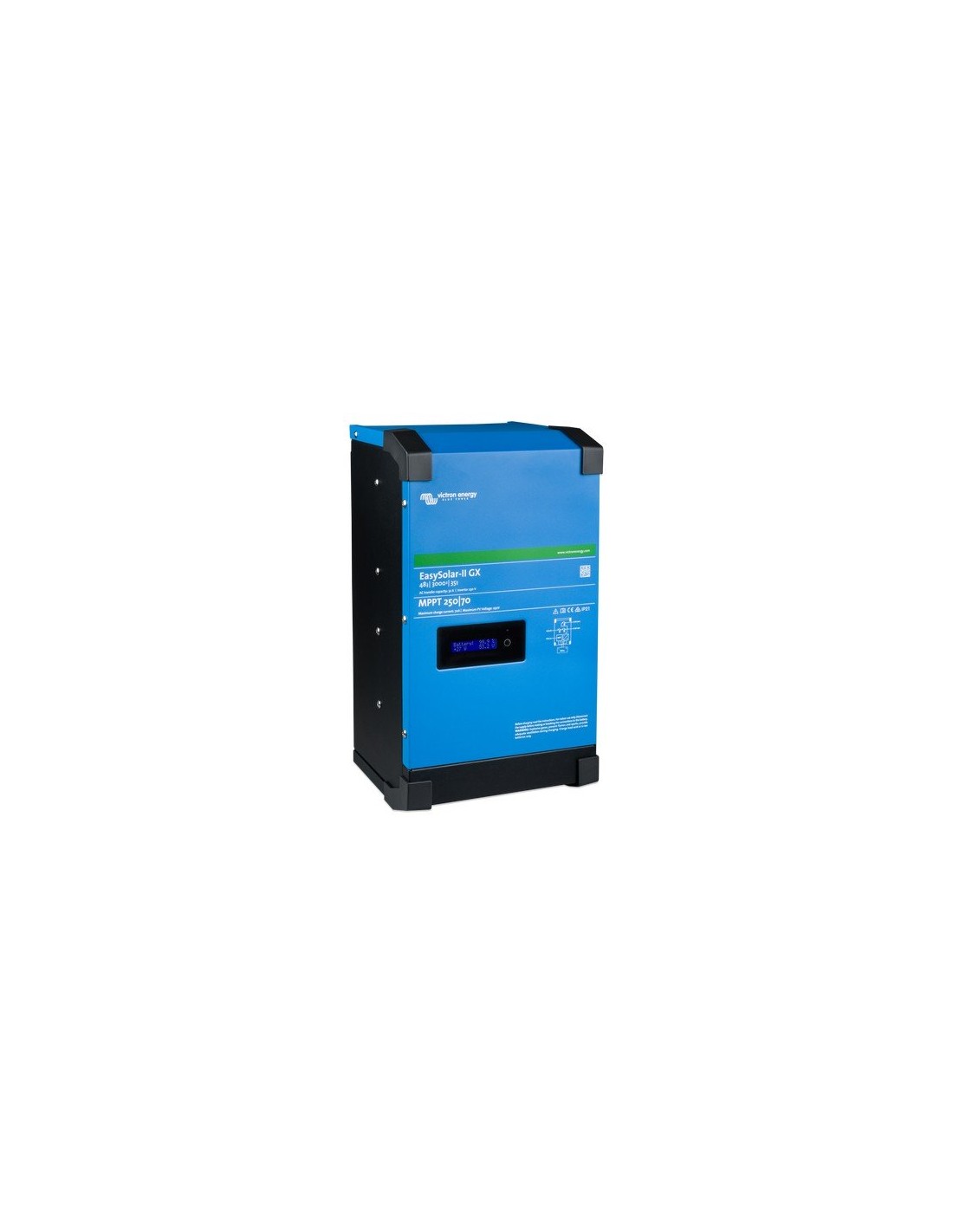

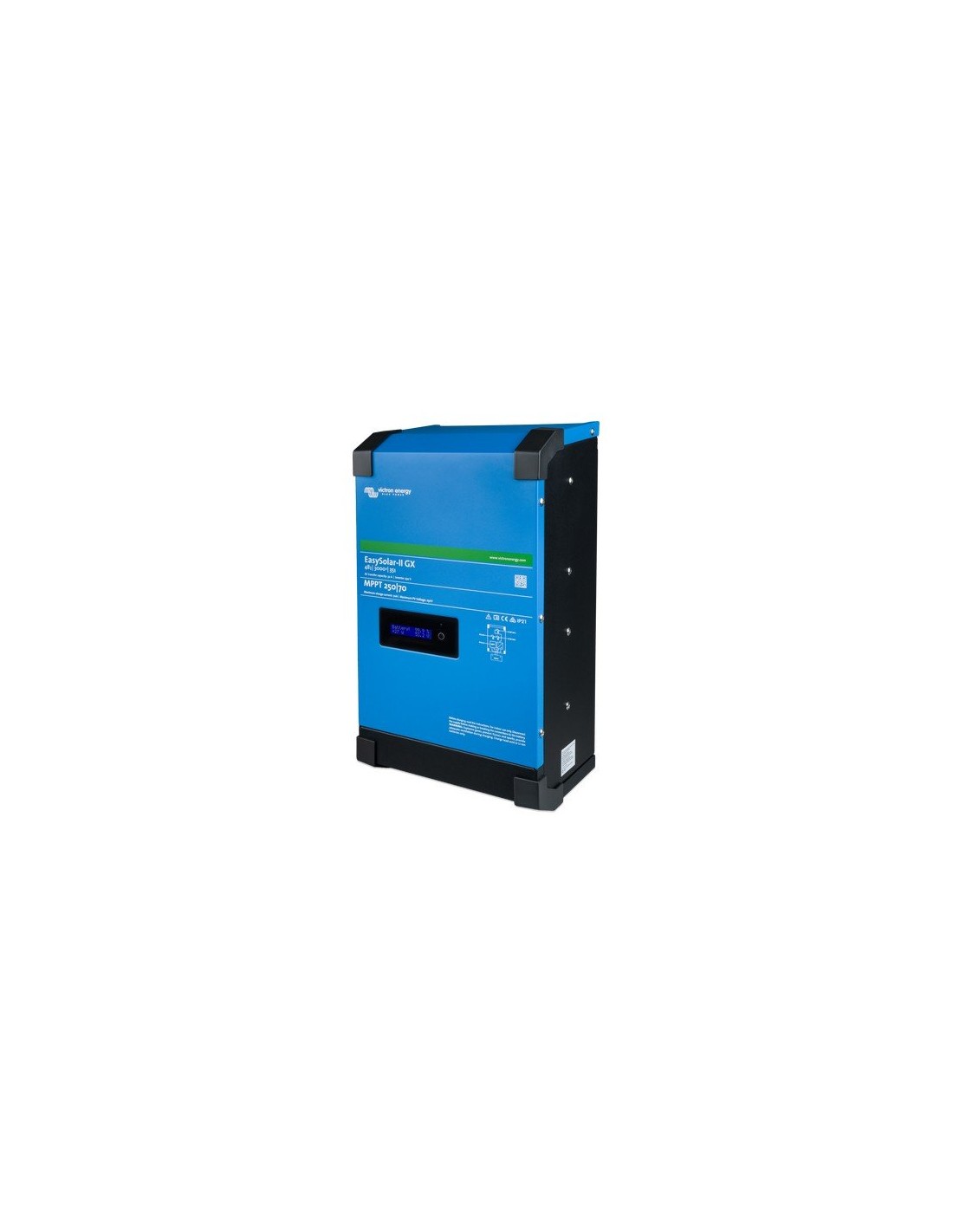

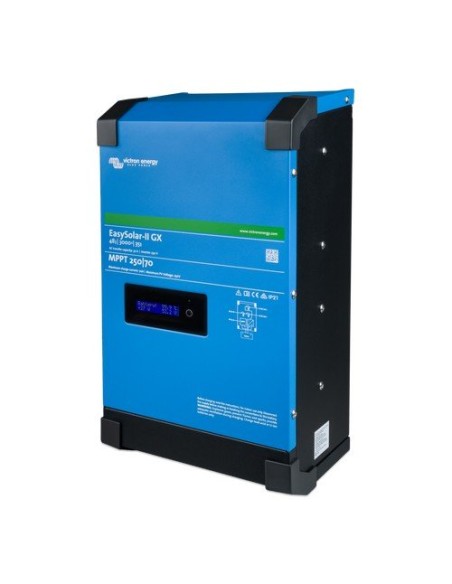

EasySolar-II GX combines an MPPT solar charge controller, an inverter / charger in one package. The product is easy to install with minimal wiring.
The all-in-one solar power solution
The Victron EasySolar-II GX integrates the following elements:
These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

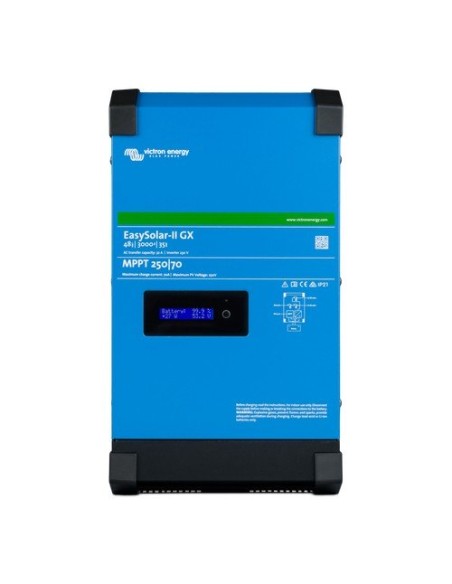

Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
In addition, Wi-Fi can be used to set up the system and to change settings.
Solar charge controller
The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter/charger.
The on/off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.
GX device
The integrated GX device includes:
The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.
| Inverter/Charger | |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 32A |
| Maximum AC input current | 32A |
| Auxiliary output | 32A |
| Inverter | |
| Input voltage range | 19 – 33 V |
| Output | Output voltage: 230 VAC ± 2 % Frequency: 50 Hz ± 0,1 % (1) |
| Cont. output power at 25 °C | 3000 VA / 2400 W |
| Cont. output power at 40 °C / 55 °C | 2200 W / 1700 W |
| Maximum apparent feed-in power | 2470W / 3000 VA |
| Peak power | 5500 W |
| Maximum efficiency | 94 % |
| Zero load power | 13 W |
| Zero load power in AES mode | 9 W |
| Zero load power in Search mode | 3W |
| Charger | |
| AC Input | Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz |
| Charge voltage 'absorption' | 28.8 V |
| Charge voltage 'float' | 27.6 V |
| Storage mode | 26.4 V |
| Maximum battery charge current | 70 A |
| Battery temperature sensor | Si |
| Programmable relay | Si |
| Protection | a - g |
| VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
| SmartSolar charge controller | |
| Model | MPPT 250/70-Tr |
| Maximum output current | 70 A |
| Maximum PV power | 2000 W |
| Maximum PV open circuit voltage | 250 V |
| Maximum efficiency | 99% |
| Self-consumption | 20 mA |
| Charge voltage 'absorption', default | 57,6 V |
| General | |
| Interfaces | BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi |
| Remote on-off | Yes |
| Operating temp. range | -20 to +45 °C (fan assisted cooling) Max. altitude 2000 m |
| Humidity (non-condensing) | max 95 % |
| Certificates | |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
