Fixing components
Fixing components

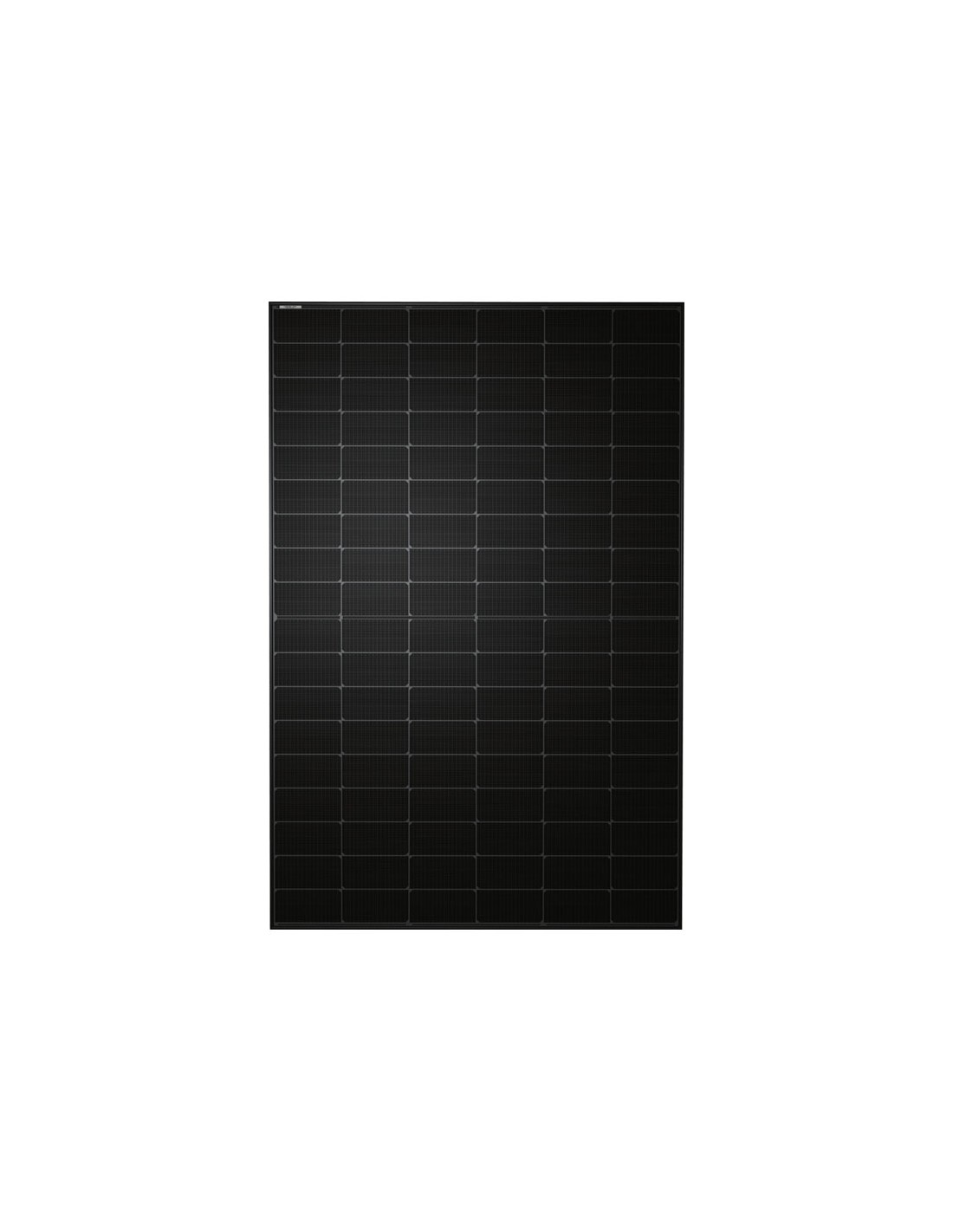

Photovoltaic solar panel 430W monocrystalline TW Solar total black half cells
TWMND-54HB-430W
€72.13
VAT included
10 %
€65.57 Vat excl.
Photovoltaic solar panel 430W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
Photovoltaic solar panel 430W monocrystalline TW Solar total black half cells
Model: TWMND-54HB-430W
The 108-cell Half Cell module combines the high production efficiency of half cell technology with an excellent quality/price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the product's yield.
For these reasons, it is suitable not only for industrial installations but also for residential and commercial installations.
Features
- High energy generation, low LCOE;
- High reliability;
- Maximum power up to 430W+.
For more details, download the following documents:
- Datasheet: [Download]
Technical features:
| ELECTRICAL CHARACTERISTICS | |
| MODEL | TWMND-54HB-430W |
| Nominal Output (Pmax) | 430W |
| Voltage at Pmax (Vmp) | 33.26V |
| Current at Pmax (Imp) | 12.93A |
| Open Circuit Voltage (Voc) | 39.15V |
| Short Circuit Current (Isc) | 13.67A |
| Maximum System Voltage | 1500V |
| Maximum Series Fuse Rating | 25A |
| Module Efficiency | 22% |
| MECHANICAL CHARACTERISTICS | |
| Solar Cells | 108 (6x18) |
| Frame | Anodized aluminium alloy, black frame |
| Junction Box | IP68 |
| Cables Section | 4.0 mm² |
| Dimensions | 1722 x 1134 x 30 mm |
| Weight | 20.5 kg |
| Pieces per pallet | 36 pcs |
- Nominal Output (Pmax) W
- 430W
- Connector Type
- MC4 o connettori compatibili
- Type Panel
- framed
- Product Origin
- Asian
- Cell type
- Monocrystalline
- Number of cells
- 108
8370000043164
