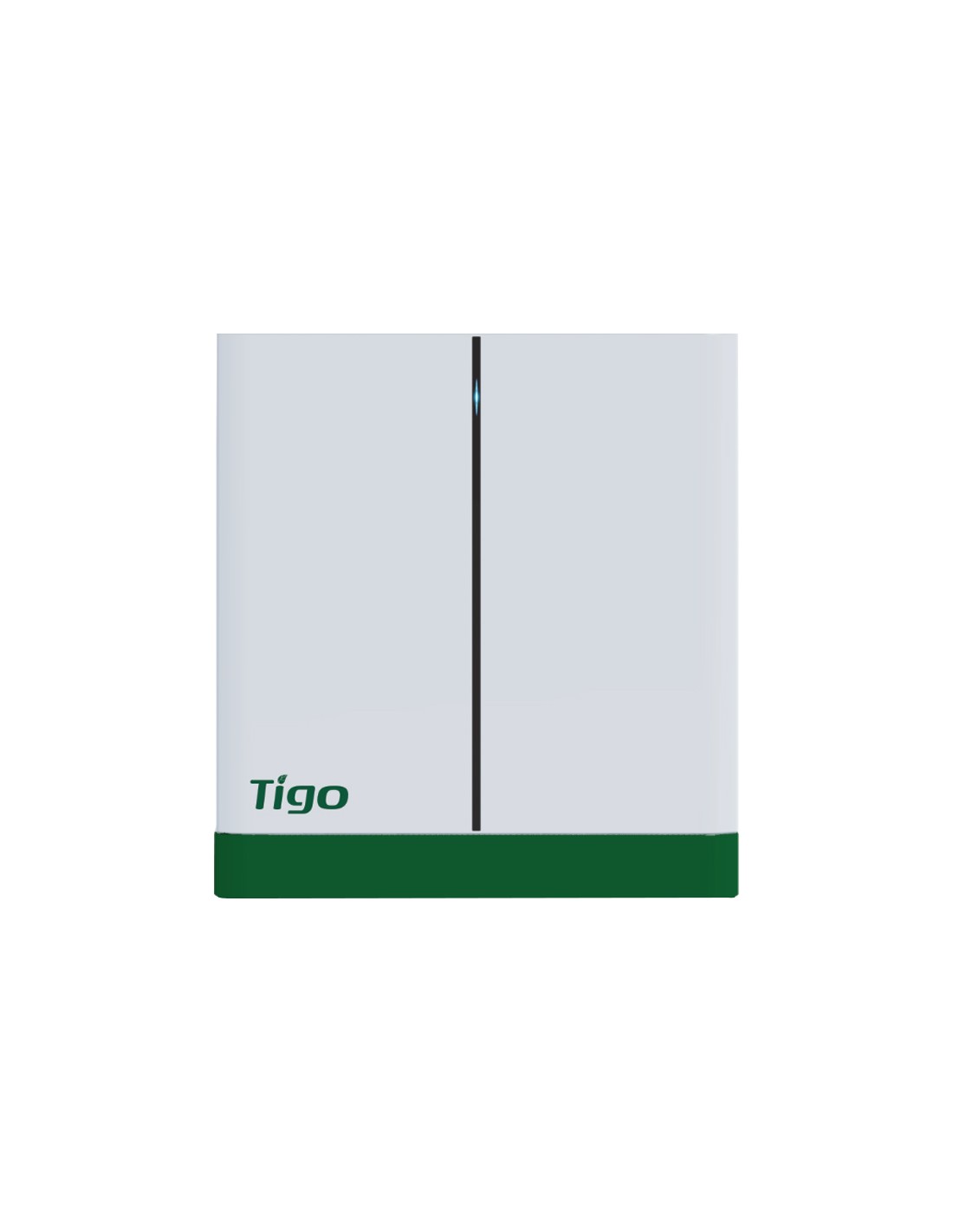

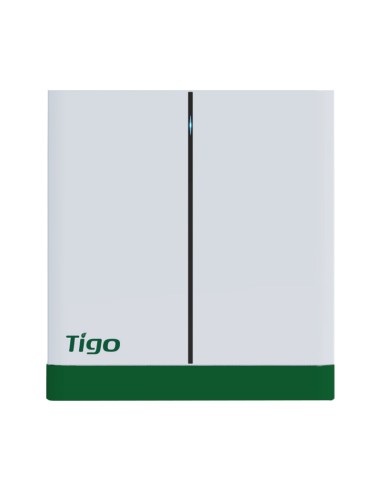

Tigo EI Battery TSB-3 3kWh lithium battery for photovoltaic storage inverter
TSB-3
€1,222.16
VAT included
10 %
€1,111.05 Vat excl.
Tigo EI Battery is a modular and scalable storage system for EI Residential Solution.
Tigo EI Battery TSB-3 3kWh lithium battery for photovoltaic storage inverter
Tigo EI Battery is a modular and scalable storage system for EI Residential Solution.
Available in sizes ranging from 3 to 12kWh for single-phase or three-phase homes, and equipped with efficient DC:DC charging from the photovoltaic system, EI Battery allows backup power flexible and reliable.
Main features
- Reliable and stable lithium iron phosphate (LFP) chemistry;
- Multiple modes, including self-consumption, time of use (TOU) and backup;
- Configurable up to 12 kWh (3kWh each battery);
- Single-phase and three-phase options;
- Efficient DC:DC charging from your system;
- Includes BMS;
- Monitored by Tigo Energy Intelligence (EI);
- 11 year warranty.
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| TSB-3 MODEL | |
| Nominal voltage (V) | 102.4 |
| Operating voltage range (V) | 90-116 |
| Total capacity (kWh) | 3 |
| Usable energy (kWh) | 2.7 |
| Standard power (kW) | 2.5 |
| Maximum power (kW) | 3 |
| Maximum charge/discharge current (A) | 30 |
| Battery efficiency (%) | 95 |
| Life cycles (90% DoD) | 6000 cycles |
| Charge/discharge temperature range (°C) | -30 to 50 |
| Storage temperature range (°C) | -20 to 50 |
| Relative humidity (%) | 0 - 100 |
| Maximum operating altitude (m) | 3000 |
| Protection class | IP65 |
| Battery - inverter interface | RS485/CAN2,0 |
| Battery - battery/BMS interface | CAN 2.0 |
| Certifications | CE/IEC62619/UN38,3/IEC62040/UKCA |
| Classification of hazardous materials | Class 9 |
| Dimensions (WxHxD) (mm) | 482.5*471.5*153 |
- Overall dimension
- 265 x 370 x 155 mm
- Voltage (V)
- 102.4
- Accumulation capacity
- 3kW
8370000036395
