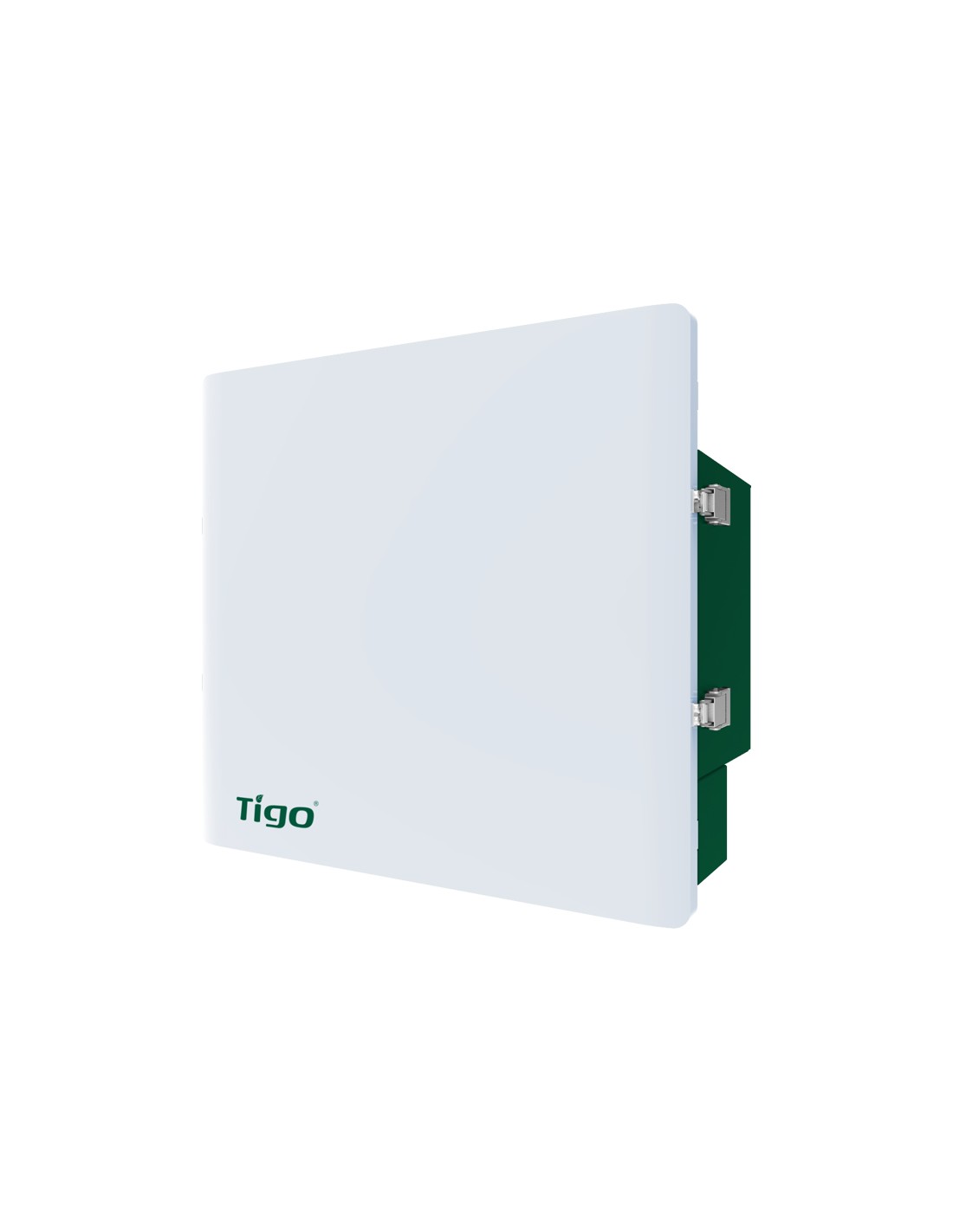

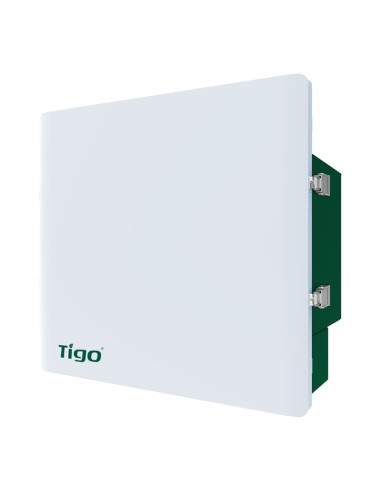

Three-phase EI Link wireless box with ATS Tigo for inverter photovoltaic system
TSS-3PS
€914.76
VAT included
10 %
€831.60 Vat excl.
Tigo EI Residential Solar Solution optimizes energy consumption based on tariff plans and today's home energy needs.
Three-phase EI Link wireless box with ATS Tigo for inverter
EI Link brings together all the components of Tigo EI Residential Solution. Physically joins EI Inverter to EI Battery with a minimum of cables. Communicates wirelessly with the Tigo TS4 units connected to each module and communicates with the cloud to enable simple commissioning, remote monitoring, over-the-air updates and more.< /p>
Main Features
- The centralized wiring connects EI Inverter to EI Battery;
- The integration of CCA allows monitoring at the system and module level;
- Connects to Tigo TS4 via a Tigo Access Point (TAP), included in the package.
Technical features
| PV | |||
| Template | TSS-3PS | ||
| Maximum input voltage (Vdc) | 1000 | ||
| Number of MPPTs | 2 | ||
| Number of strings (MPPT 1/MPPT 2) | 2/1 | ||
| Maximum short-circuit current, inputs A/B (A) | 30/20 | ||
| BATTERY | |||
| Battery voltage range (V) | 180 - 480 | ||
| Maximum charge/discharge current (A) | 30 | ||
| ON GRID (INVERTER) | |||
| Nom. voltage (Vac) Frequency (Hz) | 380/400/415, 50/60 | ||
| Maximum on-grid current (Inv) input/output (A) | 24.1/24.1 | ||
| OFF-GRID (INVERTER) | |||
| Nom. voltage (Vac) Frequency (Hz) | 380/400/415, 50/60 | ||
| Maximum current (A) | 24.1 | ||
| GRID (Utility) | |||
| Nom. voltage (Vac) Frequency (Hz) | 380/400/415, 50/60 | ||
| Maximum input/output current (A) | 63/24.1 | ||
| LOAD | |||
| Nom. voltage (Vac) Frequency (Hz) | 380/400/415, 50/60 | ||
| Maximum input/output current (A) | 63 | ||
| ENVIRONMENTAL REQUIREMENTS | |||
| Protection class | IP54 | ||
| Level of protection | Class I | ||
| Operating temperature (°C) | from -35 to 60 (derating above 45) | ||
| Storage temperature (°C) | -40 to 70 | ||
| Relative humidity (%) | 100 | ||
| Maximum operating altitude (m) | 3000 | ||
| Overvoltage category | III (AC), II (DC) | ||
| Cooling | Natural convection | ||
| DIMENSIONS AND WEIGHT | |||
| Dimensions (WxHxD) (mm) | 500 x 512 x 204.5 | ||
| Net weight (kg) | 10 | ||
- Typology
- Three-phase
- Manufacturer Inverter
- Tigo
8370000036432
