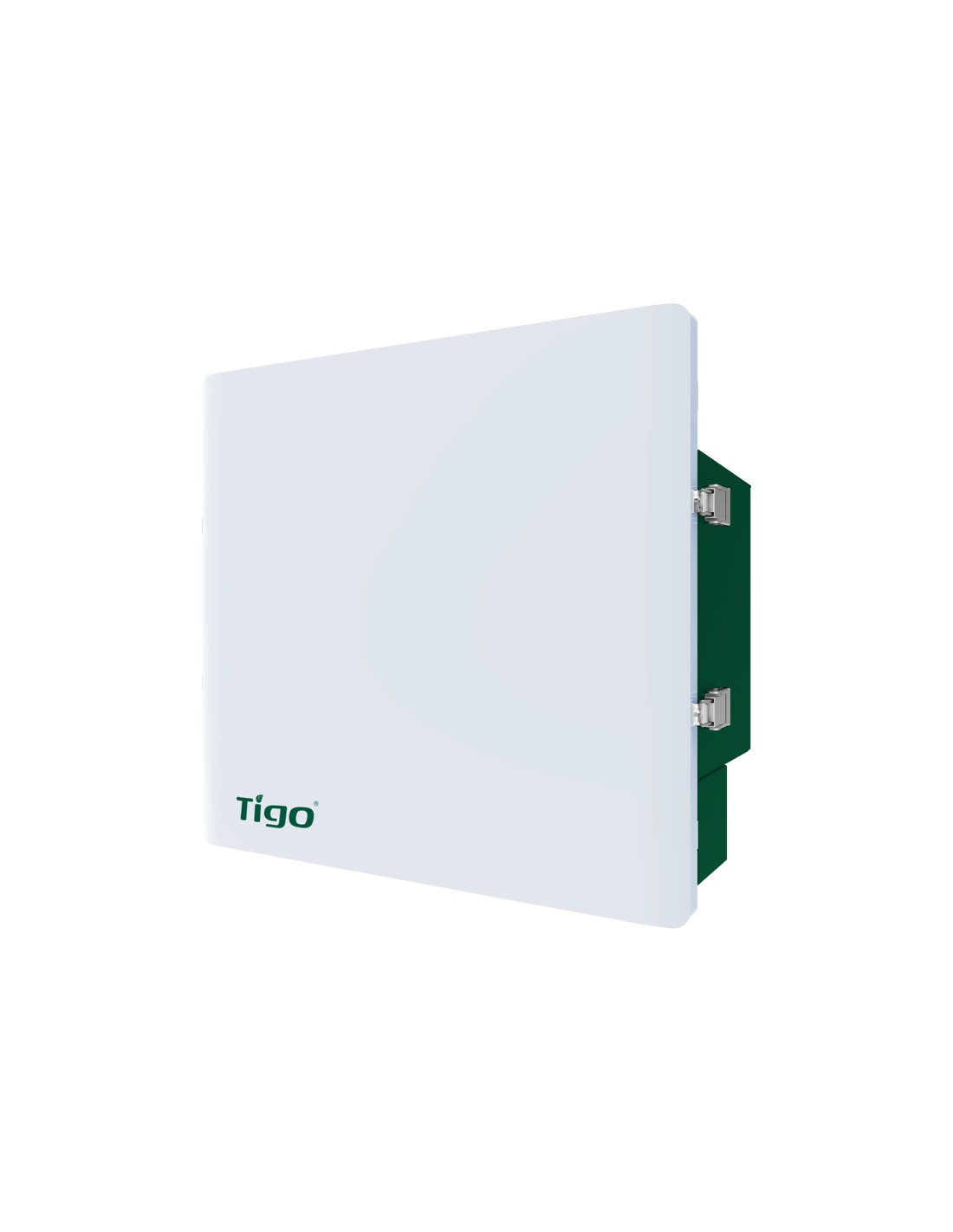

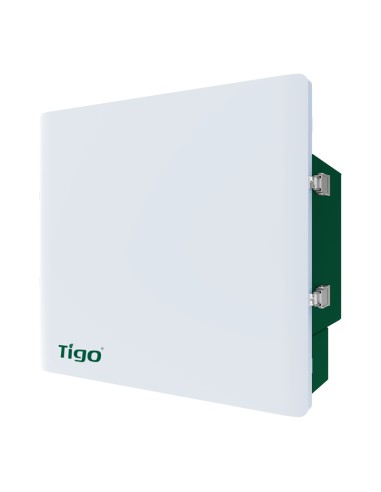

Single-phase EI Link wireless box with ATS Tigo for inverter photovoltaic system
TSS-1PS
€696.47
VAT included
10 %
€633.15 Vat excl.
Tigo EI Residential Solar Solution optimizes energy consumption based on tariff plans and today's home energy needs.
Single-phase EI Link wireless box with ATS Tigo for inverter
EI Link brings together all the components of Tigo EI Residential Solution. Physically joins EI Inverter to EI Battery with a minimum of cables. Communicates wirelessly with the Tigo TS4 units connected to each module and communicates with the cloud to enable simple commissioning, remote monitoring, over-the-air updates and more.
Main Features
- The centralized wiring connects EI Inverter to EI Battery;
- The integration of CCA allows monitoring at the system and module level;
- Connects to Tigo TS4 via a Tigo Access Point (TAP), included in the package.
Technical features
| PV | |||
| Template | TSS-1PS | ||
| Maximum input voltage (Vdc) | 600 | ||
| Maximum short-circuit current, inputs A/B (A) | 20/20 | ||
| Battery | |||
| Battery voltage range (V) | 80 - 480 | ||
| Maximum charge/discharge current (A) | 30/30 | ||
| On-Grid (inverter) | |||
| Nom. voltage (Vac) Frequency (Hz) | 220/230/240, 50/60 | ||
| Maximum on-grid current (Inv) input/output (A) | 32/32 | ||
| Off-Grid (Inverter) | |||
| Nom. voltage (Vac) Frequency (Hz) | 220/230/240, 50/60 | ||
| Maximum current (A) | 32 | ||
| Grid (Utility) | |||
| Nom. voltage (Vac) Frequency (Hz) | 220/230/240, 50/60 | ||
| Maximum input/output current (A) | 60/60 | ||
| Load | |||
| Nom. voltage (Vac) Frequency (Hz) | 220/230/240, 50/60 | ||
| Maximum input/output current (A) | 60 | ||
| Environmental Requirements | |||
| Protection class | IP54 | ||
| Level of protection | Class I | ||
| Operating temperature (°C) | from -35 to 60 (derating above 45) | ||
| Storage temperature (°C) | -40 to 70 | ||
| Relative humidity (%) | 100 | ||
| Maximum operating altitude (m) | 3000 | ||
| Overvoltage category | III (AC), II (DC) | ||
| Cooling | Natural convection | ||
| Dimensions and weight | |||
| Dimensions (WxHxD) (mm) | 482 x 437 x 184.5 | ||
| Net weight (kg) | 10 | ||
- Typology
- Single-phase
- Manufacturer Inverter
- Tigo
8370000036425
