€71.84 Vat excl.

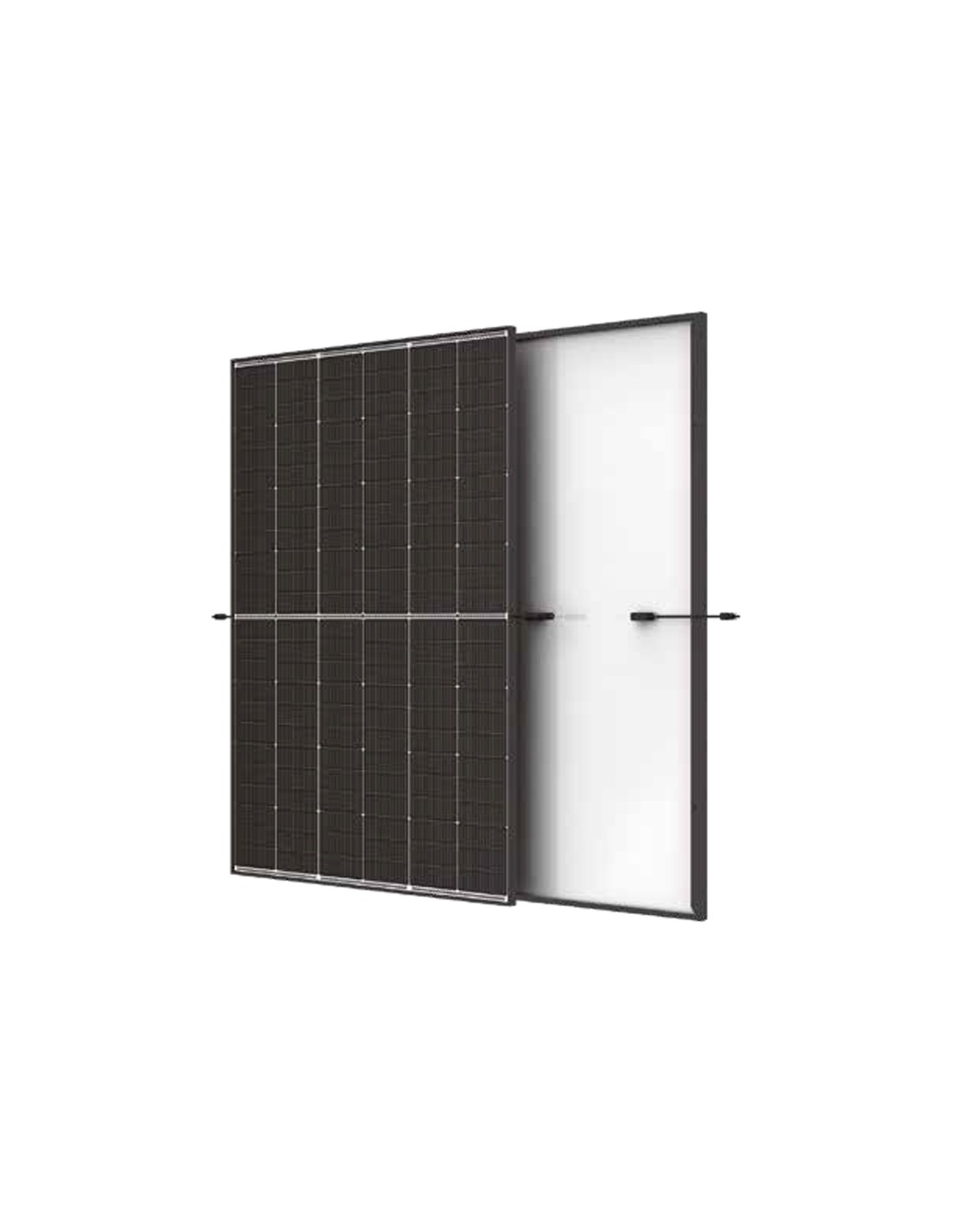

Photovoltaic solar panel N-type TOPCon Dual Glass 450W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
| ELECTRICAL CHARACTERISTICS | |
| MODEL | TSM-450NEG9R.28 |
| Nominal Output (Pmax) | 450W |
| Voltage at Pmax (Vmp) | 44,6V |
| Current at Pmax (Imp) | 10,09A |
| Open Circuit Voltage (Voc) | 52,9V |
| Short Circuit Current (Isc) | 10,74A |
| Maximum System Voltage | 1500V DC (IEC) |
| Maximum Series Fuse Rating | 25A |
| Module Efficiency | 22.5% |
| MECHANICAL CHARACTERISTICS | |
| Number of cells | 144 |
| Type of cell | TOPCon N-type module |
| Type of frame | 30mm anodized aluminum alloy, black |
| Junction Box | IP68 rated |
| Cables | 4.0 mm2 UV resistant single core cables |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | 21,0kg |
| Packaging | 36 pcs per pallet |
