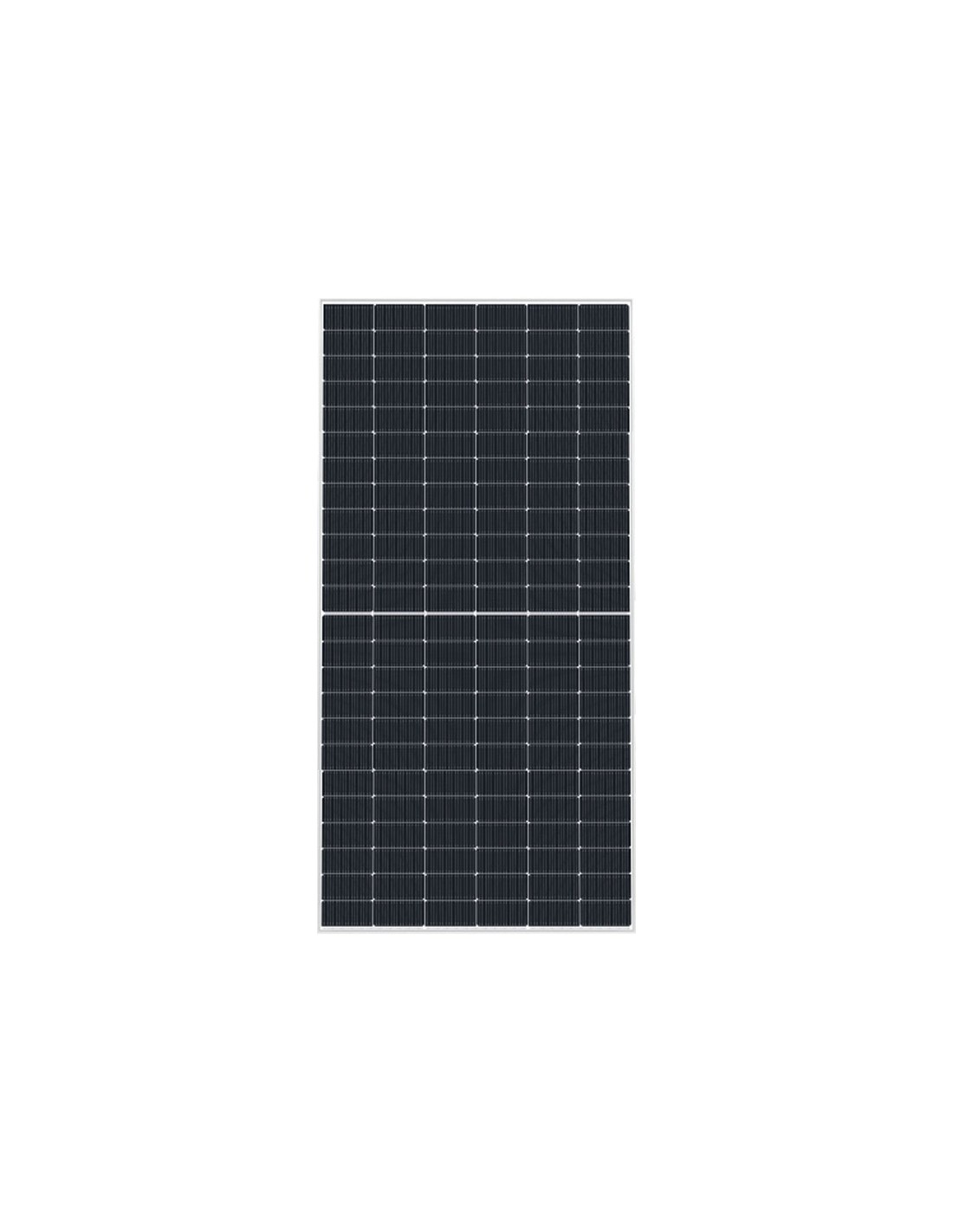

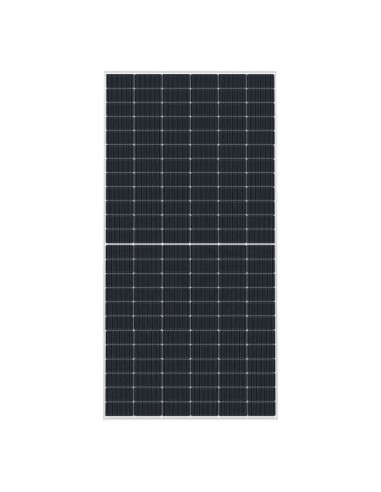

Photovoltaic solar panel 580W monocrystalline EGING PV half cell system house

Photovoltaic solar panel 580W monocrystalline EGING PV half cell system house

Name: Photovoltaic solar panel 580W monocrystalline EGING PV half cell system house
Brand: Eging PV
SKU: EG-580NT72-HLV
Price: 86.53 EUR
Availability: InStock

Reference EG-580NT72-HLV

€86.53

VAT included 10 %

€78.66 Vat excl.

Photovoltaic solar panel 570W with Monocrystalline silicon cel and Half Cell, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid)

Photovoltaic solar panel 580W monocrystalline EGING PV half cell system

Model: EG-580NT72-HLV

Features

SMBB cell design: Super multi Busbar cells brings lower resisitance and increased Busbar reﬂectance ensures higher power output;
Low degradation: Adopt N-Type TOPCon cell technology, lower degradation and better temperature co-eﬀeciency，greatly increased on generation performance;
High Reliability: Strict in-house testing in PV Lab which is CNAS approved & TUV/VDE certiﬁed;
Excellent Low-light Performance: Advanced solar cell and glass surface texturing technology allows for excellent performance in low-light environments;
PID Resistant: Excellent PID resistance performance optimized by unique structural design.

For more details, download the following documents:

Datasheet: [Download]

Technical features:

ELECTRICAL CHARACTERISTICS
MODEL	EG-580NT72-HLV
Nominal Output (Pmax)	580W
Voltage at Pmax (Vmp)	42.53V
Current at Pmax (Imp)	13.64A
Open Circuit Voltage (Voc)	51.30V
Short Circuit Current (Isc)	14.43A
Maximum System Voltage	1500VDC
Maximum Series Fuse Rating	25A
Module Efficiency	22.45%
MECHANICAL CHARACTERISTICS
Number of cells	144
Type of cell	N-type Mono
Thickness of glass	3,2mm
Type of frame	Anodized aluminum alloy
Junction Box	IP68
Connectors	MC4 compatible
Length of Cabel	Portrait：+300mm/-300mm
Cables	4.0 mm²
Dimensions	2278 x 1134 x 30mm
Weight	27Kg
