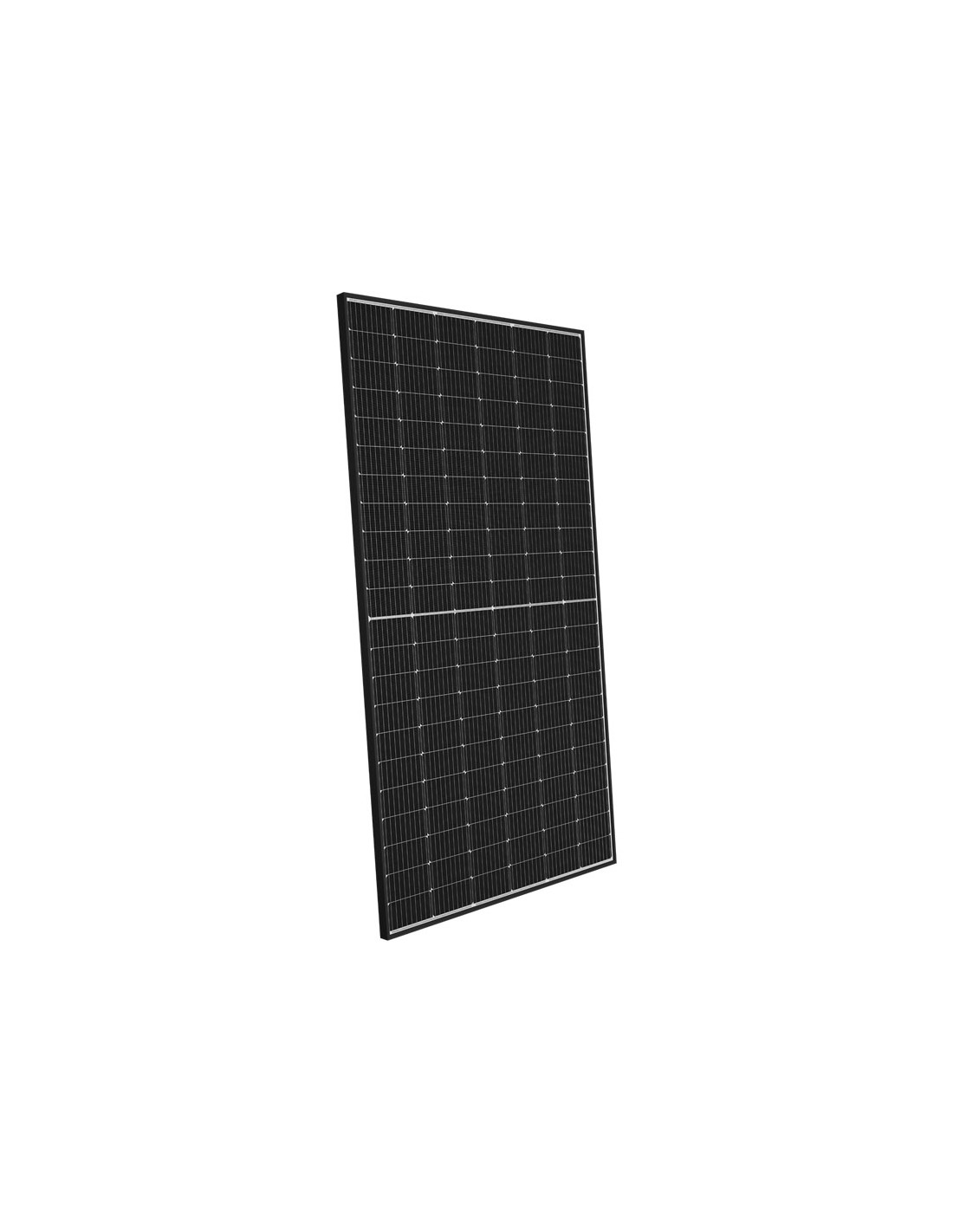

Photovoltaic solar panel 505W monocrystalline PEIMAR half cells PERC black frame
Photovoltaic solar panel 505W monocrystalline PEIMAR half cells PERC black frame

Photovoltaic solar panel 505W monocrystalline PEIMAR half cells PERC black frame

OR10H505-BF
€85.79
VAT included 10 %

€77.99 Vat excl.

Photovoltaic solar panel 505W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).



Photovoltaic solar panel 505W monocrystalline PEIMAR half cells PERC black frame

Model: OR10H505-BF

The 132 Half Cut module of the Import Line combines the high production efficiency of the half cell technology with an excellent quality / price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the yield of the product.
For these reasons, the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.

Features

  • PERC TECHNOLOGY;
  • MODULE FIRE PERFORMANCE: CLASS 1;
  • ANTI-REFLECTIVE GLASS;
  • PID FREE;

For more details, download the following documents:

Technical features:

ELECTRICAL CHARACTERISTICS
MODEL OR10H505-BF
Nominal Output (Pmax) 505W
Voltage at Pmax (Vmp) 37.53V
Current at Pmax (Imp) 13.46A
Open Circuit Voltage (Voc) 45.54V
Short Circuit Current (Isc) 13.95A
Maximum System Voltage 1500V
Maximum Series Fuse Rating 25A
Module Efficiency 21.27%
MECHANICAL CHARACTERISTICS
Solar Cells 132 M10 HALF monocrystalline PERC
Frame Anodized aluminium alloy, double wall
Junction Box IP67 rated
Cables Section 4.0 mm²
Dimensions 2094 x 1134 x 35 mm
Weight 25 kg
Pieces per pallet 31



Customer Service

0882 22 82 47
[email protected]

Nominal Output (Pmax) W
505W
Connector Type
MC4 o connettori compatibili
Type Panel
framed
Product Origin
Asian
Cell type
Monocrystalline
Number of cells
132
8370000039624
