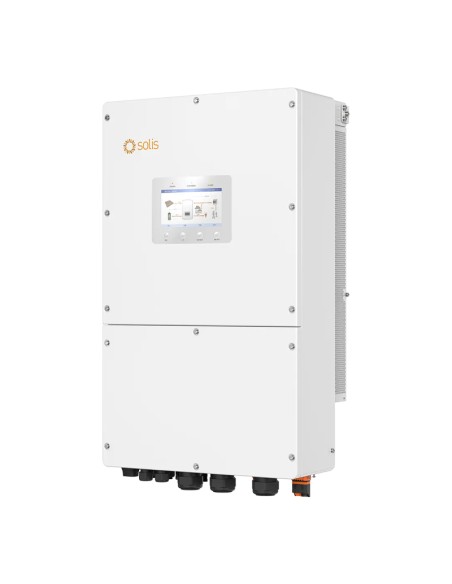

Three-phase hybrid inverter 50kW Solis S6 4 MPPT DC switch photovoltaic solar

Three-phase hybrid inverter 50kW Solis S6 4 MPPT DC switch photovoltaic solar

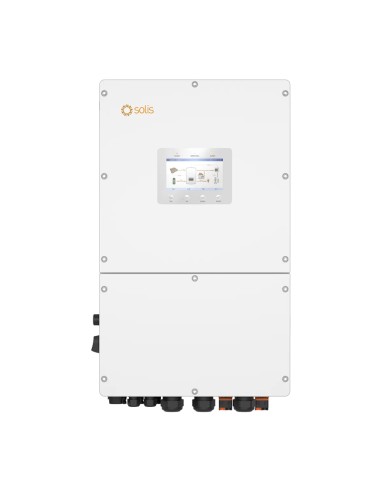

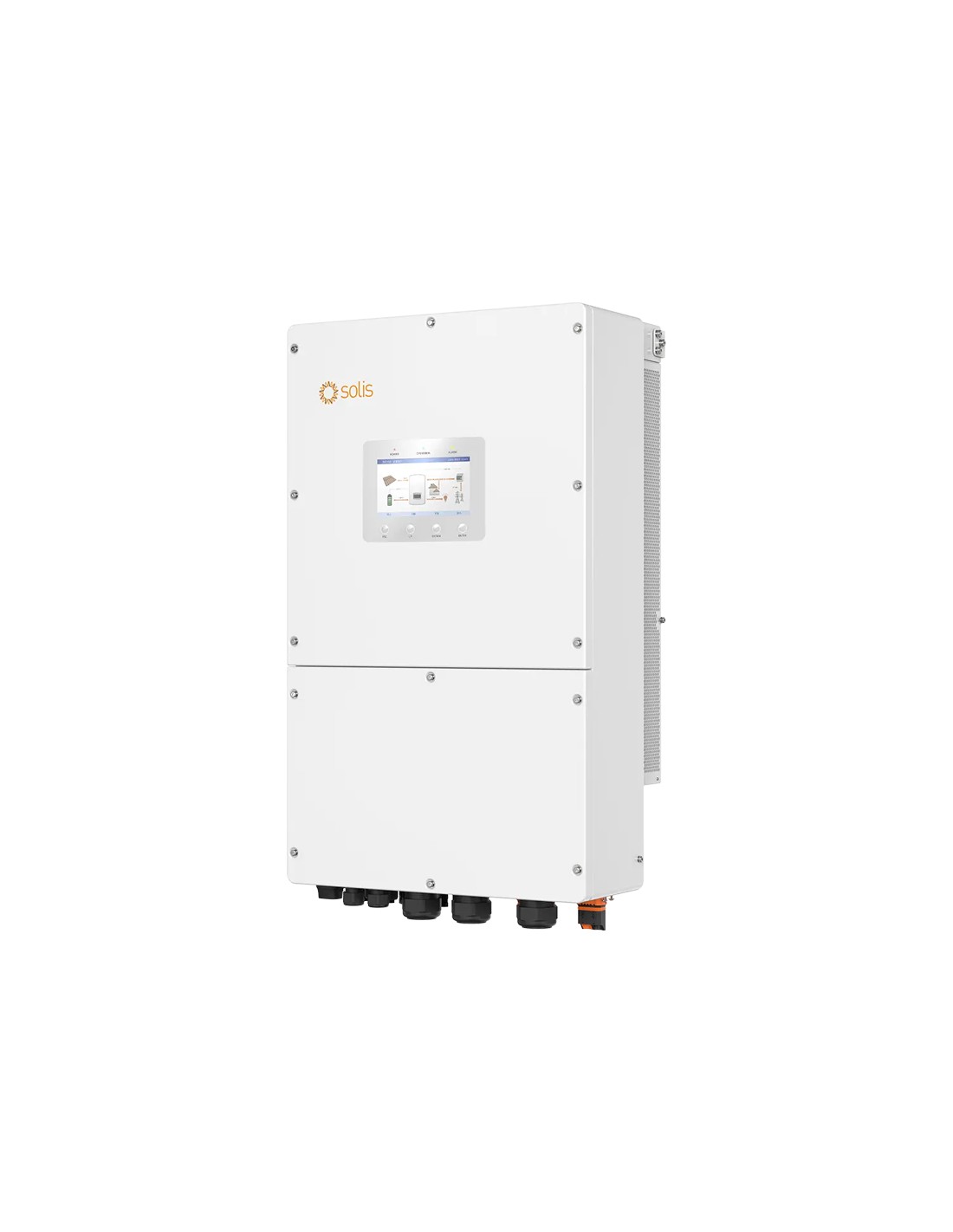

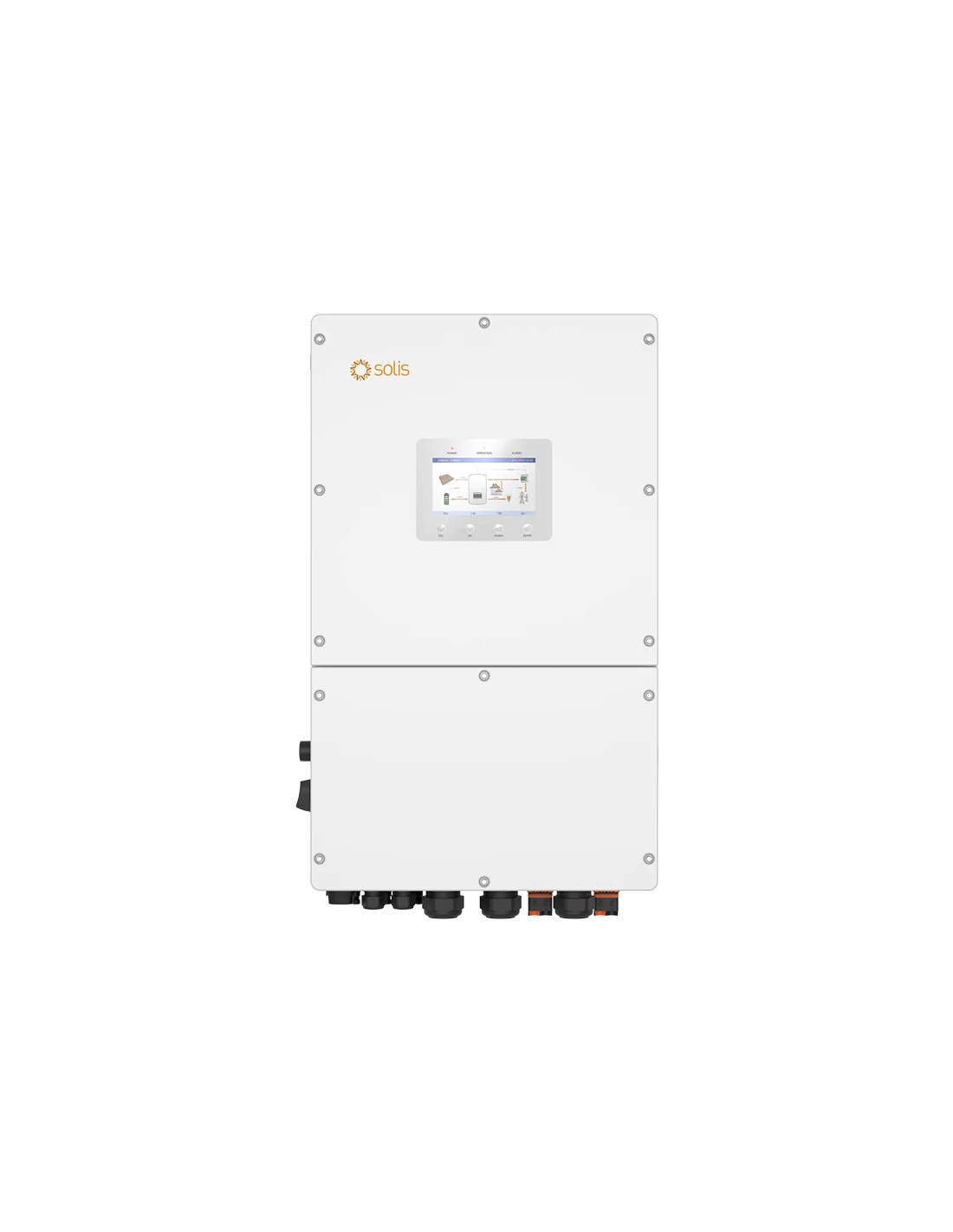

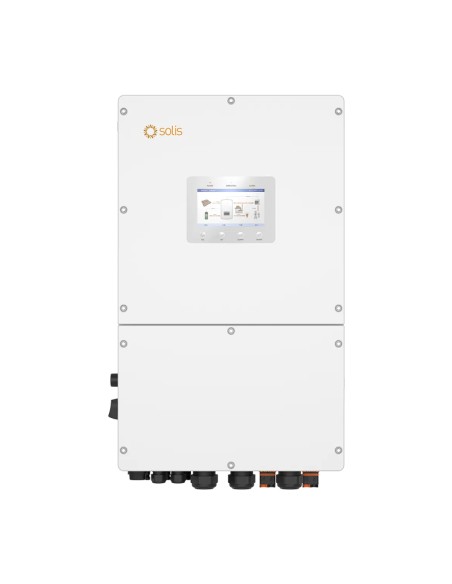

Name: Three-phase hybrid inverter 50kW Solis S6 4 MPPT DC switch photovoltaic solar
Brand: Solis
SKU: S6-EH3P50K-H-EU
Price: 6564.25 EUR
Availability: InStock

Reference S6-EH3P50K-H-EU

€6,564.25

VAT included 10 %

€5,967.50 Vat excl.

The Solis S6-EH3P50K-H series three-phase energy storage inverter is designed for commercial PV energy storage systems. This type of product features independent generator output and multiple inverter parallel operation.

Three-phase hybrid inverter 50kW Solis S6 4 MPPT DC switch

They also offer independent generator outputs, high current charging and discharging capabilities, and various flexible load capacity options, including UPS-level switching. They easily adapt to three-phase unbalanced loads and half-wave loads, ensuring highly reliable power supply.

Main features

2 seconds of 160% overload capability;
Supports Peakshaving features in "self-use" and "generator" modes;
Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port;
Support 200% DC/AC ratio, make full use of PV charging, provide long backup hours;
Battery real-time monitoring , remote upgrade, and battery healing function to prolong battery life;
Supports a maximum input current of 20 A, making it ideal for all high-power PV modules from any brand;
A wide battery voltage range accommodates the prevalent high-voltage lithium batteries found in the market;
Battery charging/discharging current 140A/70A+70A, suitable for 280Ah cell standard 0.5C application condition.

For more details, download the following documents:

Datasheet [Download]

Technical features:

DC Input (PV Side)
Max. recommended PV field size	100 kW
Max. recommended PV input power	96 kW
Max. absolute voltage	1000 V
Rated voltage	600 V
Startup voltage	180 V
MPPT voltage range	150 - 850 V
Max. input current	4 × 40 A
Max. short circuit current	4 × 60 A
MPPT number / Max. number of strings	4 / 8
Battery
Battery type	Lithium-ion
Allowed voltage range	150 - 800 V
Max. charge / discharge power	55 kW
Max. charge / discharge current	70 A × 2
No. of battery inputs	2
Max. charge / discharge power per input	35 kW
Communication	CAN / RS485
AC Output (Grid Side)
Rated output power	50 kW
Max. apparent output power	50 kVA
Nominal grid voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Nominal grid frequency	50 Hz / 60 Hz
Nominal grid output current	76 A / 72.2 A
Max. output current	76 A / 72.2 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
AC Input (Grid Side)
Max. AC transmission current	152 A / 144.4 A
Nominal input voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Nominal input frequency	50 Hz / 60 Hz
AC Output (Backup)
Rated output power	50 kW
Max. apparent output power	1.6 times the nominal power, 2 s
Backup switch-over time	< 10 ms
Nominal output current	76 A / 72.2 A
THDv (@linear load)	< 2%
Efficiency
Max. efficiency	97.8%
European efficiency	97.4%
Max. efficiency with battery charged by PV	98.5%
Max. efficiency with battery charged/discharged in AC	97.5%
Protection
Anti-islanding system	Yes
Output overcurrent protection	Yes
Short circuit protection	Yes
Integrated DC switch	Yes
DC reverse polarity protection	Yes
DC Type II / AC Type II overvoltage protection	Yes
Integrated AFCI 2.0	Optional
General Data
Dimensions (W × H × D)	530 × 880 × 290 mm
Weight	73 kg
Topology	Transformerless
Self consumption (night)	< 35 W
Operating temperature range	-25 ~ +60°C
Relative humidity	0 - 95%
Ingress protection	IP66
Cooling method	Intelligent fan cooling
Max. operating altitude	4000 m
Grid connection standards
Grid connection standards	G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, PORTARIA Nº 140, DE 21 DE MARÇO DE 2022
Safety / EMC standards
Safety / EMC standards	IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011

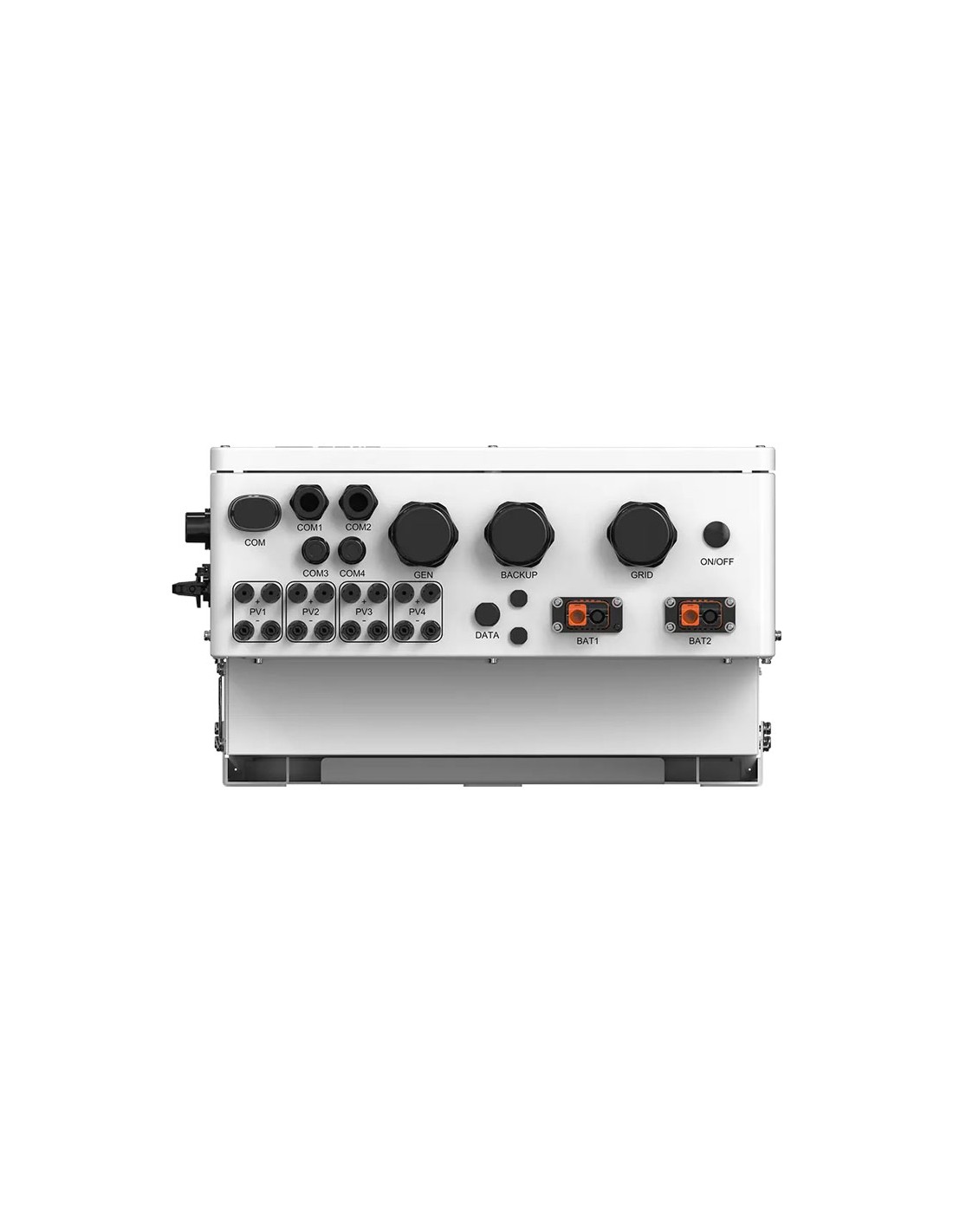

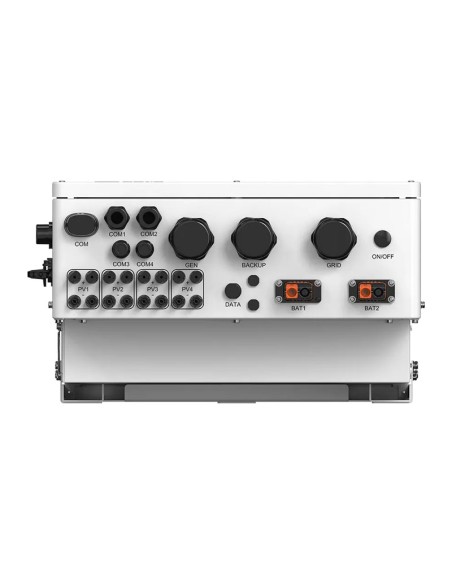

Features	PV connection: MC4 connector; Battery connection: Terminal connectors; AC connection: Terminal block; Display: 7.0" LCD display and Bluetooth + APP; Communication: CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
