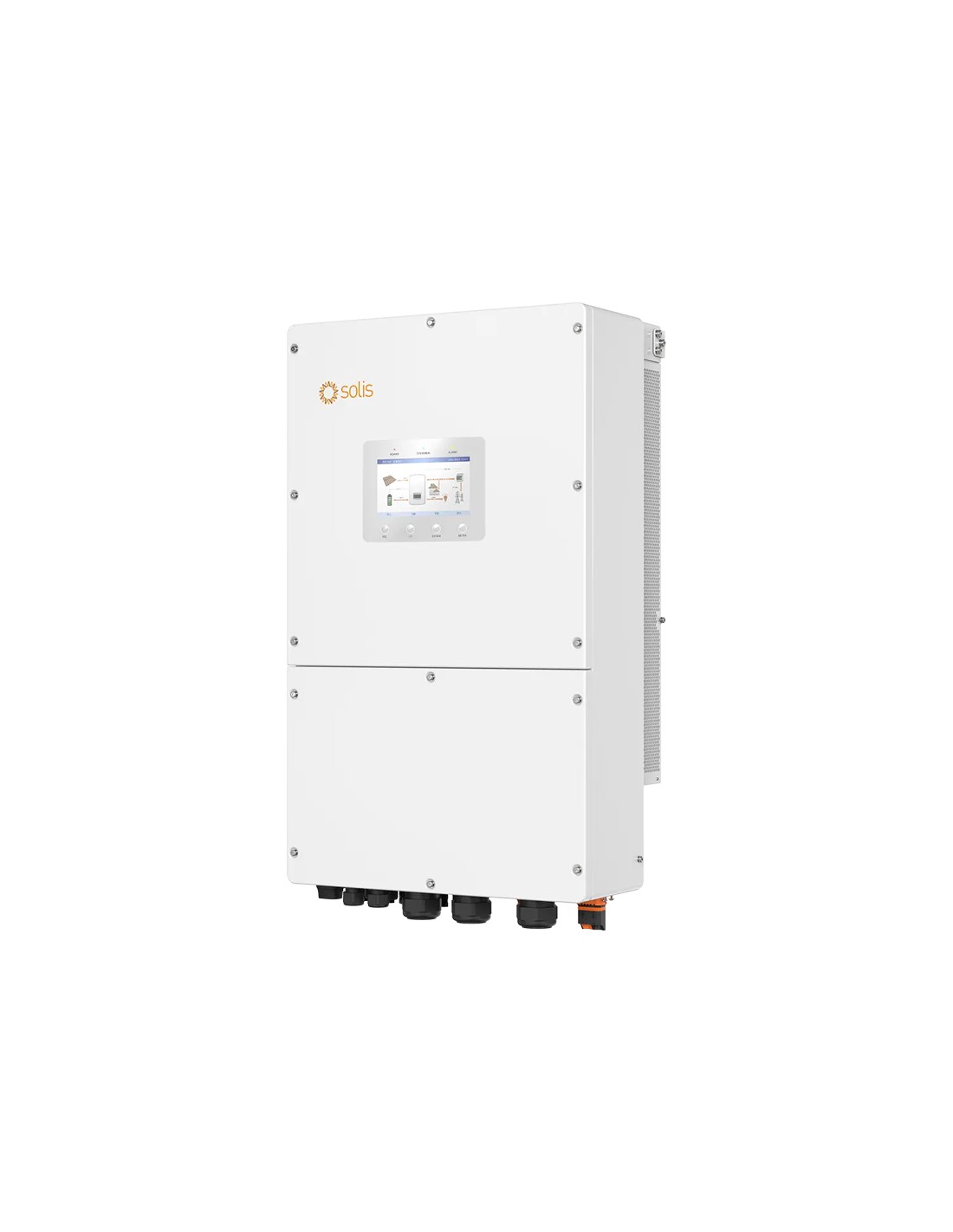

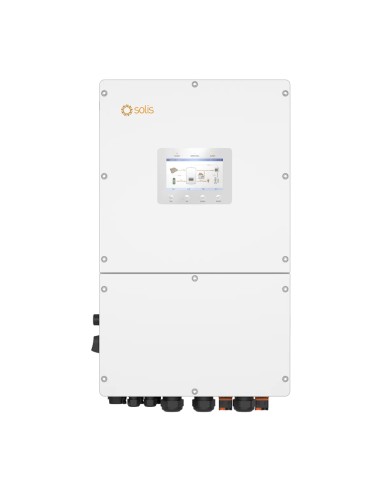

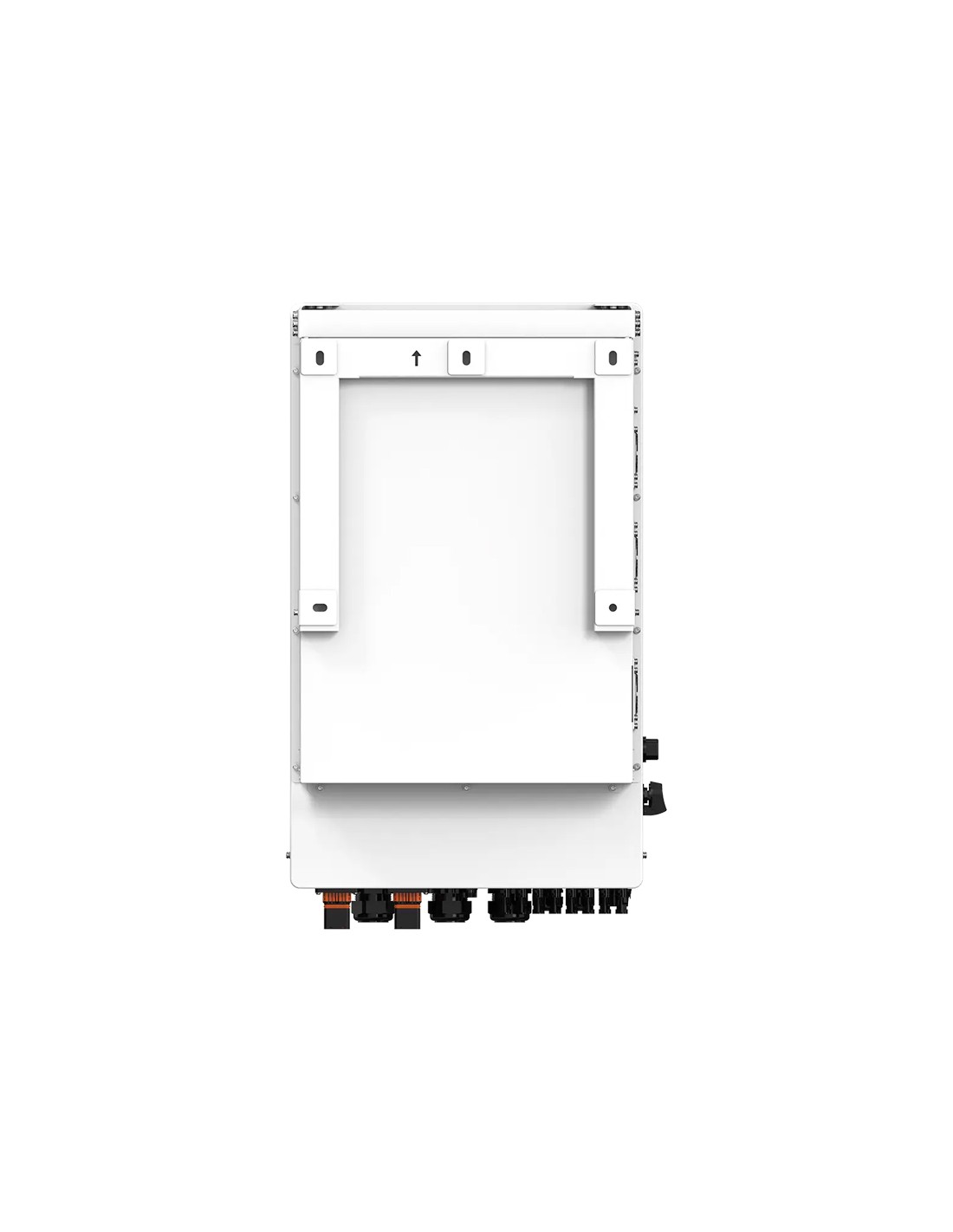

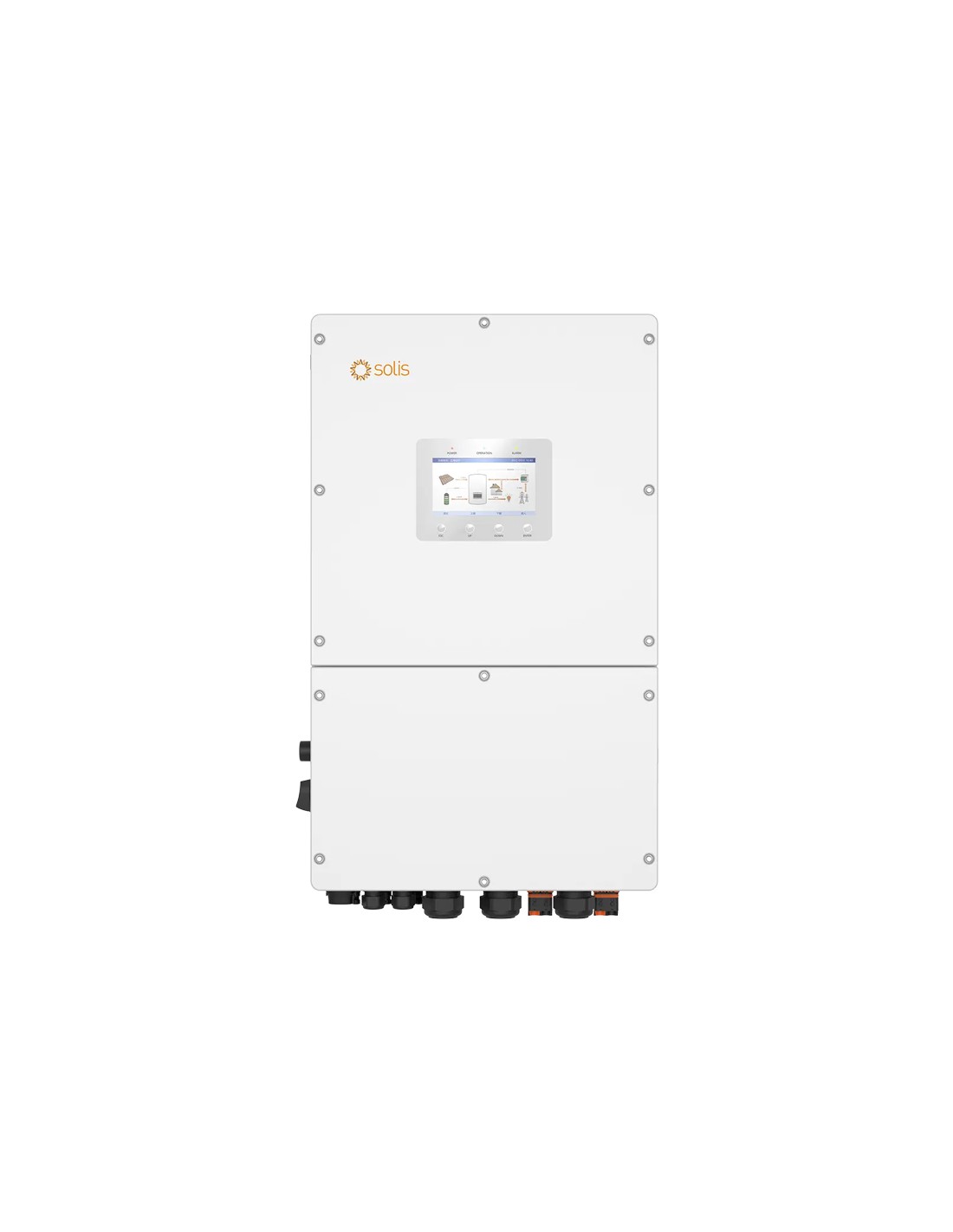

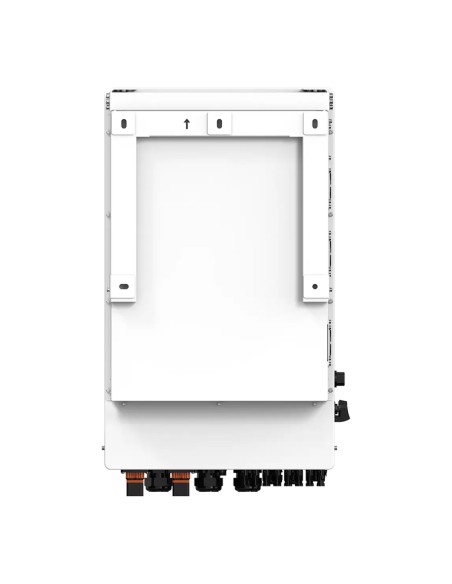

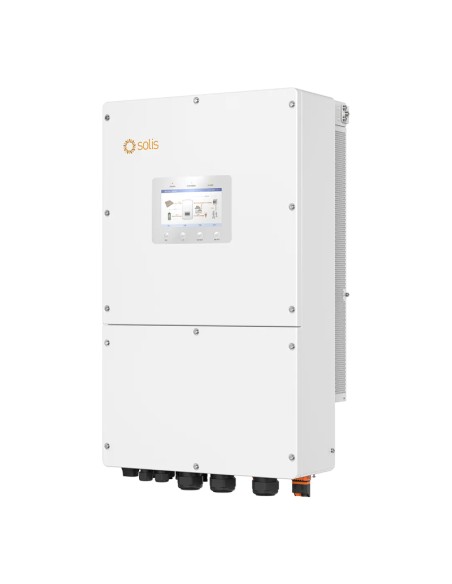

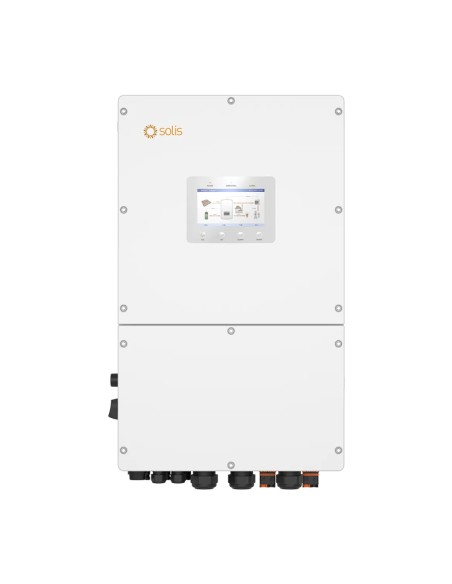

Name: Three-phase hybrid inverter 30kW Solis S6 3 MPPT DC switch photovoltaic solar
Brand: Solis
SKU: S6-EH3P30K-H-EU
Price: 4774 EUR
Availability: InStock

Reference S6-EH3P30K-H-EU

€4,774.00

VAT included 10 %

€4,340.00 Vat excl.

The Solis S6-EH3P30K-H series three-phase energy storage inverter is designed for commercial PV energy storage systems. This type of product features independent generator output and multiple inverter parallel operation.

Three-phase hybrid inverter 30kW Solis S6 3 MPPT DC switch

They also offer independent generator outputs, high current charging and discharging capabilities, and various flexible load capacity options, including UPS-level switching. They easily adapt to three-phase unbalanced loads and half-wave loads, ensuring highly reliable power supply.

Main features

2 seconds of 160% overload capability;
Supports Peakshaving features in "self-use" and "generator" modes;
Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port;
Support 200% DC/AC ratio, make full use of PV charging, provide long backup hours;
Battery real-time monitoring , remote upgrade, and battery healing function to prolong battery life;
Supports a maximum input current of 20 A, making it ideal for all high-power PV modules from any brand;
A wide battery voltage range accommodates the prevalent high-voltage lithium batteries found in the market;
Battery charging/discharging current 140A/70A+70A, suitable for 280Ah cell standard 0.5C application condition.

For more details, download the following documents:

Datasheet [Download]

Technical features:

DC Input (PV Side)
Recommended maximum PV field size	60 kW
Recommended maximum PV input power	60 kW
Maximum absolute voltage	1000 V
Rated voltage	600 V
Startup voltage	180 V
MPPT voltage range	150 - 850 V
Maximum input current	3 × 40 A
Maximum short-circuit current	3 × 60 A
MPPT number / Maximum number of strings	3 / 6
Battery
Battery type	Lithium-ion
Allowed voltage range	150 - 800 V
Maximum charge / discharge power	33 kW
Maximum charge / discharge current	70 A × 2
Number of battery inputs	2
Maximum charge / discharge power per input	33 kW
Communication	CAN / RS485
AC Output (Grid Side)
Rated output power	30 kW
Maximum apparent output power	30 kVA
Nominal grid voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Nominal grid frequency	50 Hz / 60 Hz
Nominal grid output current	45.6 A / 43.3 A
Maximum output current	45.6 A / 43.3 A
Power Factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
AC Input (Grid Side)
Maximum AC transmission current	91.2 A / 86.6 A
Nominal input voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Nominal input frequency	50 Hz / 60 Hz
AC Output (Backup)
Rated output power	30 kW
Maximum apparent output power	1.6 times rated power, 2s
Backup switching time	< 10 ms
Nominal output current	45.6 A / 43.3 A
THDv (@linear load)	< 2%
Efficiency
Maximum efficiency	97.8%
EU efficiency	97.4%
Maximum efficiency with battery charged from PV	98.5%
Maximum efficiency with battery charged/discharged in AC	97.5%
Protection
Anti-islanding system	Yes
Overcurrent protection on output	Yes
Short-circuit protection	Yes
Integrated DC switch	Yes
DC reverse polarity protection	Yes
Overload protection DC / AC	Type II / Type II
AFCI 2.0 integrated	Optional
General Data
Dimensions (W × H × D)	530 × 880 × 290 mm
Weight	73 kg
Topology	Transformerless
Self consumption (night)	< 35 W
Operating temperature range	-25 ~ +60°C
Relative humidity	0 - 95%
Ingress protection	IP66
Cooling method	Smart fan cooling
Maximum operating altitude	4000 m
Grid connection standard
Grid connection standard	G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, PORTARIA Nº 140, DE 21 DE MARÇO DE 2022
Safety / EMC standards
Safety / EMC standards	IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011

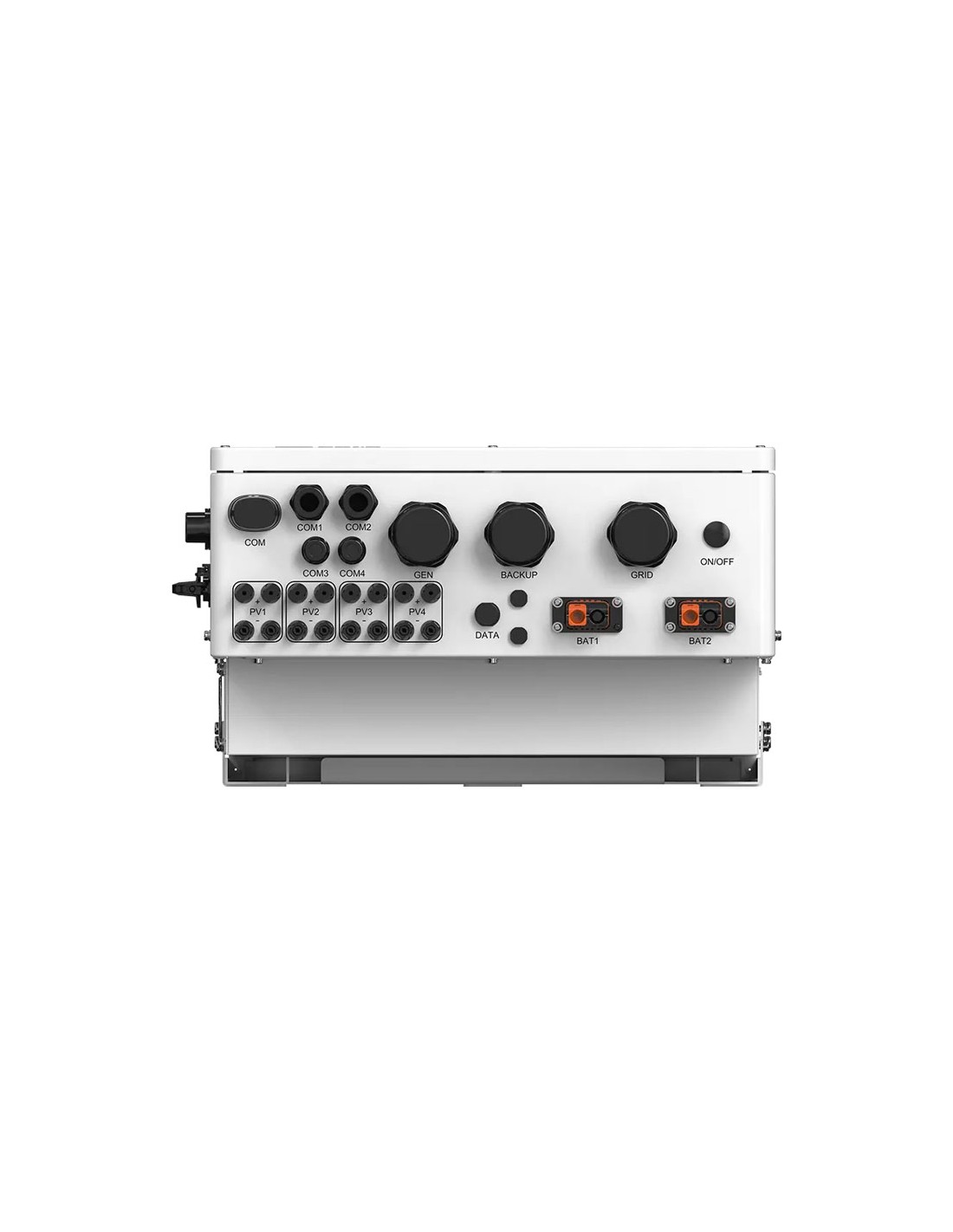

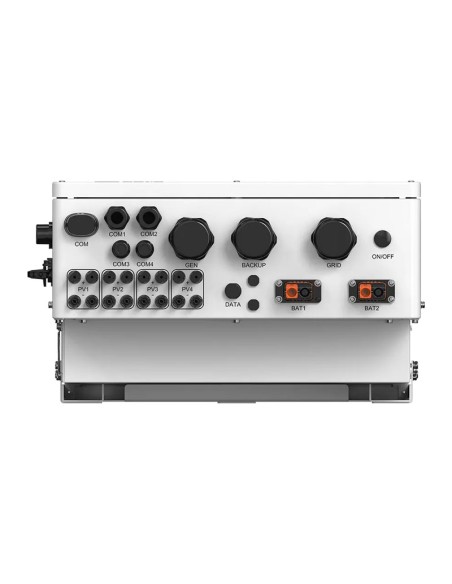

Features
PV connection	MC4 quick connector
Battery connection	Terminal connectors
AC connection	Terminal block
Display	7.0" LCD display with Bluetooth + APP
Communication	CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
