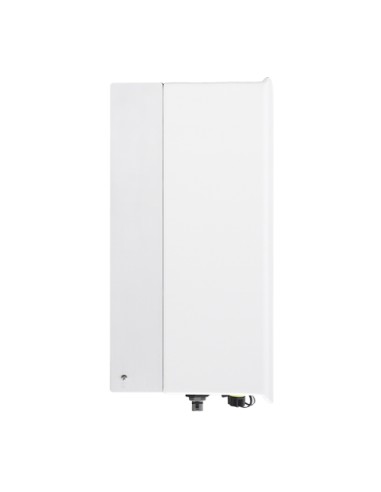

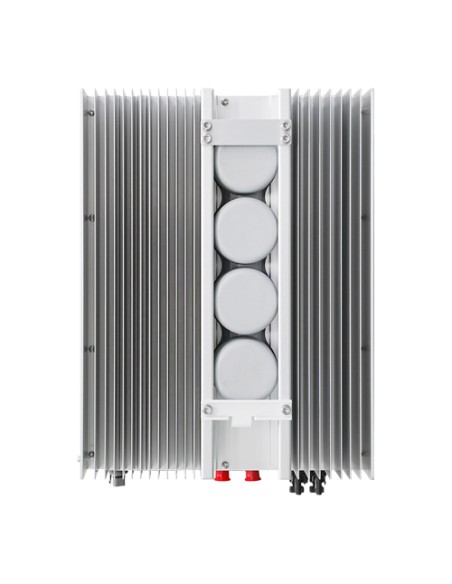

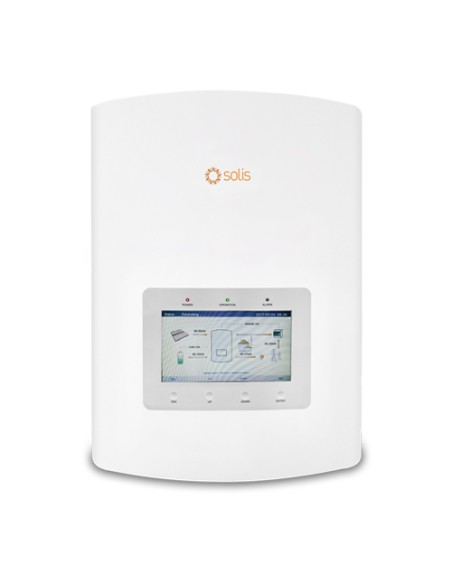

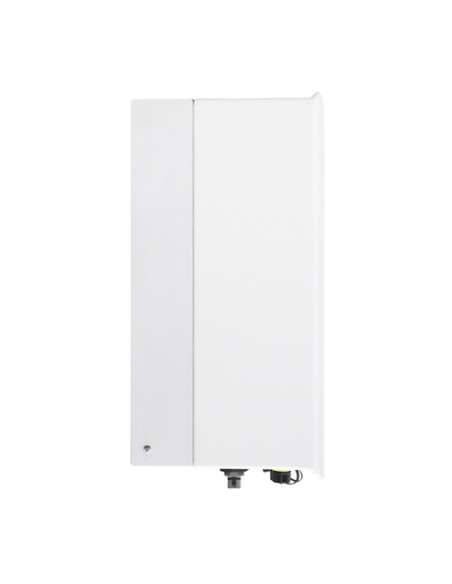

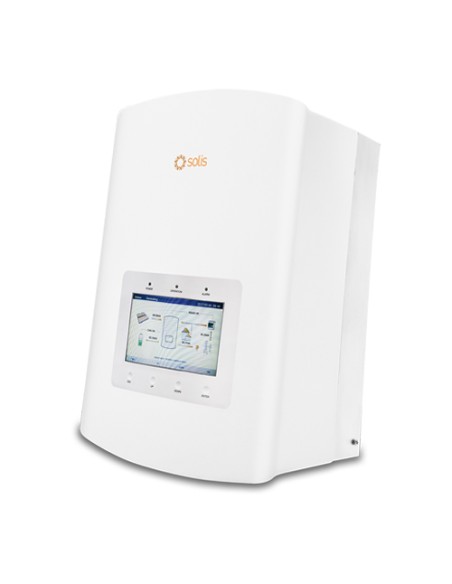

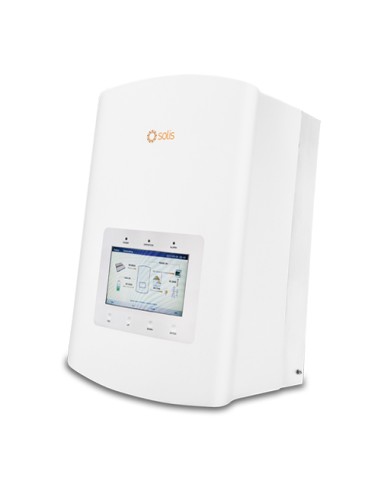

Single-phase hybrid inverter 3.6kW Solis S5 double MPPT solar photovoltaic
Single-phase hybrid inverter 3.6kW Solis S5 double MPPT solar photovoltaic
Single-phase hybrid inverter 3.6kW Solis S5 double MPPT solar photovoltaic
Single-phase hybrid inverter 3.6kW Solis S5 double MPPT solar photovoltaic
Single-phase hybrid inverter 3.6kW Solis S5 double MPPT solar photovoltaic
Single-phase hybrid inverter 3.6kW Solis S5 double MPPT solar photovoltaic
Single-phase hybrid inverter 3.6kW Solis S5 double MPPT solar photovoltaic
Single-phase hybrid inverter 3.6kW Solis S5 double MPPT solar photovoltaic
Single-phase hybrid inverter 3.6kW Solis S5 double MPPT solar photovoltaic
Single-phase hybrid inverter 3.6kW Solis S5 double MPPT solar photovoltaic

Single-phase hybrid inverter 3.6kW Solis S5 double MPPT solar photovoltaic

SLS-S5-EH1P3.6K-L
€1,071.42
VAT included 10 %

€974.02 Vat excl.

S5-EH1P3.6K-L energy storage inverter is designed for residential PV energy storage system. Backup switching time is less than 20ms. Integrate multiple protections and fault monitoring to ensure the safety of batteries and equipment.



Single-phase hybrid inverter 3.6kW Solis S5 double MPPT

S5-EH1P3.6K-L energy storage inverter is designed for residential PV energy storage system. Backup switching time is less than 20ms. Integrate multiple protections and fault monitoring to ensure the safety of batteries and equipment.

  • Uninterrupted power supply, 20ms reaction;
  • Fanless design, long lifespan;
  • AFCI protection, proactively reduces fire risk;
  • With shifting and peak shaving capabilities friendly to grid;
  • Intelligent EMS function, improving battery's reliability;
  • Higher charge-discharge efficiency, improving the economic benefits;
  • Max. string input current 15A;
  • Multiple working modes to make maximize self-consumption, increase benefit;
    • With high-frequency isolation technology, making system safer and long lifespan;
  • 24-hour fully intelligent energy management, Real-time grasp of PV plant status;
  • Compatible with lithium & lead-acid batteries, increased more choice in different markets;
  • Remotely control & upgrade function, making digital power plant maintenance at your fingertips.

For more details, download the following documents:

Technical features:

Input DC
Recommended max. PV power 5.7kW
Max. input voltage 600V
Rated voltage 330V
Start-up voltage 120V
MPPT voltage range 90-520V
Max. input current 15 A / 15 A
Max. short circuit current 22.5 A / 22.5 A
MPPT number/Max. input strings number 2/2
Output AC
Rated output power 3.6kW
Max. apparent output power 4 kVA
Max. output current 18.5 A
General Data
Dimensions (WxHxD) 333*505*249 mm
Weight 18.3 kg
Topology High frequency isolation (for battery)
Ingress protection IP65
Safty/EMC standard IEC/EN 62109-1/-2, EN 61000-6-2/-3
Grid connection standard G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Features

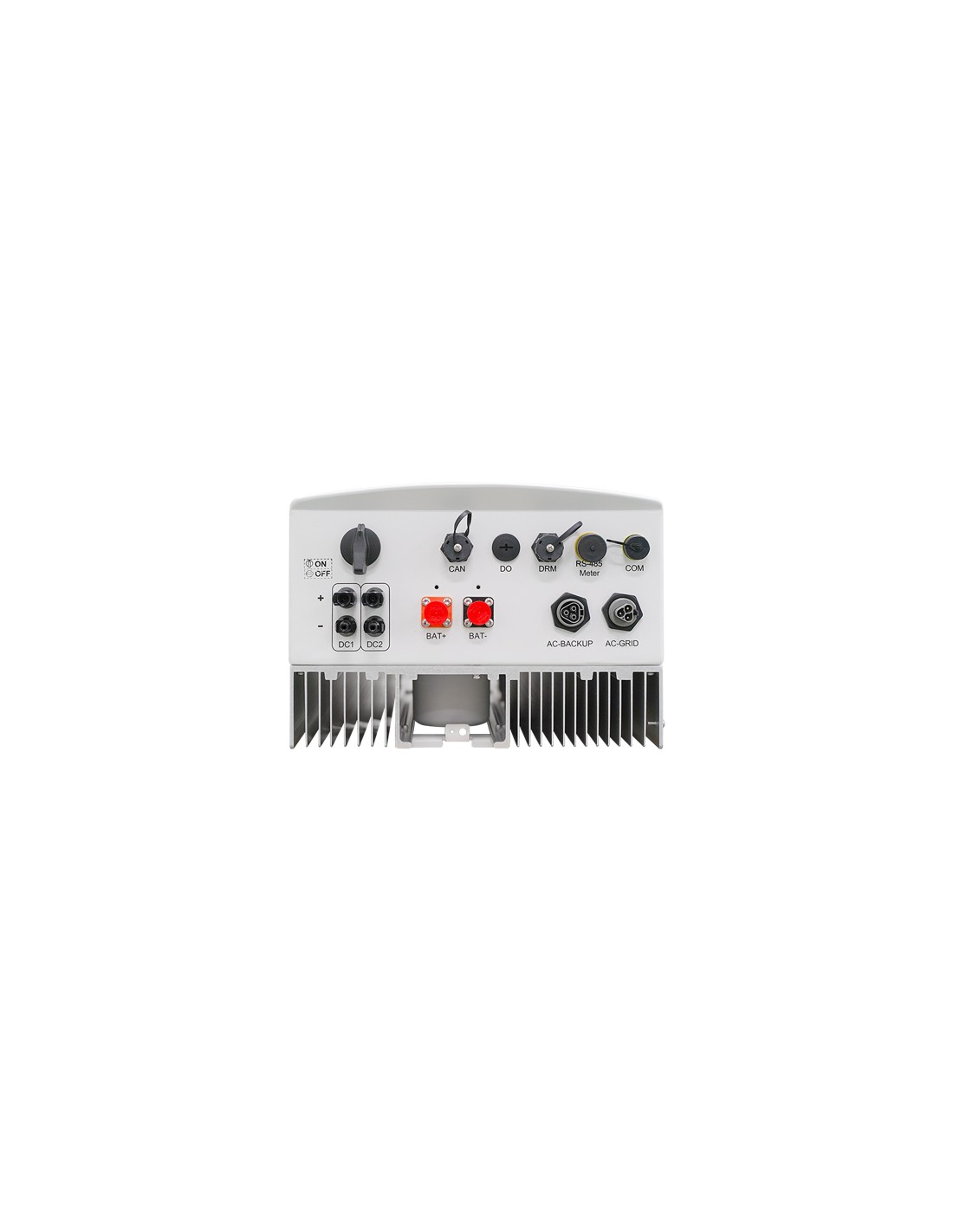

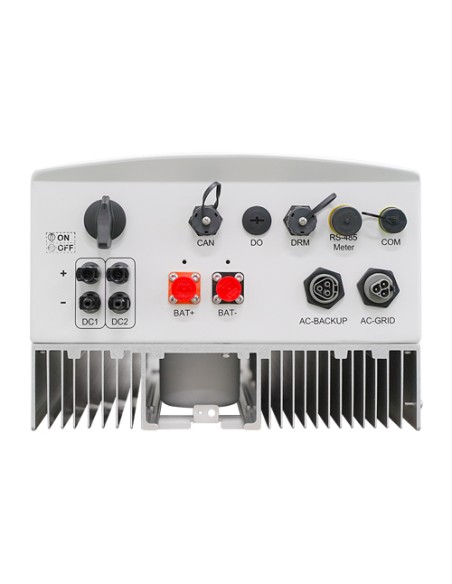

DC connection MC4 connector
AC connection Quick connection plug

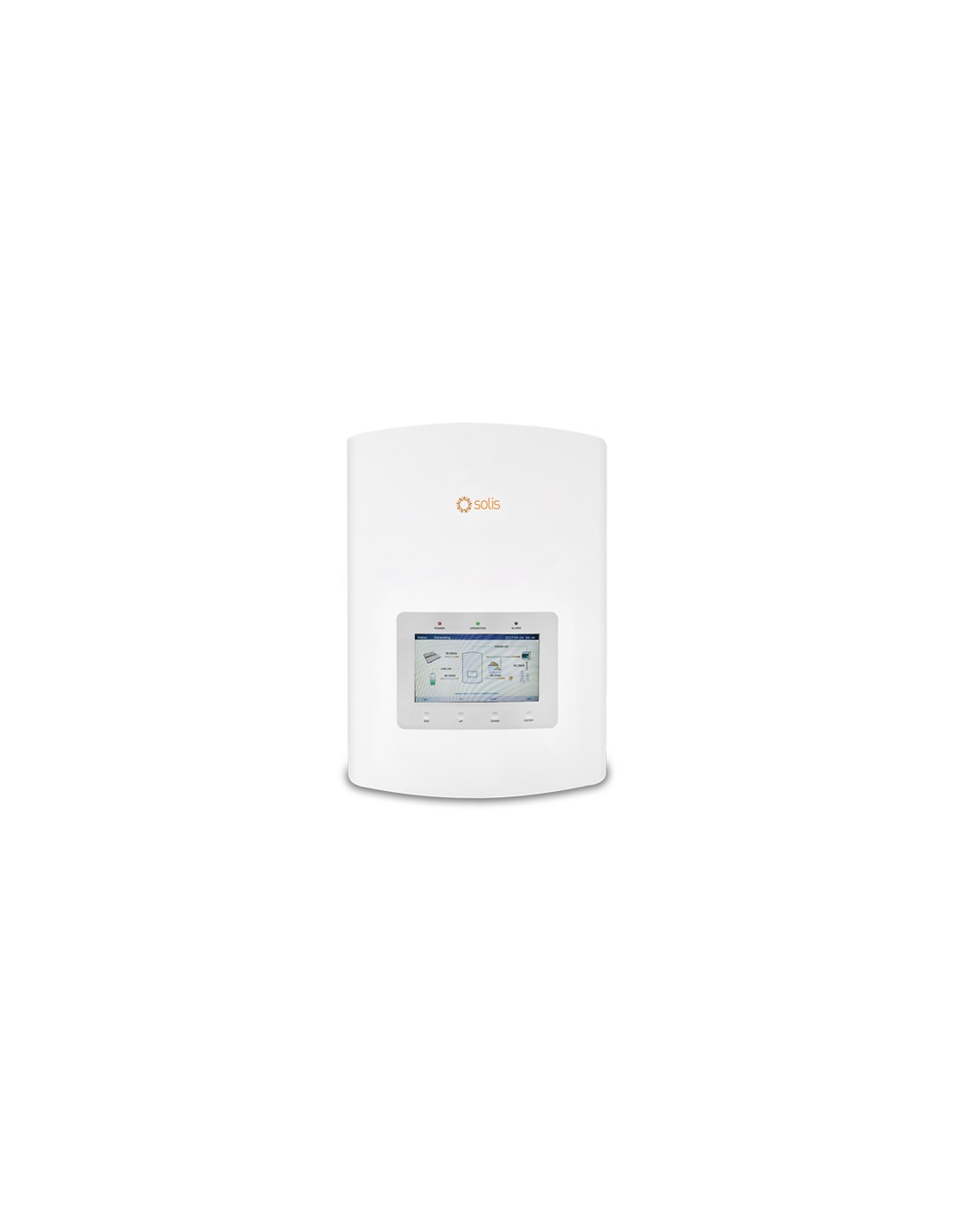

Display 7.0"LCD color screen display
Communication RS485, Optional: Wi-Fi, GPRS


Customer Service

0882 22 82 47
[email protected]

MPPT number
2
Typology
Single-phase
Inverter power
3.68kW
