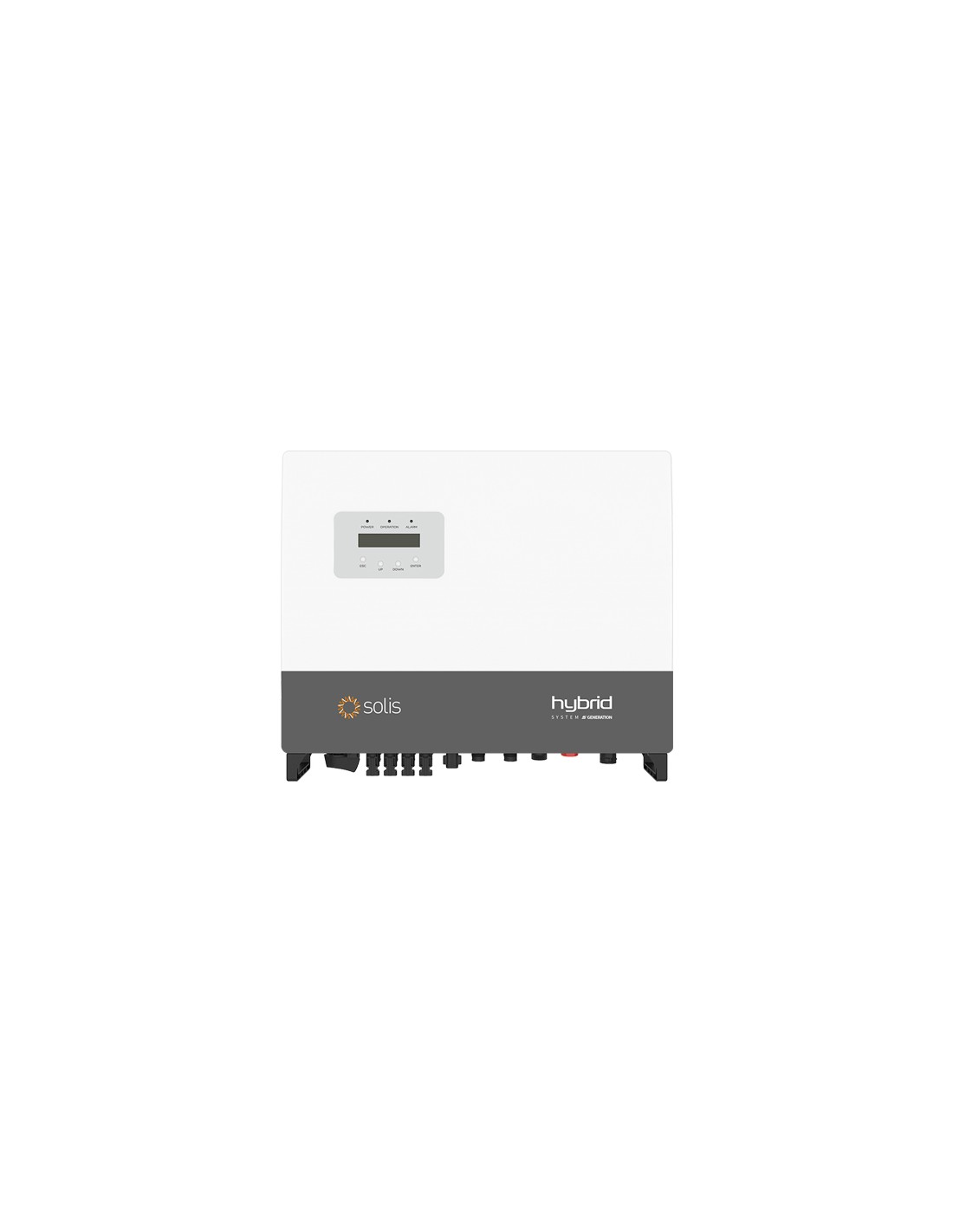

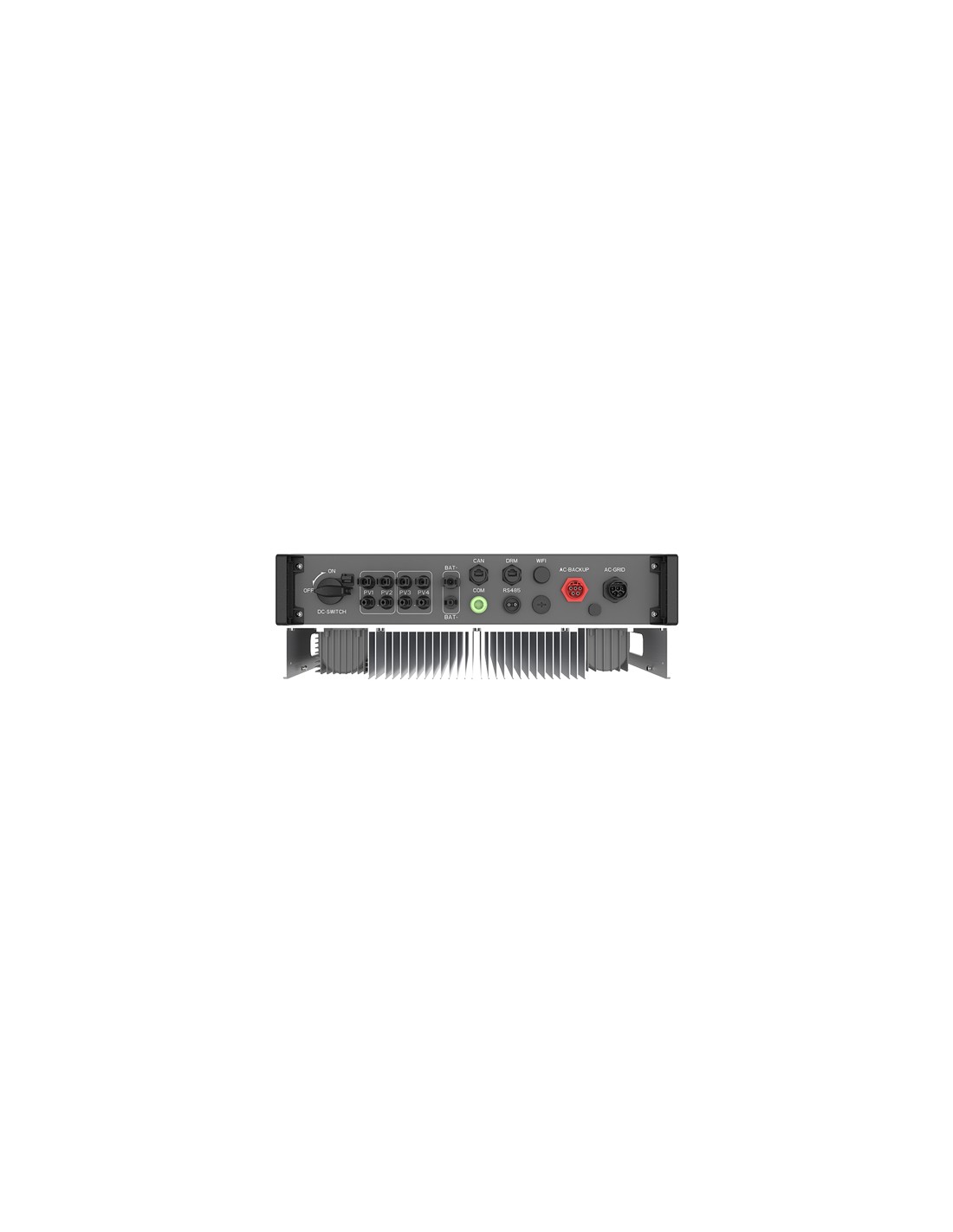

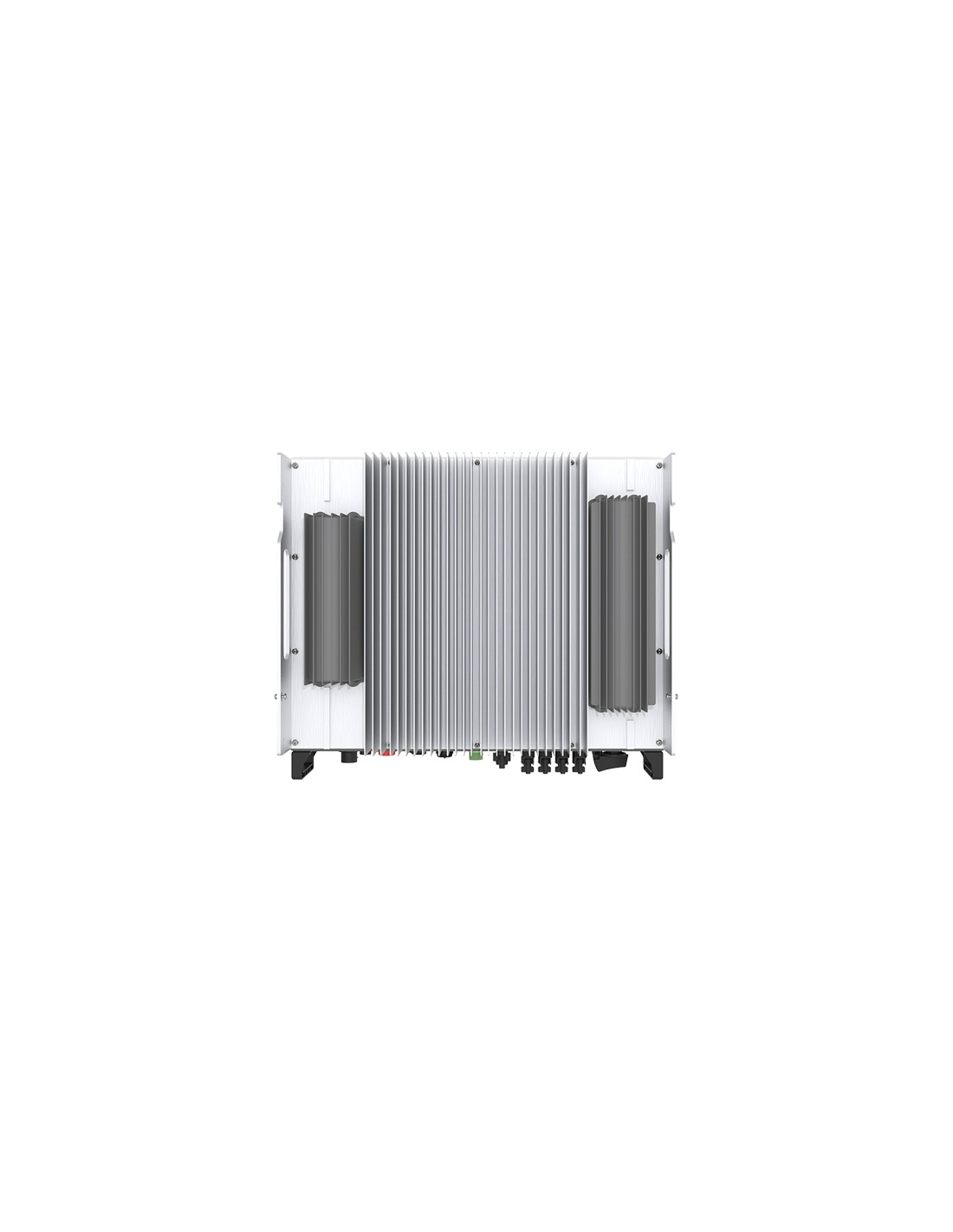

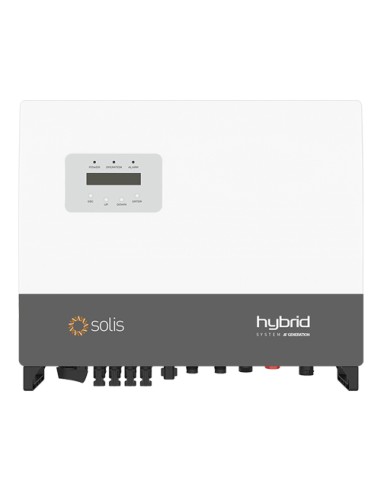

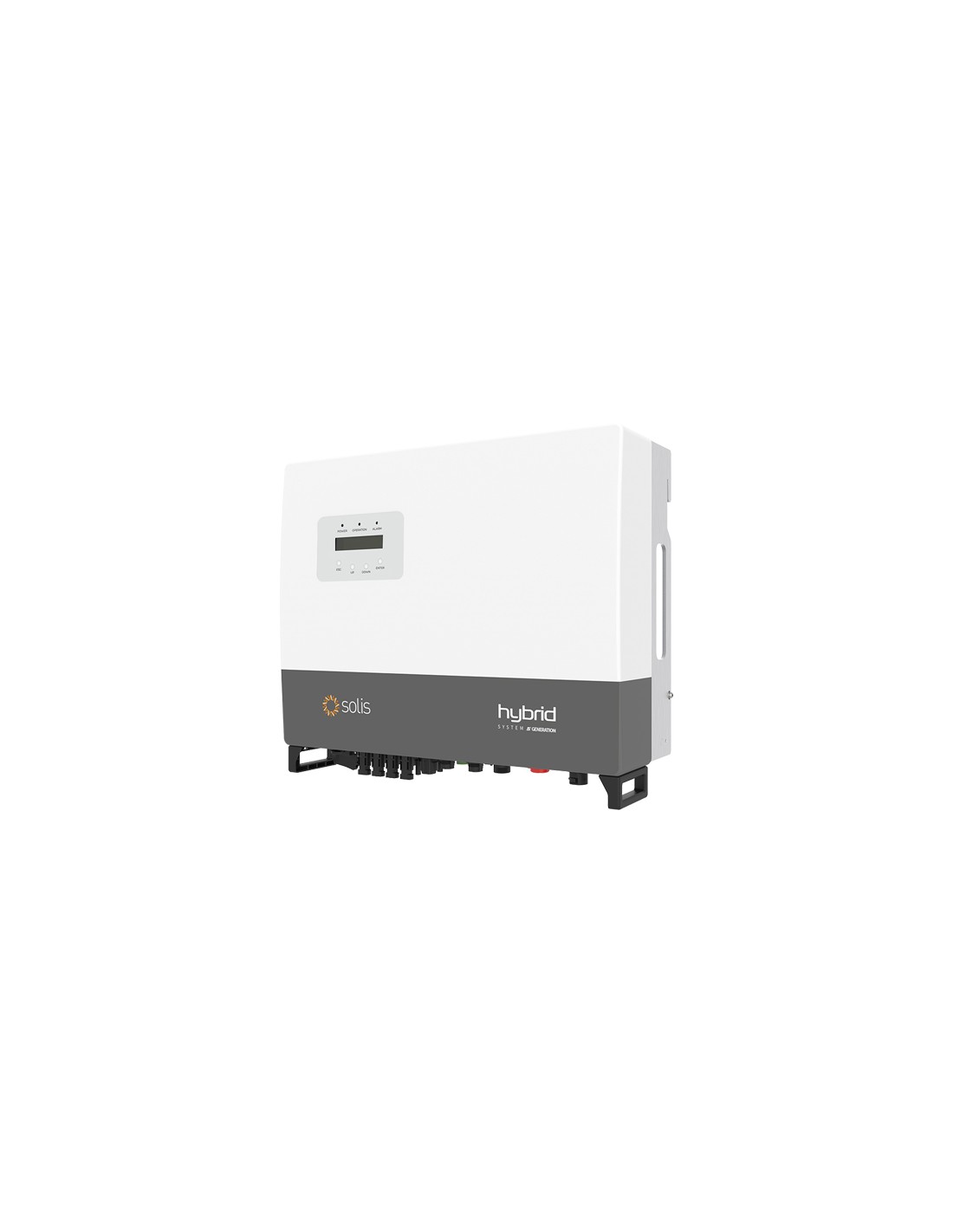

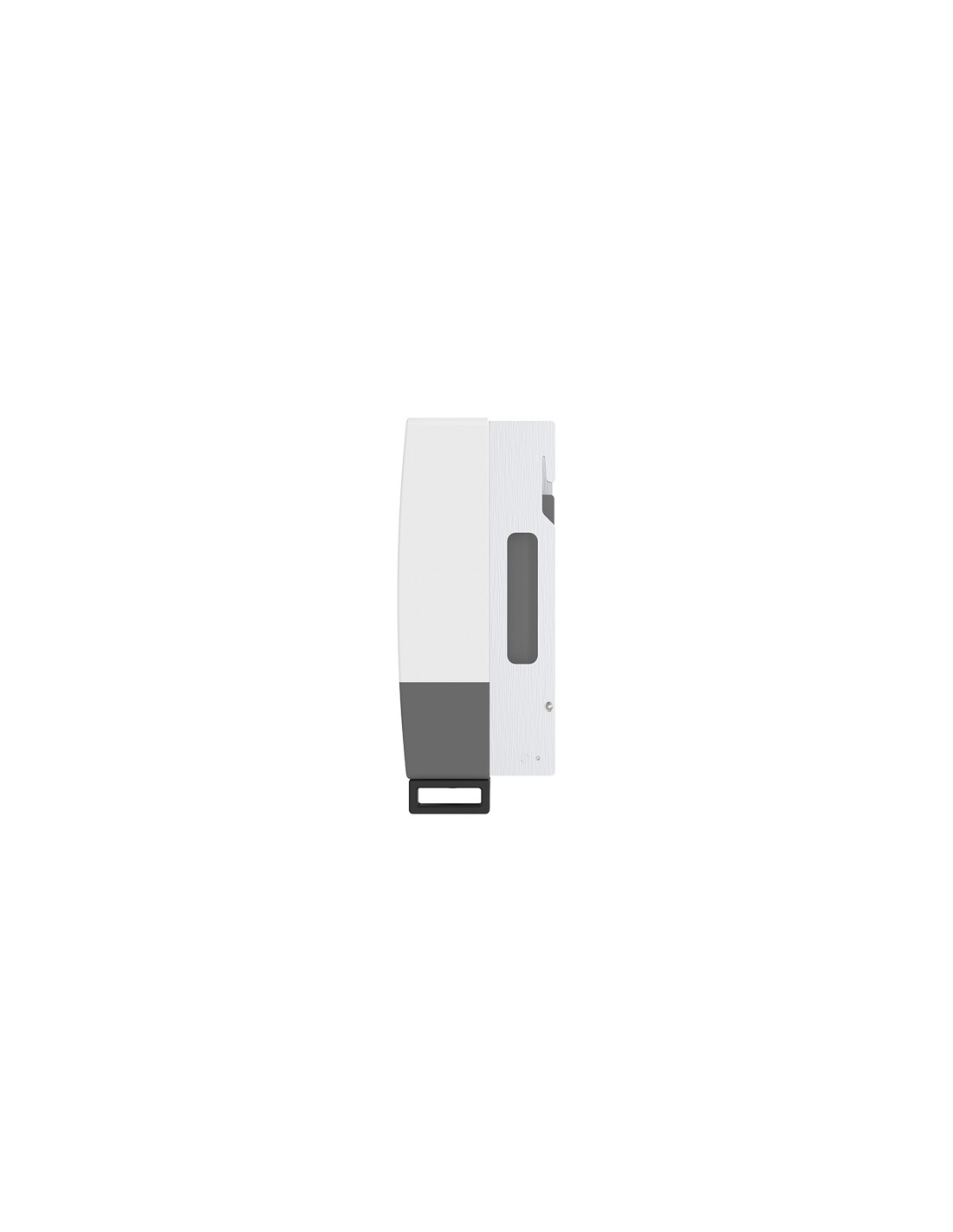

Inverter hybrid three-phase Solis 10kW for photovoltaic system lithium storage
SLS-RHI-3P-10K-HVES-5G-DC
Last items in stock
€1,701.74
VAT included
10 %
€1,547.04 Vat excl.
The Solis RHI-3P hybrid inverter is the perfect choice for storage solutions in three-phase photovoltaic systems.
- Higher yields: selects the mode of consumption of electricity in real time based on the market price;
- High independence: EPS function to give you energy even in the event of a blackout;
- Greater efficiency: we use components from leading international brands to ensure durability and efficiency;
- Lightning-fast switching: less than 40ms.
Inverter hybrid three-phase Solis 10kW for photovoltaic system lithium storage
Main features
The Solis RHI-3P hybrid inverter is the perfect choice for storage solutions in three-phase photovoltaic systems.
- Maximum efficiency 98.4%;
- Intelligent EMS function;
- Automatic switching within 40ms;
- 2 MPPT e 4 ingressi CC; Corrente d'ingresso DC max 26A;
- Peak shaving and grid friendly shifting functionality;
- Support three-phase imbalance on the backup output port;
- Arc fault circuit breaker function (AFCI) optional;
- Remote monitoring and updating make system maintenance convenient and safe;
- Provides AC backup for up to 10kW of continuous power and 16kVA of peak power;
- fully intelligent energy management around the clock, real-time understanding of the state of the photovoltaic system;
- 3 operating modes (self-consumption, usage time, off-grid backup) and programmable energy management to maximize self-consumption.
For more details, download the following documents:
- Datasheet inverter: [Download]
- User manual inverter: [Download]
Technical features
| DC input (PV side) | |||
| Recommended max. PV power | 16 kW | ||
| MPPT number/Max. input strings number | 2/4 | ||
| Max. input voltage | 1000 V | ||
| Start-up voltage | 160V | ||
| Rated voltage | 600V | ||
| MPPT voltage range | 200-850V | ||
| Max. input current | 26 A / 26 A | ||
| Max. short circuit current | 32.5 A / 32.5 A | ||
| Battery | |||
| Battery type | Li-Ion | ||
| Max. charge / discharge power | 10kW | ||
| Communication | CAN | ||
| Battery voltage range | 160-600V | ||
| Max. charge / discharge current | 25A | ||
| Output AC (Grid side) | |||
| Rated output power | 10kW | ||
| Rated grid frequency | 50 Hz / 60 Hz | ||
| Max. output current | 16.7 A | ||
| Max. apparent output power | 10 kVA | ||
| Rated grid voltage | 380 V / 400 V | ||
| Rated grid output current | 15.2 A / 14.5 A | ||
| AC output (Back-up) | |||
| Rated output power | 10kW | ||
| Peak apparent output power | 16 kVA, 60 sec | ||
| Backup switch time | < 40ms | ||
| Rated output voltage | 3/N/PE, 380 V / 400 V | ||
| Rated frequency | 50 Hz / 60 Hz | ||
| Efficiency | |||
| Maximum efficiency | 98.4% | ||
| MPPT Efficiency | 99.9% | ||
| Battery charge/discharge efficiency | 97.5% | ||
| EU efficiency | 97.7% | ||
| Protection | |||
| Anti-islanding protection | Yes | ||
| Output over current protection | Yes | ||
| Short circuit protection | Yes | ||
| Integrated DC switch | Optional | ||
| DC reverse-polarity protection | Yes | ||
| PV over voltage protection | Yes | ||
| Battery reverse protection | Yes | ||
| General Data | |||
| Dimensions (W*H*D) | 535*455*185 mm | ||
| Weight | 25.1 kg | ||
| Topology | Transformerless | ||
| Standby consumption | <15W | ||
| Operating ambient temperature range | -25 ~ +60°C | ||
| Ingress protection | IP65 | ||
| Cooling concept | Natural convection | ||
| Grid connection standard | G98 o G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15/VFR:2019, RD 1699/RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA | ||
| Safety/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3 | ||
| Features | |||
| DC connection | MC4 connector | ||
| AC connection | Quick connection plug | ||
| Display | LCD | ||
| Communication | RS485, Optional: Wi-Fi, GPRS | ||
- Product Code
- SLS-RHI-3P-10K-HVES-5G-DC
- MPPT number
- 2
- Typology
- Three-phase
- Inverter power
- 10kW
8370000022077
