With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.

The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.

The system gives priority to the power supply of the loads and the storage of energy in the DYNESS lithium battery over the transfer to the network.

In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.

NOTE: After completing the installation of the battery system and verifying its correct functioning, you must access the official DYNESS website to register the product and activate the warranty.
To register, go to the dyness.com website, select service -> Warranty registration and fill out the form.

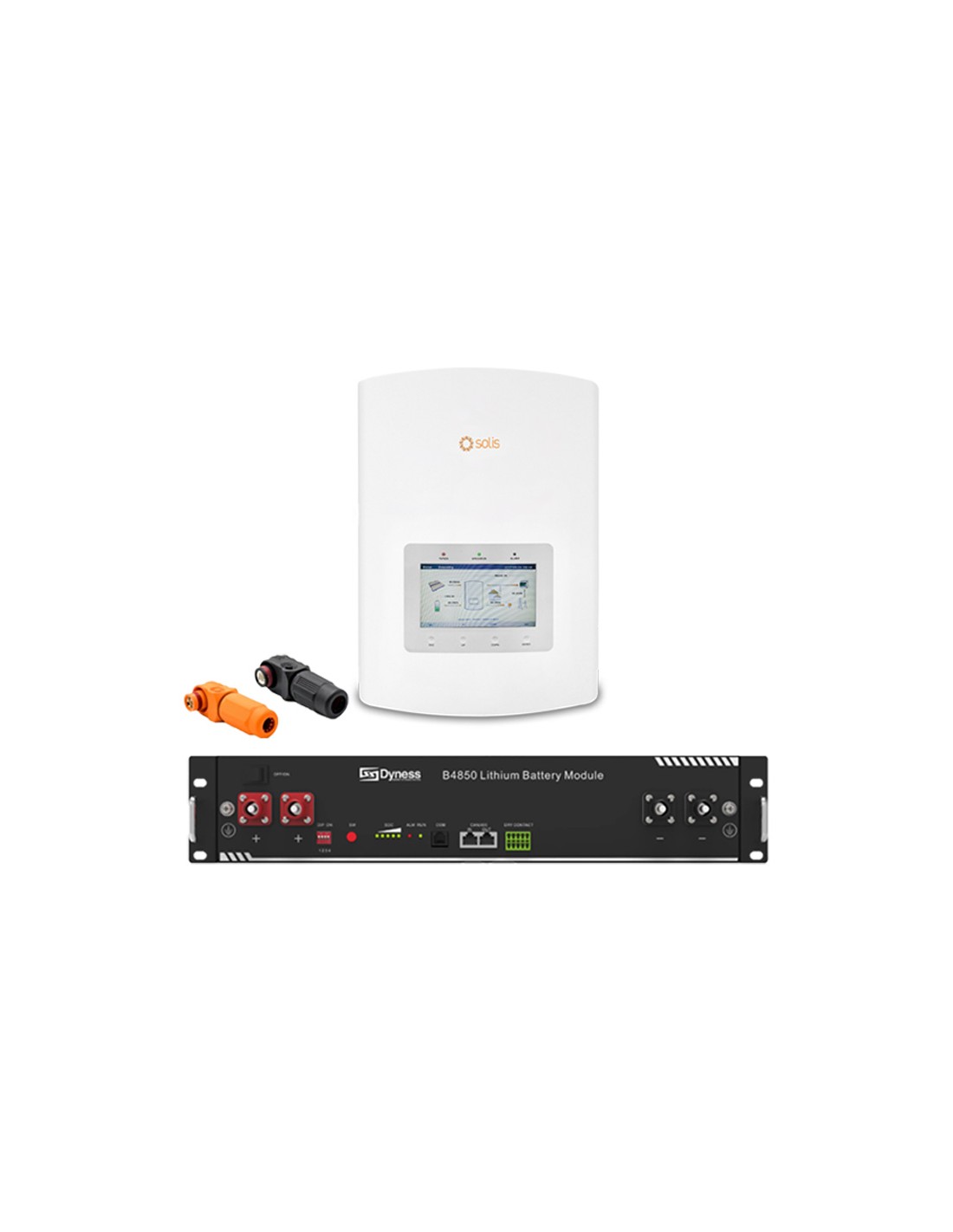

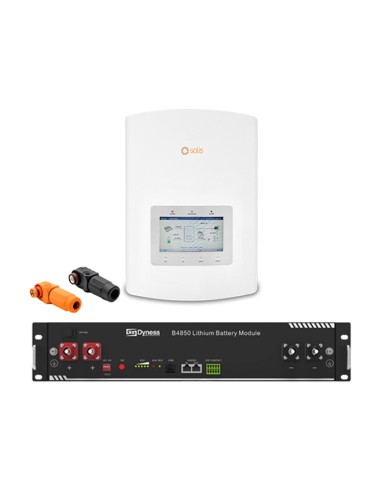

COMPONENTS OF THE KIT

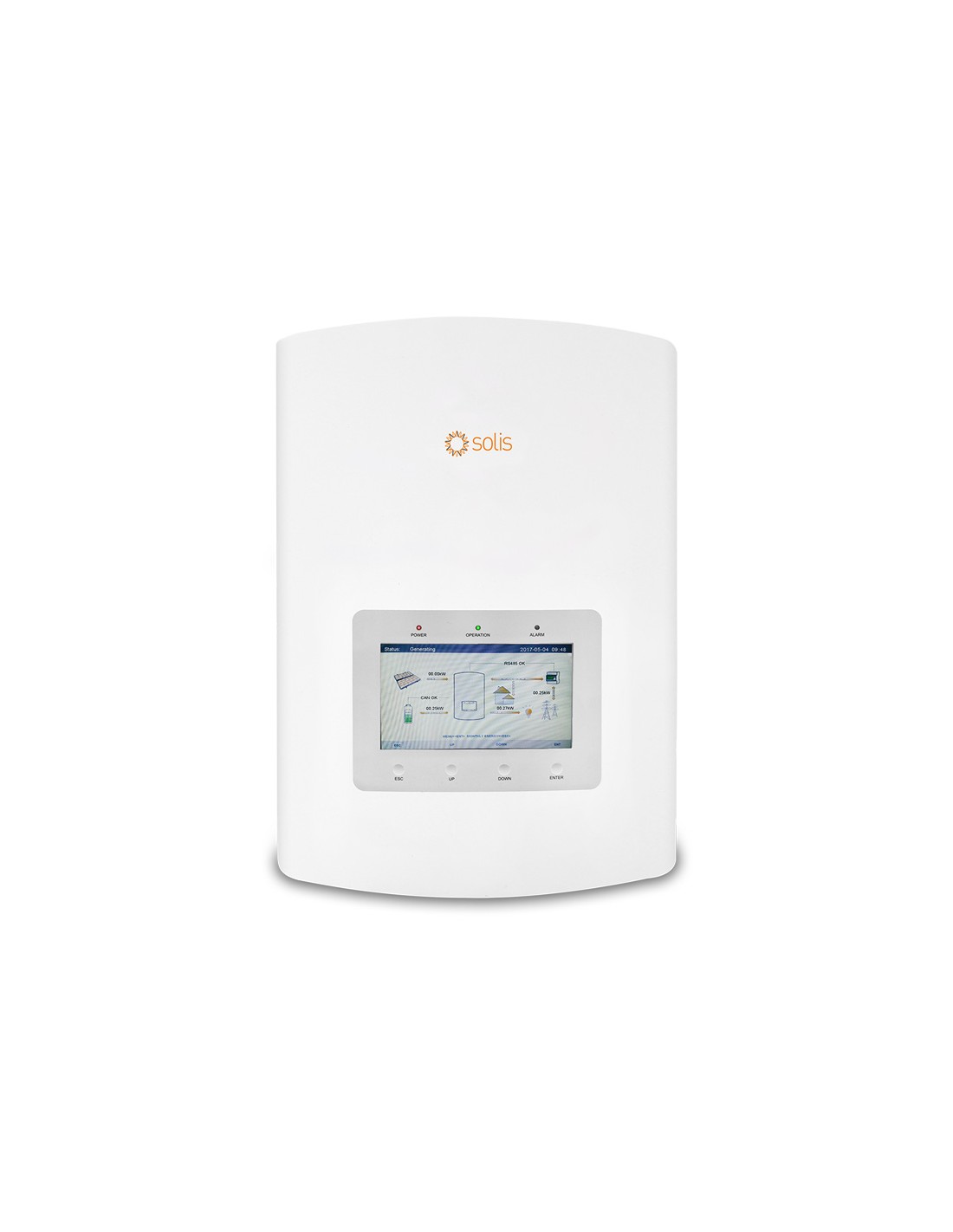

	1	Inverter Hybrid	Inverter Hybrid Single phase 6kW Photovoltaic System with Lithium storage	Download

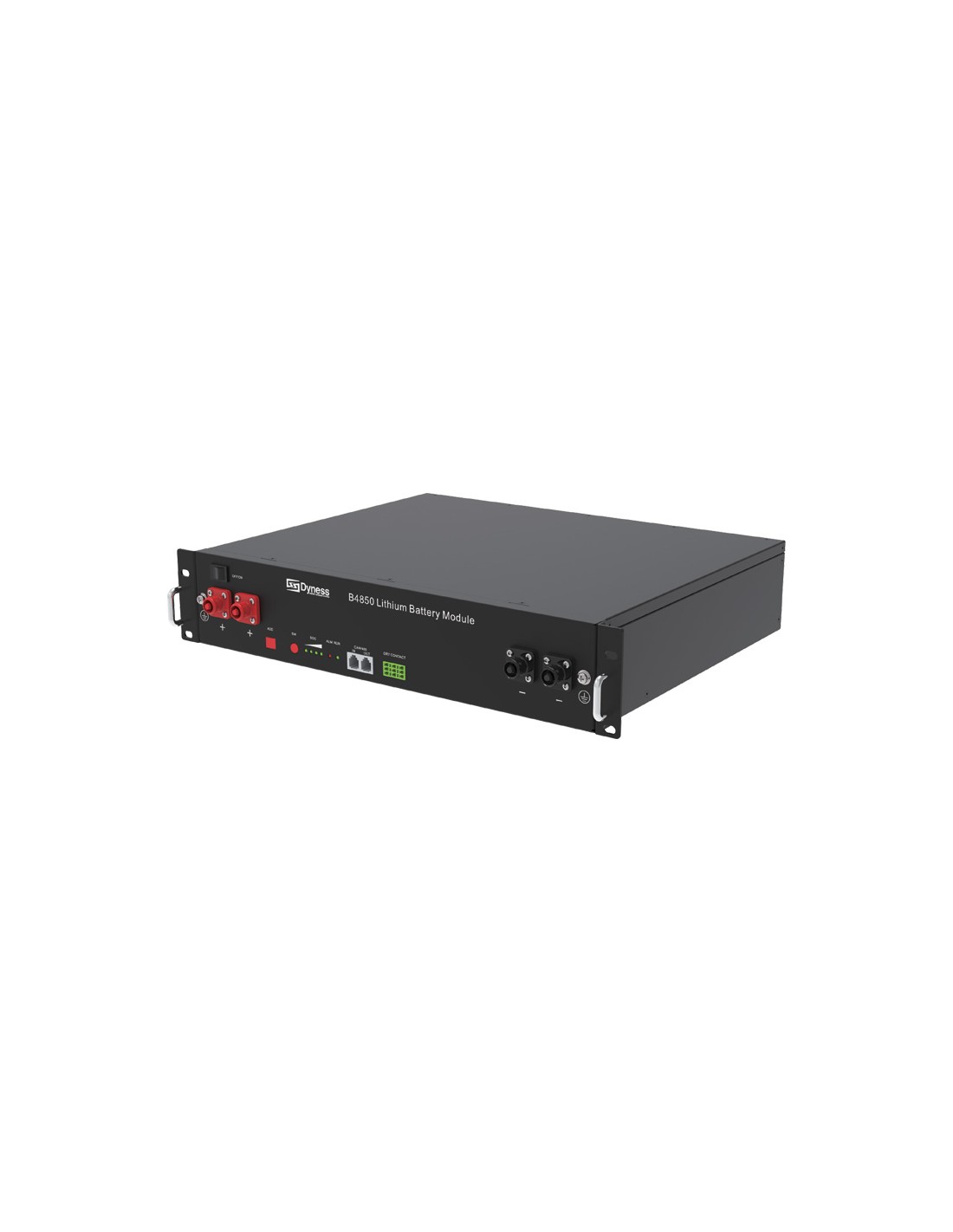

	1	Lithium Battery	Lithium Battery 2.4kWh 48V Dyness B4850	Download

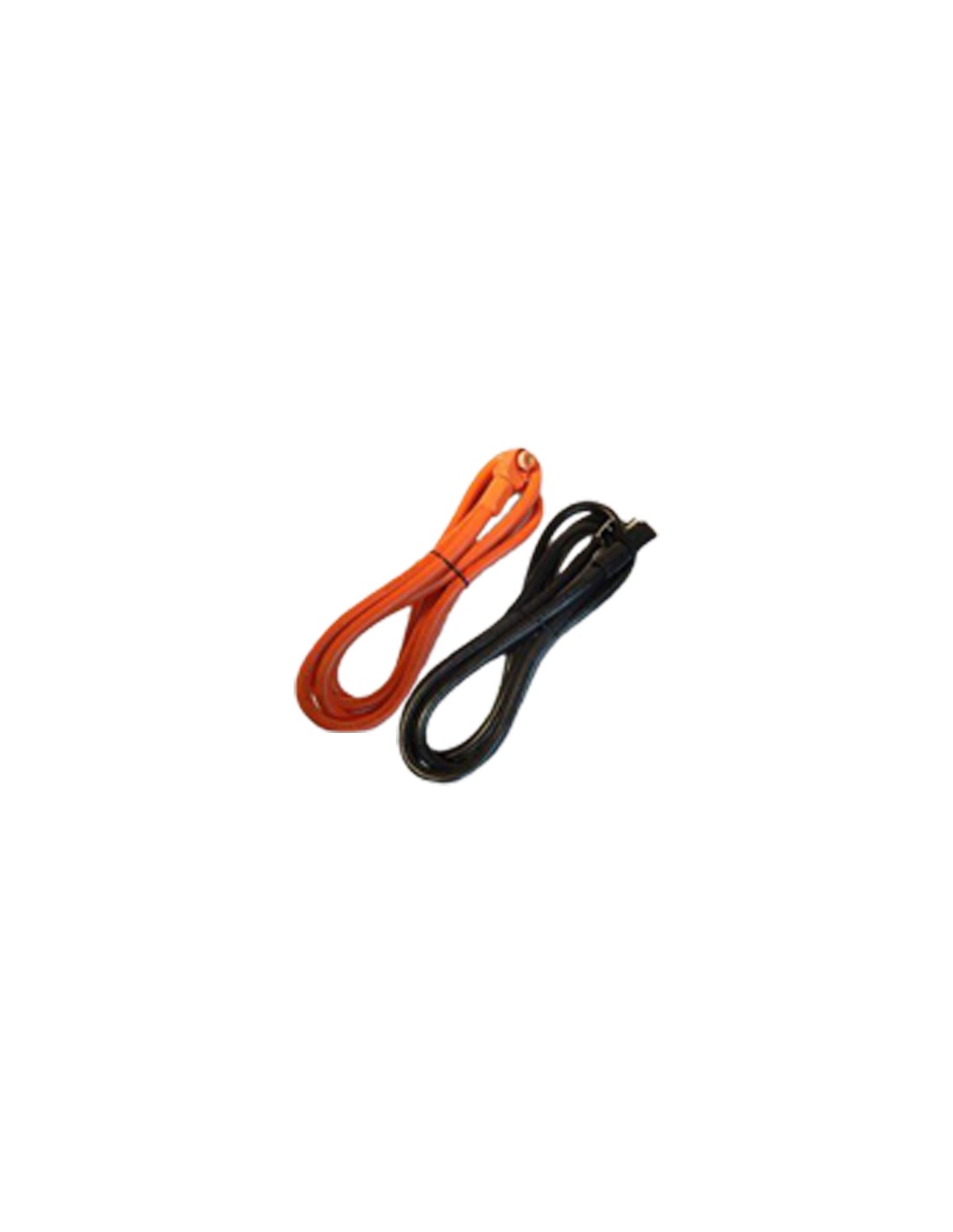

	1	Connection Cables	Connection Cables from Dyness Battery to Inverter Solis
	1	Pair of connectors	Pair of Amphenol connectors for Solis inverters

Main features of the inverter:

• Uninterrupted power supply, 20ms reaction;
• Fanless design, long lifespan;
• AFCI protection, proactively reduces fire risk;
• With shifting and peak shaving capabilities friendly to grid;
• Intelligent EMS function, improving battery's reliability;
• Higher charge-discharge efficiency, improving the economic benefits;
• Max. string input current 15A;
• Multiple working modes to make maximize self-consumption, increase benefit;
• With high-frequency isolation technology, making system safer and long lifespan;
• 24-hour fully intelligent energy management, Real-time grasp of PV plant status;
• Compatible with lithium & lead-acid batteries, increased more choice in different markets;
• Remotely control & upgrade function, making digital power plant maintenance at your fingertips.

Main features Battery:

• Module design: expansion flexibility;
• LFP technology for high security: cell level monitoring and balancing;
• Different installation methods: wall, floor or stackable module installation;
• Wide compatibility: can be combined with the main inverters.
