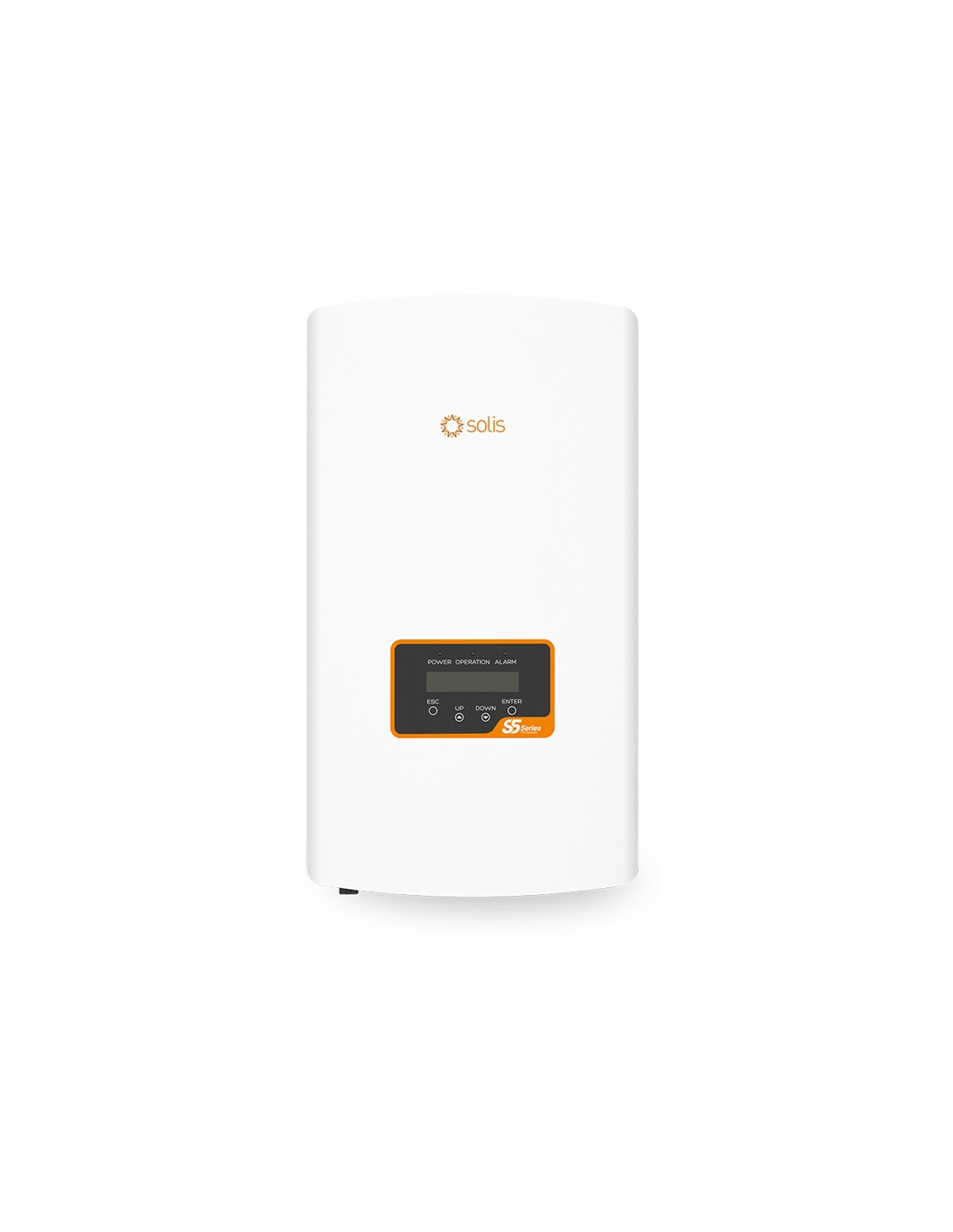

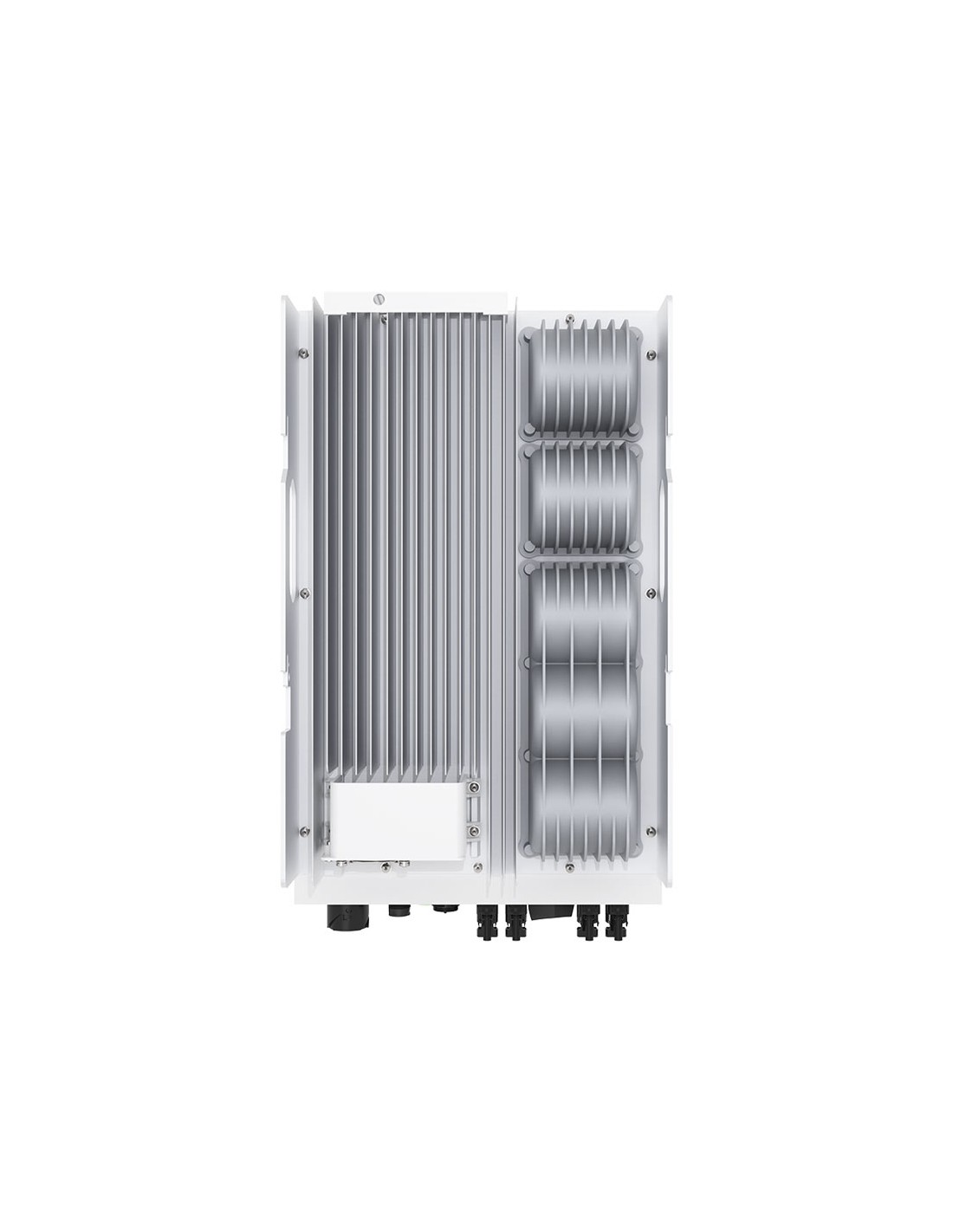

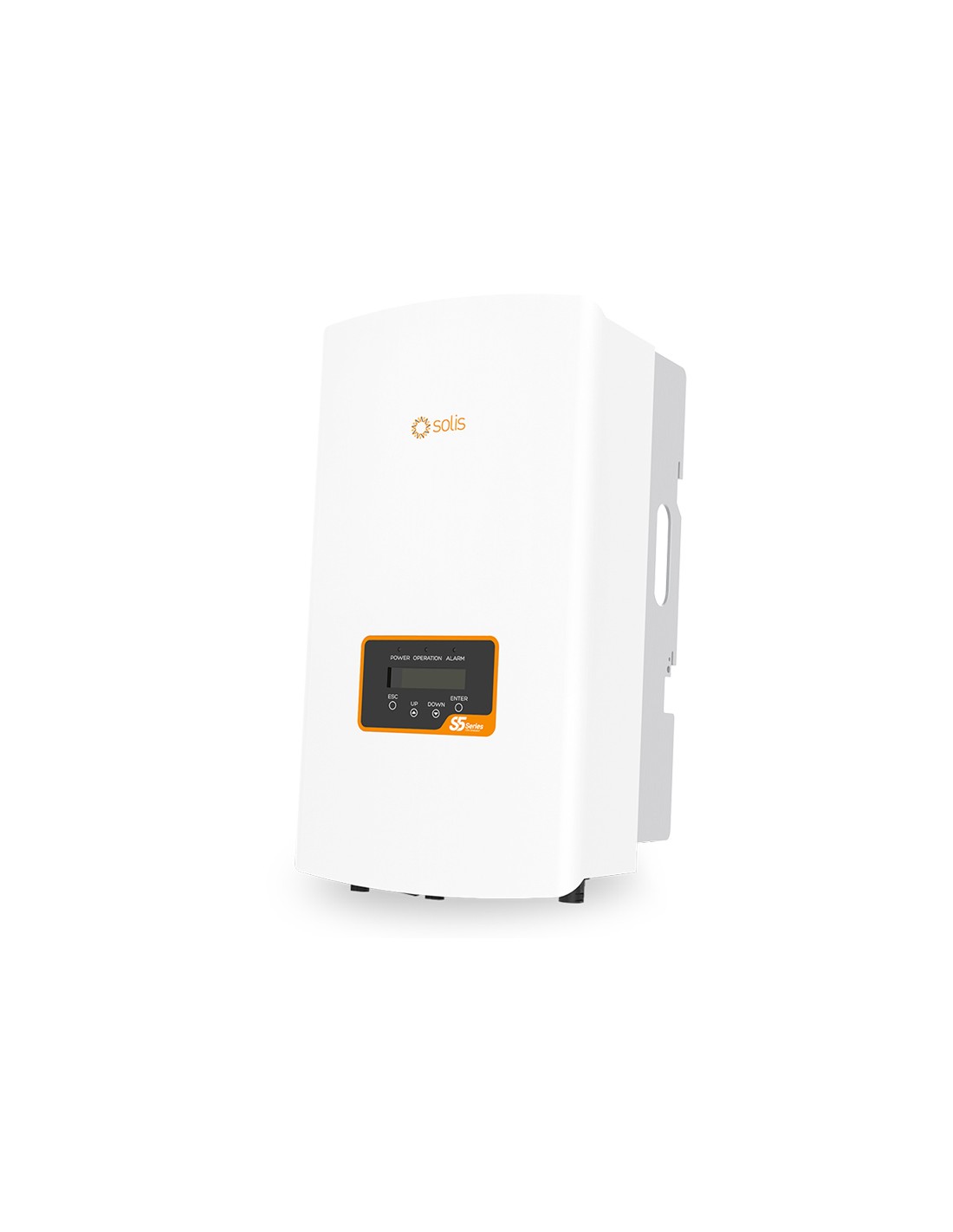

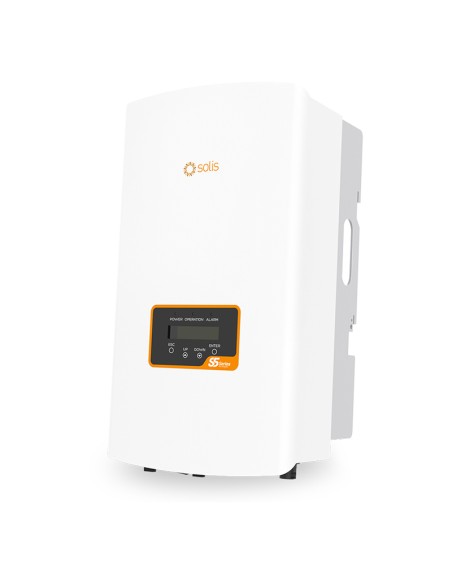

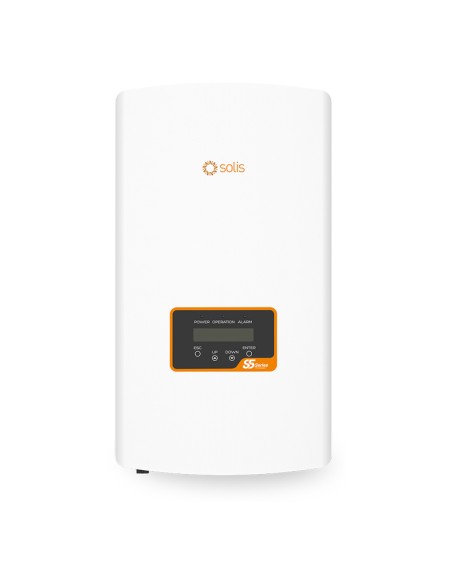

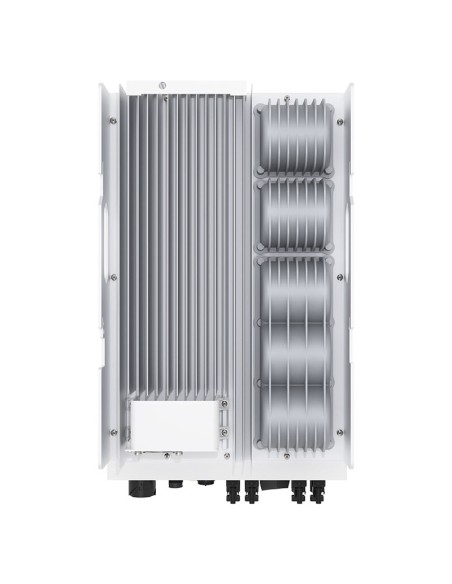

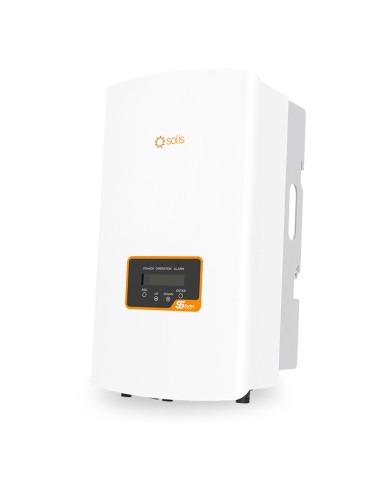

Three-phase string inverter 6kW Solis S5 double MPPT solar photovoltaic
SLS-S5-GR3P6K
€808.19
VAT included
10 %
€734.72 Vat excl.
S5-GR3P three phase series string inverter are reliable preferred equipment for residential, small industrial and commercial pv power stations.Smaller size, higher efficiency, a variety of power models Available for selection. Adopt two MPPT access, more flexible and efficient.
Three-phase string inverter 6kW Solis S5 double MPPT
S5-GR3P three phase series string inverter are reliable preferred equipment for residential, small industrial and commercial pv power stations.Smaller size, higher efficiency, a variety of power models Available for selection. Adopt two MPPT access, more flexible and efficient.
Main features
- Max. efficiency 98,3%;
- String current up to 16A;
- Wide voltage range and low startup voltage;
- AFCI protection, proactively reduces fire risk;
- Supports export power control;
- Supports RS485, WiFi, GPRS;
- Scan to register on SolisCloud, supports remote upgrade and control;
- Automatic voltage stabilization technology in weak gridconditions;
- Compact design, simple installation and maintenance;
- Supports high power modules for lower installation costs;
- > 150% DC/AC ratio;
- IP66.
For more details, download the following documents:
- Datasheet [Download]
- User Manual [Download]
Technical features:
| Input DC | |
| Recommended max. PV power | 9kW |
| Max. input voltage | 1100V |
| Rated voltage | 600V |
| Start-up voltage | 180V |
| MPPT voltage range | 160-1000V |
| Max. input current | 16 A / 16 A |
| Max. short circuit current | 20 A / 20 A |
| MPPT number/Max. input strings number | 2/2 |
| Output AC | |
| Rated output power | 6kW |
| Max. apparent output power | 6.6 kVA |
| Max. output power | 6.6kW |
| General Data | |
| Dimensions (WxHxD) | 310 x 563 x 219 mm |
| Weight | 17.8kg |
| Self consumption(night) | <1W |
| Ingress protection | IP66 |
| Safty/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 |
| Grid connection standard | G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530 |
| Features | |

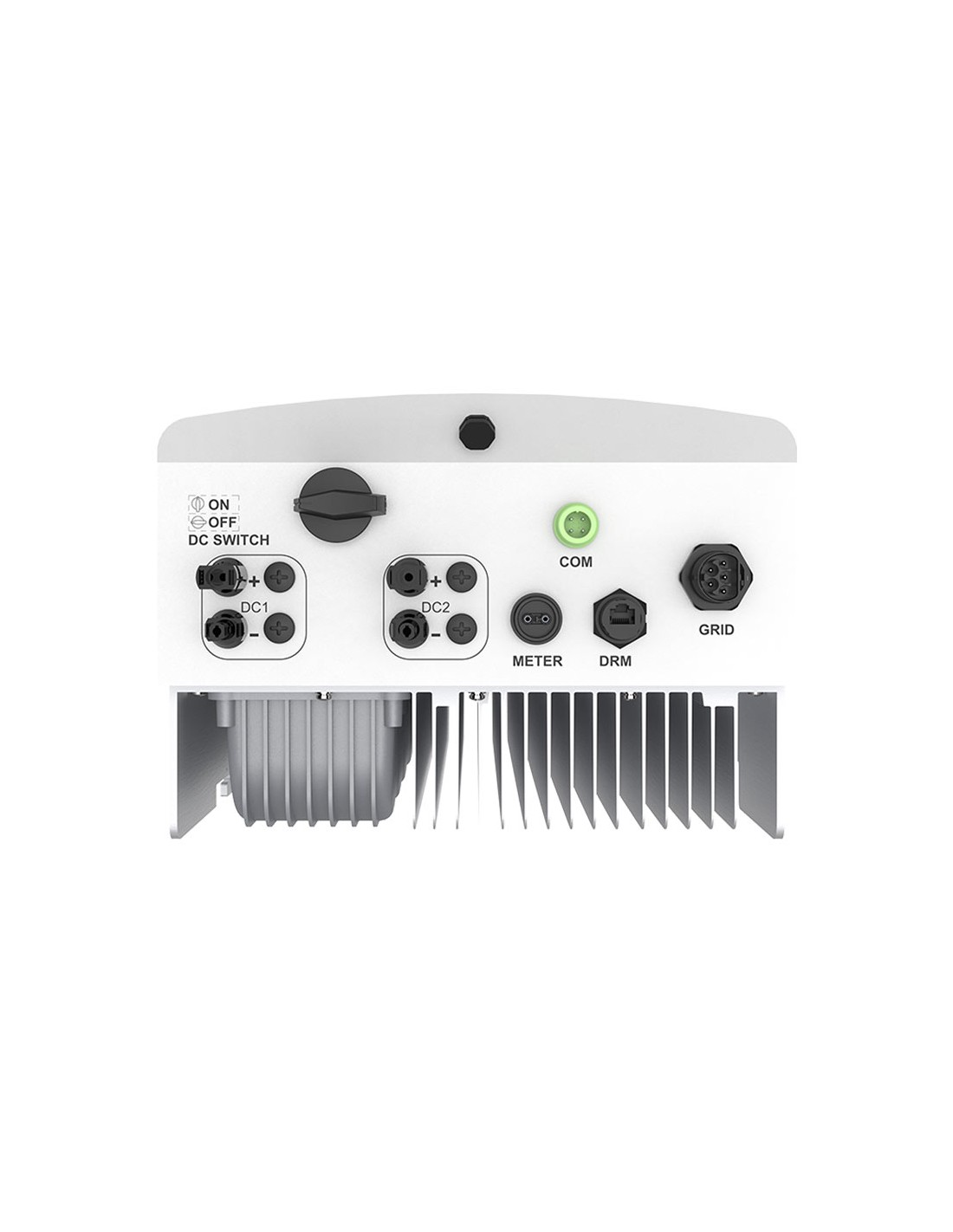

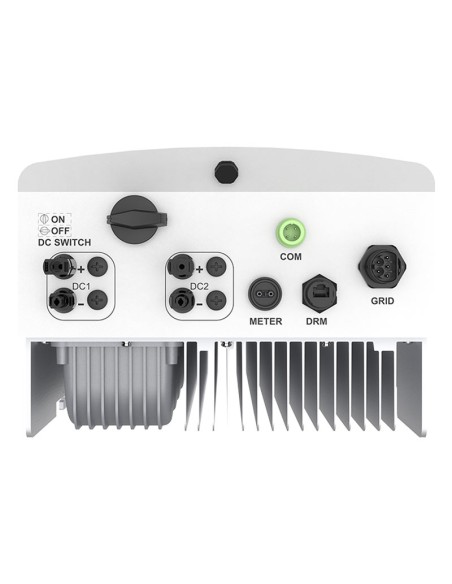

| DC connection | MC4 connector |
| AC connection | Quick connection plug |
| Display | LCD |
| Communication | RS485, Optional: Wi-Fi, GPRS |
- MPPT number
- 2
- Typology
- Three-phase
- Inverter power
- 6.0kW
