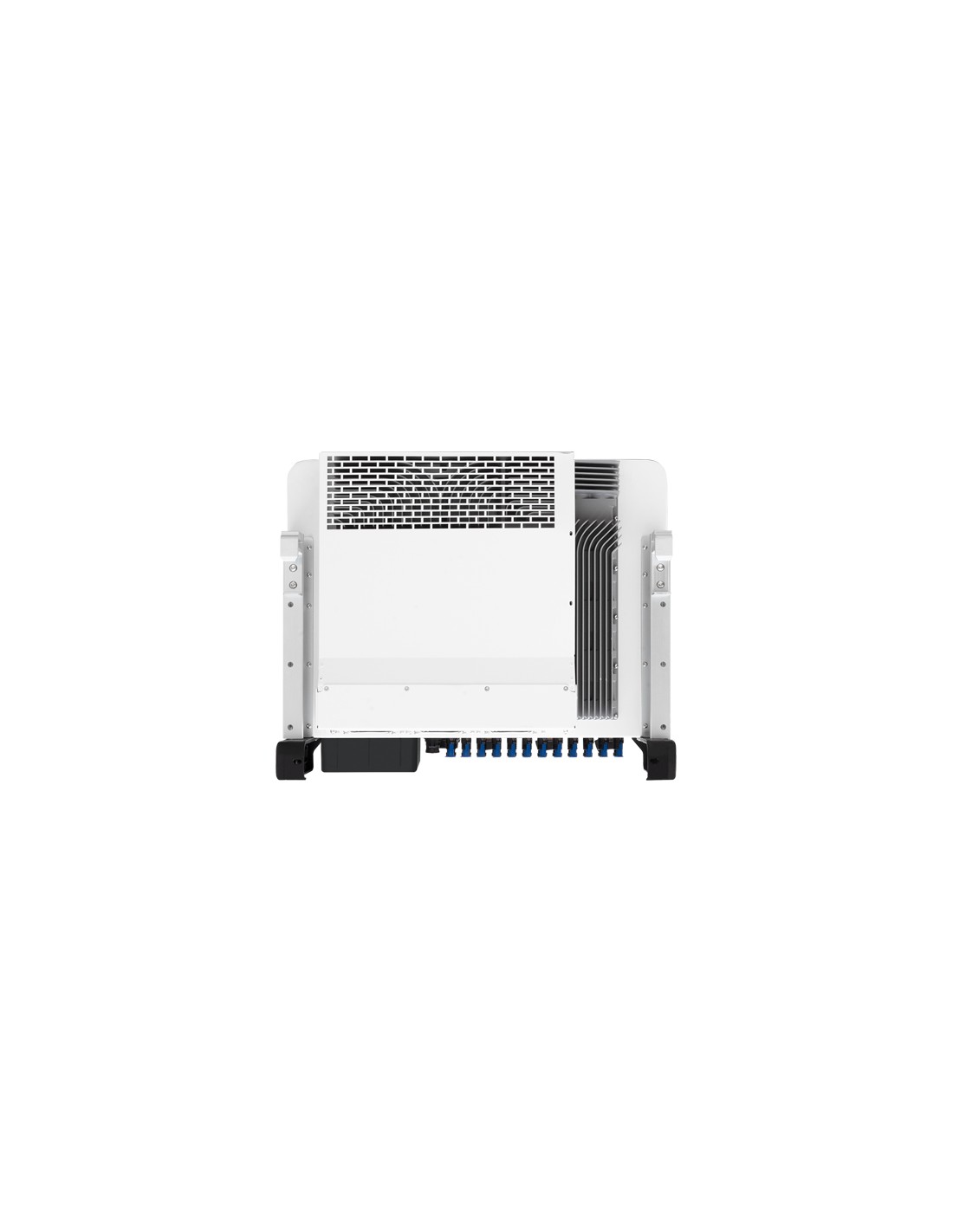

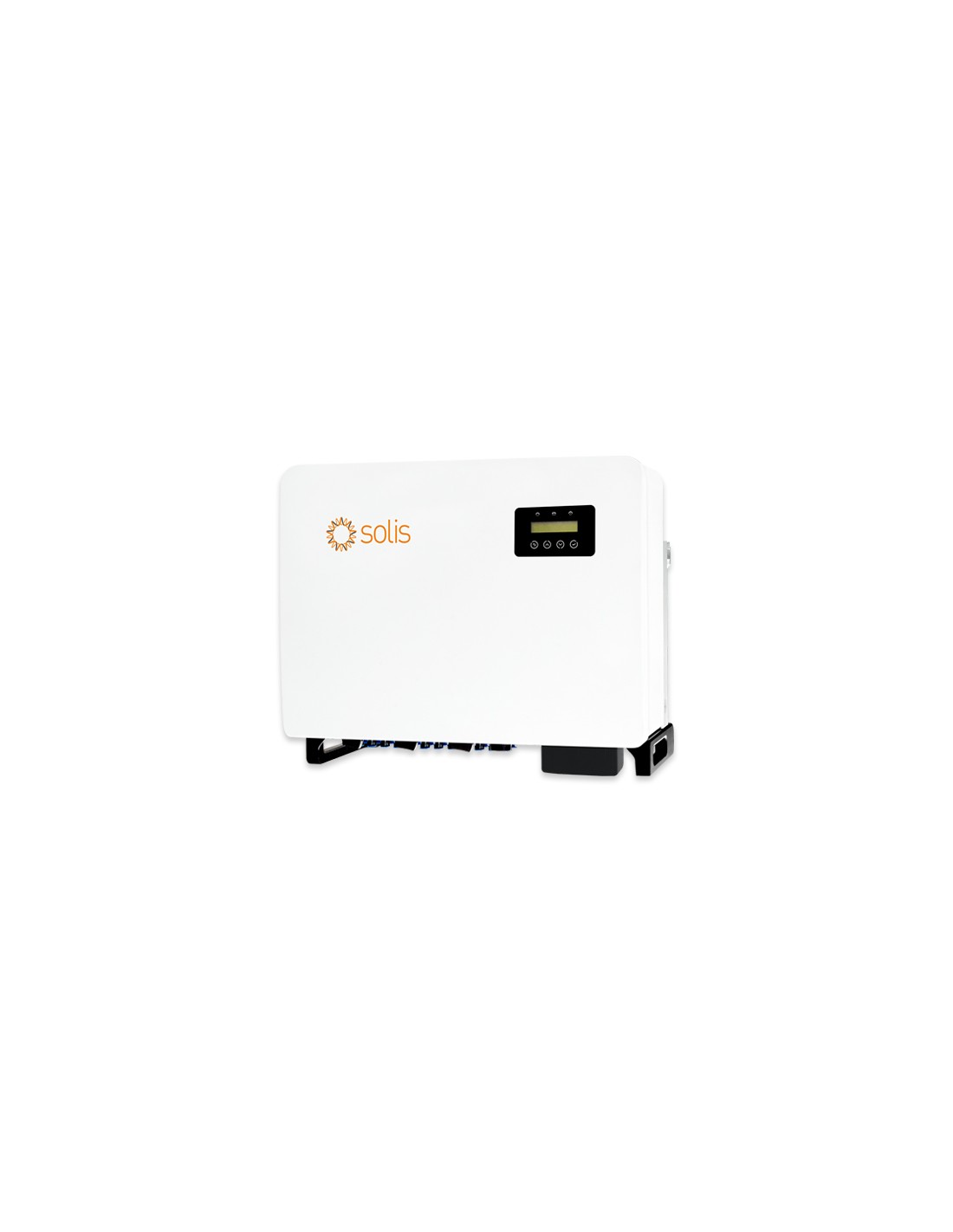

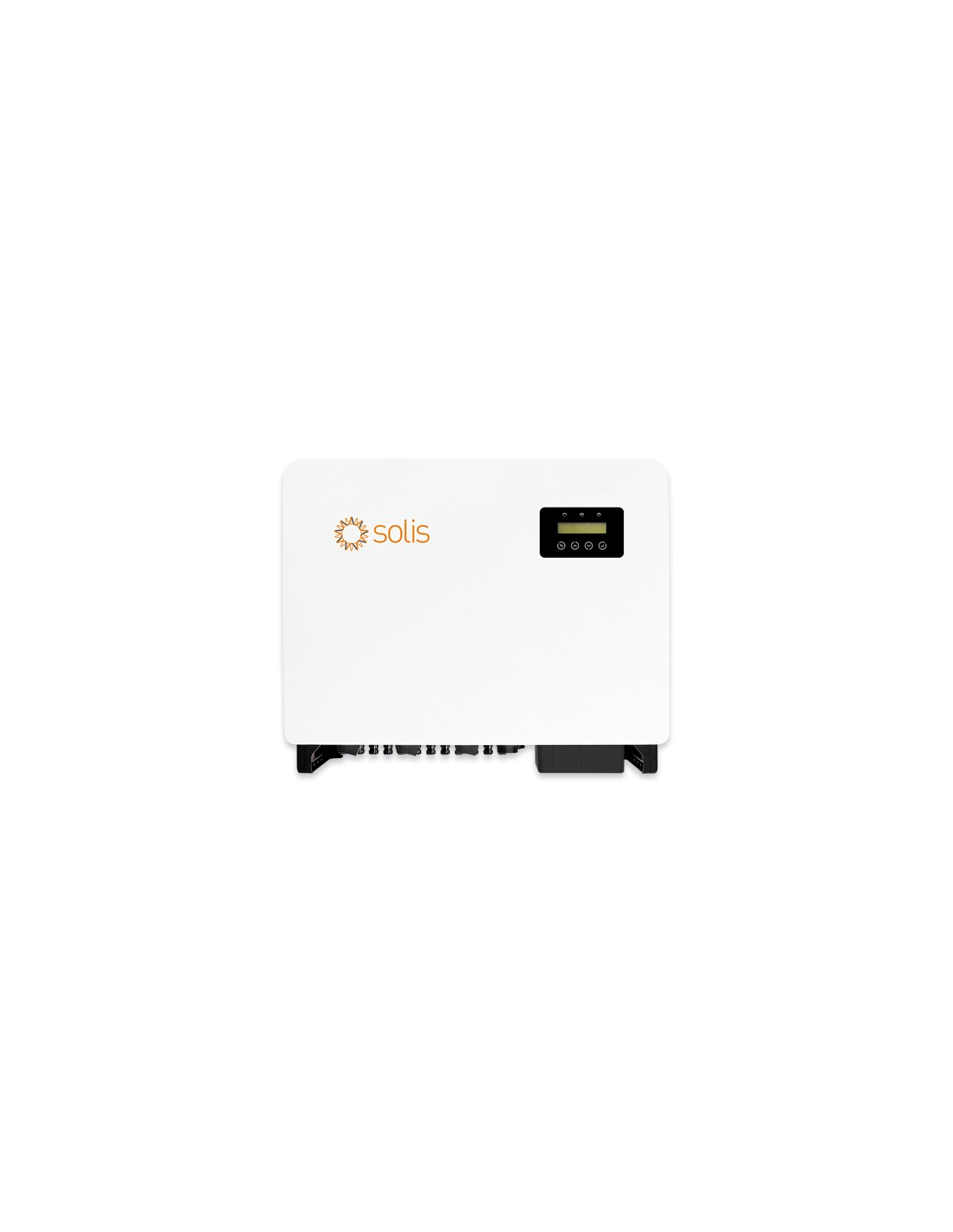

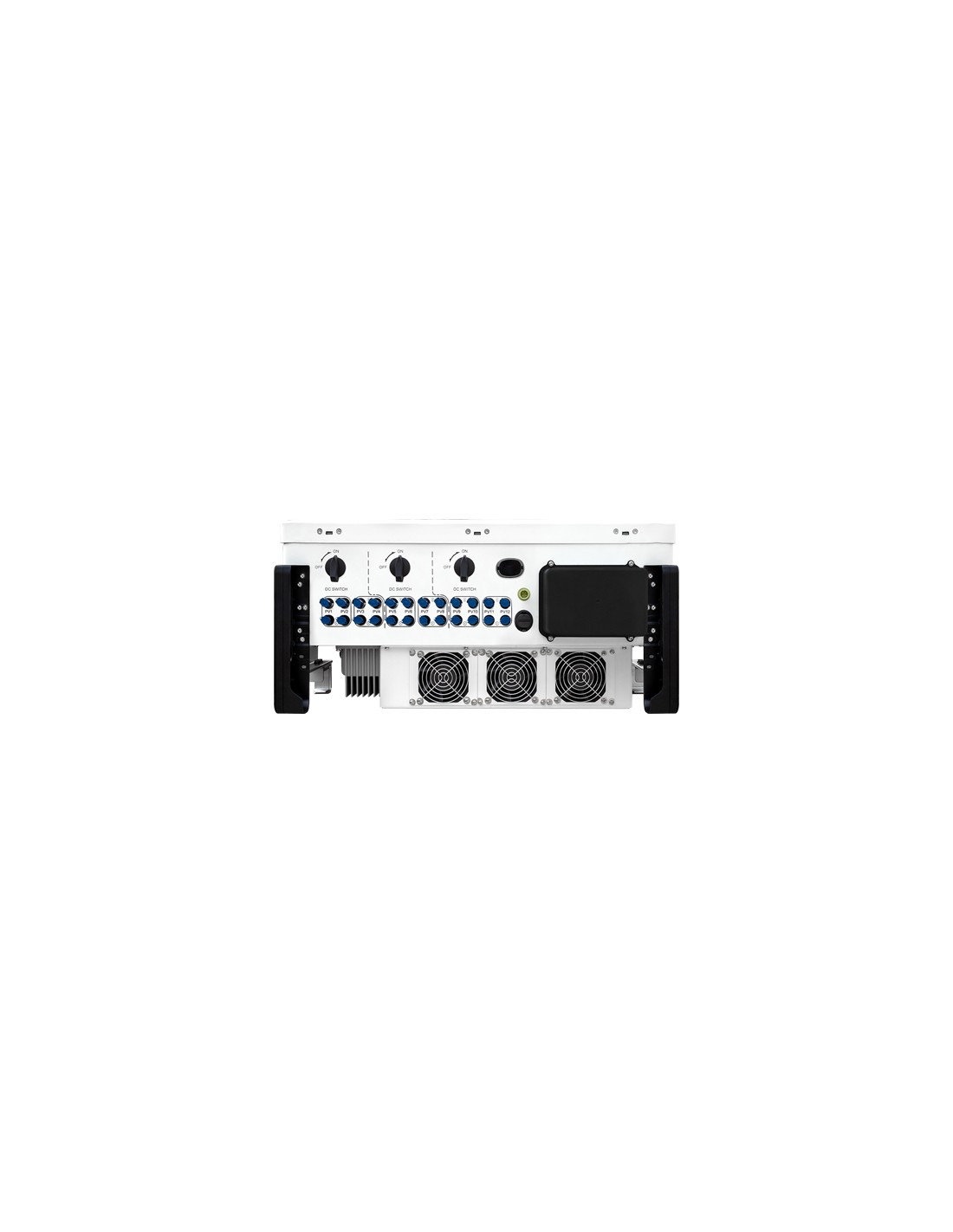

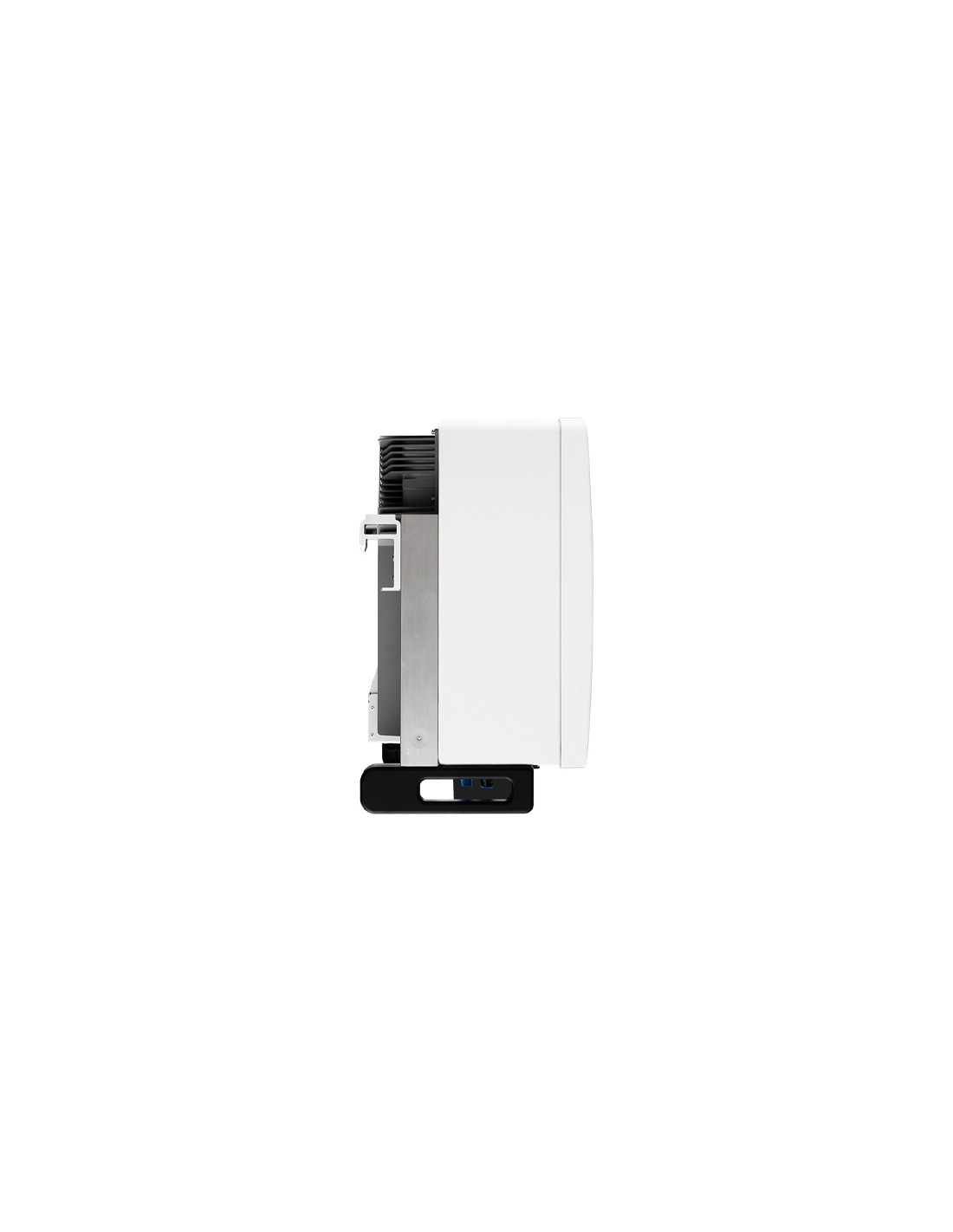

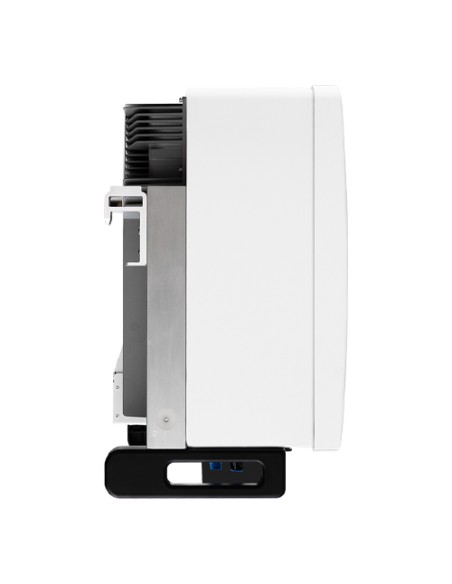

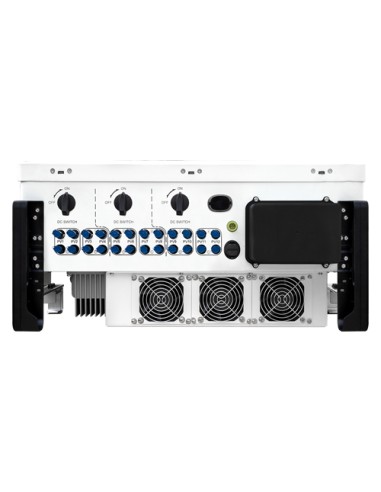

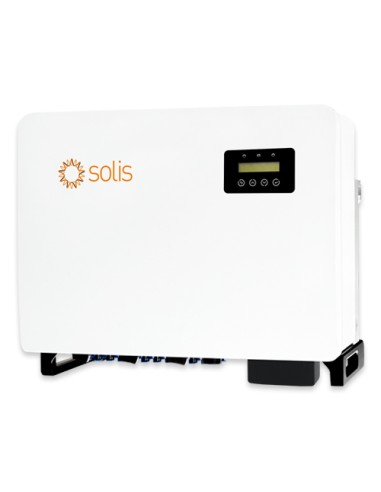

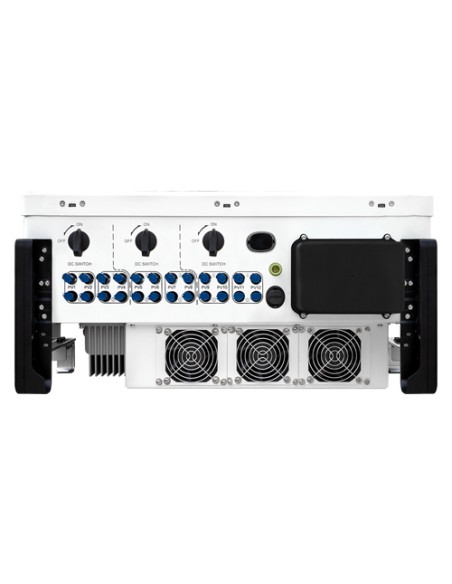

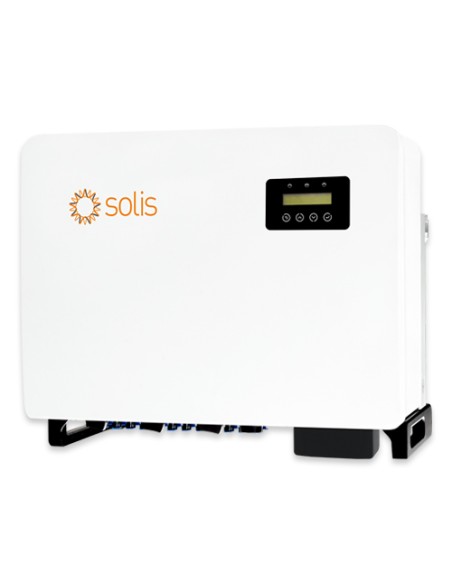

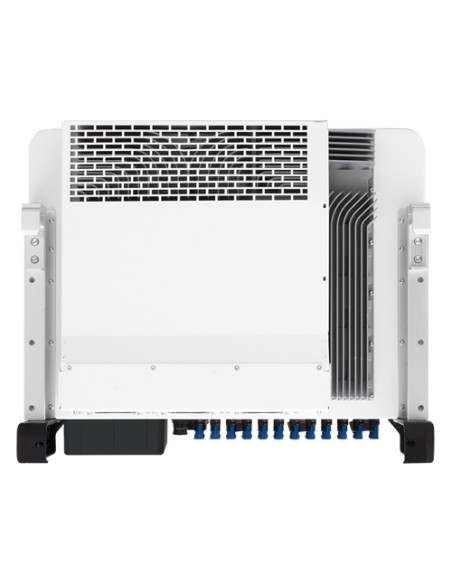

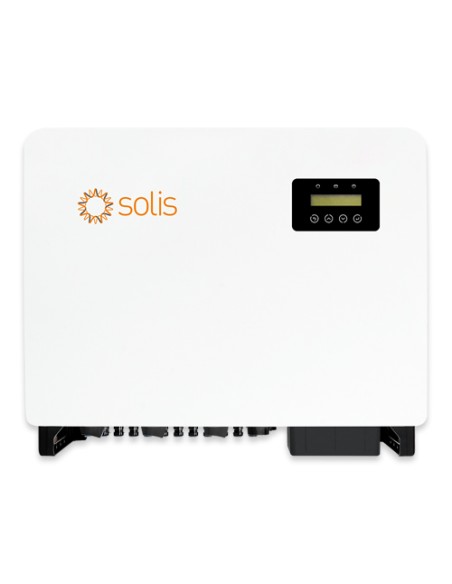

Three-phase string inverter 60kW Solis S5 6 MPPT solar photovoltaic

Three-phase string inverter 60kW Solis S5 6 MPPT solar photovoltaic

Name: Three-phase string inverter 60kW Solis S5 6 MPPT solar photovoltaic
Brand: Solis
SKU: SLS-S5-GC60K
Price: 3324.09 EUR
Availability: InStock

Reference SLS-S5-GC60K

€3,324.09

VAT included 10 %

€3,021.90 Vat excl.

S5-GC60K three-phase series string inverters are suitable for three-phase input pv system installation of commercial and industrial PV systems. It adopts 6 MPPT design to provide more flexible configuration scheme and high generation efficiency. Perfect commercial post monitoring solution, smart redundancy fan.

Three-phase string inverter 60kW Solis S5 6 MPPT

Max. efficiency 98.7%;
String current up to 16A;
Night SVG function;
Supports export power control;
IP66;
Intelligent redundant fan-cooling;
DC side supports "Y" connectors;
Supports aluminium wire access to reduce cost;
AFCI protection, proactively reduces fire risk;
12 string inputs allow for 150%+ DC oversizing;
Intelligent string monitoring, smart I-V curve scan;
Globally recognised branded componentry for longer life;
6 MPPT design, supports multiple orientation system design;
Night time PID recovery function, increases overall system yield (optional);
Scan to register on SolisCloud, supports remote upgrade and control;
Supports GPRS/WiFi communication with less wiring and reduced installation costs.

For more details, download the following documents:

Datasheet [Download]
User Manual [Download]

Technical features:

Input DC
Max. input voltage	1100V
Rated voltage	600V
Start-up voltage	195V
MPPT voltage range	180-1000V
Max. input current	6*32 A
Max. short circuit current	6*40 A
MPPT number/Max. input strings number	6/12
Output AC
Rated output power	60kW
Max. apparent output power	66 kVA
Max. output power	66kW
General Data
Dimensions (WxHxD)	691578338 mm
Weight	54.5 kg
Self consumption(night)	<1W
Ingress protection	IP66
Safty/EMC standard	IEC 62109-1/-2, IEC62116 & IEC 61000-6-1/-2/-3/-4
Grid connection standard	G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
Features
DC connection	MC4 connector
AC connection	OT terminal (max. 70 mm²)
Display	LCD, Capacitive touch buttons
Communication	RS485, USB, Optional: Wi-Fi, GPRS
