€1,215.21 Vat excl.

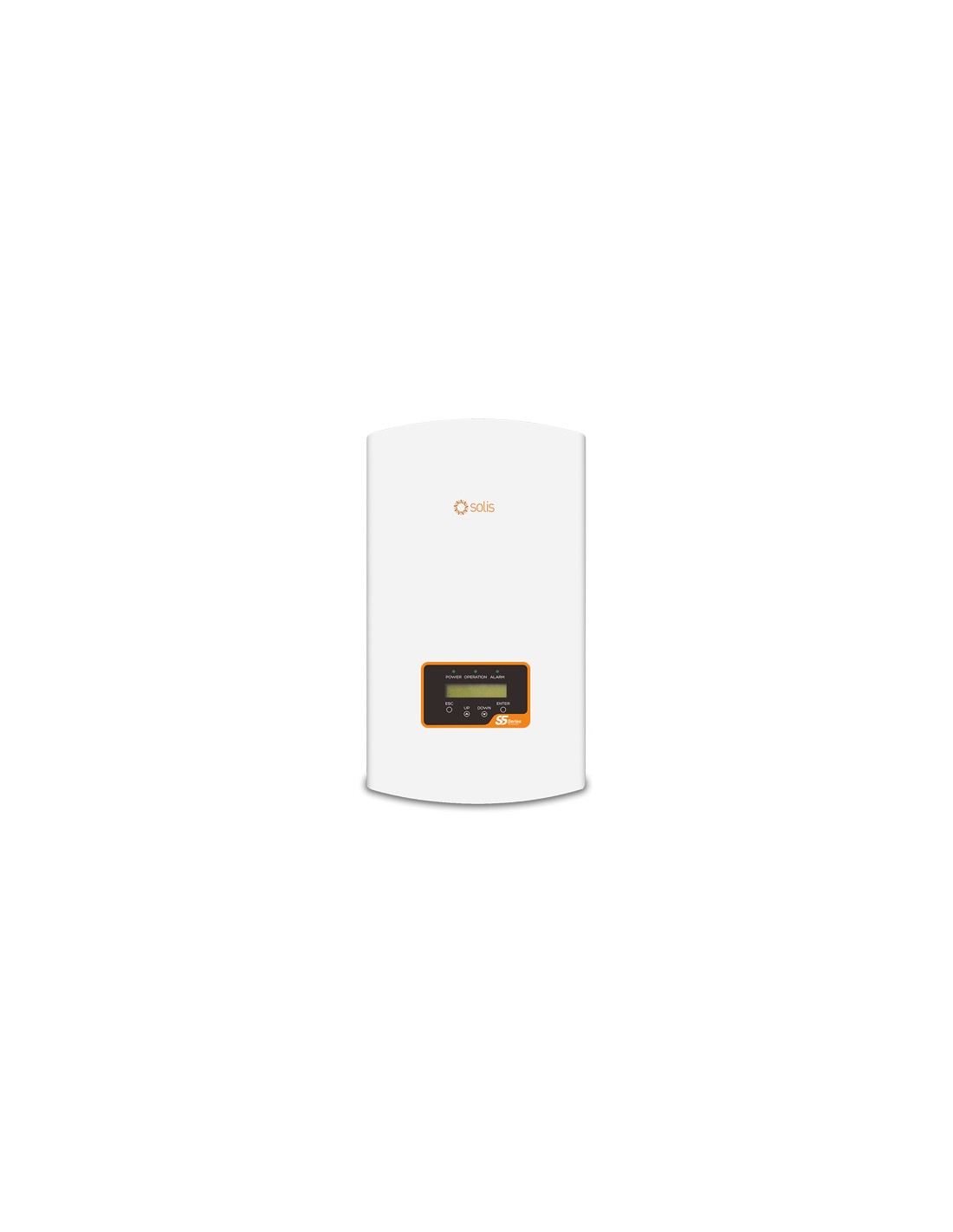

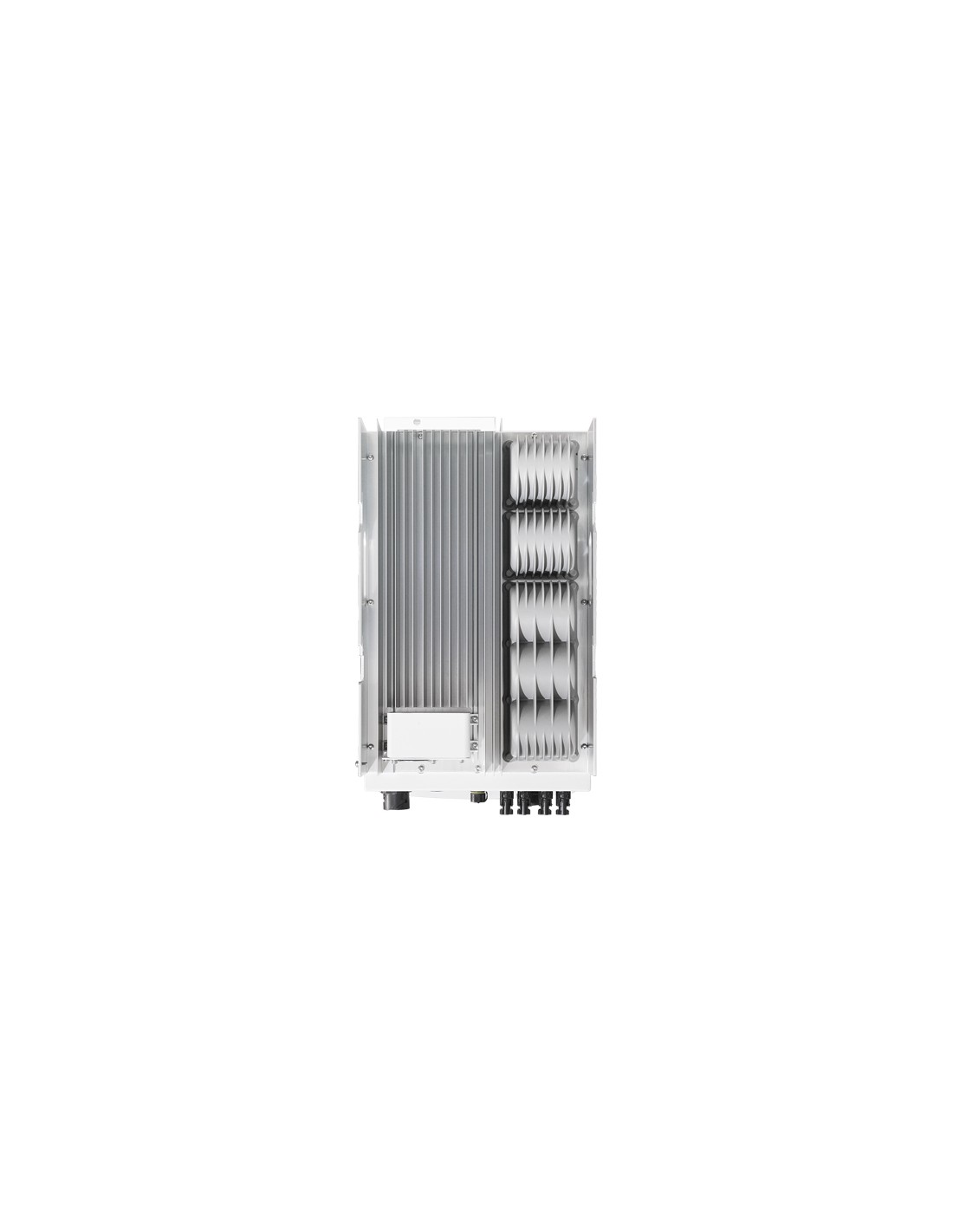

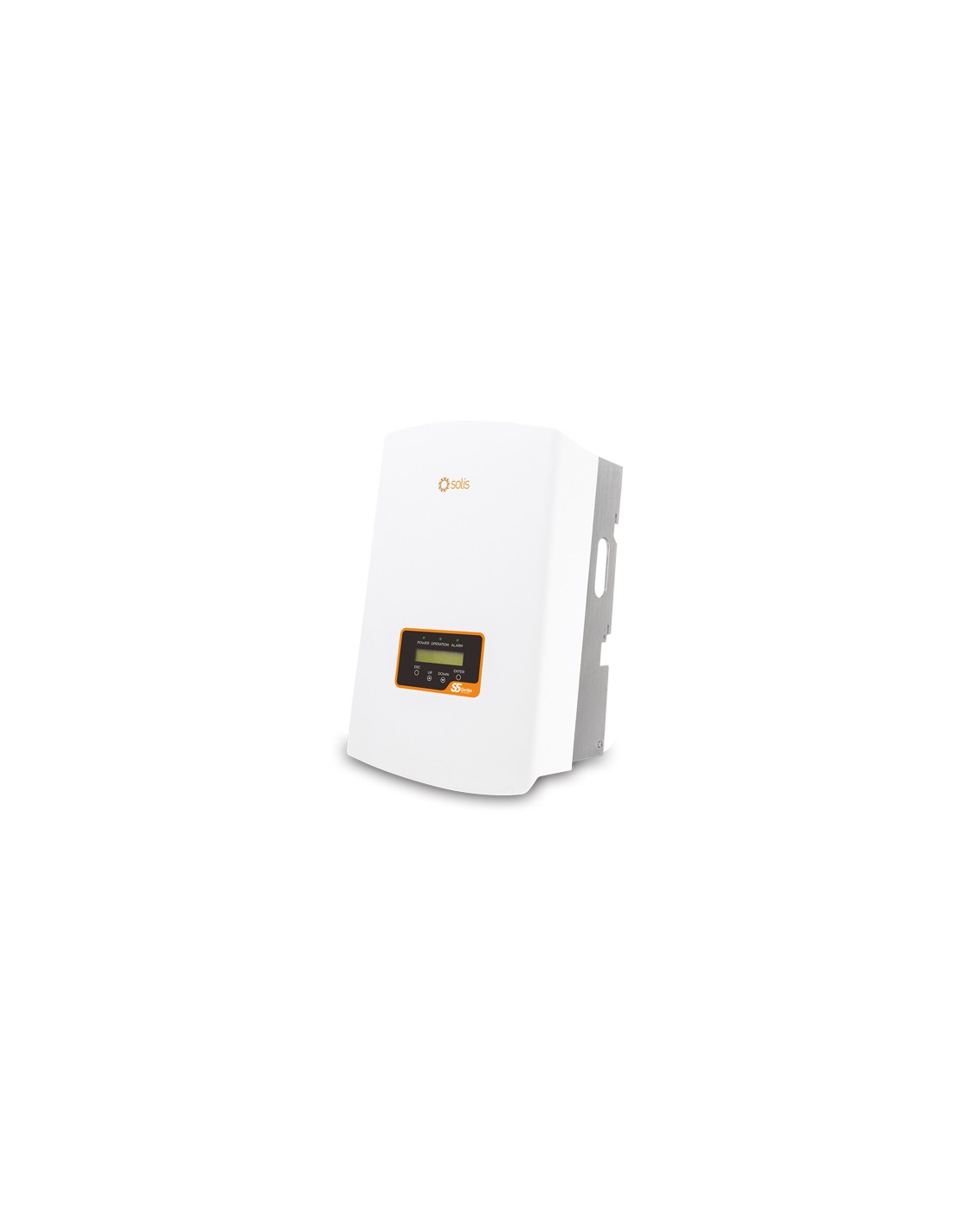

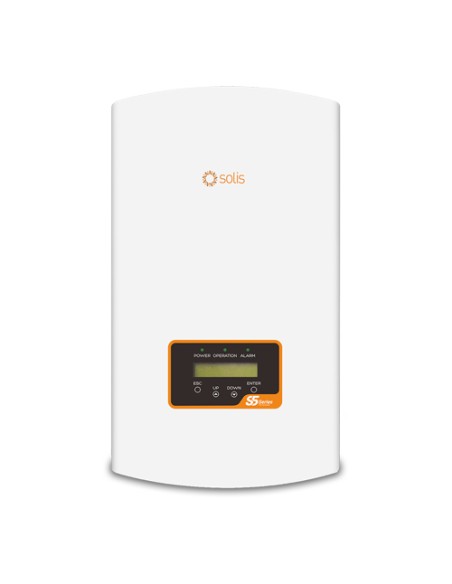

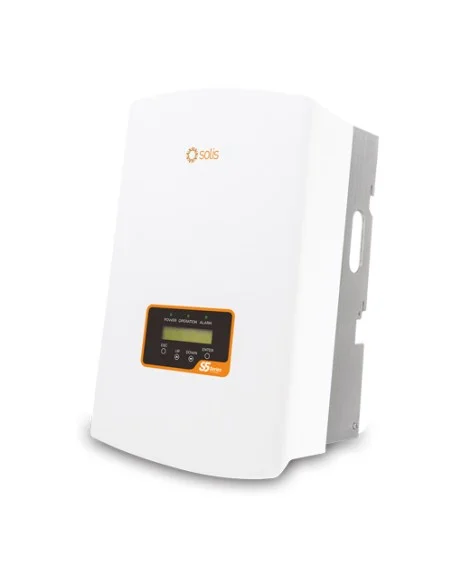

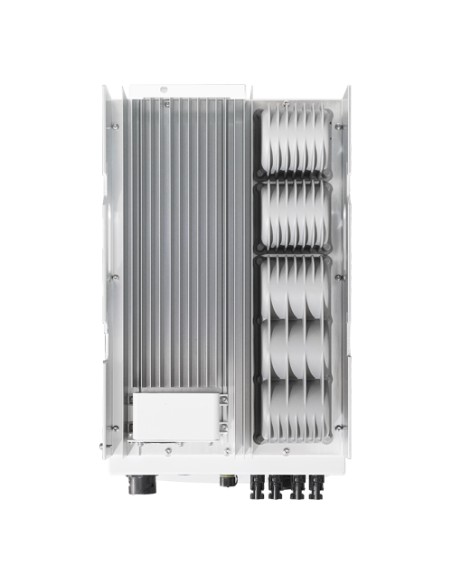

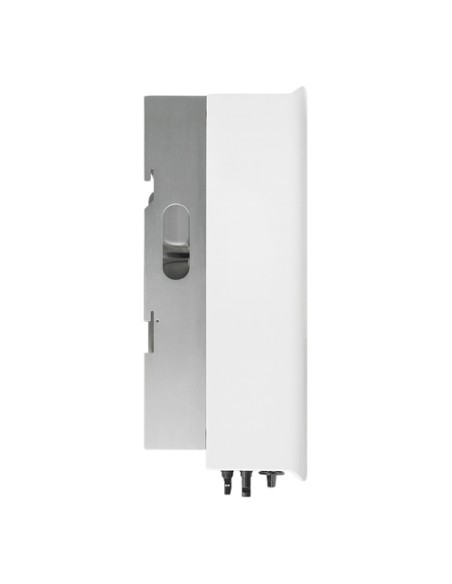

S5-GR3P three phase series string inverter are reliable preferred equipment for residential, small industrial and commercial pv power stations.Smaller size, higher efficiency, a variety of power models Available for selection. Adopt two MPPT access, more flexible and efficient.
S5-GR3P three phase series string inverter are reliable preferred equipment for residential, small industrial and commercial pv power stations.Smaller size, higher efficiency, a variety of power models Available for selection. Adopt two MPPT access, more flexible and efficient.
| Input DC | |
| Recommended max. PV power | 30kW |
| Max. input voltage | 1100V |
| Rated voltage | 600V |
| Start-up voltage | 180V |
| MPPT voltage range | 160-1000V |
| Max. input current | 32 A / 32 A |
| Max. short circuit current | 40 A / 40 A |
| MPPT number/Max. input strings number | 2/4 |
| Output AC | |
| Rated output power | 20kW |
| Max. apparent output power | 22 kVA |
| Max. output power | 22kW |
| General Data | |
| Dimensions (WxHxD) | 310*563*219 mm |
| Weight | 20kg |
| Self consumption(night) | <1W |
| Ingress protection | IP66 |
| Safty/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 |
| Grid connection standard | G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530 |
| Features | |

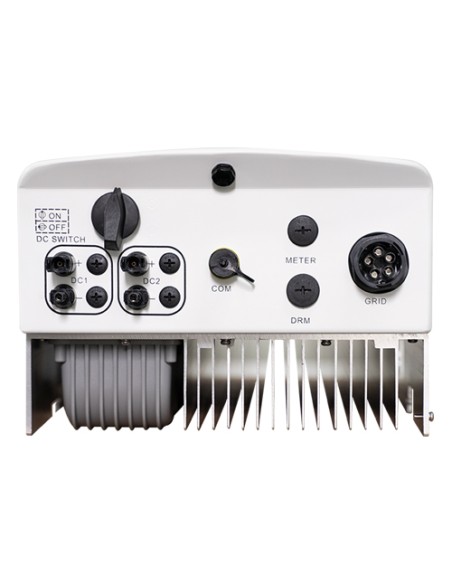

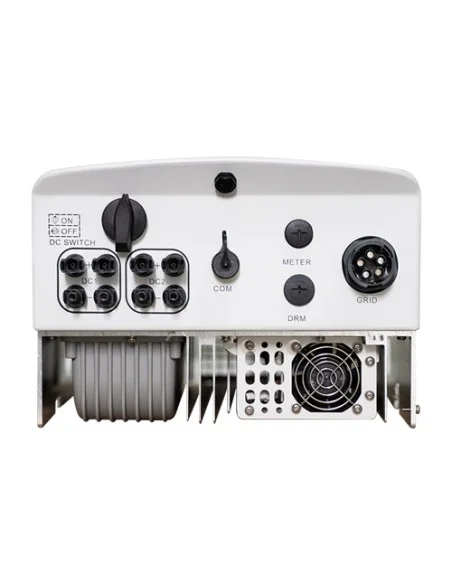

| DC connection | MC4 connector |
| AC connection | Quick connection plug |
| Display | LCD |
| Communication | RS485, Optional: Wi-Fi, GPRS |
