€464.40 Vat excl.

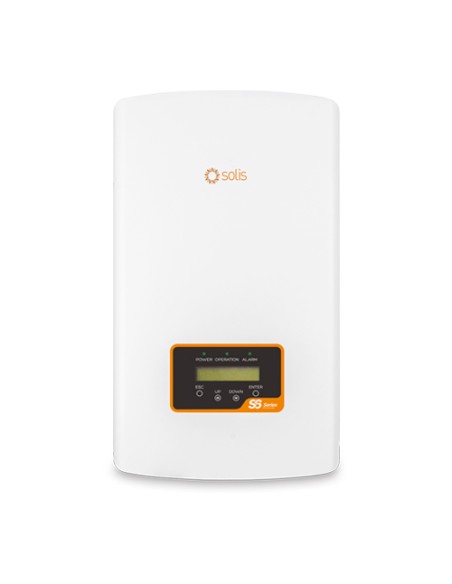

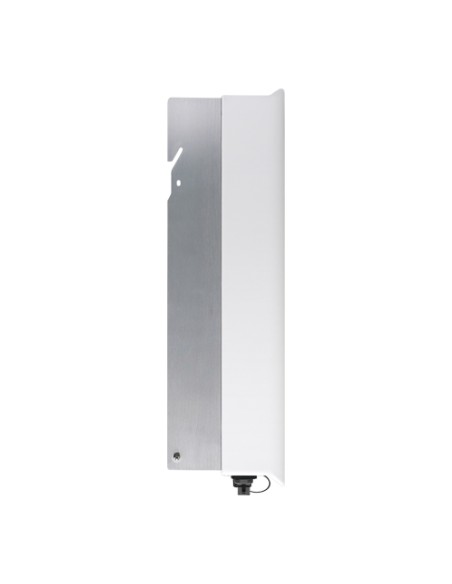

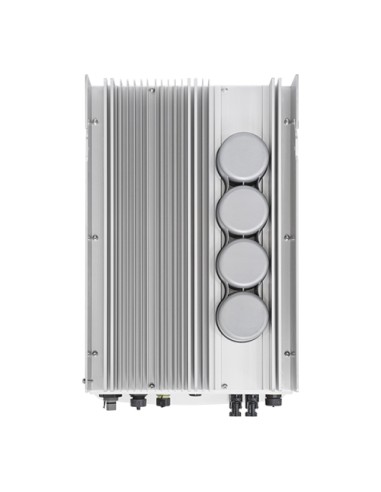

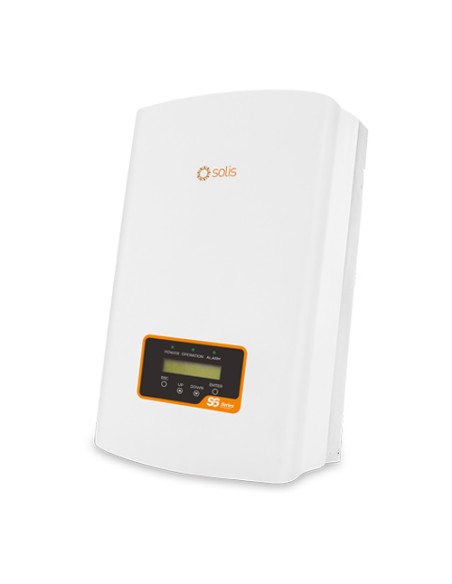

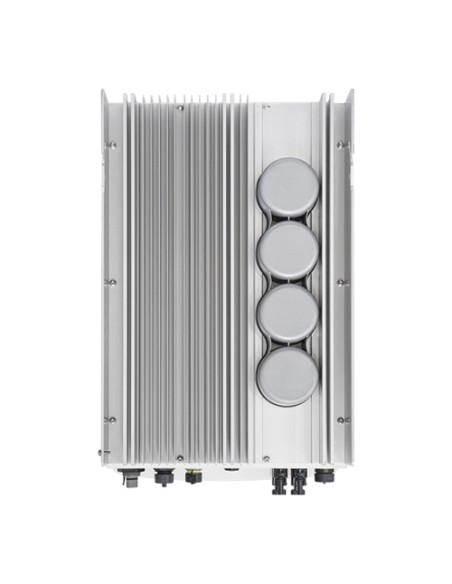

solis string inverter is designed for residential PV plants. The maximum input current per string is 14A, compact and lightweight design, bring easy installation. The protection level is increased to IP66. Integrated AFCI function can proactively reduce the risk of fire.
solis string inverter is designed for residential PV plants. The maximum input current per string is 14A, compact and lightweight design, bring easy installation. The protection level is increased to IP66. Integrated AFCI function can proactively reduce the risk of fire.
| Input DC | |
| Recommended max. PV power | 6kW |
| Max. input voltage | 600V |
| Rated voltage | 330V |
| Start-up voltage | 120V |
| MPPT voltage range | 90-520V |
| Max. input current | 14A |
| Max. short circuit current | 22A |
| MPPT number/Max. input strings number | 2/2 |
| Output AC | |
| Rated output power | 4kW |
| Max. apparent output power | 4.4 kVA |
| Max. output power | 4.4kW |
| General Data | |
| Dimensions (WxHxD) | 310 x 543 x 160mm |
| Weight | 12 kg |
| Self consumption(night) | <1W |
| Ingress protection | IP66 |
| Safty/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 |
| Grid connection standard | G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA |
| Features | |

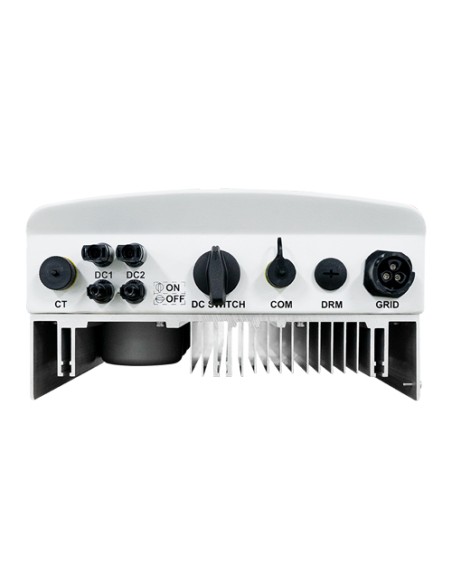

| DC connection | MC4 connector |
| AC connection | Quick connection plug |
| Display | LCD |
| Communication | RS485, Optional: Wi-Fi, GPRS |
