Single-phase string inverter 3kW Solis S6 double MPPT DC switch photovoltaic

Single-phase string inverter 3kW Solis S6 double MPPT DC switch photovoltaic

Name: Single-phase string inverter 3kW Solis S6 double MPPT DC switch photovoltaic
Brand: Solis
SKU: SLS-1P3K-S6
Price: 571 EUR
Availability: InStock

Reference SLS-1P3K-S6

Last items in stock

€571.00

VAT included 10 %

€519.09 Vat excl.

Solis string inverter is designed for residential PV plants. The maximum input current per string is 14A, compact and lightweight design, bring easy installation. The protection level is increased to IP66. Integrated AFCI function can proactively reduce the risk of fire.

Single-phase string inverter 3kW Solis S6 double MPPT DC switch

Max. efficiency 97.7%;
String current up to 14A;
Super high frequency switching technology;
Wide voltage range and low startup voltage;
2 MPPT design with precise MPPT algorithm;
Intergrated Export Power Manager (EPM);
AFCI protection, proactively reduces fire risk;
Compact and lightweight;
Friendly and adaptable connection to the grid.

For more details, download the following documents:

Datasheet: [Download]

User manual:[Download]

Technical features:

Input DC
Recommended max. PV power	4.5kW
Max. input voltage	600V
Rated voltage	330V
Start-up voltage	120V
MPPT voltage range	90-520V
Max. input current	14A
Max. short circuit current	22A
MPPT number/Max. input strings number	2/2
Output AC
Rated output power	3kW
Max. apparent output power	3.3 kVA
Max. output power	3.3kW
General Data
Dimensions (WxHxD)	310 x 543 x 160mm
Weight	11,2 kg
Self consumption(night)	<1W
Ingress protection	IP66
Safty/EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Grid connection standard	G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Features

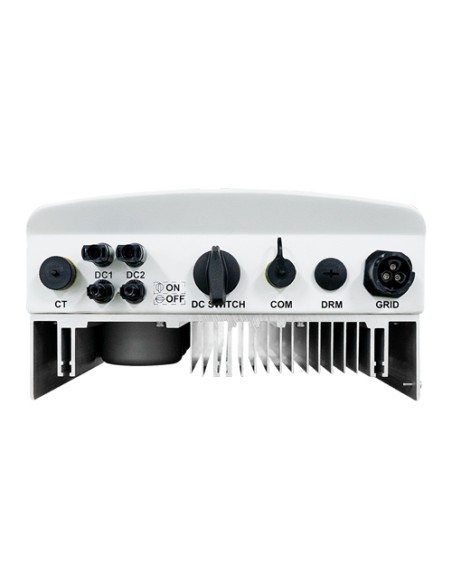

DC connection	MC4 connector
AC connection	Quick connection plug
Display	LCD
Communication	RS485, Optional: Wi-Fi, GPRS
