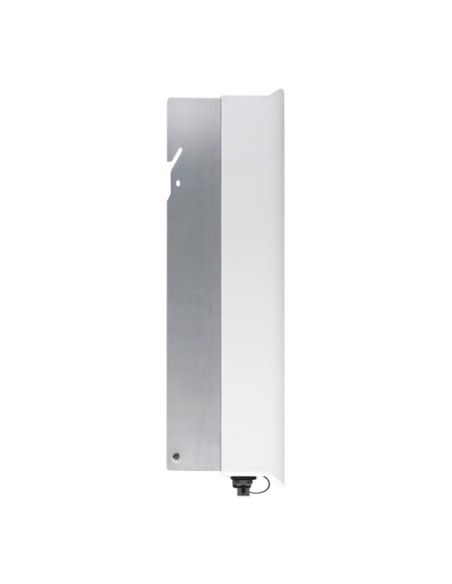

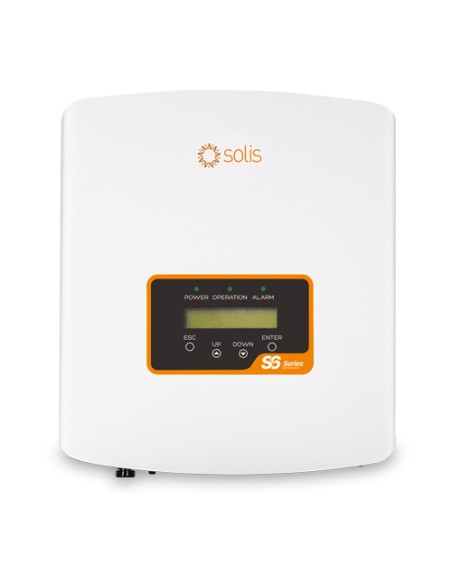

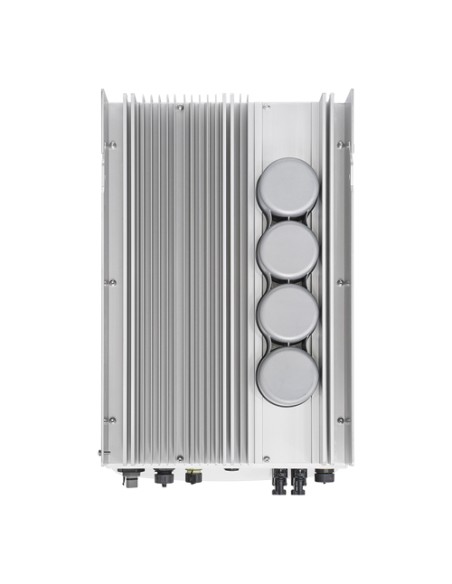

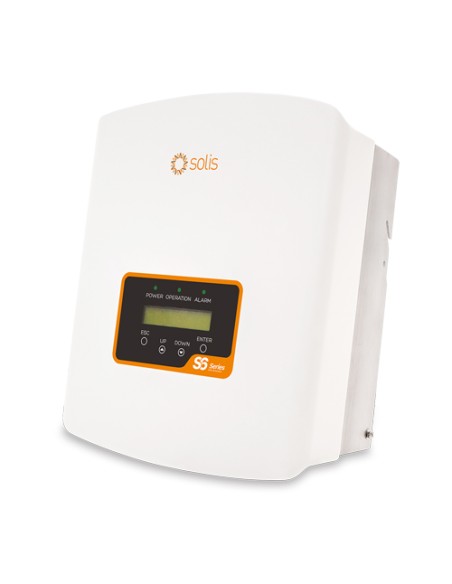

Single-phase string inverter 3kW Solis Mini S6 MPPT DC switch photovoltaic
Single-phase string inverter 3kW Solis Mini S6 MPPT DC switch photovoltaic
Single-phase string inverter 3kW Solis Mini S6 MPPT DC switch photovoltaic
Single-phase string inverter 3kW Solis Mini S6 MPPT DC switch photovoltaic
Single-phase string inverter 3kW Solis Mini S6 MPPT DC switch photovoltaic
Single-phase string inverter 3kW Solis Mini S6 MPPT DC switch photovoltaic
Single-phase string inverter 3kW Solis Mini S6 MPPT DC switch photovoltaic
Single-phase string inverter 3kW Solis Mini S6 MPPT DC switch photovoltaic

Single-phase string inverter 3kW Solis Mini S6 MPPT DC switch photovoltaic

SLS-MINI-3000-S6
Last items in stock
€494.13
VAT included 10 %

€449.21 Vat excl.

Solis-Mini single-phase string inverter series are the green energy leaders in small residential and commercial roofs, and adopt full digital control technology, advanced topology structure and accurate MPPT algorithm, whose efficiency exceeds the preeminent conversion of the sector which is up to 97.3% at most. Meanwhile they adopt the multiple protection functions, and extremely high switching frequency technology.



Single-phase string inverter 3kW Solis Mini S6 MPPT DC switch

Solis-Mini single-phase string inverter series are the green energy leaders in small residential and commercial roofs, and adopt full digital control technology, advanced topology structure and accurate MPPT algorithm, whose efficiency exceeds the preeminent conversion of the sector which is up to 97.3% at most. Meanwhile they adopt the multiple protection functions, and extremely high switching frequency technology.

  • Max. efficiency 97.3%;
  • Super high frequency switching technology;
  • Wide voltage range and low startup voltage;
  • Precise MPPT algorithm;
  • Intergrated Export Power Manager (EPM);
  • Integrated AFCI (DC arc-fault circuit protection);
  • Maximum string input current 14A;
  • Compact and lightweight;
  • Friendly and adaptable connection to the grid.

For more details, download the following documents:

Technical features:

Input DC
Recommended max. PV power 4.5kW
Max. input voltage 600V
Rated voltage 300V
Start-up voltage 90V
MPPT voltage range 80-500V
Max. input current 14A
Max. short circuit current 22A
MPPT number/Max. input strings number 1/1
Output AC
Rated output power 3kW
Max. apparent output power 3.3kVA
Max. output power 3.3kW
General Data
Dimensions (WxHxD) 310 x 373 x 160mm
Weight 7.7 kg
Self consumption(night) <1W
Ingress protection IP66
Safty/EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Grid connection standard G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Features
DC connection MC4 connector
AC connection Quick connection plug
Display LCD
Communication RS485, Optional: Wi-Fi, GPRS


Customer Service

0882 22 82 47
[email protected]

MPPT number
1
Typology
Single-phase
Inverter power
3.0kW
8370000014379
