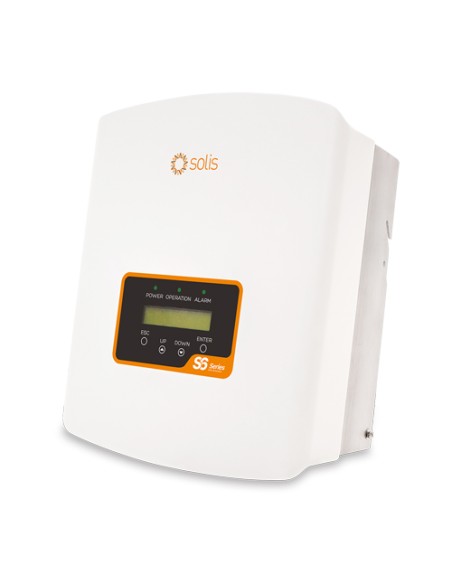

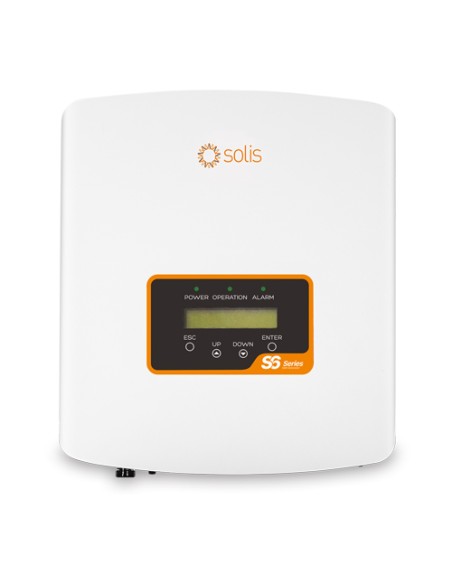

Single-phase string inverter 2kW Solis Mini S6 MPPT DC switch photovoltaic
€279.51 Vat excl.
Solis-Mini single-phase string inverter series are the green energy leaders in small residential and commercial roofs, and adopt full digital control technology, advanced topology structure and accurate MPPT algorithm, whose efficiency exceeds the preeminent conversion of the sector which is up to 97.3% at most. Meanwhile they adopt the multiple protection functions, and extremely high switching frequency technology.
Single-phase string inverter 2kW Solis Mini S6 MPPT DC switch
Solis-Mini single-phase string inverter series are the green energy leaders in small residential and commercial roofs, and adopt full digital control technology, advanced topology structure and accurate MPPT algorithm, whose efficiency exceeds the preeminent conversion of the sector which is up to 97.3% at most. Meanwhile they adopt the multiple protection functions, and extremely high switching frequency technology.
- Max. efficiency 97.1%;
- Super high frequency switching technology;
- Wide voltage range and low startup voltage;
- Precise MPPT algorithm;
- Intergrated Export Power Manager (EPM);
- Integrated AFCI (DC arc-fault circuit protection);
- Maximum string input current 14A;
- Compact and lightweight;
- Friendly and adaptable connection to the grid.
Technical features:
Input DC | |
Recommended max. PV power | 3kW |
Max. input voltage | 600V |
Rated voltage | 330V |
Start-up voltage | 90V |
MPPT voltage range | 80-500V |
Max. input current | 14A |
Max. short circuit current | 22A |
MPPT number/Max. input strings number | 1/1 |
Output AC | |
Rated output power | 2kW |
Max. apparent output power | 2.2 kVA |
Max. output power | 2.2kW |
General Data | |
Dimensions (WxHxD) | 310 x 373 x 160mm |
Weight | 7.4 kg |
Self consumption(night) | <1W |
Ingress protection | IP66 |
Safty/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4 |
Grid connection standard | G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA |
Features | |
DC connection | MC4 connector |
AC connection | Quick connection plug |
Display | LCD |
Communication | RS485, Optional: Wi-Fi, GPRS |
- MPPT number
- 1
- Typology
- Single-phase
- Inverter power
- 2.0kW
