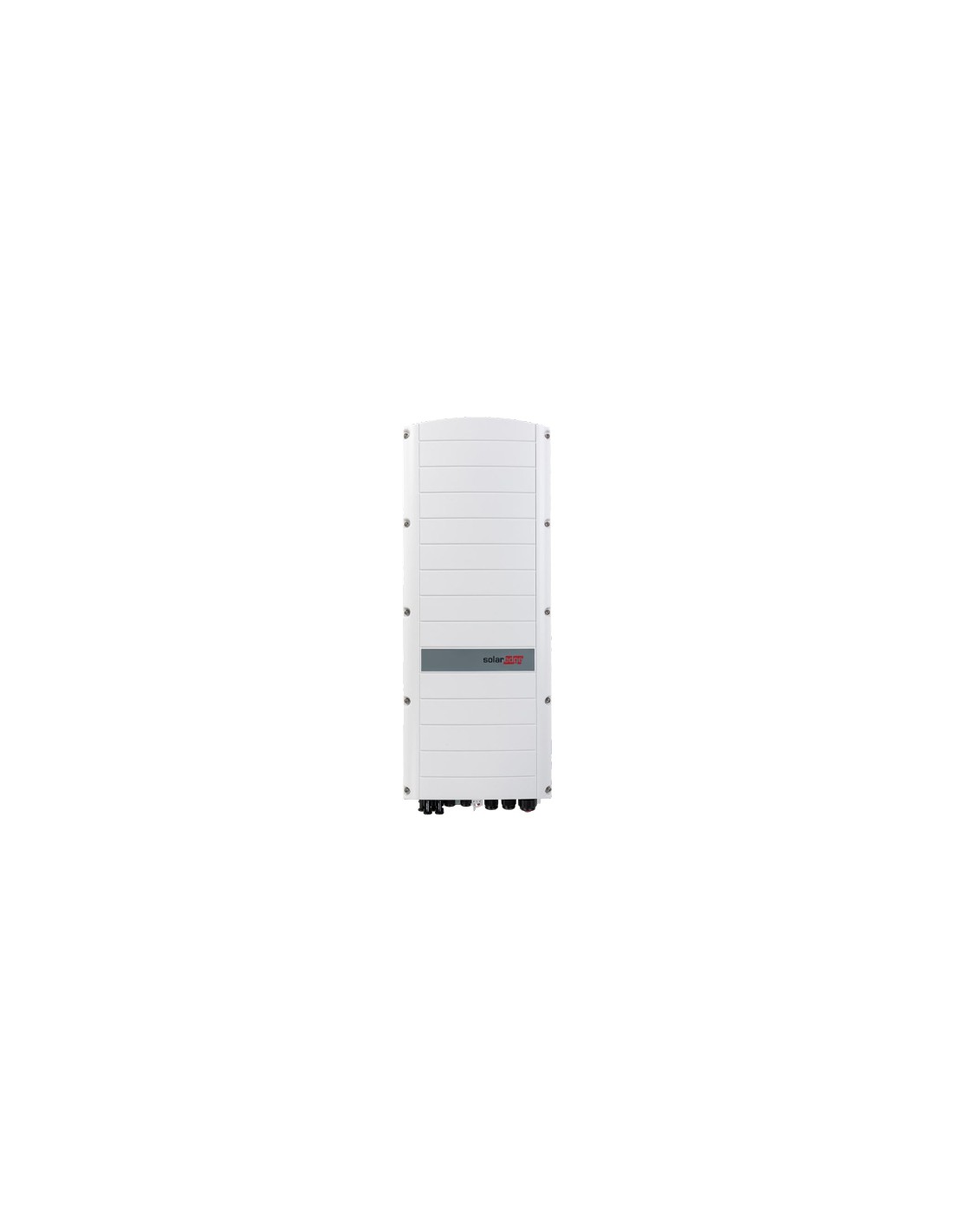

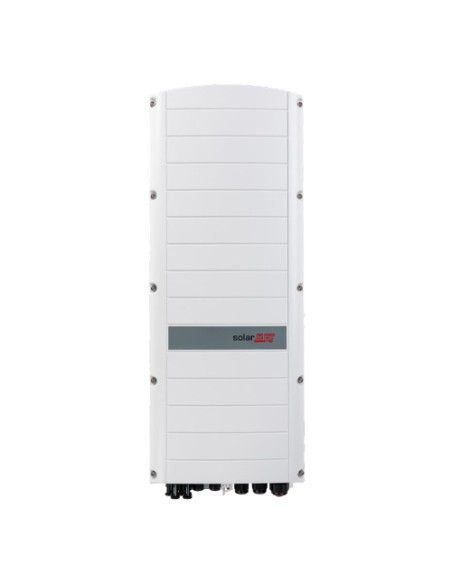

SolarEdge 10kW StorEdge three-phase hybrid inverter with SetApp configuration
SE10K-RWS48BEN4
€2,046.23
VAT included
10 %
€1,860.21 Vat excl.
A single inverter connects directly to one or more 48V batteries from different battery suppliers. This highly efficient inverter manages the production and consumption of photovoltaic energy and battery power for three-phase supplies.
SolarEdge 10kW StorEdge three-phase hybrid inverter with SetApp configuration
A single inverter connects directly to one or more 48V batteries from different battery suppliers. This highly efficient inverter manages the production and consumption of photovoltaic energy and battery power for three-phase supplies.
Ideal for indoor or outdoor installations, inverter models range from 5kW to 10kW.
Main features
- Simple installation with a single inverter to manage both photovoltaic production and battery storage;
- More energy by leveraging the DC coupled solution architecture that stores PV power directly into the battery without losses due to AC conversion;
- Quick and easy commissioning of the inverter from a smartphone using SolarEdge SetApp;
- Designed to eliminate high voltage during installation, maintenance or firefighting operations in order to optimize safety;
- Embedded module-level monitoring and full visibility of battery status, PV production and self-consumption data;
- It allows you to connect low voltage 48V batteries from different suppliers to offer greater flexibility.
Technical Features
OUTPUT | |||
Rated AC Power Output | 10000VA | ||
Maximum AC Power Output | 10000VA | ||
AC Output Voltage (Nominal) | 380/220; 400/230 VCA | ||
AC Output Voltage Range | 184-264,5 VCA | ||
AC Frequency (Nominal) | 50/60 ± 5% Hz | ||
Maximum continuous output current (per phase) | 16A | ||
INPUT PV | |||
Maximum DC Power | 13500W | ||
Transformer-less, Ungrounded | Yes | ||
Maximum Input Voltage | 900 VCC | ||
Nominal DC Input Voltage | 750 VCC | ||
Maximum Input Current | 16.5 ACC | ||
European maximum efficiency | 97.6% | ||
BATTERY INPUT | |||
Compatible batteries | LG Chem RESU10, SolarEdge Home BAT-05K48M0B-01 | ||
Number of batteries per inverter | 1 | ||
Maximum DC power | 5000W | ||
Maximum continuous input current | 130 Acc | ||
Maximum battery discharge efficiency | 96.1% | ||
ADDITIONAL FEATURES | |||
Supported Communication Interfaces | 2 x RS485, Ethernet, Zigbee communications for Smart Energy(3), Wi-Fi(4), cellular modem (optional) | ||
STANDARD COMPLIANCE | |||
Safety | IEC-62109 | ||
Grid Connection Standards | VDE 0126-1-1, VDE-AR-N-4105, G98 / G99, CEI 0-21 | ||
Emissions | IEC61000-6-2, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | ||
INSTALLATION SPECIFICATIONS | |||
AC Output - Diameter of the cable gland | 15-21 mm | ||
Battery DC Output - Diameter of the cable gland | 2 x 8-11 mm | ||
DC Input | 2 x MC4 | ||
Dimensions (H x W x D) | 853 x 316 x 193 mm | ||
Weight | 37kg | ||
Protection Rating | IP65 — Outdoor and Indoor |
- Rated Power VA
- 10000VA
- Typology
- Three-phase
- Inverter power
- 10kW
- Manufacturer Inverter
- SolarEdge
