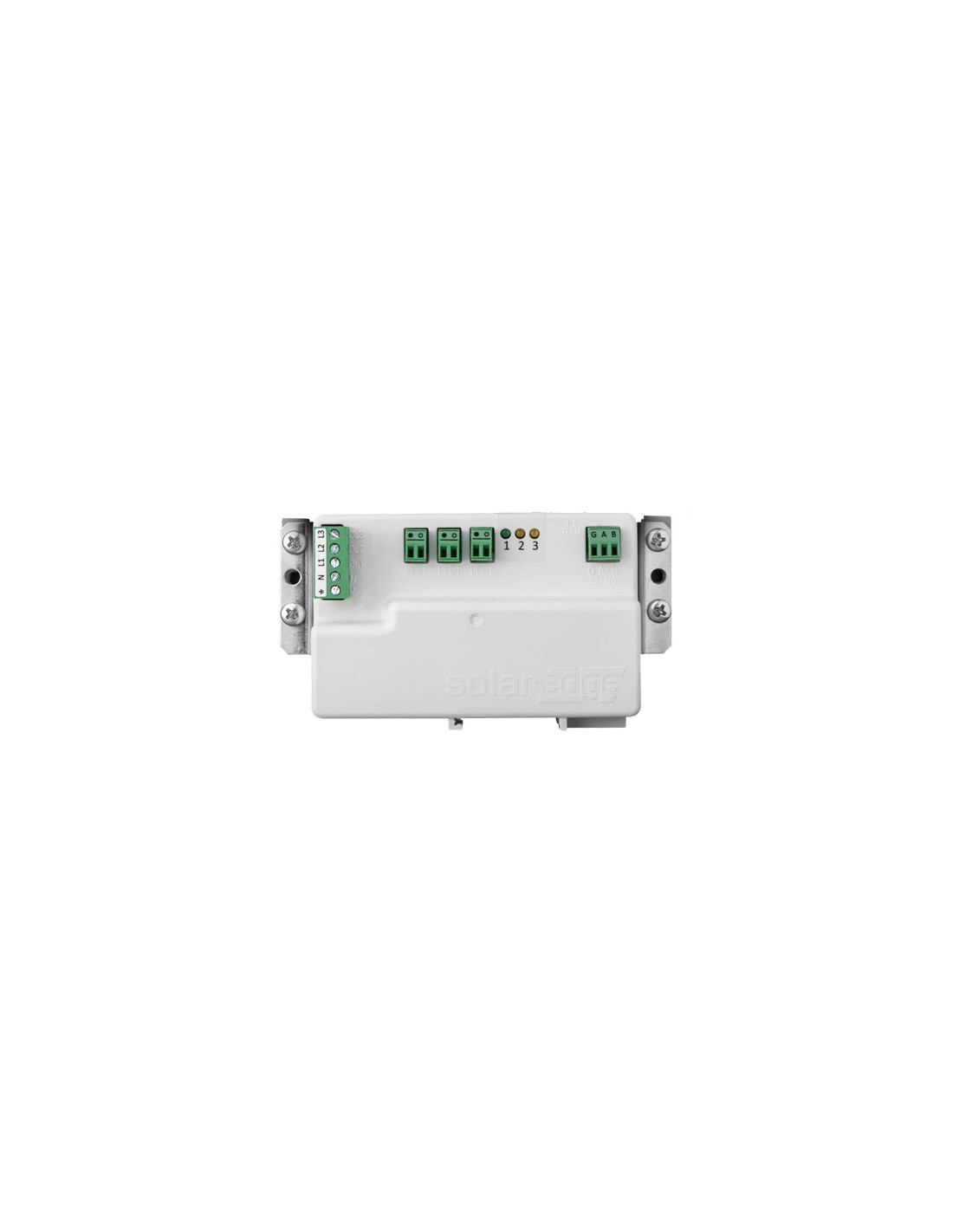

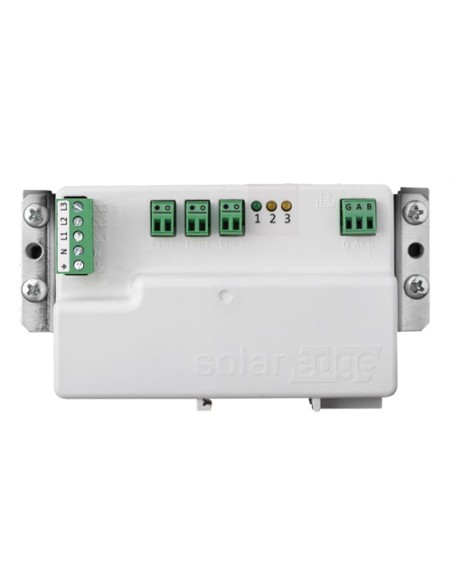

Energy meter SolarEdge SE-MTR-3Y-400V-A 230/400V Modbus DIN rail for inverter
Energy meter SolarEdge SE-MTR-3Y-400V-A 230/400V Modbus DIN rail for inverter

Energy meter SolarEdge SE-MTR-3Y-400V-A 230/400V Modbus DIN rail for inverter

SE-MTR-3Y-400V-A

SolarEdge SE-MTR-SPL-100A-A 230/400V energy meter for single-phase and three-phase inverters of the SolarEdge range.



Energy meter SolarEdge SE-MTR-3Y-400V-A 230/400V Modbus DIN rail for inverter


Main features

  • High-precision meter readings for production/consumption monitoring;
  • Tracking import/export values for export restriction functionality;
  • Small and easy to install: plugs into standard electrical panels;
  • Supports residential, commercial and utility scale installations;
  • Supports termination for RS485 at 120Ω.

For more details, download the following documents:


Tecnical features

Electrical characteristics
Operating voltage range Phase - Phase: 176 - 440 Vca
Phase - Neutral: 102 - 305 Vca
Rated voltage range Phase - Phase: 220 - 400 Vca
Phase - Neutral: Da 120 a 277 Vca
AC frequency 45 - 65 Hz
Networks supported: single-phase; three-phase L/N/PE; L1/L2/L3/N/PE
Power consumption (max) 3W
CT inputs 333 mV
Communication
Communication interfaces supported RS485 half-duplex, 3 fili (A, B, GND)
Response time ≤200 ms
Default (Modbus) device ID 2
RS485 line termination 120 Ω
Precision
1%-100% of CT rated current ±1,25%
IEC accuracy IEC 62053-21 Class 1, IEC 62053-23 Class 2
Standards compliance
Safety IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No. 61010-1-04
Immunity EN 61326: 2000, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-5, EN 61000-4-6
Emissions EN 55022 Classe B
Installation specifications
Dimensions (W x H x D) 75 x 138,6 x 35mm /2,95 x 5,45 x 1,37mm
Weight 225g
Operating temperature range -40 to +85 / -40 to +185 °C
Relative humidity (non-condensing) from 5% to 90% up to 40 °C decreasing linearity at 50% RH at 55 °C
Protection degree IP20: ideal for use indoors
Type of assembly DIN Rail/Wall Mount
AC voltage terminal block up to 12/2.5 AWG/mm2
Communications terminal block 24/0.2 to 14/2 AWG/mm2
Current transformer terminal block 24/0.2 to 14/2 AWG/mm2
