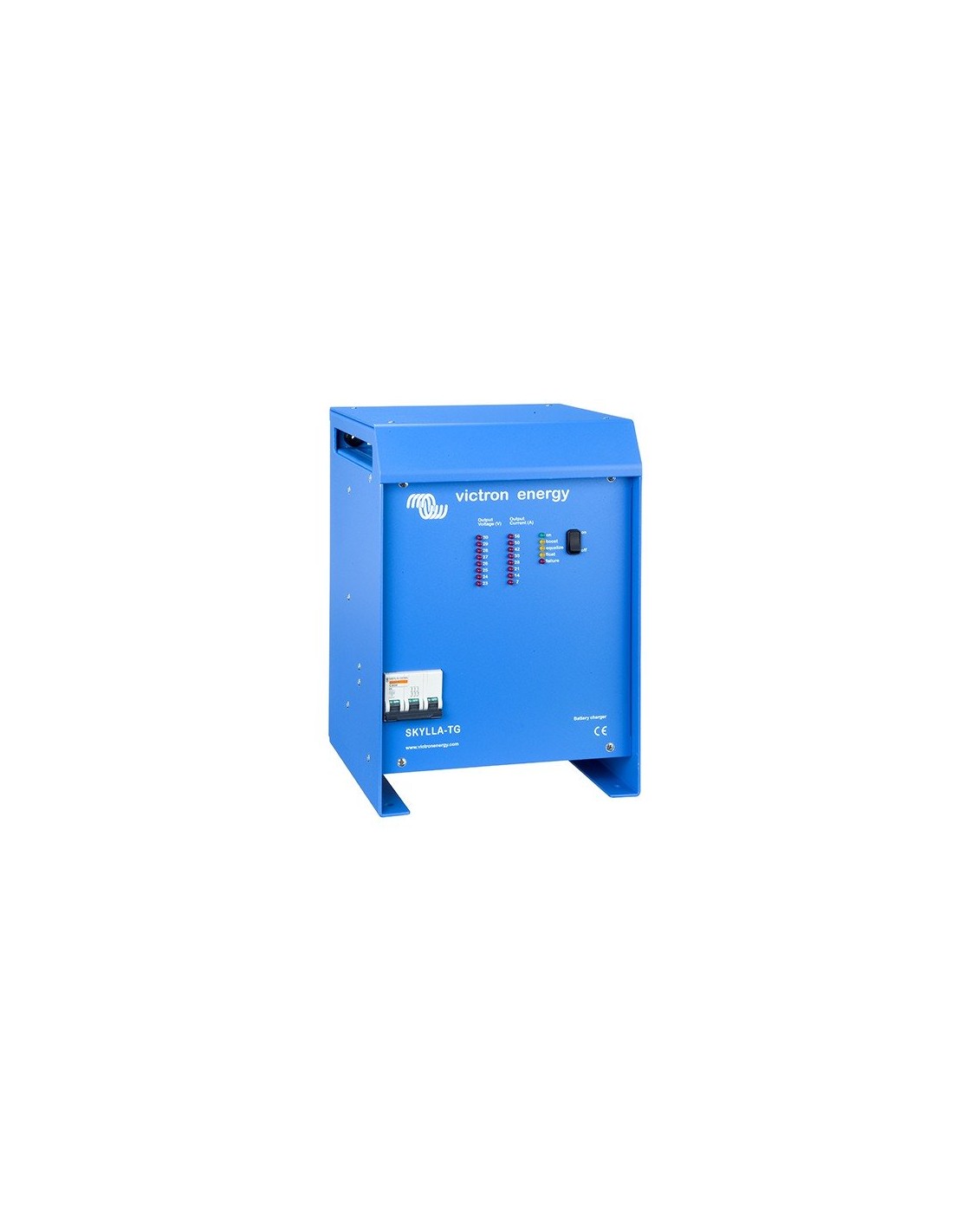

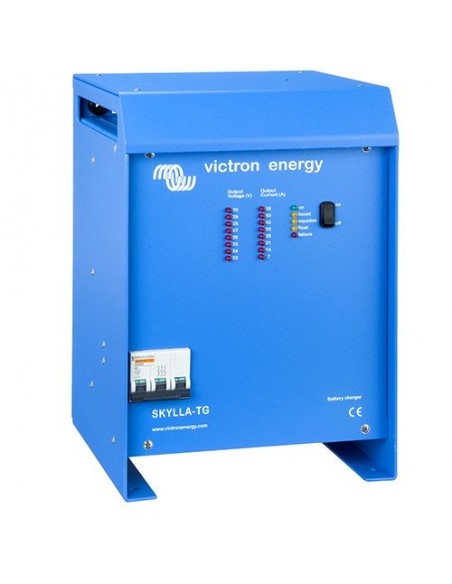

Charger 360A 24V Victron Energy Skylla-TG 24/30 (1+1) 90-265VAC
Charger 360A 24V Victron Energy Skylla-TG 24/30 (1+1) 90-265VAC

Charger 30A 24V Victron Energy Skylla-TG 24/30 (1+1) 90-265VAC

SDTG2400303
€991.98
VAT included 22 %

€813.10 Vat excl.

One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

Charger Skylla-TG 24V 30A

Model: 24/30 (1+1) 90-265VAC

One full rated output and one 4 Amp output. Charge voltage can be precisely adjusted to suit any battery system. The input for the charger is 230V at 50/60HZ. Charge voltage can be measured directly on the battery terminals in order to compensate for voltage loss due to cable resistance. An external sensor allows measuring battery temperature and compensating charge voltage accordingly.

Technical Features

Product code: SDTG2400303
Download Product Datasheet

Warranty

2 Years Guaranteed

Charge curve

Application example

Features

Universal 90-265 V AC input voltage range and also suitable for DC supply
All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz.
The chargers will also accept a 90-400 V DC supply.

Germanischer Lloyd approval
The Chargers have been approved by Germanischer Lloyd (GL) to environmental category C, EMC 1.
Category C applies to equipment protected from the weather.
EMC 1 applies to conducted and radiated emission limits for equipment installed on the bridge of a ship.

The approval to GL C, EMC1 implies that the Chargers also complies to IEC 60945-2002, category ‘protected’ and ‘equipment installed on the bridge of a ship’.

The GL certification applies to 185-265 V AC supply.

Other features
- Microprocessor control
- Can be used as power supply
- Battery temperature sensor for temperature compensated charging
- Battery voltage sensing to compensate for voltage loss due to cable resistance

Other Skylla Chargers
- Standard 185-265 V AC models with additional output to charge a starter battery
- GMDSS models, with all required monitoring and alarm functions.

Manual, Datasheet and Certifications

Data Sheet EN [LINK]

For all other documents to download, please visit the web site:
www.victronenergy.com

Assistance

  For service or plant configuration call 0882 22 82 47
  For technical assistance, write to [email protected]
