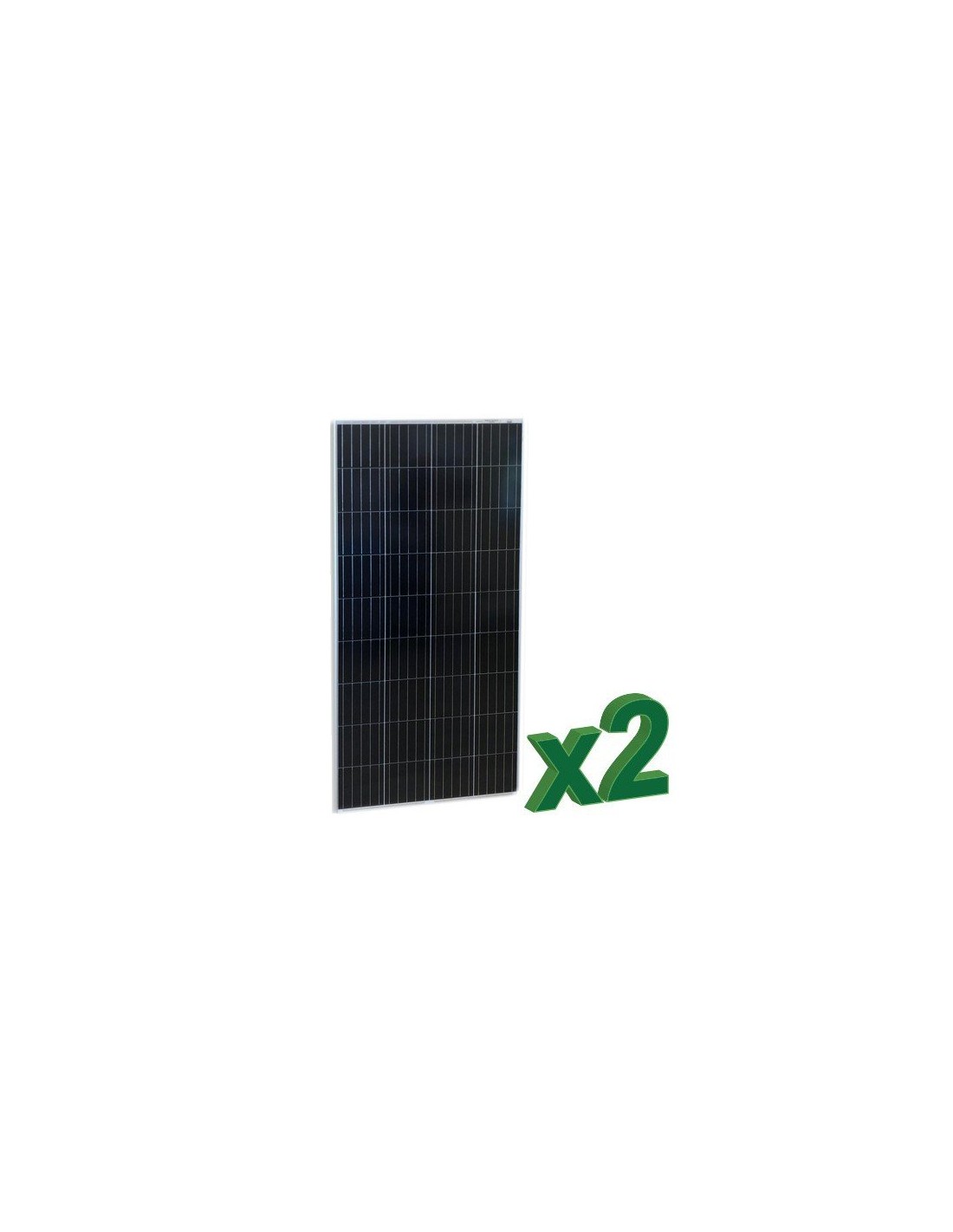

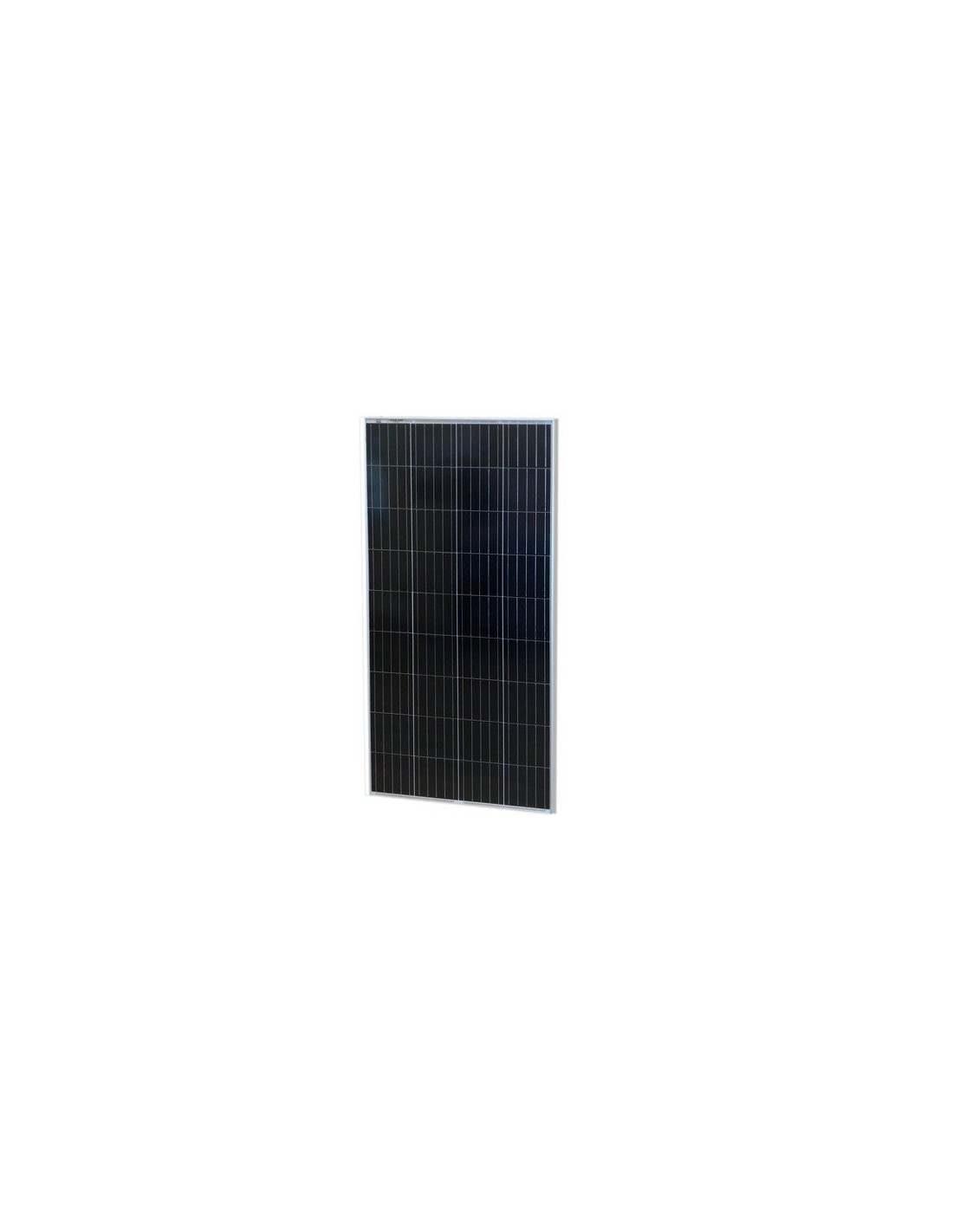

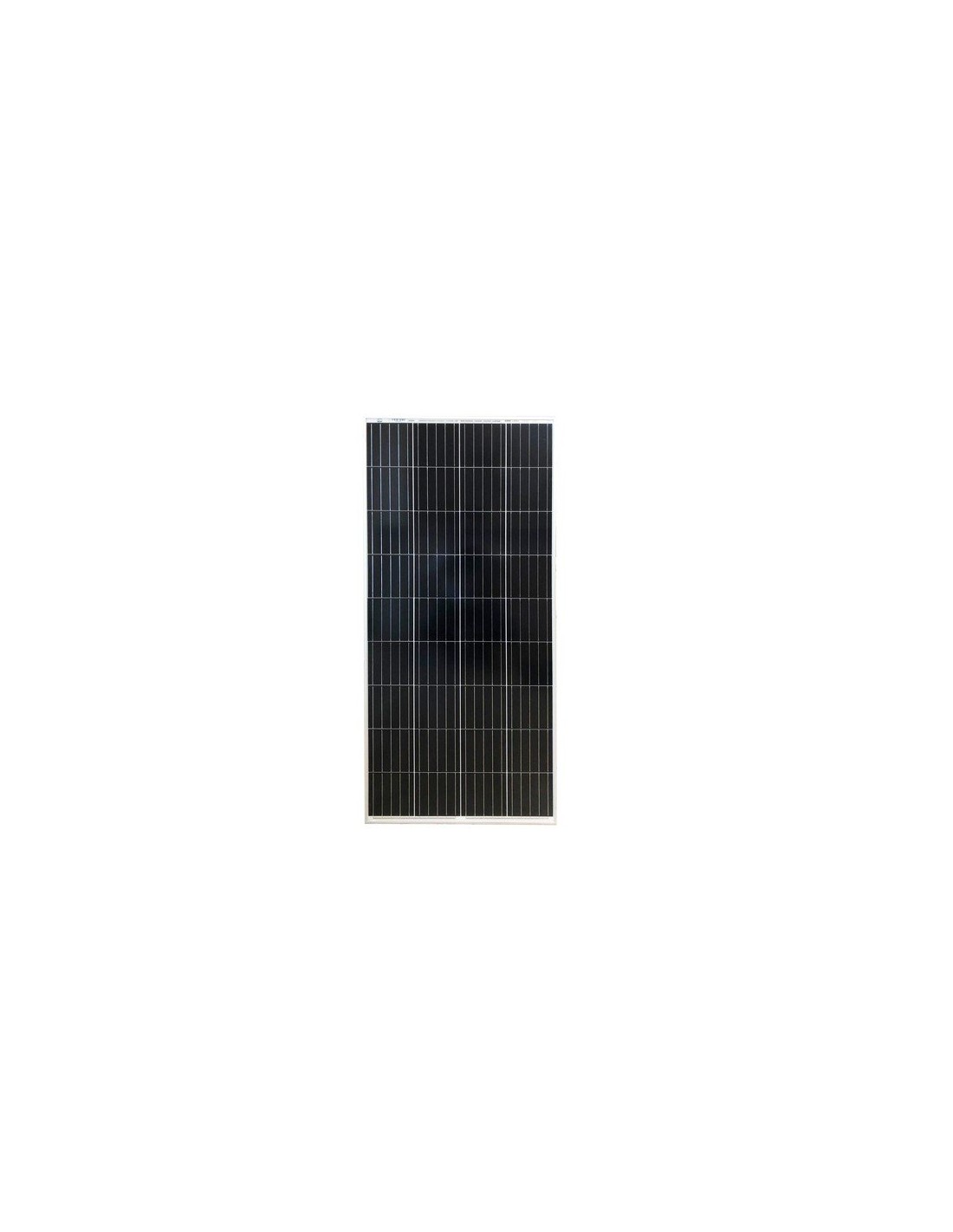

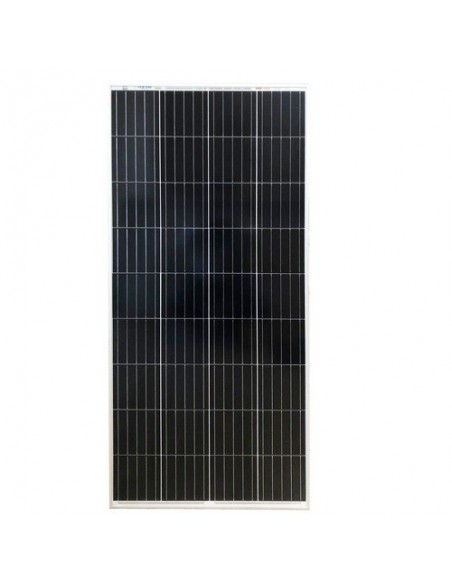

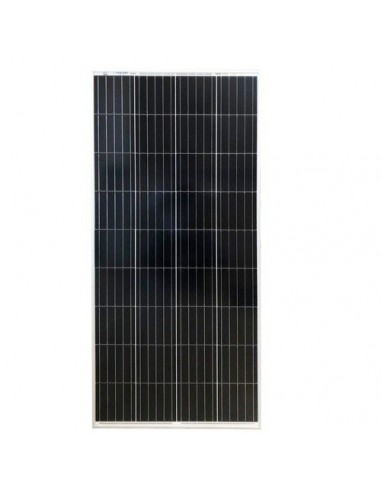

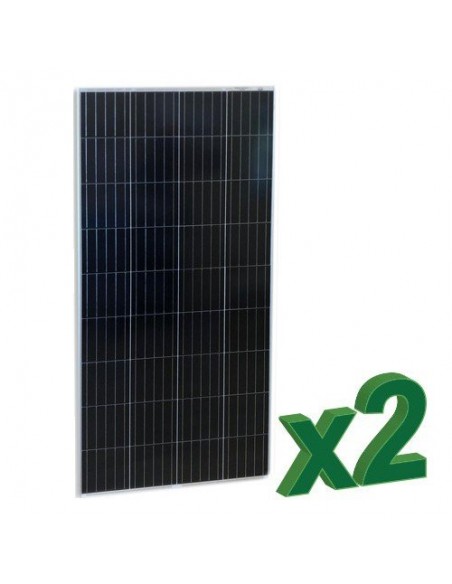

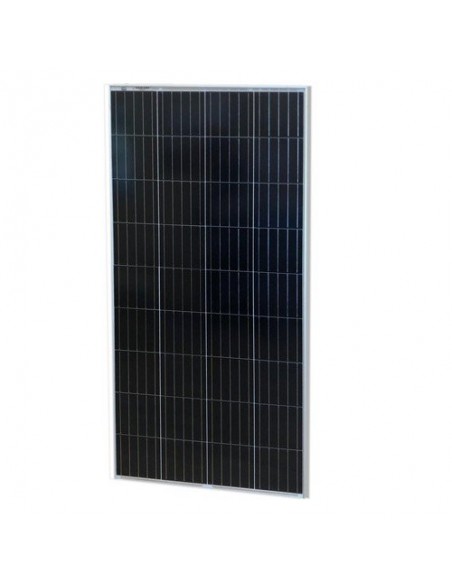

Set of 2 Photovoltaic Solar Panels 175W 12V Total 350W Polycrystalline

SET2-VE175P
€192.10
VAT included 10 %

€174.64 Vat excl.

Photovoltaic Solar Panel 170W 12V Polycrystalline silicon, suitable for powering motor homes, boats, cottages, country houses, video surveillance systems, radio etc.

This pack contains




Set 2 x Photovoltaic Solar Panel 175W 12V Polycrystalline

2 x Photovoltaic Solar Panels 175W 12V tot. 350W

Photovoltaic Solar Panel 175W Polycrystalline silicon, ideal for the realization of both grid-connected Photovoltaic (Photovoltaic ON-GRID) and both off-grid Photovoltaic (Photovoltaic OFF-GRID).

Main features

• Low voltage-temperature coefficient enhances high-temperature operation.

• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.

• Sealed, waterproof, multi-functional junction box gives high level of safety.

• High performance bypass diodes minimize the power drop caused by shade.

• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.

• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.

• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.

• High power models with pre wired quick-connect system with (PV-ST01) connectors.

Warrenty

5 years above the product
25 Linear years of warranty on production

Certifications

Electrical features

Product Code: VE175P

Peak Power (pmax): 175W

Voltage at Pmax (Vmp): 19.28V

Power at Pmax (Imp): 9.08A

Maximum system voltage: 1000V

Dimensions: 148.5 x 66.8 x 3 cm

Power tolerance: 0/+3%

Open circuit voltage (Voc): 23.32V

Short circuit current (Isc): 9.80A

Number of cells 36

Weight: 11 kg

   Downloads

  Datasheet EN [LINK]

  Customer Service

0882 22 82 47
[email protected]
Product Code
SET2-VE175P
Nominal Output (Pmax) W
175W
Open Circuit Voltage (Voc) V
23.32
Short Circuit Current (Isc) A
9.80
Nominal current at Pmax (Imp) A
9.08
Connector Type
MC4 o connettori compatibili
Junction Box
IP65 rated
Type Panel
framed
Product Origin
Asian
Cell type
Polycrystalline
Number of cells
36
Dimensions
148.5 x 66.8 x 3 cm
Weight
11Kg
8390000000622
