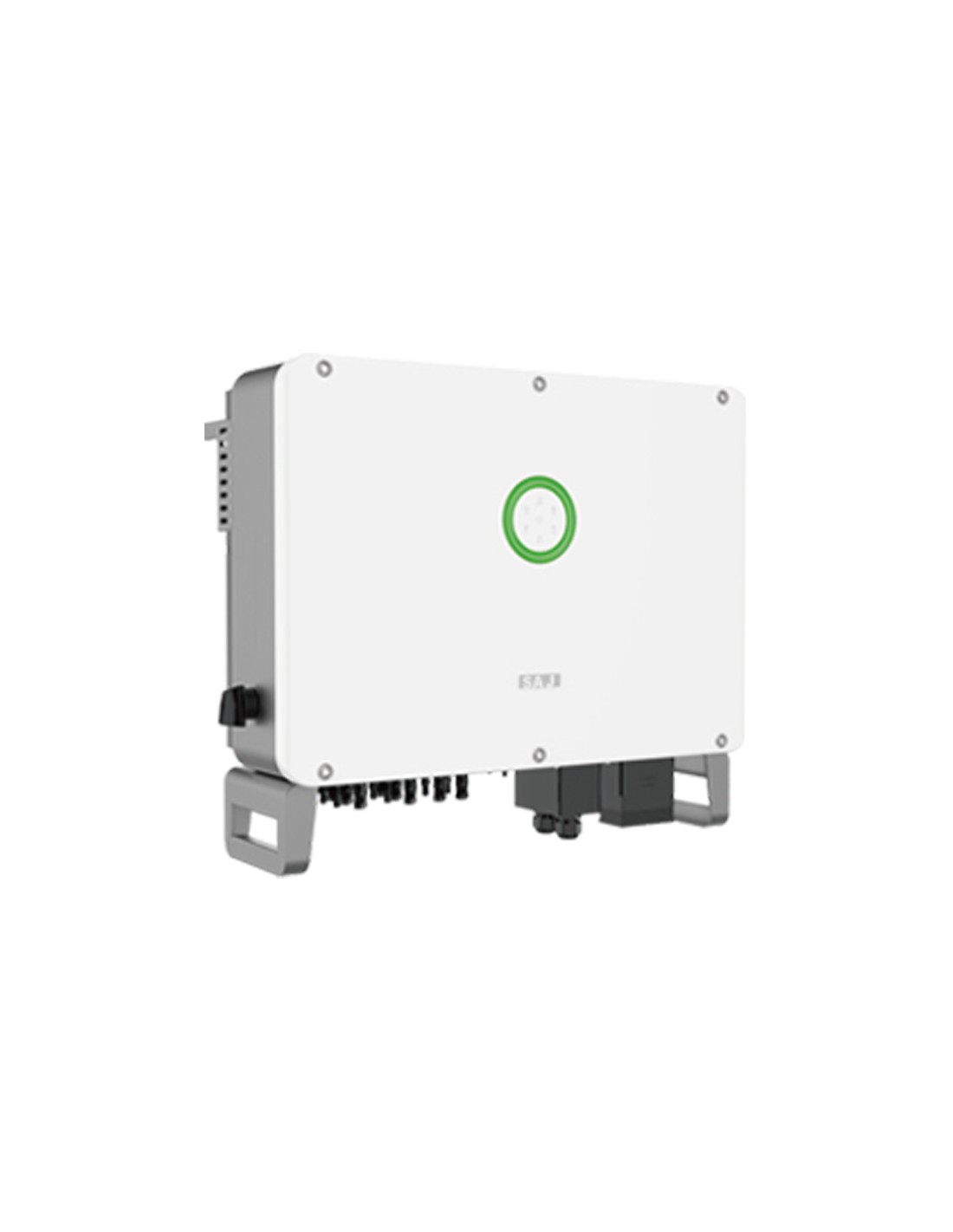

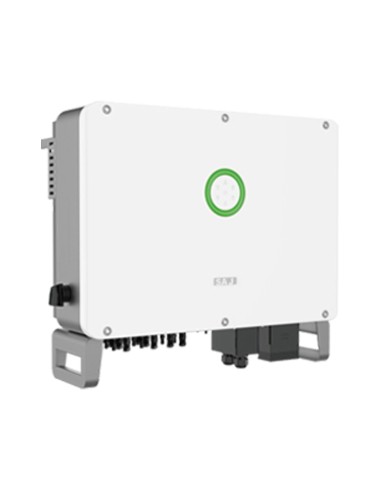

Three-phase hybrid inverter SAJ 30kW H2-30K-T3 double MPPT DC switch
H2-30K-T3
€4,028.64
VAT included
10 %
€3,662.40 Vat excl.
The H2 series is SAJ's high voltage hybrid inverter for new residential installations with energy storage.
Three-phase hybrid inverter SAJ 30kW H2-30K-T3 double MPPT DC switch
The H2 series is SAJ's high voltage hybrid inverter for new residential installations with energy storage.
The power of the H2-25K-T3 model is 25kW with 2 MPPT. The H2 series offers different usage modes to meet different needs, helping users maximize energy consumption and reduce dependency on the power grid.
Features
- Easy to set intelligent working modes;
- Support fast battery charging/discharging;
- Built-in AFCI;
- 150%~200% DC oversizing;
- 20A DC string matched with ultra high PV modules;
- With UPS function switching time ≤ 20ms.
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| DC Input | |
| Model | H2-30K-T3 |
| Maximum PV power @STC | 45000Wp |
| Maximum DC voltage | 1000V |
| MPPT voltage range | 180~900V |
| Nominal DC voltage | 600V |
| Startup voltage | 180V |
| Maximum DC input current | 50/50/50A |
| Maximum short-circuit DC current | 40/40/40A |
| Number of MPPTs | 3 |
| Number of strings per MPPT | 3/3/3 |
| AC Output (Grid) | |
| Nominal AC power | 30000W |
| Maximum AC output power | 33000 VA |
| Nominal AC current | 43.5A |
| Maximum AC current | 47.9A |
| Nominal AC voltage / range | 220, 230, 240/180~280V |
| Nominal output frequency | 50/60 ±5 |
| [THDi] | <3% |
| AC Output (Backup Mode) | |
| Nominal output power | 30000VA |
| Maximum output current | 43.5A |
| Nominal output voltage | 220/380V, 230/400V, 3L/N/PE |
| Nominal output frequency | 50/60 ±5 |
| Output THDv | <3% |
| Efficiency | |
| Maximum efficiency | 98.0% |
| European efficiency | 97.6% |
| Maximum battery charging efficiency | 97.6% |
| Protections | |
| AC short-circuit protection | Integrated |
| Overload protection | Integrated |
| Residual current monitoring unit | Integrated |
| Battery reverse polarity protection | Integrated |
| Interface | |
| PV connections | MC4 |
| Battery connections | Terminal block |
| Display | LCD |
| Communication | Wi-Fi/Ethernet/4G (Optional) |
| General Data | |
| Operating temperature range | -40°C to +60°C (from 45°C to 60°C with power derating) |
| Cooling | Intelligent fan cooling |
| Noise [dBA] | <50 |
| Ambient humidity | 0-100% without condensation |
| Protection grade | IP 65 |
| Dimensions [H*W*D] | 576 x 659 x 252mm |
| Weight | 50kg |
| Applicable standards | CEI 0-21, VDE4105-AR-N, VDE0126-1-1, EN50438, G98, G99, EN50549, AS4777.2 IEC62109-1&-2, EN61000-6-1/2/3/4 |
- MPPT number
- 3
- Typology
- Three-phase
- Inverter power
- 30kW
