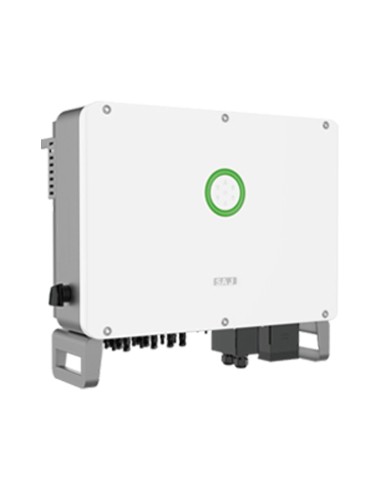

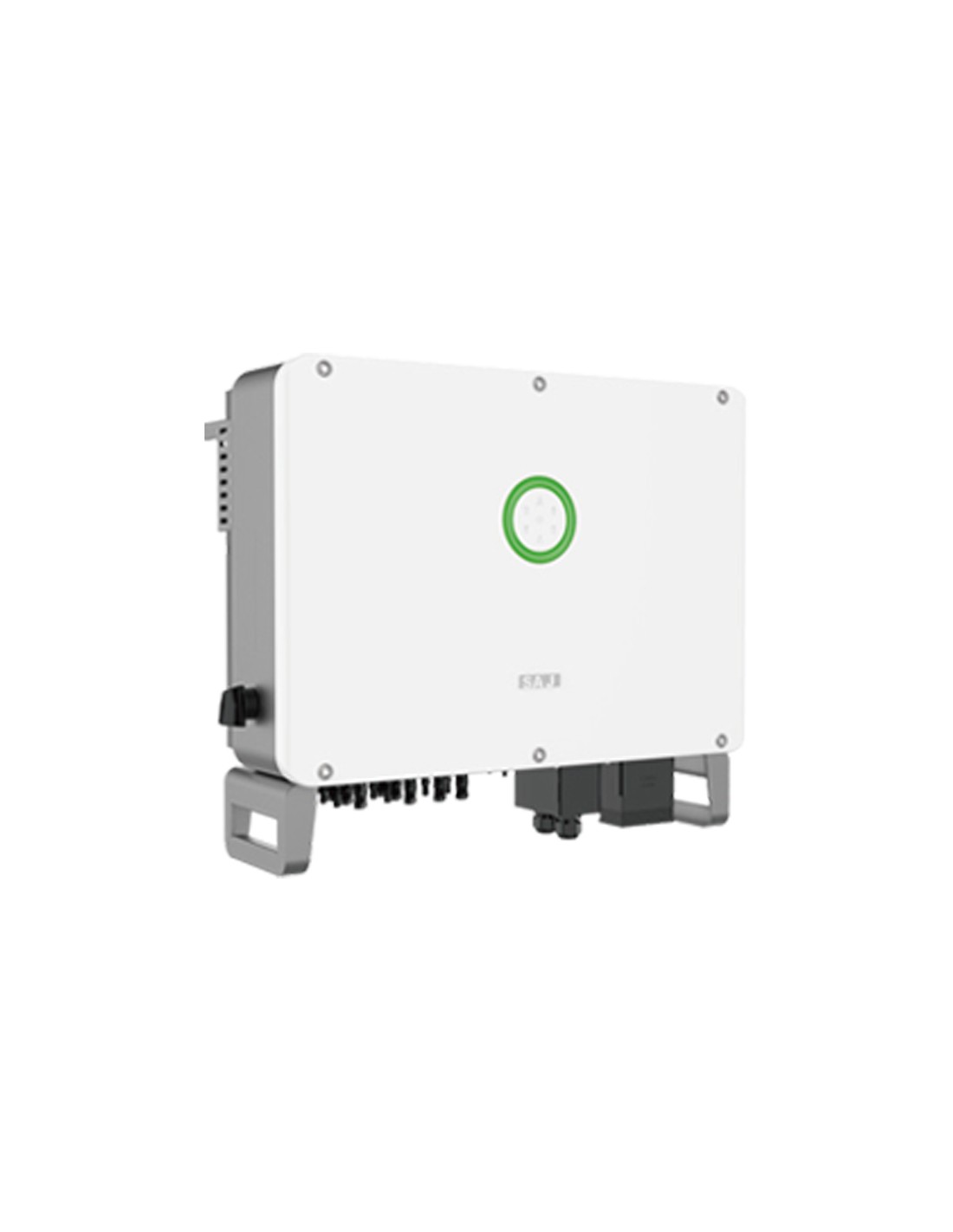

Three-phase hybrid inverter SAJ 15kW H2-15K-T3 double MPPT DC switch
H2-15K-T3
€3,095.40
VAT included
10 %
€2,814.00 Vat excl.
The H2 series is SAJ's high voltage hybrid inverter for new residential installations with energy storage.
Three-phase hybrid inverter SAJ 15kW H2-15K-T3 double MPPT DC switch
The H2 series is SAJ's high voltage hybrid inverter for new residential installations with energy storage.
The power of the H2-15K-T3 model is 15kW with 2 MPPT. The H2 series offers different usage modes to meet different needs, helping users maximize energy consumption and reduce dependency on the power grid.
Features
- Easy to set intelligent working modes;
- Support fast battery charging/discharging;
- Built-in AFCI;
- 150%~200% DC oversizing;
- 20A DC string matched with ultra high PV modules;
- With UPS function switching time ≤ 20ms.
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| DC Input | |
| Model | H2-15K-T2 |
| Maximum PV Field Power @STC | 30000Wp |
| Maximum DC Voltage | 1000V |
| MPPT Voltage Range | 180~900V |
| Nominal DC Voltage | 600V |
| Startup Voltage | 180V |
| Maximum DC Input Current | 15/15A |
| Maximum Short Circuit Current | 18/18A |
| Number of MPPTs | 2 |
| Number of Strings per MPPT | 1/1 |
| AC Output (Grid) | |
| Nominal AC Power | 15000W |
| Maximum AC Output Power | 16500 VA |
| Nominal AC Current | 21.8A |
| Maximum AC Current | 24.0A |
| Nominal AC Voltage / Range | 220, 230, 240/180~280V |
| Nominal Output Frequency | 50/60 ±5 |
| [THDi] | <3% |
| AC Output (Backup Mode) | |
| Nominal Output Power | 15000VA |
| Maximum Output Current | 21.8A |
| Nominal Output Voltage | 220/380V, 230/400V, 3L/N/PE |
| Nominal Output Frequency | 50/60 ±5 |
| Output THDv | <3% |
| Efficiency | |
| Maximum Efficiency | 97.6% |
| European Efficiency | 97.6% |
| Maximum Battery Charge Efficiency | 97.6% |
| Protections | |
| Short Circuit Protection (AC) | Integrated |
| Overload Protection | Integrated |
| Residual Current Monitoring Unit | Integrated |
| Battery Polarity Reversal Protection | Integrated |
| Interface | |
| PV Connections | MC4 |
| Battery Connections | Terminal Block |
| Display | LCD |
| Communication | Wi-Fi/Ethernet/4G (optional) |
| General Data | |
| Operating Temperature Range | -40°C to +60°C (from 45°C to 60°C with power derating) |
| Cooling | Natural Convection |
| Noise [dBA] | <30 |
| Ambient Humidity | 0-100% without condensation |
| Protection Rating | IP 65 |
| Dimensions [H*W*D] | 576 x 659 x 252mm |
| Weight | 50kg |
| Applicable Standards | CEI 0-21, VDE4105-AR-N, VDE0126-1-1, EN50438, G98, G99, EN50549, AS4777.2 IEC62109-1&-2, EN61000-6-1/2/3/4 |
- MPPT number
- 2
- Typology
- Three-phase
- Inverter power
- 15kW
