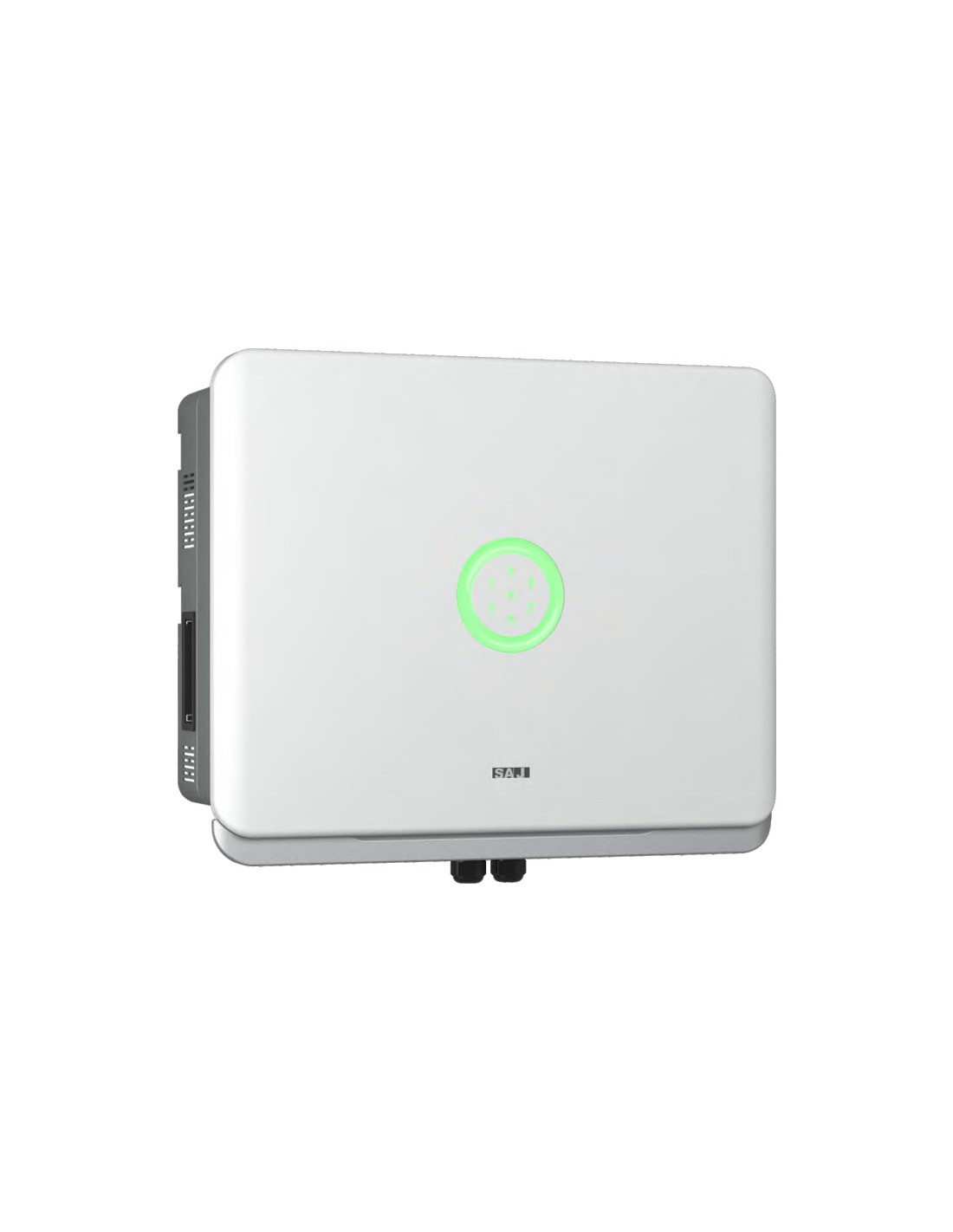

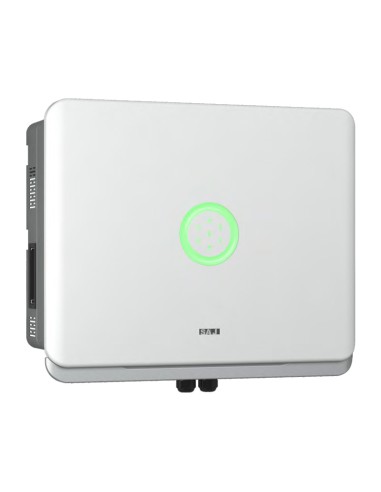

Name: Three-phase hybrid inverter SAJ 10kW H2-10K-T2 double MPPT DC switch
Brand: Saj
SKU: H2-10K-T2
Price: 2019.62 EUR
Availability: InStock

Reference H2-10K-T2

€2,019.62

VAT included 10 %

€1,836.02 Vat excl.

The H2 series is SAJ's high voltage hybrid inverter for new residential installations with energy storage.

Three-phase hybrid inverter SAJ 10kW H2-10K-T2 double MPPT DC switch

The H2 series is SAJ's high voltage hybrid inverter for new residential installations with energy storage.
The power of the H2-10K-T2 model is 10kW with 2 MPPT. The H2 series offers 3 different usage modes to meet different needs, helping users maximize energy consumption and reduce dependency on the power grid.

It also supports 24-hour load monitoring and zero-export functionality for smart energy management.

Features

Easy configuration of intelligent operating modes;
AFCI (optional);
15A per string that can be combined with very high power modules;
Oversizing of 150% DC side;
Supports fast battery charge/discharge;
Supports 100% three-phase voltage unbalance;
With UPS function switching time ≤ 10ms;
Maximum AC power 110% of rated power.

For more details, download the following documents:

Datasheet: [Download]

Technical features

DC Input
Model	H2-10K-T2
Max. PV Array Power @STC	15000Wp
Max. DC Voltage	1000V
MPPT Voltage Range	180~900V
Rated DC Voltage	600V
Start Voltage	180V
Max. DC Input Current	15/15A
Max. DC Short Circuit Current	18/18A
No. of MPPT	2
DC Switch	Integrated
Battery Parameters
Battery Type	Lithium battery
Battery Voltage Range	180~600V
Rated Charging/ Discharging Current	30/30A
Rated Charging/ Discharging Powe	10000W
AC Output [On-grid]
Rated AC Power	10000W
Max. Apparent Power	11000VA
Rated AC Current	14.5A
Max. AC power	16.7A
Rated Grid Voltage/Range	220/ 380V, 230/ 400V, 3L/ N/ PE
Rated Output Frequency	50/ 60 ±5 Hz
[THDi]	<3%
AC Output [Back-up Mode]
Rated Output Power	10000VA
Max. Output Current	15.9A
Rated Output Voltage	220/ 380V, 230/ 400V, 3L/ N/ PE
Rated Output Frequency	50/ 60 ±5 Hz
Output THDv	<3%
Efficiency
Max. Efficiency	98.0%
Euro Efficiency	97.6%
Max. Battery Charging Efficiency	97.6%
Protection
AC Short Circuit Protection	Integrated
Overload Protection	Integrated
Residual Current Monitoring Unit	Integrated
Battery Input Reverse Polarity Protection	Integrated
Interface
PV Connection	MC4
Battery Connection	Quick connector
Display	LED+APP
Communication	Wi-Fi/ Ethernet/4G (Optional)
General Data
Operating Temperature Range	-40°C to +60°C (45℃ to 60℃ with derating)
Cooling Method	Natural convection
Noise [dBA]	<30
Ambient Humidity	0%~100% non-condensing
Ingress Protection	IP 65
*Dimensions [HWD]*	433 x 549 x 207 mm
Weight	25kg
Applicable Standard	CEI 0-21, VDE4105-AR-N, VDE0126-1-1, EN50438, G98, G99, EN50549, AS4777.2 IEC62109-1&-2, EN61000-6-1/2/3/4
