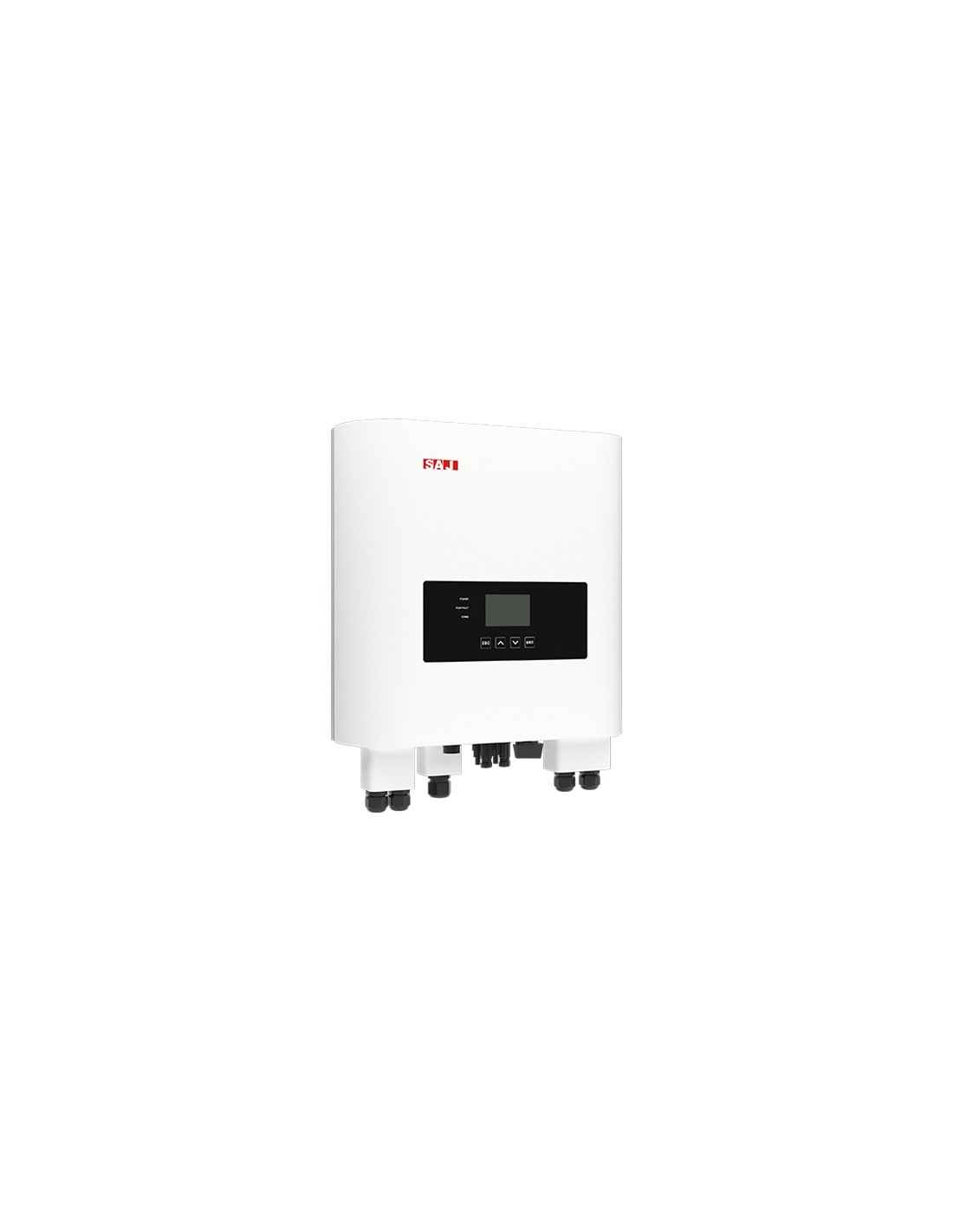

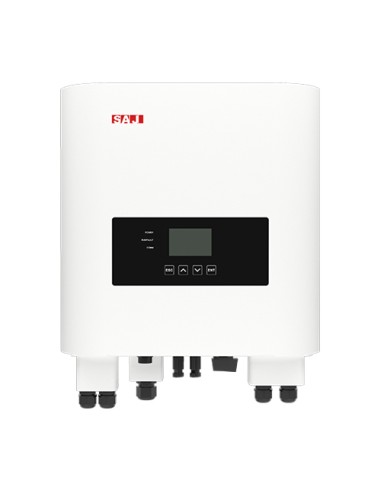

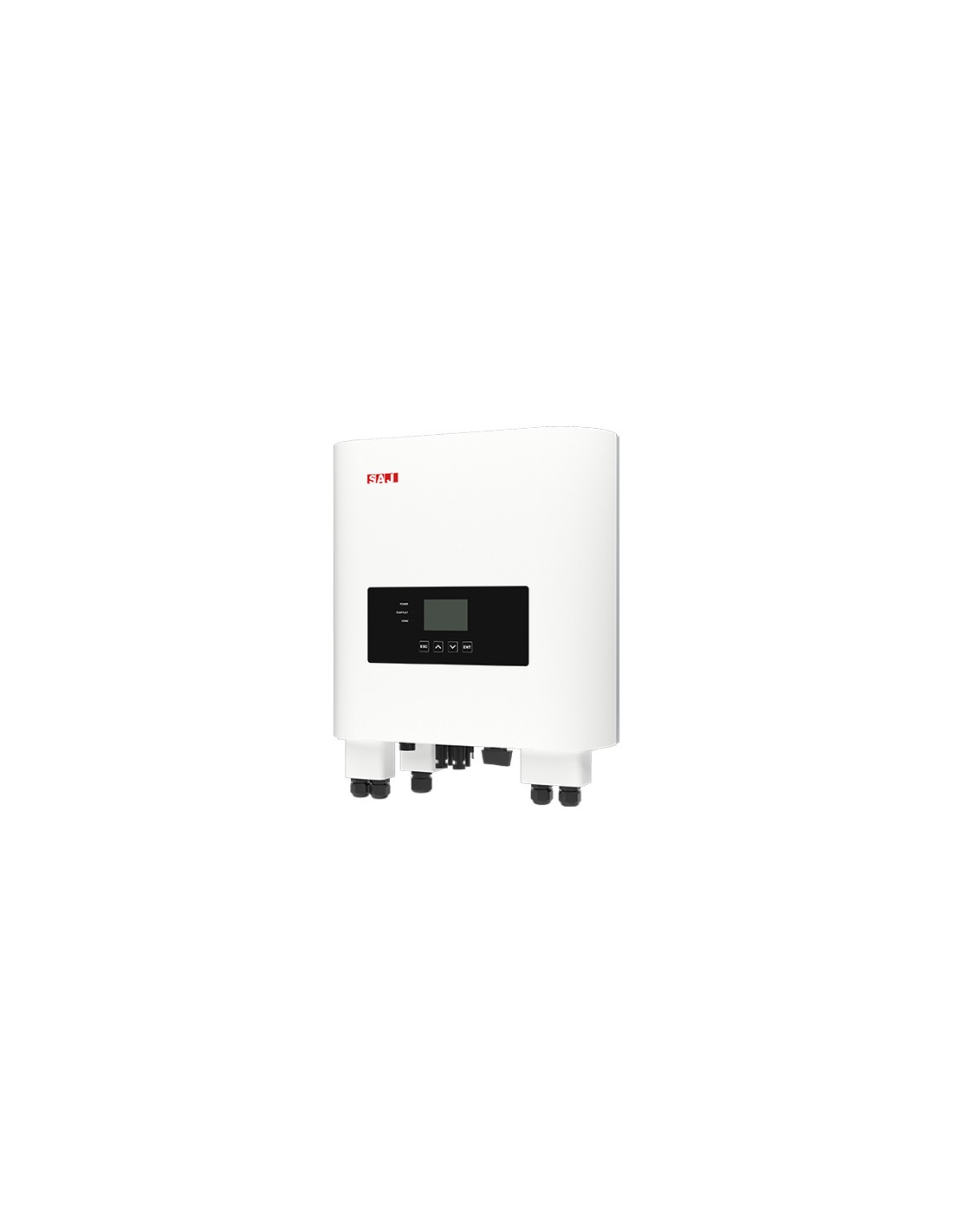

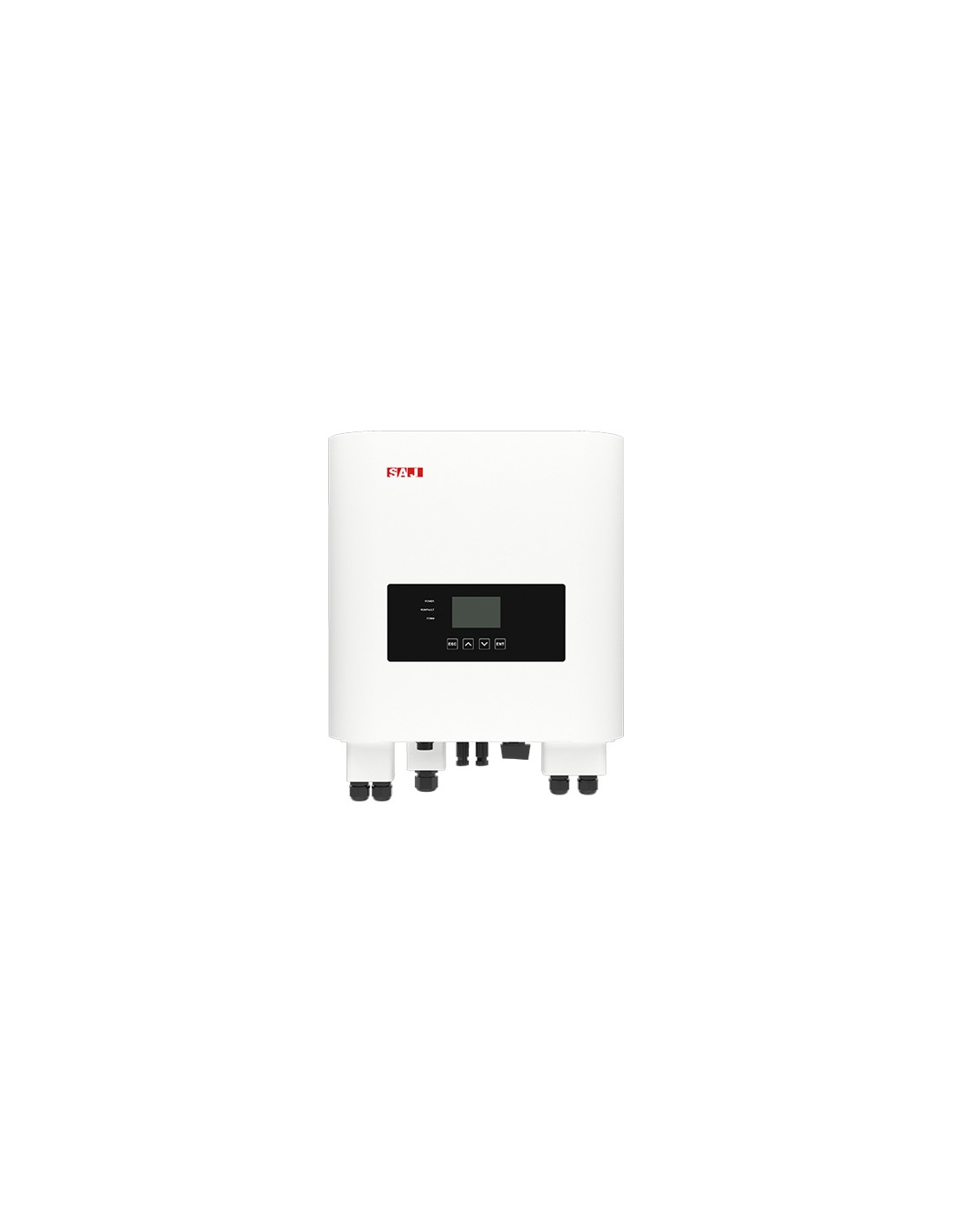

Single-phase hybrid inverter SAJ 6kW H1-6K-S2 double MPPT DC switch photovoltaic
H1-6K-S2
€1,085.70
VAT included
10 %
€987.00 Vat excl.
The H1 series is SAJ's low voltage hybrid inverter for new residential installations with energy storage.
The power of the H1-6K-S2 model is 6kW with 2 MPPT. The whole series of H1 inverters is single-phase.
Single-phase hybrid inverter SAJ 6kW H1-6K-S2 double MPPT DC switch
The H1 series is SAJ's low voltage hybrid inverter for new residential installations with energy storage.
The power of the H1-6K-S2 model is 6kW with 2 MPPT. The whole series of H1 inverters is single-phase.
The H1 hybrid inverter offers easy-to-set operating modes to meet different needs. It also supports 24/7 load monitoring and zero export functionality to allow users to intelligently manage home energy.
Meter and WIFI stick integrated.
Features
- With UPS function switch time ≤ 10ms;
- Fanless design quiet and comfortable;
- Zero export function supported;
- Max. 100A charge current;
- 24H energy monitoring and management;
- Easy setting of 100A smart working modes.
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| DC Input | |
| Model | H1-6K-S2 |
| Max. PV Array Power @STC | 9000Wp |
| Max. DC Voltage | 600V |
| MPPT Voltage Range | 90-550V |
| Rated DC Voltage | 360V |
| Start Voltage | 120V |
| Min. DC Voltage | 80V |
| Max. DC Input Current | 12.5/12.5A |
| Max. DC Short Circuit Current | 15/15A |
| No. of MPPT | 2 |
| DC Switch | Integrated |
| Battery Parameters | |
| Battery Type | Lithium battery |
| Rated Input Voltage/Voltage Range | 48/42~58.5V |
| Rated Charging/ Discharging Current | 100/100A |
| Charging Mode Control | 3 Stages |
| AC Output [On-grid] | |
| Rated AC Power | 6000W |
| Max. Apparent Power | 6000VA |
| Rated AC Current | 26.1A |
| Max. AC power | 27.3A |
| Rated Grid Voltage/Range | 220, 230, 240/180~280V |
| Rated Output Frequency | 50/ 60 ±5 Hz |
| Feed-in | L+N+PE |
| AC Output [Back-up Mode] | |
| Rated Output Power | 5000VA |
| Peak Output Apparent Power | 6000VA, 10s |
| Output Voltage | 220/230/240V |
| Rated Output Frequency | 50/ 60 ±5 Hz |
| Output THDv | <3% |
| Efficiency | |
| Max. Efficiency | 97.6% |
| Euro Efficiency | 97.0% |
| Max. Battery Charging Efficiency | 94.6% |
| Protection | |
| AC Short Circuit Protection | Integrated |
| Overload Protection | Integrated |
| DC Overvoltage/Undervoltage Protection | Integrated |
| Peak-to-trough Period Setting | Integrated |
| Interface | |
| PV Connection | MC4 |
| Battery Connection | Terminal block |
| Display | LCD |
| Communication | Wi-Fi/ Ethernet/4G (optional) |
| General Data | |
| Operating Temperature Range | -25°C ~ 60°C |
| Cooling Method | Natural convection |
| Noise [dBA] | < 29 |
| Ambient Humidity | 0-100% non-condensing |
| Ingress Protection | IP 65 |
| Dimensions [H*W*D] | 470 x 470 x 190mm |
| Weight | 23kg |
| Applicable Standard | IEC62109-1/2, IEC61000-6-1/2/3/4, EN50438, EN50549, C10/C11, IEC62116, IEC61727, RD1699,UNE 206006, UNE 206007, CEI 0-21, AS4777.2, CQC NB/T 32004, VDE-AR-N 4105 |
- MPPT number
- 2
- Typology
- Single-phase
- Inverter power
- 6.0kW
8370000018032
