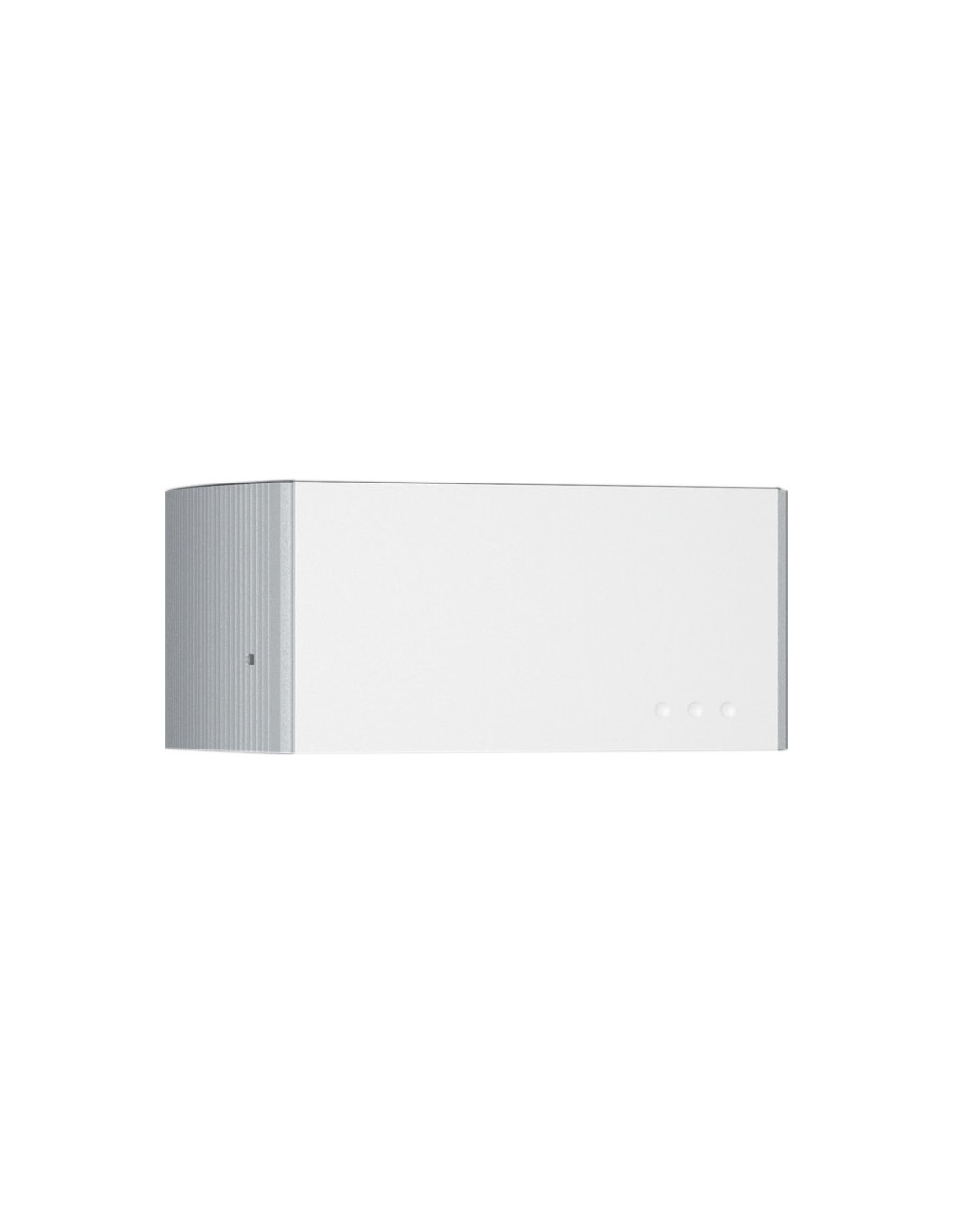

Lithium battery 5kWh SAJ BU2-5.0-HV1 for inverter photovoltaic storage

Lithium battery 5kWh SAJ BU2-5.0-HV1 for inverter photovoltaic storage

Name: Lithium battery 5kWh SAJ BU2-5.0-HV1 for inverter photovoltaic storage
Brand: Saj
SKU: BU2-5.0-HV1
Price: 2097.29 EUR
Availability: InStock

Reference BU2-5.0-HV1

€2,097.29

VAT included 10 %

€1,906.63 Vat excl.

Wall or ground installation;
IP65 outdoor design;
Remote firmware update;
LiFePO4 batteries, safe and reliable;
Modular design, scalable up to 25kWh;
Depth of discharge at 90%.

Lithium battery 5kWh SAJ BU2-5.0-HV1 photovoltaic storage

Features

Wall or ground installation;
IP65 outdoor design;
Remote firmware update;
LiFePO4 batteries, safe and reliable;
Modular design, scalable up to 25kWh;
Depth of discharge at 90%.

For more details, download the following documents:

Datasheet: [Download]

Technical features

Electrical Parameters
Nominal Energy	5kWh
Usable Capacity	4.5kWh
Nominal Voltage	102.4V
Operating Voltage	89.6-115.2V
Nominal Power	3072W
Maximum Charge Current	30A
Maximum Discharge Current	30A
Control Module
Max Fault Current	100A
Dimensions	200 x 626 x 365 mm
Weight	11kg
General Data
Installation	Wall installation (optional)/Floor installation
Communication	CAN
Operating Temperature Range	Charge: 0～50 ℃; Discharge: -10～50 ℃
Cooling Method	Natural Convection
Ambient Humidity	0～95% non-condensing
Ingress Protection	IP65
*Dimensions [ALP]*	261 x 626 x 365 mm
Weight	50.5kg
Applicable Standards	IEC 62619(Cell&Pack), EN 62477-1, EN 61000-6-1/2/3/4, UN38.3
