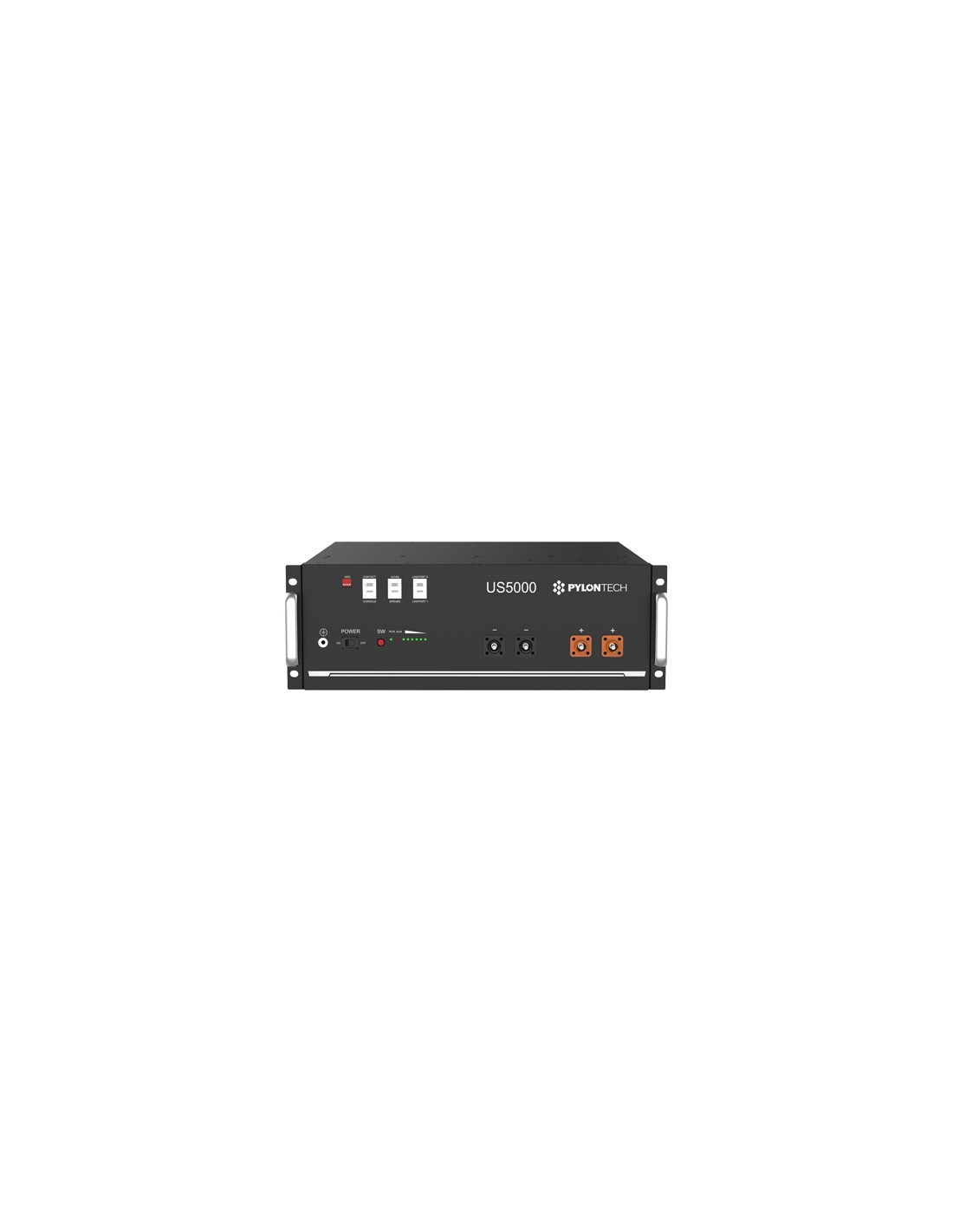

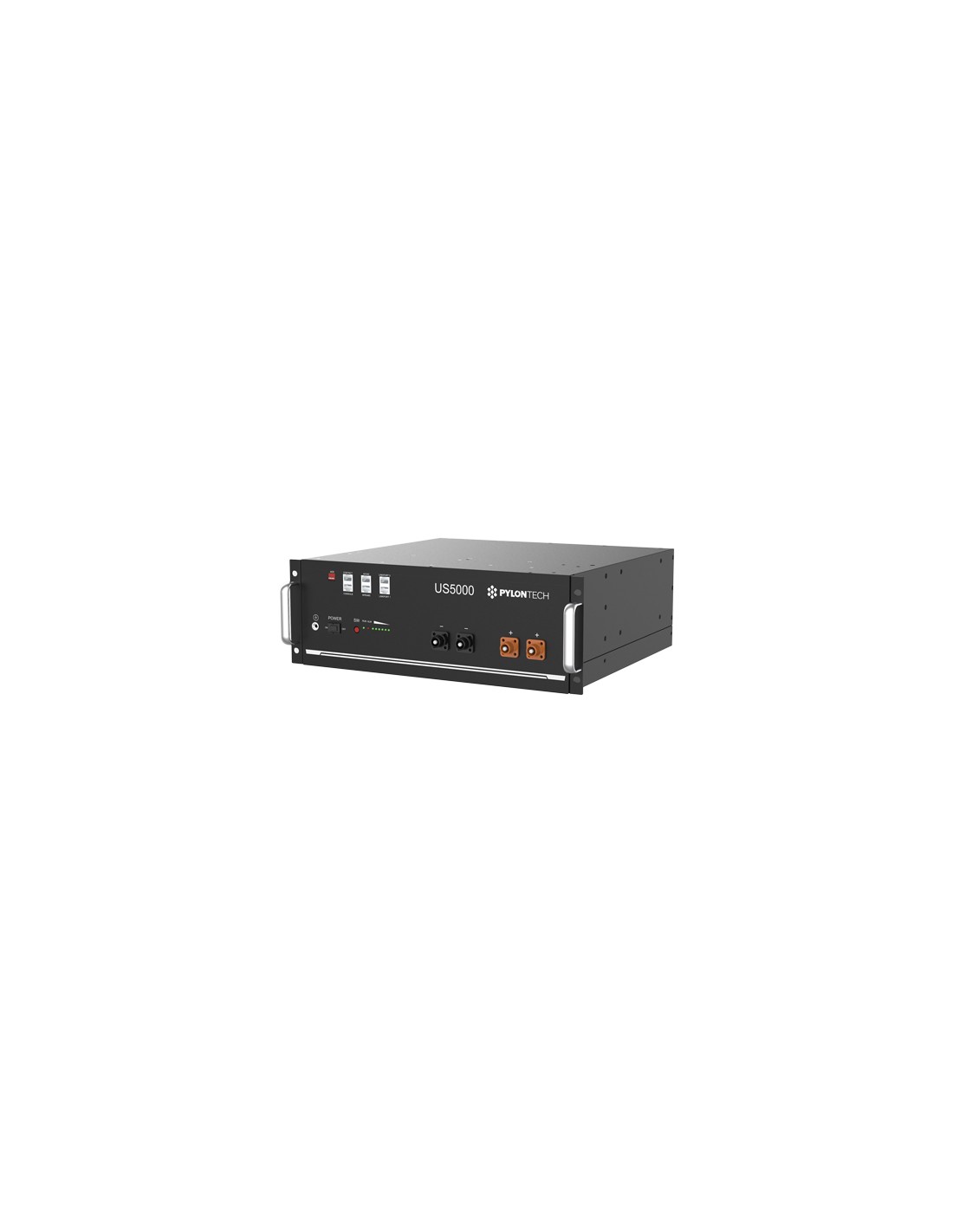

Lithium Battery 4.8kWh 48V Pylontech US5000 Photovoltaic Accumulation Storage

Lithium Battery 4.8kWh 48V Pylontech US5000 Photovoltaic Accumulation Storage

Lithium Battery 4.8kWh 48V Pylontech US5000 Photovoltaic Accumulation Storage

Lithium Battery 4.8kWh 48V Pylontech US5000 Photovoltaic Accumulation Storage

Lithium Battery 4.8kWh 48V Pylontech US5000 Photovoltaic Accumulation Storage

Reference US5000

€1,186.68

VAT included 10 %

€1,078.80 Vat excl.

US5000 lithium iron phosphate battery is one of new energy storage products developed and produced by Pylontech, it can be used to support reliable power for various types of equipments and systems.

Lithium Battery 4.8kWh 48V Pylontech US5000 Photovoltaic Accumulation Storage

Safety: multi-protection from self developed BMS;
Optimal Electricity Cost: long cycle life and superior performance;
Compact Size & East Installation: module design help for quick installation.

NOTE: for battery warranty purposes, you need to register on the Pylontech website.

For more details, download the following documents:

Datasheet [Download]

Technical features

BASIC PARAMETERS
Nominal Voltage	48V
Nominal Capacity	4800Wh
Depth of discharge	95%
Usable Capacity	4560Wh
Discharge Voltage	44.5 ~ 53.5V
Charge Voltage	52.5 ~ 53.5V
Charge/Discharge Current (recommend)	50 A
Charge/Discharge Current (max)	100 A
Communication	RS485, CAN
Short current/duration time	<4000A/2ms
Cooling type	Natural
Breaker	No
IP rating of enclosure	IP20
GENERAL DATA
Humidity	5% ~ 95%(UR) No Condensation
Altitude	<4000
Dimensions	442 x 420 x 161mm
Weight	38 kg
Certification	IEC / CE / UN38.3/UL
Design life	15 years (25°C/77°F)
Cycle Life	>6,000 25℃
Reference to standards	IEC62619, IEC63056,CE, UN38.3,UL1973, UKCA

Customer Service

0882 22 82 47

[email protected]

Voltage (V): 48V
Accumulation capacity: 4.8kW

EAN13 8370000019077
