Pylontech BMS high voltage 19.2kWh storage system photovoltaic

Pack

Pylontech BMS high voltage 19.2kWh storage system photovoltaic

Name: Pylontech BMS high voltage 19.2kWh storage system photovoltaic
Brand: Pylontech
SKU: KSA-ZST-PYL-19.2-BMS
Price: 5821.22 EUR
Availability: InStock

Reference KSA-ZST-PYL-19.2-BMS

Last items in stock

€5,821.22

VAT included 10 %

€5,292.02 Vat excl.

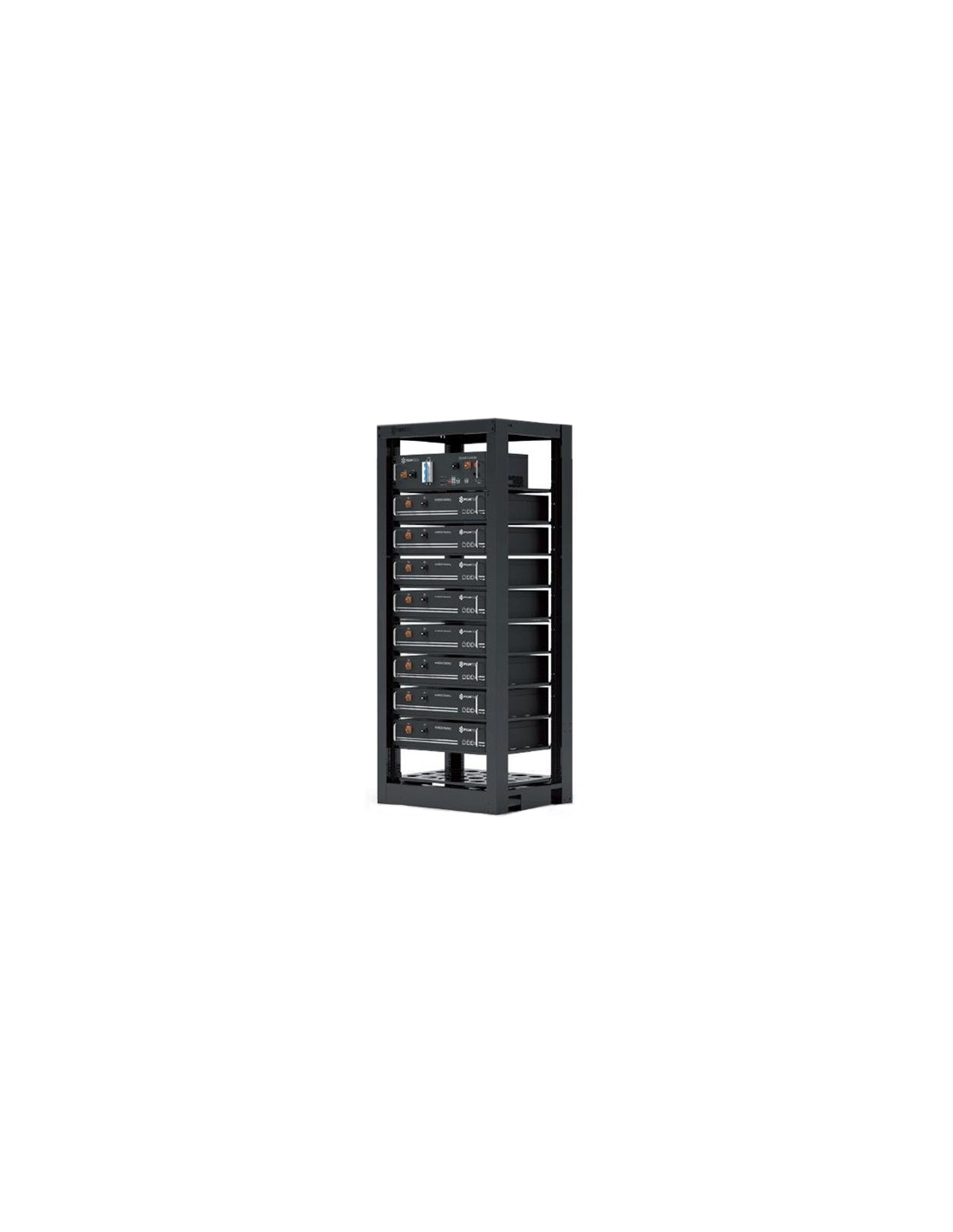

The Pylontech storage system is made up of 2.4kWh high voltage batteries based on lithium iron phosphate cells, a rack cabinet with 8 battery modules, cables and the respective BMS.

This pack contains

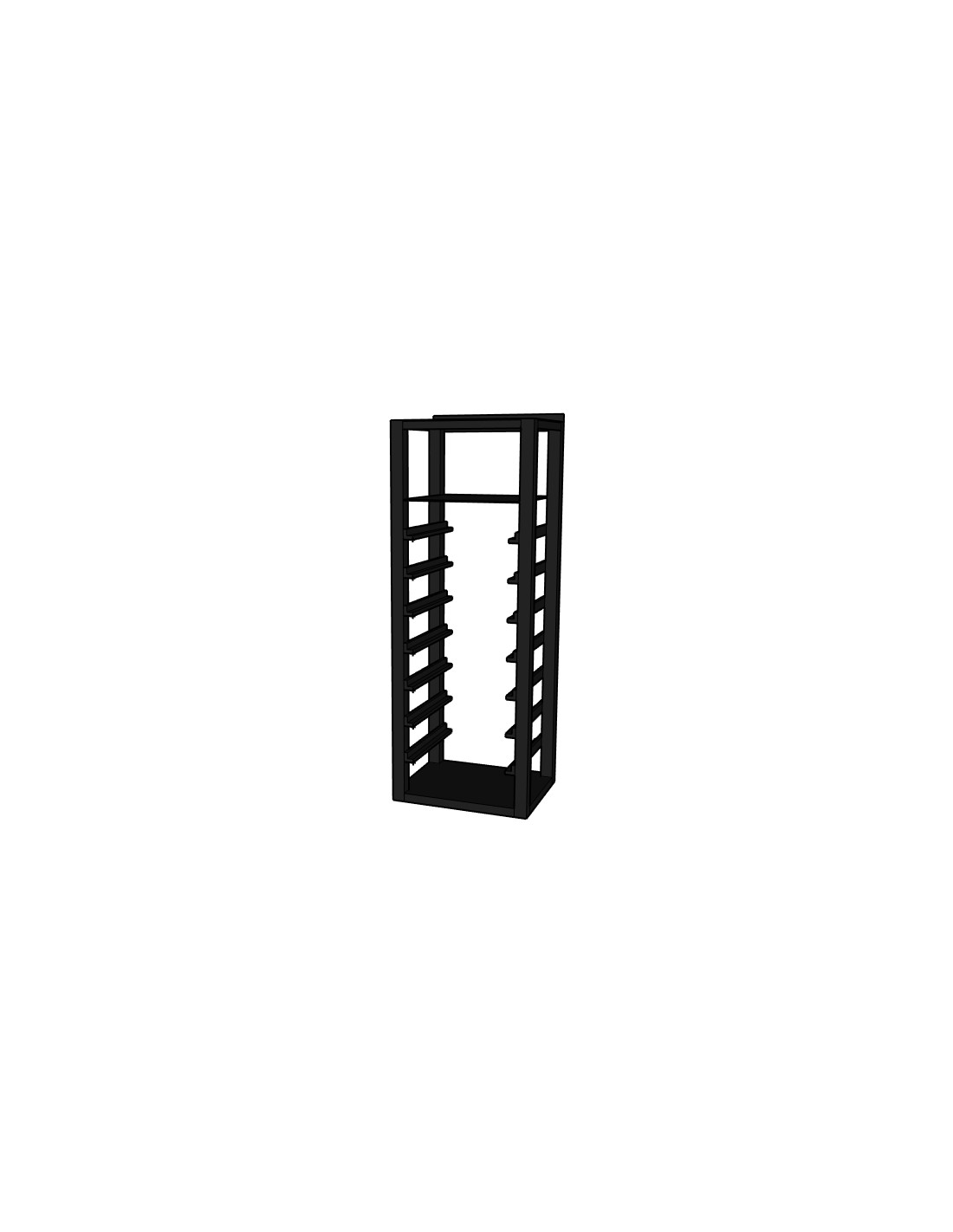

Rack cabinet for up to 8 Pylontech lithium battery modules BMS photovoltaic

€433.05

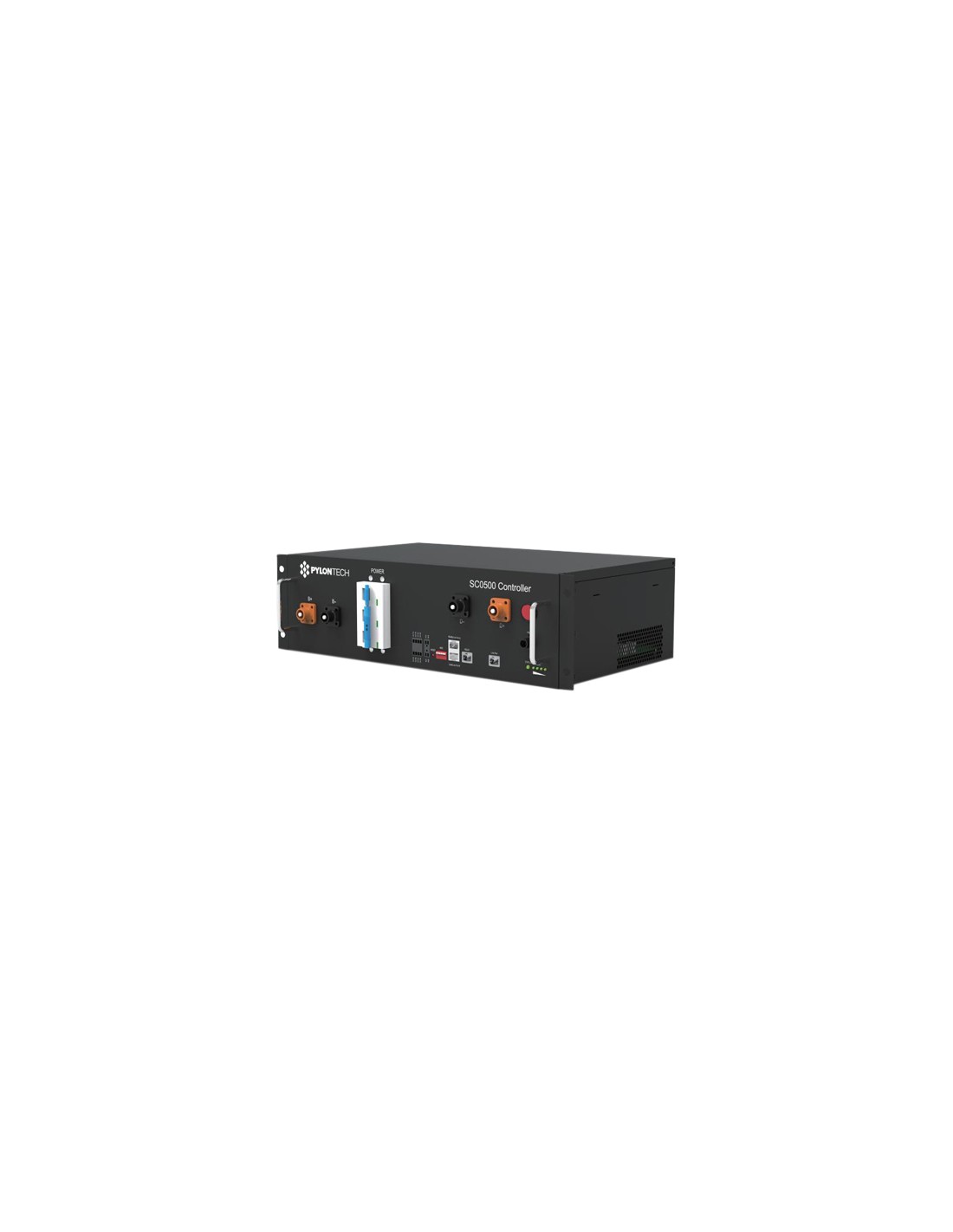

ZST-BMS-SC500-H BMS module for H48050 Pylontech high voltage lithium batteries

€759.00

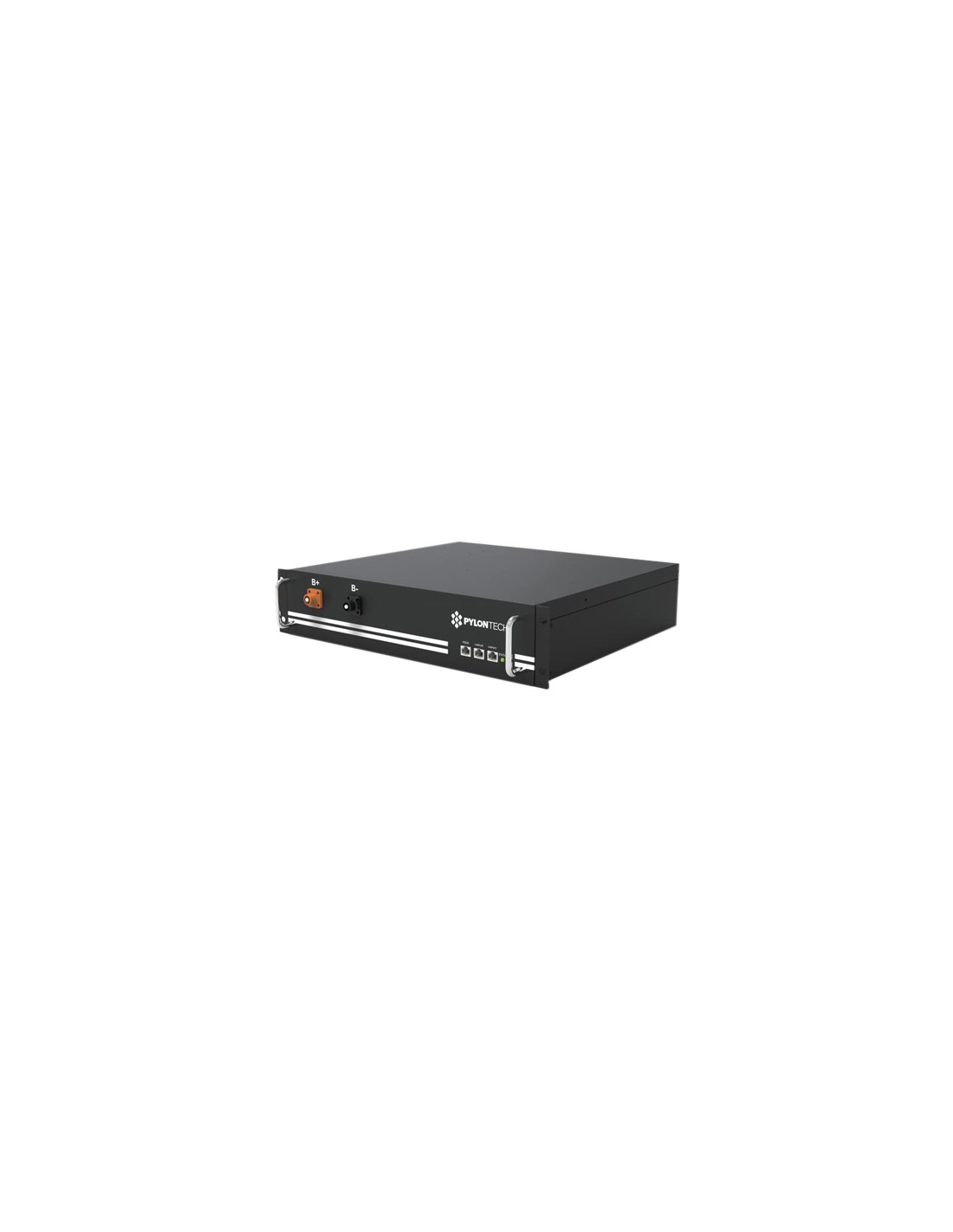

ZCS Pylontech H48050 2.4kWh high voltage lithium battery photovoltaic storage

€569.80

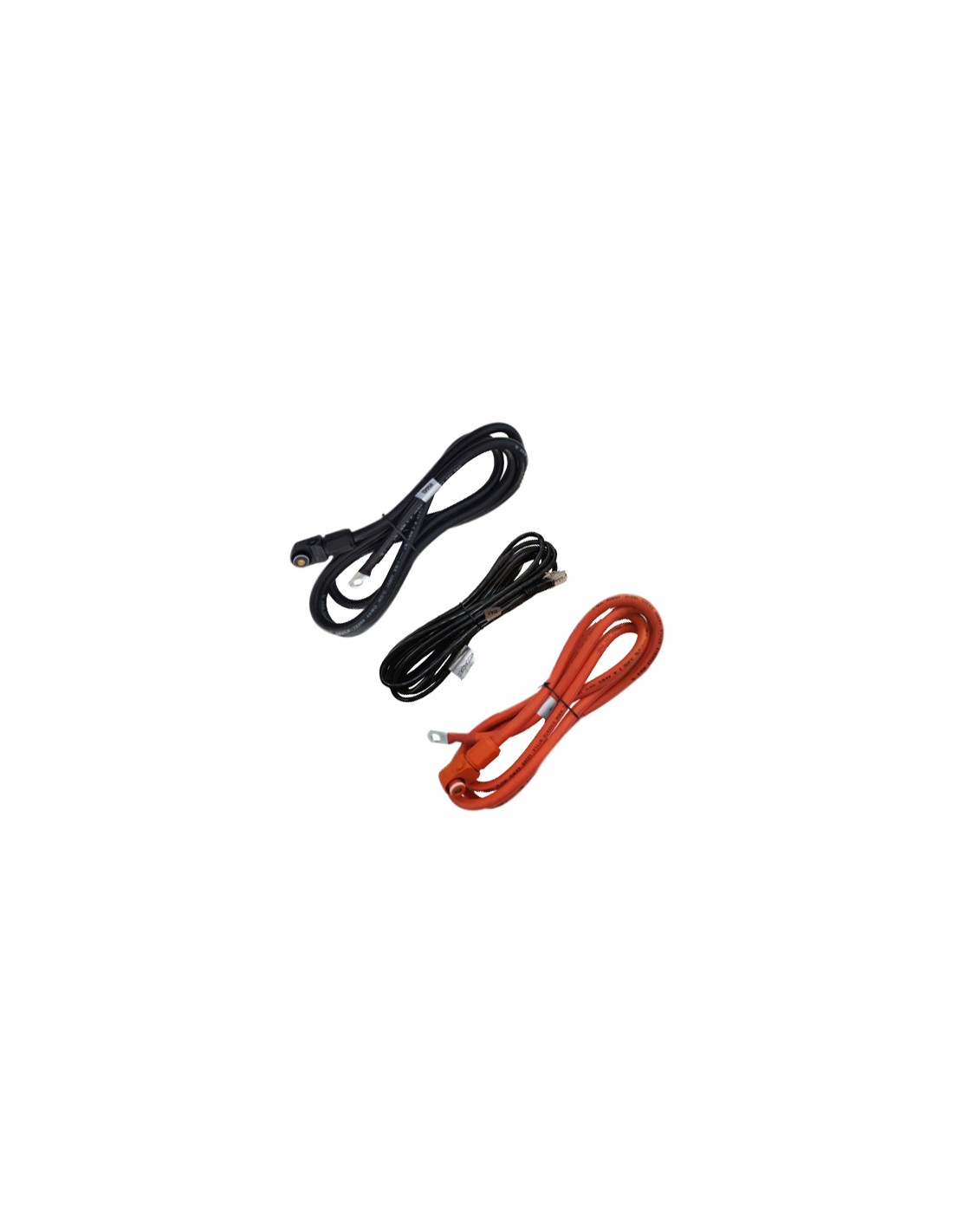

Connection cables between BMS Pylontech and three-phase hybrid inverter

€70.77

Pylontech BMS high voltage 19.2kWh storage system

The Pylontech storage system is made up of 2.4kWh high voltage batteries based on lithium iron phosphate cells, a rack cabinet with 8 battery modules, cables and the respective BMS.

The basic module is 2.4kWh, the discharge depth is 90% and a capacity of 28.8kWh can be reached for each 12-element stack with a 12-module rack cabinet. The pile is completed by the BMS, the upper element of the structure, which controls and regulates the charges and discharges of the system.

KIT COMPONENTS

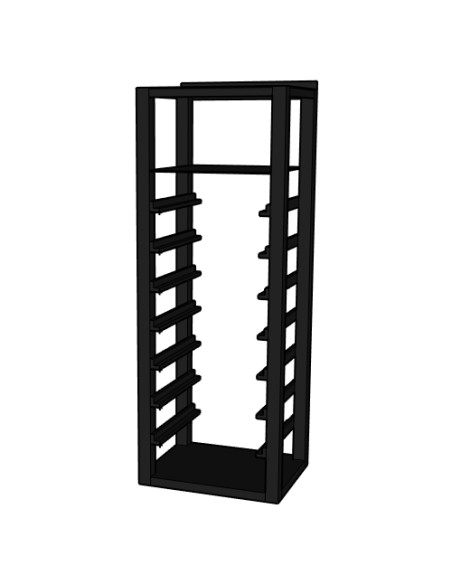

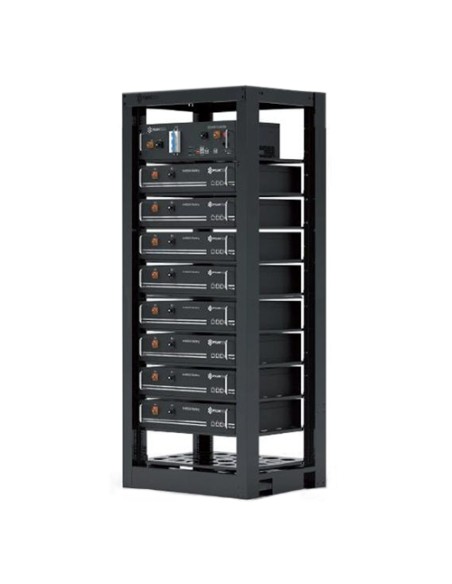

1	Cabinet	Cabinet rack ZST-RACK-H1 8 modules	Download

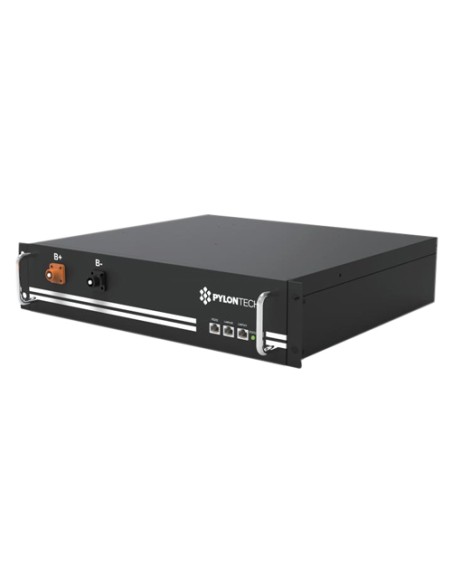

8	Lithium battery	Lithium battery 2.4kWh Pylontech H48050	Download

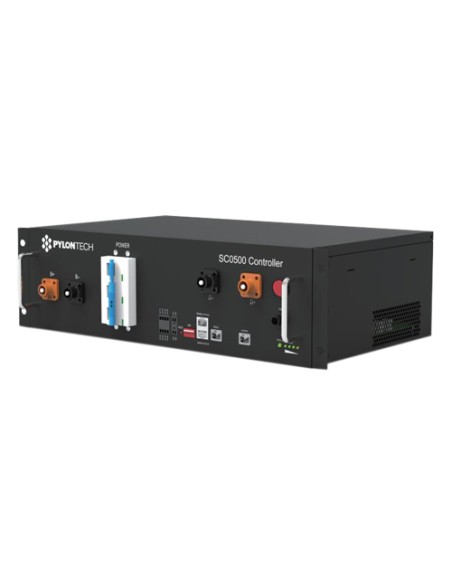

1	BMS	Pylontech SC500-H battery monitoring system	Download

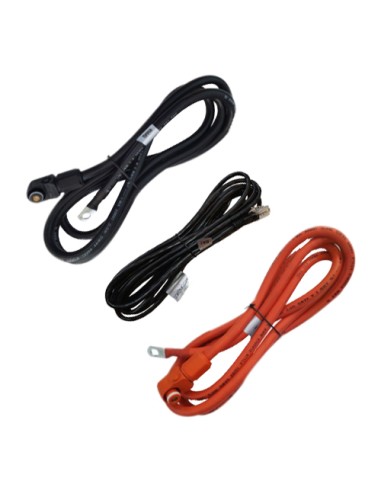

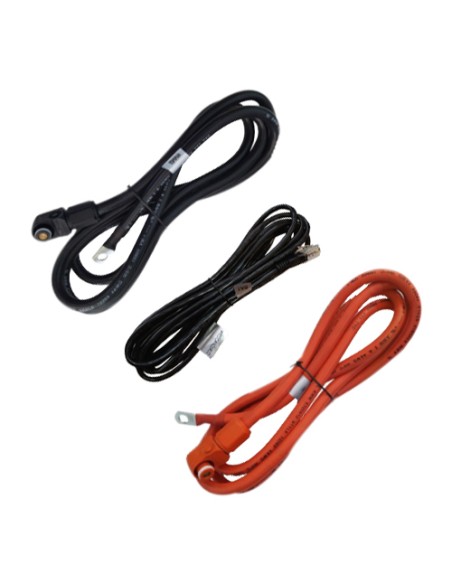

1	Connection cable kit	Connection cables between BMS and three-phase inverter

Battery main features

Simple and intuitive assembly;
Easy to install thanks to its size;
Capacity equal to 28.8kWh for 12-element modules;
suitable for the creation of accumulation systems of small and large capacities.
