BlueSolar PWM Charge Controller 30A 12/24V LCD Display and USB Victron Energy

SCC010030050
Last items in stock
€48.51
VAT included 10 %

€44.10 Vat excl.

Victron Energy PWM Bluesolar 30A 12/24V charge controller with LCD display and USB ports



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

BlueSolar PWM Charge Controller 12/24V 30A

Liquid crystal display and USB outputs

Liquid crystal display
For status monitoring and set-up

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.

IMPORTANT

• Always connect the battery first, in order to allow the Controller to recognize system voltage.

• Use a 12V (36 cells) solar array for a 12V system.

• Use a 24V (72 cells) solar array for a 24V system.

Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

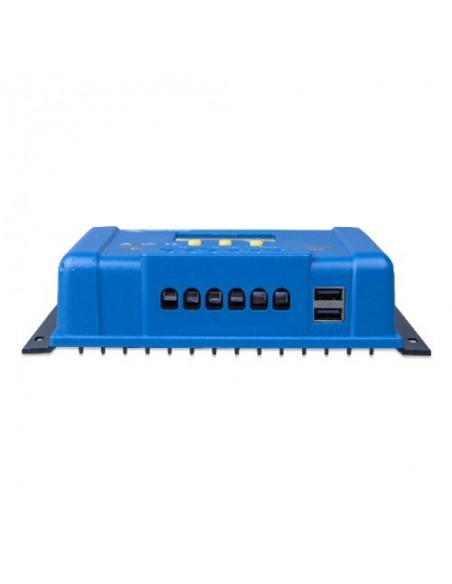

Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A

Technical features

Product code: SCC010030050

Battery Voltage: 12/24V with automatic system voltage detection

Rated charge current: 30A

Maximum solar voltage : 28/55V

Weight: 0,30kg

Dimensions (h x w x d): 101 x 184x 47mm


   Downloads

Datasheet [LINK]
Multilingual Manual [LINK]

You can download all the other documentation on the website: www.victronenergy.com

   Customer care

0882 22 82 47
[email protected]
Product Code
SCC010030050
Technology (MPPT - PWM)
PWM
Nominal system voltage (VDC)
12 / 24 VDC Auto work
Rated Battery Current
30A
8719076046226
