BlueSolar PWM Charge Controller 20A 48V LCD Display and USB Victron Energy

SCC040020050
€61.66
VAT included 10 %

€56.05 Vat excl.

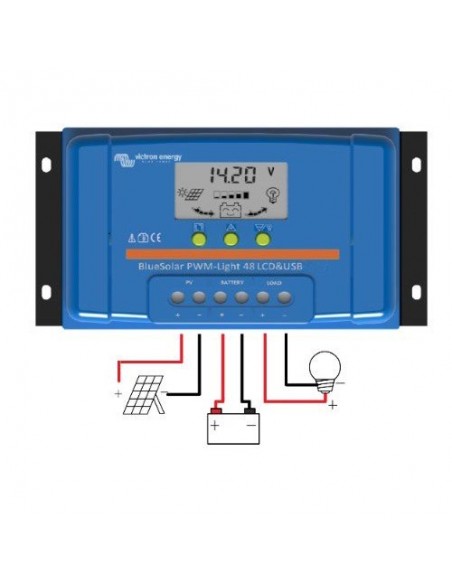

Victron Energy PWM Bluesolar 20A 48V charge controller with LCD display and USB ports



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

BlueSolar PWM Charge Controller 48V 20A

Liquid crystal display and USB outputs

Liquid crystal display
For status monitoring and set-up

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.

Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.

IMPORTANT

• Always connect the batteries first.

• Use for 12V battery system only 12V (36 cells) solar panel array.
• Use for 24V battery system only 24V (72 cells) solar panel array.
• Use for 48V battery system only 2x24V (72 cells) solar panel array in series.

Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A

Technical features

Product code: SCC040020050

Battery Voltage: 48V

Rated charge current: 20A

Maximum solar voltage : 100V

Weight: 0,30kg

Dimensions (h x w x d): 101 x 184 x 47mm


   Downloads

Datasheet [LINK]
Multilingual Manual [LINK]

You can download all the other documentation on the website: www.victronenergy.com

   Customer care

0882 22 82 47
[email protected]
Product Code
SCC040020050
Technology (MPPT - PWM)
PWM
Nominal system voltage (VDC)
48VDC
Rated Battery Current
20A
Overall dimension
101 x 184 x 47mm
Net weight
0.3 Kg
8719076046240
