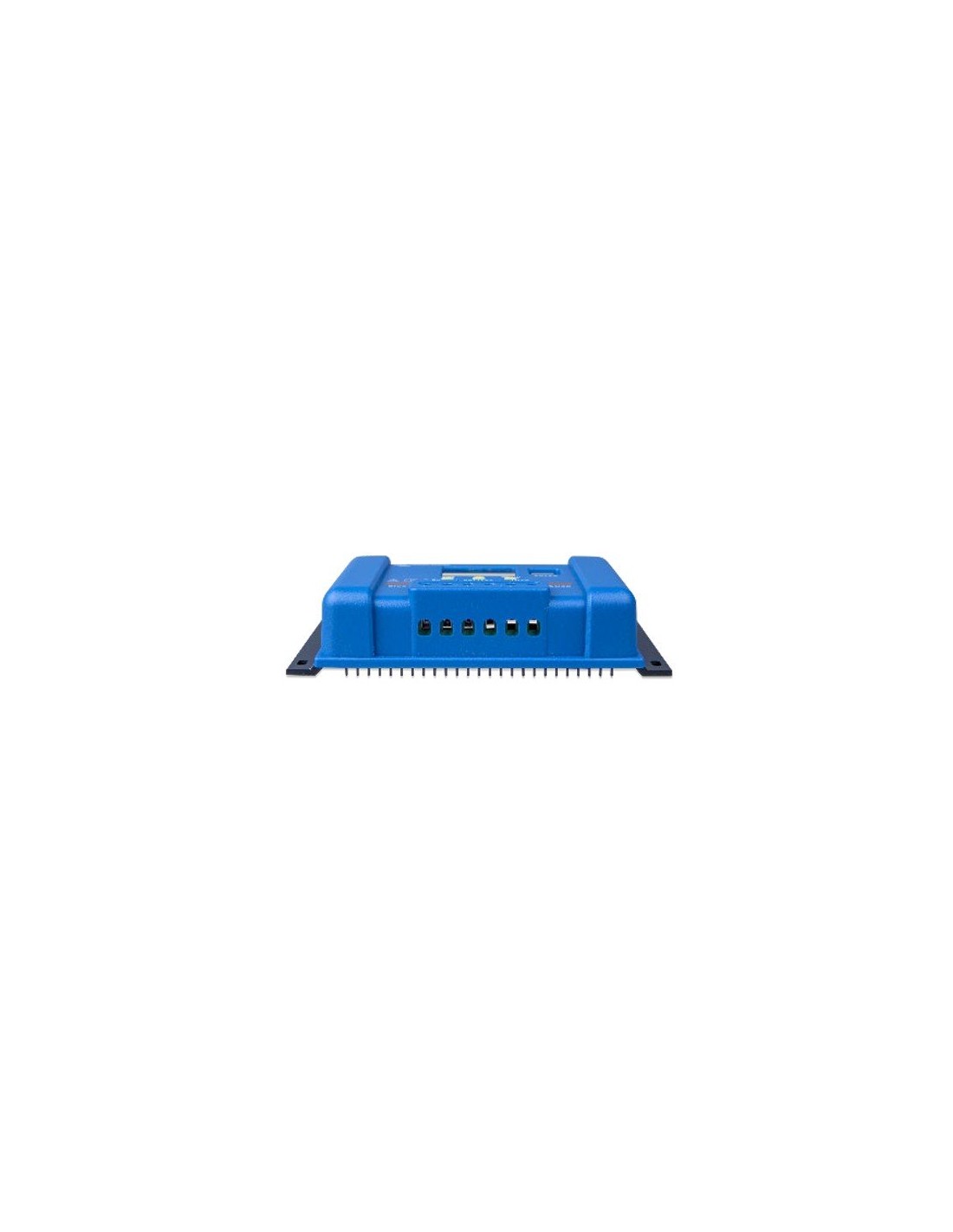

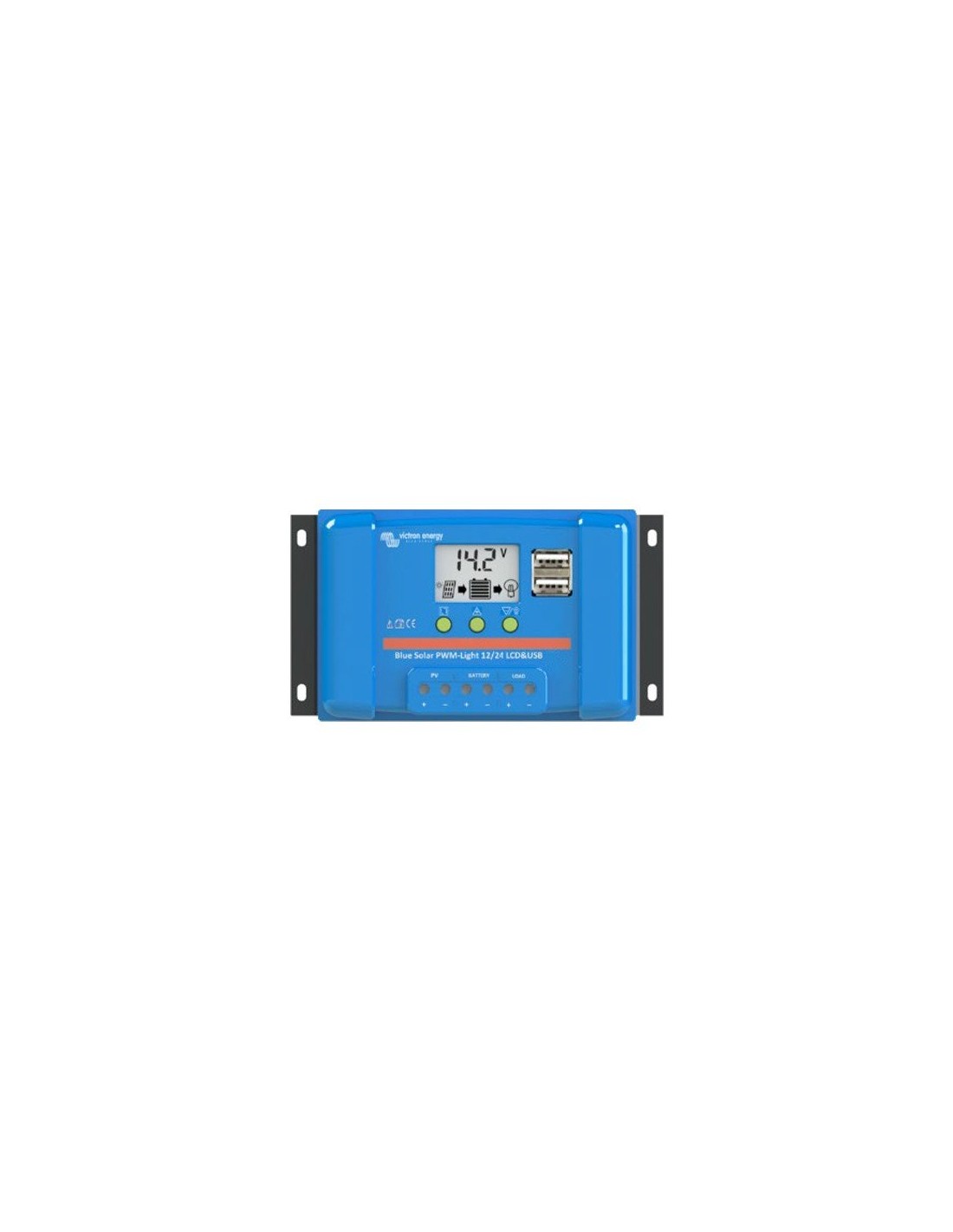

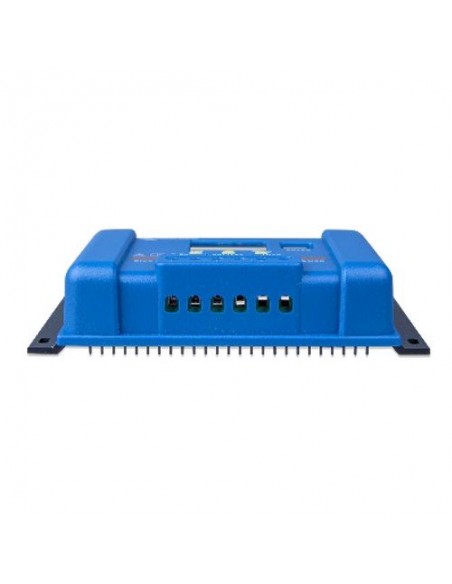

BlueSolar PWM Charge Controller 10A 12/24V LCD Display and USB Victron Energy
SCC010010050
Last items in stock
€42.45
VAT included
10 %
€38.59 Vat excl.
Victron Energy PWM Bluesolar 10A 12/24V charge controller with LCD display and USB ports
Are you a dealer or installer?
For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]
 |
BlueSolar PWM Charge Controller 12/24V 10ALiquid crystal display and USB outputs |

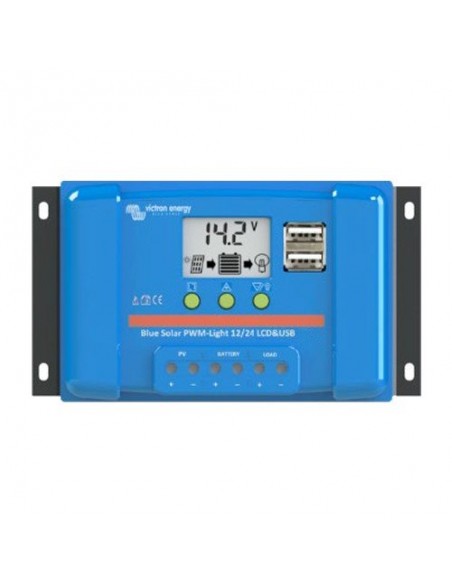

Liquid crystal display
For status monitoring and set-up

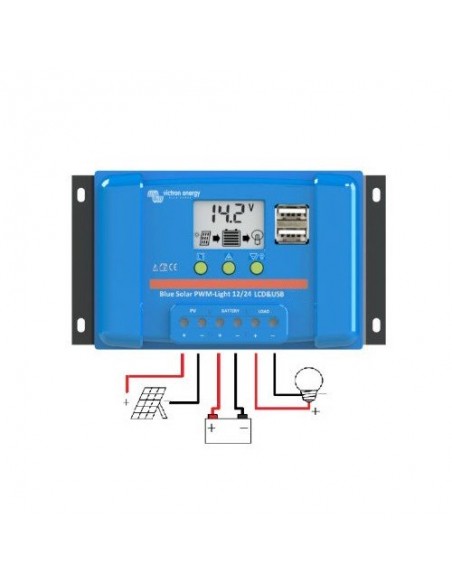

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual. The connect and disconnect voltages are adjustable.
Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.
IMPORTANT
• Always connect the battery first, in order to allow the Controller to recognize system voltage.
• Use a 12V (36 cells) solar array for a 12V system.
• Use a 24V (72 cells) solar array for a 24V system.
Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)
Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A
Technical features
Product code: SCC010010050
Battery Voltage: 12/24V with automatic system voltage detection
Rated charge current: 10A
Maximum solar voltage : 28/55V
Weight: 0,15kg
Dimensions (h x w x d): 96 x 169 x 36mm
Downloads
 |
Datasheet [LINK] | |
|
Multilingual Manual [LINK] | |
You can download all the other documentation on the website: www.victronenergy.com |
||
Customer care
 |
0882 22 82 47 | |
 |
[email protected] | |
- Product Code
- SCC010010050
- Technology (MPPT - PWM)
- PWM
- Nominal system voltage (VDC)
- 12 / 24 VDC Auto work
- Rated Battery Current
- 10A
