BlueSolar PRO PWM Charge Controller 20A 12/24V Automatic Victron Energy
SCC010020110
€70.74
VAT included
10 %
€64.31 Vat excl.

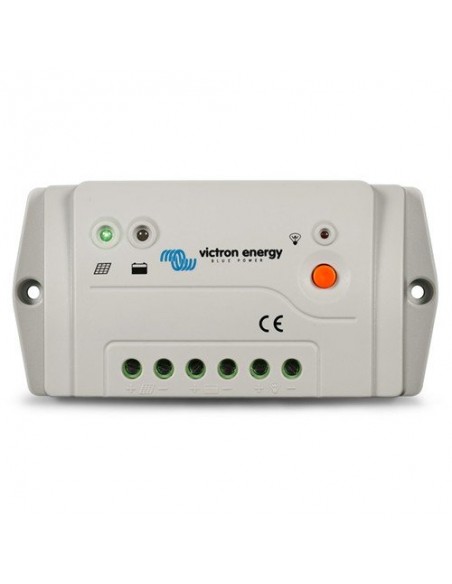

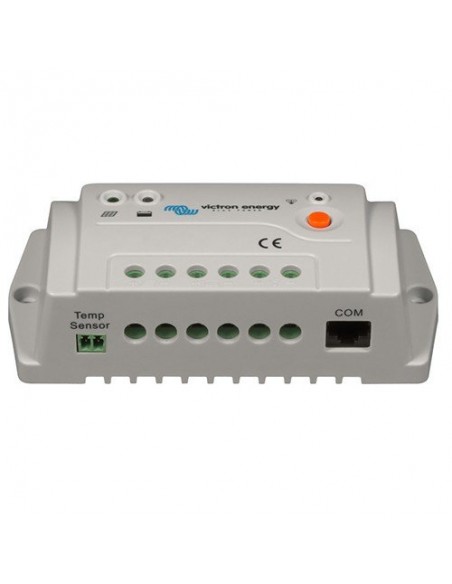

Charge controller Victron Energy PWM Pro Bluesolar 20A 12/24V with automatic system voltage detection
Are you a dealer or installer?
For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]
 |
BlueSolar PWM Pro Charge Controller 12/24V 20A |
Programmable:
The BlueSolar PWM-Pro series is ready for use with its default settings.
It also is fully programmable:
- With help of a computer and software (available from Victron Energy website)
- With the dedicated BlueSolar Pro Remote Panel (see features below).
Features:
- Lighting control function, fully programmable.
- Three stage battery charging (bulk, absorption, float), fully programmable.
- Integrated battery monitor function (Remote Panel needed to display state of charge).
- Load output with low voltage disconnect and manual control (default setting).
- Optional external temperature sensor.
- Load output protected against over load and short circuit.
- Protected against reverse polarity connection of the solar array and/or battery.
IMPORTANT
• Always connect the battery first, in order to allow the Controller to recognize system voltage
• Use a 12V (36 cells) solar array for a 12V system.
• Use a 24V (72 cells) solar array for a 24V system.
Technical features
Product code: SCC010020110
Battery Voltage: 12/24 V with automatic system voltage detection
Rated charge current: 20A
Maximum solar voltage : 28/55V
Weight: 0,3kg
Dimensions (h x w x d): 160 x 82 x 48 mm
Downloads
 |
Datasheet EN [LINK] | |
|
Manuale EN [LINK] | |
You can download all the other documentation on the website: www.victronenergy.com |
||
Customer care
 |
0882 22 82 47 | |
 |
[email protected] | |
- Product Code
- SCC010020110
- Technology (MPPT - PWM)
- PWM
- Nominal system voltage (VDC)
- 12 / 24 VDC Auto work
- Rated Battery Current
- 20A
8719076025382
