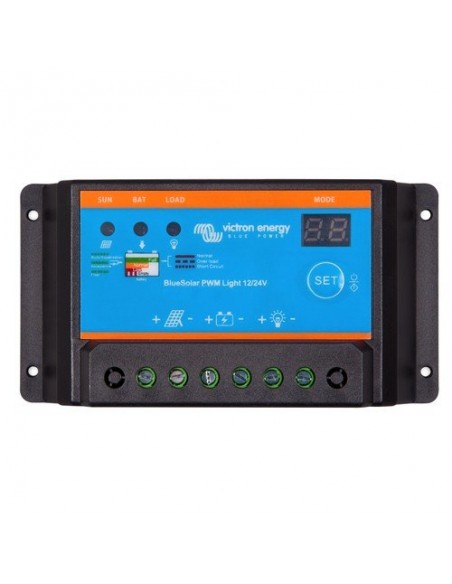

BlueSolar PWM Light Charge Controller 12/24V 5A |
BlueSolar PWM-Light
• Load output with low battery voltage disconnect function.
• Lighting control function, one timer only.
• Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
• Three stage battery charging (bulk, absorption, float), not programmable.
• Load output protected against over load and short circuit.
• Protected against reverse polarity connection of the solar array and/or battery.
• Day/night timing options: see manual for details
IMPORTANT
• Always connect the battery first, in order to allow the Controller to recognize system voltage.
• Use a 12V (36 cells) solar array for a 12V system.
• Use a 24V (72 cells) solar array for a 24V system.
Technical features
Product code: SCC010005000
Battery Voltage: 12/24 V with automatic system voltage detection
Rated charge current: 5A
Maximum solar voltage : 28/55V
Weight: 0,15kg
Dimensions (h x w x d): 70 x 133 x 33,5mm
Downloads
Datasheet EN [LINK] | ||
Manuale EN [LINK] | ||
You can download all the other documentation on the website: www.victronenergy.com |
Customer care
0882 22 82 47 | ||
[email protected] |
- Product Code
- SCC010005000
- Technology (MPPT - PWM)
- PWM
- Nominal system voltage (VDC)
- 12 / 24 VDC Auto work
- Rated Battery Current
- 5A
