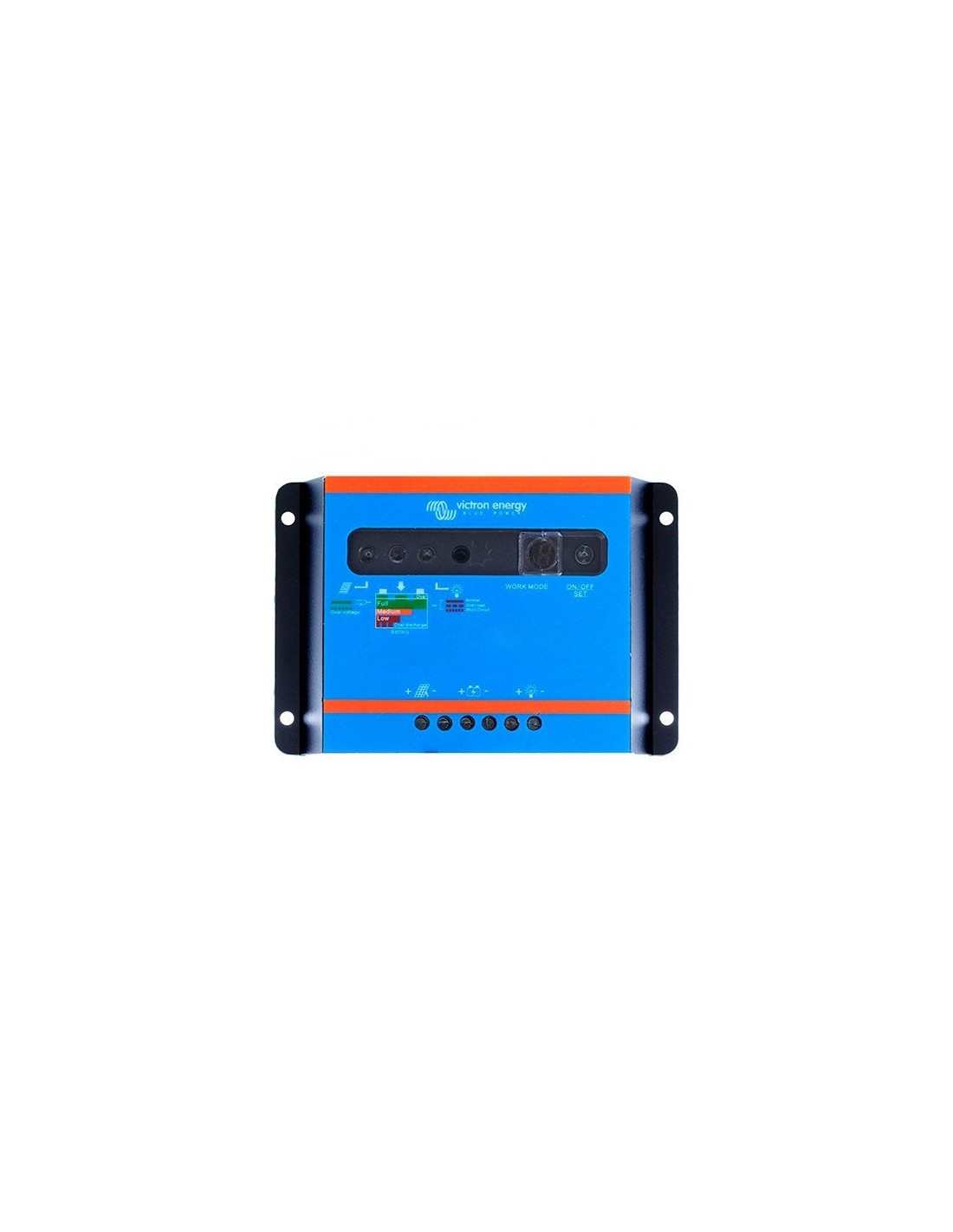

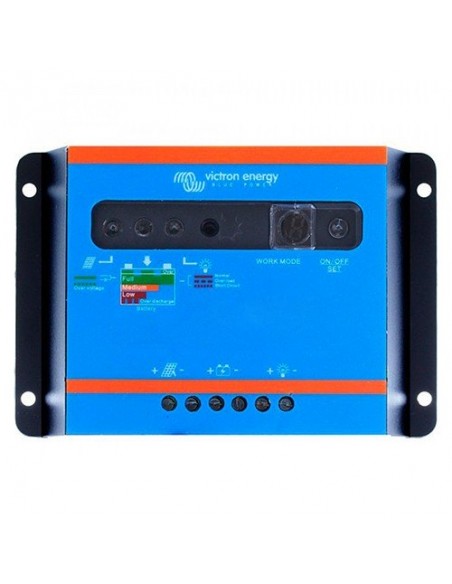

BlueSolar Light PWM Charge Controller 20A 48V Automatic Victron Energy

SCC040020020
€57.62
VAT included 10 %

€52.38 Vat excl.

Charge controller Victron Energy PWM Light Bluesolar 20A 48V with automatic system voltage detection



Are you a dealer or installer?

For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]

BlueSolar PWM Light Charge Controller
48V - 20A

BlueSolar 48V PWM-Light

  • Load output with low battery voltage disconnect function.
  • Lighting control function, one timer only.
  • Seven segment display for quick and easy setting of the load output functionality, including timer setting.
  • Three stage battery charging (bulk, absorption, float), not programmable.
  • Load output protected against over load and short circuit.
  • Protected against reverse polarity connection of the solar array and/or battery.

IMPORTANT

• Always connect the battery first, in order to allow the Controller to recognize system voltage.

• Use a 4x36 cells or 2x72 cells for a 48V battery system.

Technical features

Product code: SCC040020020

Battery Voltage: 48V

Rated charge current: 20A

Maximum solar voltage : 100V

Weight: 0,15kg

Dimensions (h x w x d): 95 x 140 x 33,5mm


   Downloads

Datasheet EN [LINK]
Manuale EN [LINK]

You can download all the other documentation on the website: www.victronenergy.com

   Customer care

0882 22 82 47
[email protected]
Product Code
SCC040020020
Technology (MPPT - PWM)
PWM
Nominal system voltage (VDC)
48VDC
Rated Battery Current
20A
8719076025580
