BlueSolar Light PWM Charge Controller 10A 48V Automatic Victron Energy
SCC040010020
Last items in stock
€63.68
VAT included
10 %
€57.89 Vat excl.

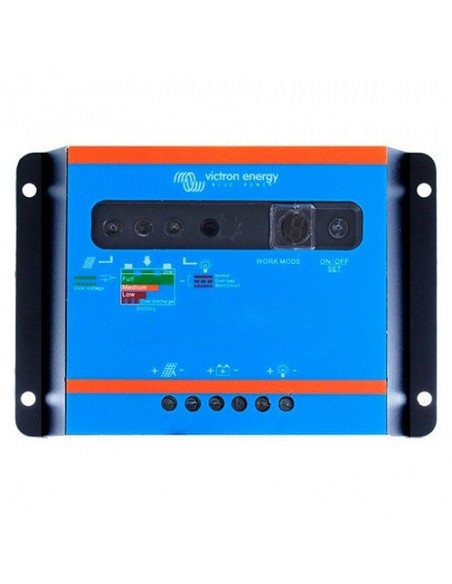

Charge controller Victron Energy PWM Light Bluesolar 10A 48V with automatic system voltage detection
Are you a dealer or installer?
For bulk purchase of Victron Energy products called the n. 0882 228247, or write to [email protected]
 |
BlueSolar PWM Light Charge Controller
|
BlueSolar 48V PWM-Light
- Load output with low battery voltage disconnect function.
- Lighting control function, one timer only.
- Seven segment display for quick and easy setting of the load output functionality, including timer setting.
- Three stage battery charging (bulk, absorption, float), not programmable.
- Load output protected against over load and short circuit.
- Protected against reverse polarity connection of the solar array and/or battery.
IMPORTANT
• Always connect the battery first, in order to allow the Controller to recognize system voltage.
• Use a 4x36 cells or 2x72 cells for a 48V battery system.
Technical features
Product code: SCC040010020
Battery Voltage: 48V
Rated charge current: 10A
Maximum solar voltage : 100V
Weight: 0,15kg
Dimensions (h x w x d): 95 x 140 x 33,5mm
Downloads
 |
Datasheet EN [LINK] | |
|
Manuale EN [LINK] | |
You can download all the other documentation on the website: www.victronenergy.com |
||
Customer care
 |
0882 22 82 47 | |
 |
[email protected] | |
- Product Code
- SCC040010020
- Technology (MPPT - PWM)
- PWM
- Nominal system voltage (VDC)
- 48VDC
- Rated Battery Current
- 10A
8719076025573
