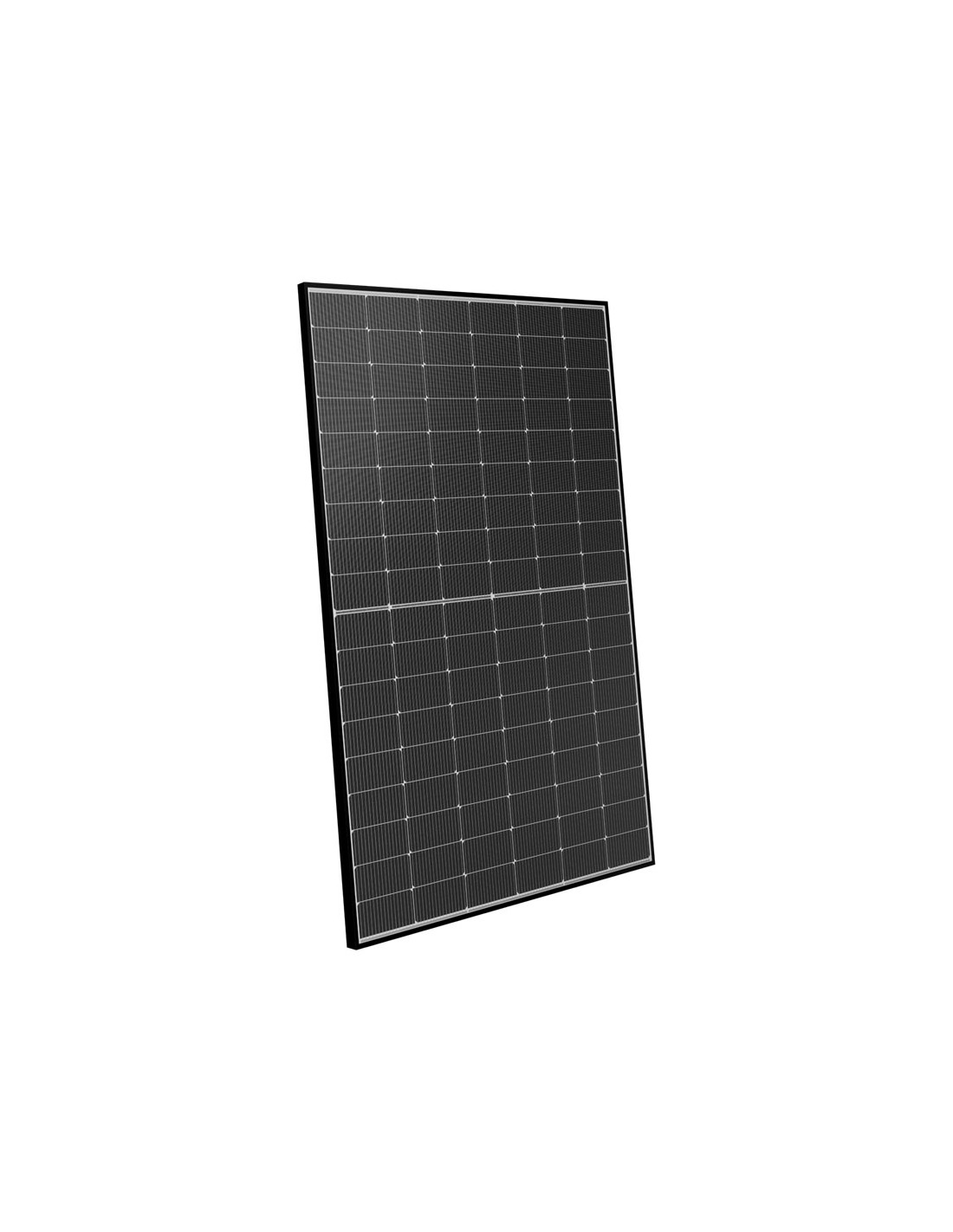

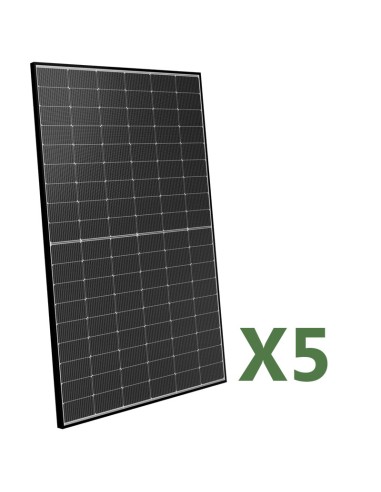

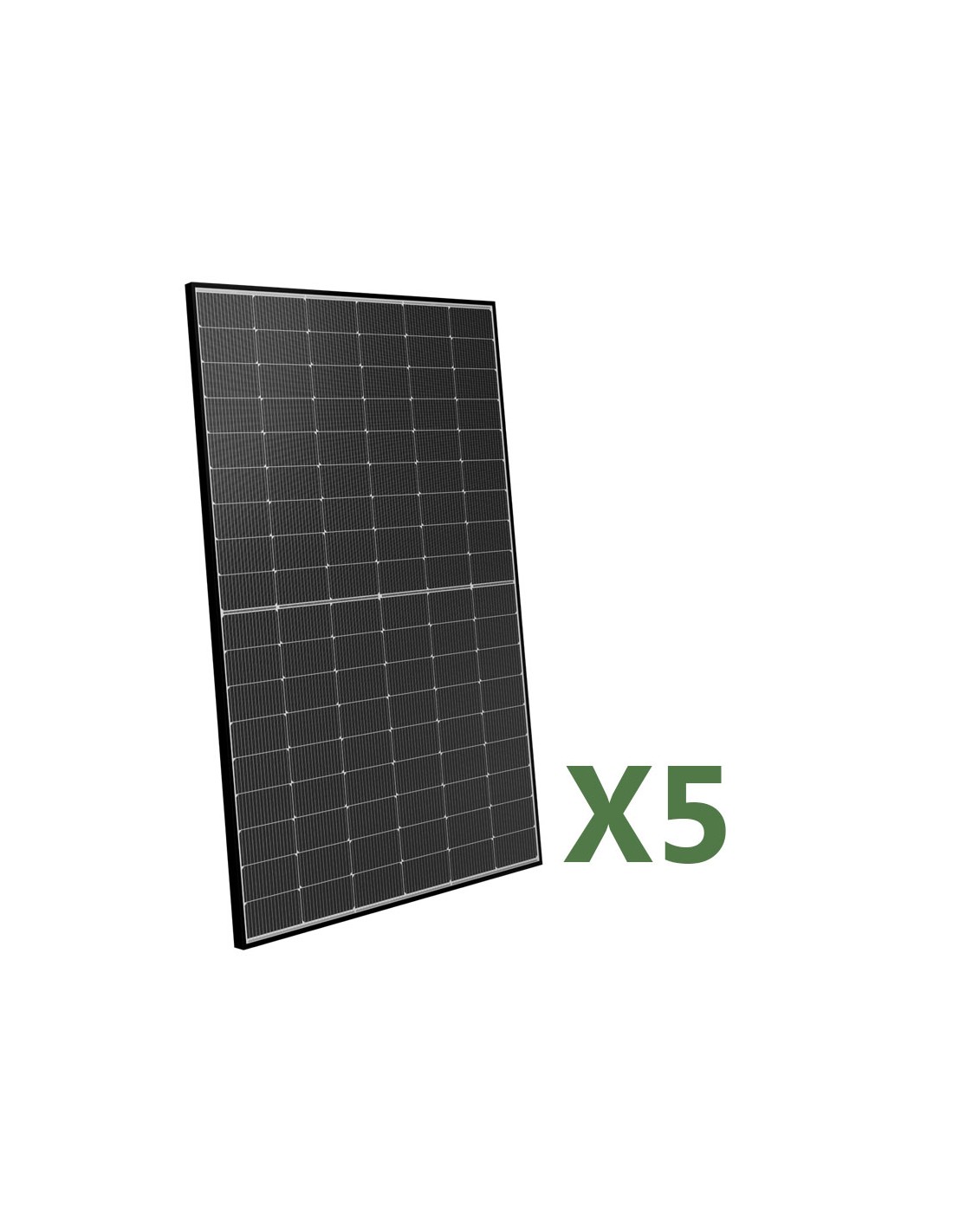

Set of 5 Peimar 440W total 2200W mono photovoltaic solar panels black frame
Set of 5 Peimar 440W total 2200W mono photovoltaic solar panels black frame
  • Pack
Set of 5 Peimar 440W total 2200W mono photovoltaic solar panels black frame
Set of 5 Peimar 440W total 2200W mono photovoltaic solar panels black frame

Set of 5 Peimar 440W total 2200W mono photovoltaic solar panels black frame

SET5-OR10H440MN-BF
€326.70
VAT included 10 %

€297.00 Vat excl.

Photovoltaic solar panel 440W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).

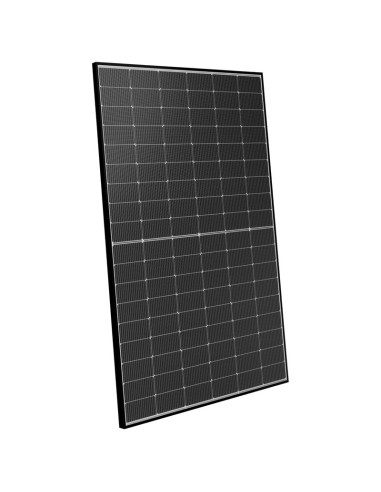

Set of 5 Peimar 440W total 2200W monocrystalline photovoltaic solar panels half cells black frame

Model: OR10H500M-FB


The 108-cell Half Cut module from the Import Line range combines the high production efficiency of half cell technology with an excellent quality/price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the product’s yield. For these reasons, the Import Line Half Cut range is suitable not only for industrial installations but also for residential and commercial installations.

Features

  • N-TYPE TECHNOLOGY;
  • ANTI-REFLECTIVE GLASS;
  • QBE INSURANCE;

For more details, download the following documents:


Technical features:

ELECTRICAL CHARACTERISTICS
MODEL OR10H500M-FB
Nominal Output (Pmax) 500W
Voltage at Pmax (Vmp) 37.41V
Current at Pmax (Imp) 13.37A
Open Circuit Voltage (Voc) 45.43V
Short Circuit Current (Isc) 13.85A
Maximum System Voltage 1500V
Maximum Series Fuse Rating 25A
Module Efficiency 21.06%
MECHANICAL CHARACTERISTICS
Solar Cells 108 M10 HALF monocrystalline PERC
Frame Anodized aluminium alloy, double wall
Junction Box IP67 rated
Cables Section 4.0 mm²
Dimensions 2094 x 1134 x 30 mm
Weight 25 kg
Pieces per pallet 36 pieces per pallet



Customer Service


0882 22 82 47

Nominal Output (Pmax) W
440W
Connector Type
MC4 o connettori compatibili
Type Panel
framed
Product Origin
Asian
Cell type
Monocrystalline
Number of cells
108
8370000048091
